Giradischi TRANSROTOR modello Gravità TMD
Braccio Sme 5009 e Sme 5012 (da verificare)Testina van den Hul Jubilee
Standardausstattung/Merkmale
•
K ardanische L agerung des gesamten Laufwerkes: E s kann frei in alle R
ichtungen schwingen, so werden Vibrationen des Untergrunds ausgeglichen• Antrieb
mit M agnetkupplung (TMD) • 3 M otoren • M aterial Acryl schwarz, Aluminium
massiv, handpoliert • Netzteil K onstant M -3 • Auflagegewicht chrom •
Quintessence-Schalter
Breite 60 cm Tiefe 53 cm Höhe 100 cm Gewicht 150 kg
Remember DaVinciAudio Labs’ AAS Gabriel
turntable with gold-leafing on it? Now the time has come to revive the memories,
with Transrotor’s Quintessence for those with deep pockets. The luxury turntable
comes with a lustrous layer of chrome and gold to give it classier look. The
turntable appears to be something more like a piece of art crafted for the
purpose of showing up in a museum. It is designed to create quality music output
by zeroing noise and vibrations by means of isolating the pick-up arm from the
rest of the body. As the product page suggests, the clear style of the device,
the audio output of highest quality, exclusivity and the absolutely mature
musical qualities are a few advantages of the turntable that convince a buyer to
shell . By incorporating all standard traits of the manufacturer, this device
utilizes hydrodynamic bearings with black acrylic gilt weights embedded in the (bearing)
reservoir. The turntable weighs around 70 kg.
Pretty
rare, almost non-existent. According to one service engineer, the Dragon CT was
much more reliable and better sounding than the bigger TX-1000. I wouldn't know
but the goal was basically the same - and the same as that used in the original
Dragon cassette recorder, only on a larger scale.Off-center records are a pain
and there isn't much one can do if the record is pressed that way ! Well, there
is something one can do : search for the real center of the record and adjust
the turntable platter to budge so that the off-centered record can be read as if
it were not off-centered. No small feat on a cassette recorder (for proper head
azimuth) but imagine that on a record player !So, the little arm at the back
scans the record groove, decides where the "absolute center" is and the whole
turntable assembly then moves accordingly - the cart is no more pushed around
left and right and just reads the groove.The main tonearm was sourced from
Jelco.UPDATE ! If the TX-1000 was designed by Etsuro Nakamichi (but quite
probably built by Micro Seiki), the Dragon CT was "sourced" elsewhere :
Nakamichi commissioned Junichi Okumura, then at Fujiya Audio Ltd, to design the
CT after the basic goal outlined by Etsuro !This explains the large differences
in approach and engineering between the TX and the CT.Fujiya was later in the
1980s absorbed by NEC and units such as the Dragon CT were scrapped from the
books. And when NEC shut down its own audio/video activities in the mid 1990s,
well, the Dragon CT definitively vanished from the landscape.Thanks to
Shinichiro Okumura, son of Junichi, for unveiling this revealing bit of history
Two Speed Direct Drive Turntable DescriptionThe Nakamichi Dragon-CT turntable is
a 2-speed, integrated turntable system.The Dragon's platter is a massive glass/cast
alloy design with a dense rubber mat.The fully adjustable subchassis is high
mass and suspended.The Quartz motor is a direct drive type with electronic speed
control and switching.The most unusual feature of the Dragon turntable is the
additional arm which is used to check for disc eccentricity, and the two-part
platter which allows for it's correction.
Giradischi ORACLE modello Delphi MKV, Black
African Granite, Gold Edition,Completo di braccio Oracle Sme 345, testina van
den Hul Specifications Delphi MKV
Turntable Type: 33.3 / 45 rpm vinyl record playback system Drive system: Single
belt Motor Type & Control Method: A.C. synchronous motor, electronically
controlled with adjustable speed of ±5 percent Turntable Plinth Material:
Acrylic Platter Material: Aluminum with specially designed top Wow & Flutter:
0.010% DIN Weighted Suspension: Floating using springs with a resonant frequency
of 3.5Hz Dimension: 14.5 x 19 x 6 (WxDxH in inches) Weight: 35 pounds
Warranty: 2 years against manufacturer's defects Oracle 345 Tonearm Type: Static
type Effective Length: 232.2 mm with sliding base. Center to turntable center of
213.4mm Effective Mass: 9.5gCartridge Balance Range: 6 to 17 grams Output
Terminal: 240° (D.I.N.5-Pole) Weight: 717 grams
Technics
SP25 Entry level 2-speed studio turntable with pitch control. Based on the
SL1200 motor unit. Optional plinth units where available in black (SH-15B3) or
simulated rosewood veneer (SH-15B2), both of which where constructed from a
heavy, acoustically dead, rubber material. (1979-88)Description The SP-25
turntable offers a similar standard of excellence as the SP-10mkII professional
units. Features include total quartz locked pitch control within a 6% range from
rated speeds, full cycle detection FG, extremely high torque, a large turntable
platter with high moment of inertia, electronic braking system, integral rotor/platter
motor construction and highly effective chassis damping.Quartz locked control
means virtually perfect speed accuracy. But in most quartz controlled turntables,
this accurate speed control circuit is defeated when pitch changes are required.
Now, with the SP-25, pitch is variable continuously (analogically) under total
quartz locked control. Specifications Drive method: direct drive Speeds: 33 and
45rpm Motor: quartz locked Pitch control: +-6% Wow and flutter: 0.025% WRMS
Rumble: -78dB Start-up time: 0.7s to 33rpm Dimensions: 349 x 85 x 372mm Weight:
4.8kg- - vesione
110 volt necessita trasformatore.
Description The Denon DP-59L turntable has the following features: An electronic
Q-damping (DST) low-mass straight tonearm A thick, precision 2.2kg turntable
platter Quartz locking speed control AC servo motor Auto-lift mechanism
Interchangeable tonearm wands The unit is housed in a beautifully finished,
mirror surface cabinet with internal vibration insulation. Specifications Type:
direct drive Speeds: 33.33 and 45rpm Wow and flutter: 0.006% WRMS Signal to
noise ratio: better than 82dB Dimensions: 490 x 219 x 410mm Weight: 15kg
B&W NAUTILUS Per offerta Telefonare/
invia un e-mail
Divenuto ormai un classico nel suo
genere, il Nautilus rappresenta non solo l”’ammiraglia” del catalogo Bowers &
Wilkins, ma anche la vetta insuperata dell’innovazione tecnologica nel settore
specifico. Nautilus è il risultato straordinario di cinque anni di ricerca,
sviluppo e sperimentazione sul campo per tentare di avvicinarsi, il più vicino
possibile, il concetto di “perfezione”. Il B&W Nautilus è stato accolto con
grande apprezzamento in tutto il mondo, diventando l’ineguagliabile riferimento
che ha indirizzato l’industria audio nel nuovo millennio. Naturalmente, un
prodotto tale unicità si rivolge ad un pubblico esclusivo, sebbene possa
incuriosire ed appassionare chiunque abbia un po’ a cuore l’industrial-design.
Il Nautilus è senza ombra di dubbio un prodotto per veri e consumati audiophili.
Questo non solo per la forma o le dimensioni, quanto sopratutto per il suo
funzionamento elettro-acustico. Il Nautilus è difatti un disegno “attivo”, il
cui filtro di ripartizione delle frequenze (crossover) è incorporato in una
unità sé stante, la quale va inserita tra preamplificatore e finale/i di
potenza. Essendo un 4vie/4 altoparlanti, il Nautilus ha bisogno, per essere
pilotato adeguatamente, di un preamplificatore stereo abbinato a 4 finali di
potenze stereofonici o a 8 finali monofonici, di potenza compresa tra i 100 ed i
500 watt, l’indeale quest’ultimo, per la gamma bassa. Nelle pagine Audiogamma
questo tipo di amplificazione è disponibile sotto i marchi Classé Audio e Jeff
Rowland. Chi volesse ottenere il massimo, può prendere in considerazione il
preamplificatore stereo a valvole Convergent SL-1 Legend, segnalato come “il
migliore preamplificatore al mondo”. Per le sorgenti all’altezza della
situazione si consiglia di consultare anche il marchio Esoteric. 4 vie, 4
altoparlanti. Sistema acustico con woofer operanti in sospensione pneumatica e
medi, medioalti ed alti in linea di trasmissione. Filtri di crossover
elettronici esterni in dotazione. Interamente costruite mano. Finiture: "Midnight",
"Blue", "Silver". Il sistema Nautilus va pilotato esclusivamente in
quadriamplificazione, con 4 finali stereo o 8 finali mono con potenza compresa
tra 100 e 300 watt continui su 8 ohm La risposta in ferquenza, in asse, va da 40
hertz a 20 kHz entro 1 dB di tolleranza.•Dimensioni: 1210x430x1105 mm. (HxLxP) •Peso: 86.5 kg.
WILSON AUDIO ALEXANDRIA
X1Per offerta Telefonare/
invia un e-mail
Wilson Audio X-1 Without any frame of
reference, i.e. the two speakers side-by-side, only the most fanatical of
Wilson-spotters can tell a Grand SLAMM X-1 from an Alexandria X-2. And yet the
only part they have in common is the main tweeter. Here, for easy reference, is
a point by point list of the ways they differ. SPECIFICATIONS X-2 Alexandria X-1
Grand SLAMM Woofer loading: Ported, front-slotted; ceramic Ported, milled
phenolic resin aluminium, rear open-back vent; not frequency-tuned but impedance
curve tuned mid-section Bass drivers: 1x15.5in,1x13in Focal 1x15in, 1x12in Focal
Midrange: 2x7in Vifa (proprietary to Wilson) 2x6in Dynaudio Tweeter: 1in
inverted dome Focal (built by Wilson) same Supertweeter: 1xScanspeak 2xHarman
Frequency response: 18-22.5kHz, -2 dB 19.5-22.5kHz, -3dB Crossover points:
NA (proprietary) NA (proprietary) Impedance: 8 ohms same Sensitivity: 95dB@1W
same Dimensions (HWD): 72 (variable)x17.5x26.75 72x16.5x25.25 Weight
ea: 750lbs 600lb
3/4" concave pure tweeter 3 1/2"
concave ceramic dome midrange 11" Nomex-Kevlar composite cone woofer
Sensitivity 87 dB (2.83V, 1 meter) Impedance 4 ohms nominal (3.6 ohms
minimum) Frequency Response 24Hz to 100kHz (+/- 1.5 dB, anechoic)
Recommended Amplifier Power 50 to 500 watts Wiring Methods Two position
terminal block, designed to accept spade lugs for #10 screws
Dimensions 43 _" high 12" wide 17" deep Weight 150 pounds each
(68 kg each)
3/4" concave pure tweeter 3 1/2"
concave ceramic dome midrange 11" Nomex-Kevlar composite cone woofer
Sensitivity 87 dB (2.83V, 1 meter) Impedance 4 ohms nominal (3.6 ohms
minimum) Frequency Response 24Hz to 100kHz (+/- 1.5 dB, anechoic)
Recommended Amplifier Power 50 to 500 watts Wiring Methods Two position
terminal block, designed to accept spade lugs for #10 screws
Dimensions 43 _" high 12" wide 17" deep Weight 150 pounds each
(68 kg each)
Bower & Wilkins Silver Signature 30. Serie
limitata per celebrare il 30 anniversario. Struttura interna Matrix. Cablaggio,
crossover, morsetti in argento puro.
Description 3-way closed box system Dimensions
Height: 318mm (12.5 in) Width: 783mm (30.8 in) Depth: 316mm (12.4 in) Net Weight
21kg / 46 lb Freq. Response 49Hz - 20kHz ± 2dB on reference axis Freq. Range
-6dB at 35Hz and 30kHz -3dB at 42Hz and 22kHz Sensitivity 90dB spl (2.83V 1m)
Normal Impedance 8 ohms (minimum 3 ohms) Power Handling 50 - 250W into 8 ohms on
unclipped program material Drive Units Unit 1: 1x 25mm (1 in) metal dome
high-frequency Unit 2: 1x 150mm (6 in) woven Kevlar® cone FST midrange Unit 3:
2x 165mm (6.5in) paper/Kevlar® cone bass Finish Cabinet: Real wood veneers Black
ash, Cherrywood, Red wood cherrywood Grille: Black Cloth Dispersion Description:
Within 2dB of response on reference axis Horizontal: over 60° arc Vertical: over
10° arc Harmonic Distortion 2nd and 3rd harmonics (90dB, 1m) <1.0% 70Hz - 20kHz
<0.5% 150Hz - 18kHz Crossover Frequency 350Hz and 4kHz Max. Recommended Cable
Impedance 0.1 ohms
Final Sound ha
innovato lo sviluppo della tecnologia avanzata dei diffusori elettrostatici per
oltre un decennio. L'azienda è stata fondata nel 1991, producendo un modello di
diffusore ibrido originale. Questo diffusore miscela la tecnologia dinamica per
le basse frequenze e la tecnologia elettrostatica per le frequenze medie e alte.
Durante gli anni 90, Final Sound ha servito esclusivamente il mercato audiofilo.
Nel 2002 l'azienda ha ricevuto un brevetto americano sulla tecnologia che ha
reso possibile la creazione di diffusori elettrostatici modulari, separando il
pannello diffusore dal mobile. Questa tencica ha semplificato enormemente il
processo produttivo, abbassando i costi di produzione ed espandendo il mercato
dei diffusori elettrostatici ad alta definizione di modo da coinvolgere anche il
settore del cinema in casa. The 1000i is the crème-de-la-crème of the Final
Sound family. The 1000i panels are all about the thrill and stunning experience.
Do your speakers leave you breathless? Listening to the 1000i panels is almost
like enjoying forbidden fruits. The 1000i excels at re-creating stunning detail,
like the rise and fall of a wave on the summer sea or the texture the bow
dragging across the violin strings. The 1000i is a winner for not just the ear
but also the eye. Patented Technology You Can Only Get from Final Sound
Electrostatic speakers represent the pinnacle of high-end audio performance. The
unique electrostatic technology delivers the purest and most lifelike form of
sound reproduction available in today’s market. For decades, the sheer cost of
production has kept these audio marvels beyond the reach of most hi-fi and
stereo consumers. Now, thanks to exclusive new technology pioneered and patented
by Final Sound, a line of high-definition, high-performance electrostatic
speakers are available at popular prices and designed especially for the home
theater.Specifiche tecniche Frequency response (Hz) 38-20k +/- 3dB Sensitivity (dB)
86 (2.83 volts at 1 meter) Impedance (ohm) Minimum of 4 ohms Amplifier minimum
(watt) 75 Amplifier recommended (watt) 120 Dimensions (cm) 199 x 36 x 5
Dimensions electronics housing (cm) 29 x 14 x 8.0 Weight (kg) 23
POTENZA : 300/500 Watt RISPOSTA IN
FREQUENZA: 28 Hz - 42 kHz SENSIBILITA': 85 dB (1Watt/1m) IMPEDENZA:4 Ohm 180 Hz/900
Hz/4 kHz TAGLIO FILTRO, 305 mm WOOFER, 165 MEDIO
BASSO High-Energy EMIM MEDIO ALTI , EMIT (front), EMIT-R (rear) TWEETER
122
x 39 x 38 cm (H x B x T) PESO: 55 kg
Damped 4th-order reflex tuned at 26Hz Drive Units: 1 x 300mm (12 inch) Cobex®
cone bass driver with 50mm (2 inch) high temperature voice coil, low hysteresis
surround, and magnetic shielding Frequency Response: -3dB at 35Hz Sensitivity:
89dB spl (2.83V 1m) Nominal Impedance: 8 ohms (minimum 4 ohms) Power Handling:
50W - 200W into 4-8 ohms on unclipped program Dimensions: Height: 600mm (23 7/8
inches) Width: 580mm (22 7/8 inches) Depth: 598mm (23 ½ inches) Finish: Cabinet:
Black Ash, Grille: Black Cloth Special features: Approved to Lucasfilm Home THX
specifications
REL
Stadium III on test By Jason Kennedy Overview: Price: £1500 Website:
www.rel.net Size: HxWxD -
55.8x59x39cm Weight: 50kg Finishes: Black ash, cherry, light oak, rosenut,
walnut Drive unit: 250mm long throw Power: 200 watts REL is a small dedicated
company based in Bridgend, south Wales and committed to bass. It could be argued
quite easily that REL founder Richard E. Lord put the subwoofer or sub-bass
loudspeaker system on the hi-fi map. Before he appeared on the scene the
subwoofer was not the kind of thing any self respecting audiophile would
consider giving house room to. This may have been because most of the species
were sold with satellite loudspeakers or simply because no one had made a
serious subwoofer before, one that could enhance rather than muddy the quality
of regular speakers.The key feature that makes REL subs so easy to get a good
result with is the ability to adjust the roll-off point of the sub so that it
marries seamlessly with the stereo speakers. REL subs are not designed to
increase the amount of bass produced by a system but to extend the bandwidth of
the existing speakers. For a stereo speaker to be able to extend down to the
12Hz (-6dB) claimed for the Stadium III it would have to be as big as a fridge,
a big fridge at that. The reason the REL is able to do that with a 65 litre
cabinet is that it is actively driven, it has its own 200 watt MOSFET power amp
and electronic crossover which means that it can boost the output at very low
frequencies. In other words it drives the big ten inch Volt drive unit harder
therefore producing more bass energy.Another reason for REL's success is
inclusion of both high and low level signal inputs, this means that you can feed
the sub exactly the same signal that you send to your speakers via the high
level input. The connection is made with a three core cable that hooks up to
your amplifier's speaker outputs. There is of course the low or line level input
but this is really only appropriate for surround sound processors which have a
dedicated LFE (low frequency effects) output. Sound quality To integrate the
Stadium III with your speaker traditionally requires that you roll the sub in at
the point your speaker rolls off and then set output level to match the speaker.
However, I have found that if you set roll off three or four dB higher than the
speaker's roll-off and turn the output level down a bit you can get a better
result. There are many surprising aspects to the sound of this sub not least
being the way that it enhances the high frequency performance of all the
speakers I have tried it with. It introduces a sense of open spaciousness that
is hard to accredit to an improvement in low frequency extension and power. It
must be something to do with the way that bass defines a space but is not an
easy phenomenon to explain. Yet it is not in the least bit subtle and gives the
REL considerably more appeal than you would expect an extra octave or two in the
bass to produce.The bass does of course help matters considerably, it adds a
foundation to the sound that gives the rest of the range something to work from,
something solid. This seems to apply regardless of the bass content of the music.
There is a tendency to think that only your Prodigy and Grace Jones albums will
sound a lot better with a decent sub but the Stadium III boosts everything you
play. The more familiar and well loved the album the more exciting the result,
even albums like Jeff Beck's Wired, which is clearly fantastic yet can sound
compressed, takes on a whole new sense of purpose and solidity with this sub.All
this is achieved without you thinking wow there's loads of bass, in other words
you are not skewing the balance of your system, the main speakers sound the same
but better. And if you turn the sub off you don't think where has the bass gone,
you think why is the sound small and relatively flat. You can set it up so that
it goes boom and everyone knows there's a sub in the room - which can be fun I'll
grant you - but for long term musical satisfaction an integrated sound is the
way forward, the approach that's going to reveal more of the music and the venue
it's played in.
Key
Features Active subwoofer 150W RMS power amplifier 250mm downward-firing
long-throw drive unit Bass from 16Hz-99Hz (manufacturer claim) Front status LED
panel, controlling all settings Remote control with user memory settings Child
locks Phono low-level and Neutrik Speakon high-level connections LFE by-pass for
direct amplifier control Power-saving amplifier system Connections 2x
gold-plated phono socketsfor low-level inputs Neutrik Speakon socket for
high-level input Three-pin IEC mains socket Dimensions 464 x 334 x 324mmFull
action remote microprocessor control of all set-up parameters Large, blue
front-firing LED display True 150W (continuous) discrete, direct-coupled
MOSFET amplifier Downward-firing long-throw 250mm (10”) steel chassis
driver Improved ABC® filtering circuit calibrated in single Hz steps from
16 to 99 Variable Slam/Depth control –9dB to +9dB at 80Hz High
quality, gas-tight Neutrik Speakon input (high level) High quality,
panel-mounted single phono input (low level) 5-12V DC trigger
Parental control: front control panel may be locked Totally discrete input
circuitry for high and low level inputs Separate volume controls for high
and low-level adjustment Simultaneous connection of high and low level
sources Set-Safe® audibly transparent driver protection Double-sided
glass-fibre board with plated-through holes IEC power input socket and
switch - no captive leads for installation flexibility Finished in 30mm
MDF in Brittex Blac
W Ø 25 cm - ampli da 750 W
RMS con autoaccensione - filtro passa basso variabile 40÷120 Hz (escludibile) -
frequenza limite inferiore 24Hz -inversione fase - ingresso da pre o finale
finitura black-Cherry -telecomando in dotazione
RARE
INFINITY SERVO SUBWOOFER SSW-210 Great Working CONDITION Infinity SSW-210
Powered Subwoofer, TWO 10inch graphite subwoofers, high and low inputs, volume
control, adjustable crossover.Will make any home theatre system truly come alive.Features
an internal crossover and seperate volume level and equalizer controls.Will
accept line level inputs (rca) or speaker level.. There are some small scratches
and three places where a small screw was screwed into it. aside frome that this
sub is great. Specs from Infinity.. .Frequency Response: 30Hz - 120Hz
Crossover Frequency(ies): 40Hz - 120Hz continuously variable/adjustable. Power
Output: AMPLIFIER - 250 watts RMS (fuse protected) Woofer: Dual 10" IMG (Injection
Molded GRAPHITE).
CROSSOVER ORIGINALE PASSA ALTO
PER EMIT ED EMIN IDEALE PER AUTOCOSTRUTTORI O RICAMBIO
ORIGINALE PER :REINASSANCE80,REINASSANCE90
DISPONIBILI POCHI PEZZI AFFRETTARSI
STASIS-R 3.0 -
Stereo Control Preamplifier Fully balanced and complementary circuitry
from input to output Direct-coupled all-discrete solid state gainblocks
Remote-controlled high resolution analog volume control The STASIS-R 3.0
Stereo Control Preamplifier is Threshold's latest application of the technology
first employed in Threshold's flagship design, the STASIS-R 5.0. Like its more
costly parent, the 3.0 is a classic example of the fine craftsmanship that has
been the Threshold hallmark for 30 years. Striking a delicate balance between
art and technology, the 3.0 is a stunning performer both in the lab, where it
displays unsurpassed precision, and in the listening room, where it shows off
its unparalleled transparency, detail, and depth of image STASIS-R 3.0 Stereo
Control PreamplifierThe STASIS-R 3.0 Stereo Control Preamplifier is Threshold's
latest application of the technology first employed in Threshold's flagship
design, the STASIS-R 5.0. Like its more costly parent, the 3.0 is a classic
example of the fine craftsmanship that has been the Threshold hallmark for over
35 years. Striking a delicate balance between art and technology, the 3.0 is a
stunning performer both in the lab, where it displays unsurpassed precision, and
in the listening room, where it shows off its unparalleled transparency, detail,
and depth of image. The STASIS-R Series technology is the culmination of
Threshold's years of research and development -- and is arguably a benchmark
against which other preamplifiers, regardless of price or technology, must now
be compared. Ergonomically, the unit is a pleasure to use. Volume, balance,
source selection, mute and programming can be controlled with either the simple
front-panel controls or with the supplied hand-held remote control. The source
selected and volume level are displayed continuously on an attractive,
easy-to-read LCD blue-white screen that switches to display other functions when
needed. This display, together with the rotary digitally-controlled analog
volume control, allows levels to be adjusted in 0.5 dB increments for precise,
repeatable settings. The Threshold STASIS-R 3.0 is an exceptional product in
technical terms, designed as a tool to meet the needs of the most demanding
audio professionals, but it is also one with a truly remarkable ability to stir
the heart of even the most jaded audio purist. STASIS-R 3.0 Features Fully
balanced from input to output providing extremely high common-mode rejection and
cancellation of most distortion artifacts All-discrete direct-coupled solid
state gainblocks Fully complementary circuitry Short direct signal paths Rotary
volume control, 80 dB range in 0.5 dB increments Easy-to-read LCD matrix display
(blue/white, 2-line, 16 character) Custom machined aluminum infrared remote
control Oversize toroidal power transformer Separate power supply sections for
left and right channels Separate independent power supply for digital control
circuitry Premium components such as military-grade precision resistors,
computer-grade capacitors, military-grade glass-epoxy circuit boards Gold-plated

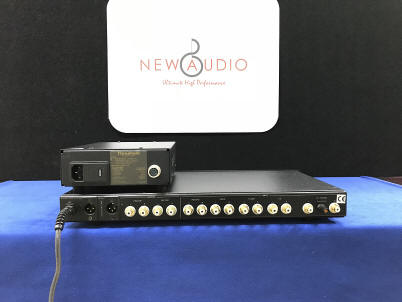

RCA jacks ensure optimum signal transfer and extended life Neutrik XLR
connectors Trigger output (12V) for on/off control of ancillary equipment (e.g.
power amplifier, active subwoofer, etc.) Bypass mode for integration into Home
Theater system RS-232C port for software updates and future features Threshold
Data Link (T-LINK) port for control and communication with other Threshold
equipment Traditional Threshold rugged chassis construction High
reliability Unsurpassed precision and sonic excellence Inputs: 1 balanced
(XLR) and 5 unbalanced (RCA) stereo pairs Line outputs: balanced (XLR) and
unbalanced (RCA) stereo pairs Record outputs: unbalanced (RCA) stereo pair
Rack mountable design (optional rack-mount accessories required)
Attractive polished silver-anodized aluminum front panel Hand assembled in
the USA 3.0 Specifications Frequency Response: DC-100kHz; +/- 0.5dB
20Hz-20kHz Distortion: 0.02% at 1kHz, 2Vrms Output Gain: 12 dB
Signal-to-Noise Ratio: Greater than 100dB (Ref. 1V input, maximum gain, 20kHz
bandwidth) Input Impedance: 20k Ohm balanced, 10k Ohm unbalanced
Input Sensitivity: 1.12V RMS Output Impedance: less than 100 Ohms
Output level: maximum 16Vrms balanced, 8Vrms unbalanced Trigger output:
12V for on/off control of ancilary equipment Dimensions & Weight
17.1'' W x 13.5'' D x 3.5'' H (3.75'' H including rubber feet) 43.5 cm W x
34.3 cm D x 8.9 cm H (9.6 cm H including rubber feet) Shipping weight: 16
lbs., 8 kg Net weight: 12 lbs., 6 kg
Pre stereo in classe A -Risposta in frequenza1.5-125.000-distorsione
armonica:0,02% a 3v di uscita-distorsione di intermodulazione:0,02% a 3v di
uscita-Sens/imp. ingressi aux-linea:25.000 ohm+20db-rapporto s/n
110dB-uscite:imp.100ohm,20v picco a picco- dimensioni 48x8x16.5 cm-Peso 2kg
-note: alimentazione separata
Pre stereo in classe A -Risposta in frequenza: 1.5-125.000-distorsione
armonica:0,02% a 3v di uscita-distorsione diintermodulazione:0,02% a 3v di uscita-Sens/imp ingresso phono:-guadagno
selezionabile 40o 60dB imp.variabileda 22 a 47.000 ohm-Sens/imp. ingressi
aux-linea:25.000 ohm+20db-RAPPORTO S/N:-80dB a 1mv ingresso,-100dBingressi basso
guadagno-Dimensioni 48x8x16.5cm -Peso 2kg -note: alimentazione separata
Pre stereo in classe A -Risposta in frequenza: 1.5-125.000-distorsione
armonica:0,02% a 3v di uscita-distorsione diintermodulazione:0,02% a 3v di uscita-Sens/imp ingresso phono:-guadagno
selezionabile 40o 60dB imp.variabileda 22 a 47.000 ohm-Sens/imp. ingressi
aux-linea:25.000 ohm+20db-RAPPORTO S/N:-80dB a 1mv ingresso,-100dBingressi basso
guadagno-Dimensioni 48x8x16.5cm -Peso 2kg -note: alimentazione separata
Description:
Line-level preamplifier with optional phono stage.
Inputs: 3 pairs balanced (XLR), 5 pairs single-ended
(RCA, optional), 2 pairs phono (XLR or RCA), 2
Controller/DC cable connectors, ground terminal. Outputs:
2 pairs balanced (XLR), 2 pairs single-ended (RCA), 1
pair record-out (XLR), 2 pairs record-out (RCA).
Controller connectors: IEC AC mains receptacle, ground
terminal, 2 Controller/DC cable connectors, three 3.5mm
mini-jacks (for IR input, trigger out, trigger in), 3
Mark Levinson Link communications connectors, 6-pin
RJ-11 RS-232 port, two 8-pin RJ-45 control ports (PHASTLink;r-compatible).
Maximum voltage gain: 0, 6, 12, or 18dB (line stage);
40, 60dB (optional phono stage). Volume control range:
80.0dB. Gain resolution: 0.1dB steps above 23.0 on
display (-57dB), 1.0dB steps below 23.0 on display
(-57dB). Input overload: 2V on XLR, 1V on RCA (gain set
to +18dB); 4V on XLR, 2V on RCA (gain set to +12dB); 8V
on XLR, 4V on RCA (gain set to +6dB); 16V on XLR, 8V on
RCA (gain set to 0dB). Frequency response: 10Hz-40kHz,
±0.1dB. Input impedance: 100k ohms. Output impedance:
less than 10 ohms on XLR, less than 20 ohms on RCA.
Maximum output (main outputs): 16V on XLR, 8V on RCA.
THD+noise: less than 0.001%. Crosstalk: better than
-120dB, any input to any output, input unterminated;
better than -140dB, input terminated. Residual noise:
20Hz-20kHz; better than -120dBV, input terminated. Mains
voltage: 100V, 120V, 220V, 230V, or 240VAC at 50 or 60Hz
(factory-set). Dimensions: Controller: 19.5" W by 3" H
by 13" D. Preamplifier: 19.5" W by 3.2" H by 11.4" D.
Shipping weights: Controller, 60 lbs; preamplifier, 46
lbs.
Input Connectors: 2 stereo balanced (Swiss
XLR female) 4 stereo single-ended (Madrigal RCA female) 1 Mark
Levinson Link communications connector 1 1/8" mini-jack for external IR
repeater Input Impedence: 100kOhms shunted by 680pF Input Overload:
Greater than 16V (0dB output) Mains Voltage: 100V, 120V, 200V, 220V, or
240VAC @ 50/60Hz Maximum Output: 16V rms, balanced Output Connectors:
2 stereo record outputs (Madrigal RCA female) 1 stereo balanced main out (Swiss
XLR male) 1 stereo single-ended main out (Madrigal RCA female) 1
Mark Levinson Link communications connector Output Impedence: Less than 6
Ohms Power Consumption: 40W maximum Volume Control Gain: -72.1dB to
+18.9dB Volume Control Gain Resolution: 0.1 dB steps above 38.8 in display
(-34 dB), gradually increasing step size at lower levels Weight: 35lbs.
(16 kg)

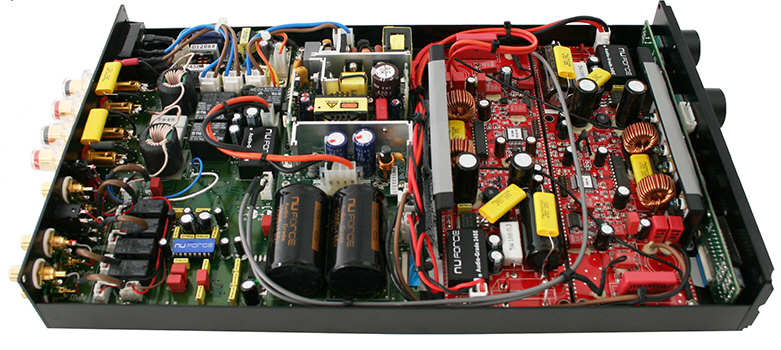

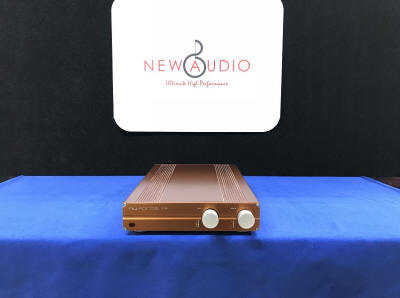

NUFORCE P8 ex
demo Offerta€.940,00
NuForce developed its prescient preamplifier technology from the ground up to
reassess and redefine faithful music reproduction. The firstimpressions of
listening to NuForce preamplifiersare those of pristine clarity, natural
tonality,expansive imaging, and realistic proportions of themusicians and their
instruments. Bass notes arewell defined and articulate, with addictive rhythmand
drive. P-8 is NuForce's entry level high-endpre-amplifier.Specifications• Audio
inputs: 3 sets of RCA inputs and a 3.5mm stereo input jack(for digital media
player, PC sound devices).• Audio outputs: 1 set of RCA,1 set of balanced
XLR,and a 3.5mm stereo headphone output withcross-feeding to create a natural
soundstage.• Remote input selection and volume control with memory (last
selection,volume level)• Mute and Sleep functions• Digitally-controlled switched
attenuator. Volume Range: +30dB to –70dBwith 0.5dB steps• Dynamic Range: >
100dB• Input Impedance: 4K ohm• Output Impedance: 40 ohm• THD+N at 1kHz: <0.01%,
typically 0.003-0.005%• S/N Ratio: > 85dB• Frequency Response:at 20-20kHz =
+0dB/-0.2dBat 20-170kHz = +0db/-3dB• Maximum output : 8V RMS• Crosstalk:
–130dBFS• Dimensions: 1.75”H x 8.5”W x 16”D• Weight: 6 lbs• 100W SMPS with PFC (Power
Factor Correction)• Power Requirements: 90-240VAC, auto select.
Ingresso Phono MM e MC a
guadagno/carico regolabile.L’impedenza di carico dell’ingresso Phono MC è predeterminata in fabbrica su un
valore di 100 ohm, valore adatto alla quasi totalità delle testine in commercio.
Tuttavia, se dovesse essere necessario un valore diverso, esso può essere
ottenuto mediante la semplice installazione di resistenze originali di alta
precisione (fornite).Ingressi per DUE registratori a cassette, con possibilità di copia incrociata,
lettore CD, sintonizzatore AM/FM.Ingresso audio ausiliarioUscita per DUE finali di potenza stereo, per un eventuale biwiring.Presa per comando a distanza per apparecchi Nakamichi.Controlli di tono escludibili.Dimensioni (l x h x p) : 435 x 63 x 287 mm.Peso : 5,1 Kg
Sensibilità Ingresso MC: 36 db
40uV/100 Ohm - 30 db 80uV/100 Ohm - 24 db 160uV/100 Ohm Sensibilità Ingresso MM:
2,5 Mv/50 Kohm Sensibilità Ingresso Tuner/Aux/CD/Tape: 150 Mv/12,5 Kohm
Sensibilità d'ingresso (New IHF): Phono MC: 36 db guadagno 10uV - 30 db
guadagno 20uV - 24 db guadagno 40uV Phono MM: 0,625 Mv Massima Sensibilità
Ingresso ( a 1 Khz Non Clipping Level - New IHF): Phono MM: 36 db guadagno 5 Mv
- 30 db guadagno 10 Mv - 24 db guadagno 20 Mv Phono MM: 320 Mv Livello Massimo
Uscita Pre-out ( 20Hz - 20.000 Hz - THD 1%) 7 V Distorsione Armonica Totale (THD)
20Hz /20.000 Hz: Phono MM/MC < 0,002% - CD/Aux/Tuner/Tape < 0,002% - PreOut
(2V): < 0,002% Risposta in frequenza: 1Hz - 100.000 Hz Rapporto
Segnale Disturbo (S/N) A Pesato: Phono MC < 87 db - Phono MM: < 88 db - CD/Tape/Aux
Tuner < 94 db Assorbimento: 42 Watt Max - Voltaggio 220/240
Dimensioni: 43,5 L x 8,2 A x 31,0 P - Peso: Kg 7,2 - Colore: Nero

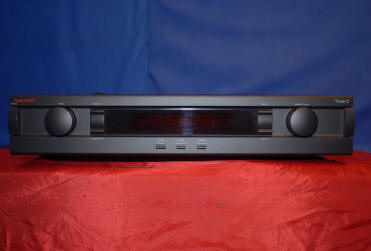

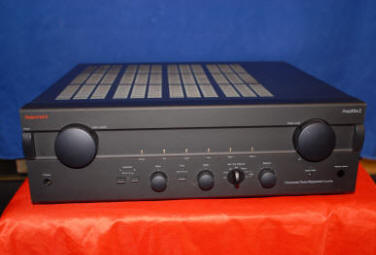

Excellent preamplifier
phone & line, top of the line Nakamichi preamp with: MM phono with selectable
capacitive & loading, MC phono with 3 gain settings, 2 aux, 2 out, 2 tape loops,
separate recording selector, mute, defeatable bass, mid and treble controls.
Retail: $2,700. Excellent sonics and art state build. Excellent detail, bass,
punch, warm sound
MCINTOSH MC 275 AMPLIFICATORE FINALE VALVOLARE - 75 W/CH 150 W/CH IN MODALITA`
MONO - INGRESSI BILANCIATI E SBILANCIATI - SENSIBILITA` VARIABILE PER
ABBINAMENTO AD ALTRI FINALI IN BI-AMPING - VALVOLE DI POTENZA KT88/6550 PREMIUM
Rated power: 200W minimum
continuous sine wave power into 8Ω,with both channels driven from 20Hz to 20KHz
with no more than 0.1% THD (FTC). 400W minimum continuous sine wave power into
4Ω with both channels driven from 20Hz to 20KHz with no more than 0.2% THD (FTC).
Peak output voltage: 67V @ rated line voltage @ 8Ω Frequency response: (-3dB)
4Hz, 140KHz Input impedance: 50KΩ shunted by 1.5nF Voltage gain: 26.9dB Power
consumption: Typically 225W @ idle; 1200W @ rated power, 8Ω Overall dimensions:
See "Dimensions"Shipping weight: 105 lbs. (48kg) Connector complement: 2
RCA-type connectors 2 XLR-type connectors 4 five-way binding posts 1 IEC mains
connector
Nº332
Rated power output: 200 w/ch continuous rms power @ 8 Ohms 400 w/ch continuous
rms power @ 4 Ohms 800 w/ch continuous rms power @ 2 Ohms Frequency response:
within 0.1 dB from 20 Hz to 20 kHz Signal to Noise ratio (main outputs): better
than –80 dB (ref. 1 w) Input impedance: 100k(balanced) 50k(single-ended)
Voltage gain: 26.8 dB Input sensitivity (2.83V output): 130 mV (all models)Input
sensitivity (full output): 2.25V for Nº333 1.80V for Nº332 1.30V for Nº331 Power
consumption (Nº332): 325W (5%) at idle, 200W (5%) in standby Mains voltage:
determined by the needs of country for which the unit was manufactured; cannot
be reset by dealer or user Overall dimensions: See “Dimensions” ,Nº332 Shipping
weight: 150 lbs. (68.2kg) each Connector complement: four custom binding posts
per channel one 3-pin XLR balanced input connector per channel one RCA input
connector per channel two 1⁄8" mini-jacks for remote turn-on two Mark Levinson
communications portsone captive high current AC mains cord (Nº333 only), orone
IEC-standard high current AC receptacle (Nº332, Nº331) Output impedance: less
than 0.05from 20–20,000 Hz Damping factor: greater than 800, 20–20,000 Hz @ 8

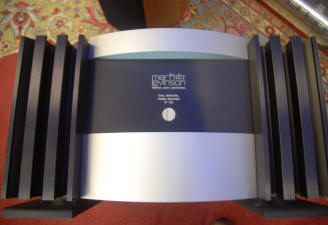

Nº333 Rated power output: 300 w/ch
continuous rms power @ 8Ω 600 w/ch continuous rms power @ 4Ω 1200 w/ch
continuous rms power @ 2Ω all above power ratings from 20 Hz–20kHz at <0.5% THD
_ Frequency response: within 0.1 dB from 20 Hz to 20 kHz _ Signal to Noise ratio
(main outputs): better than –80 dB (ref. 1 w) _ Input impedance: 100kΩ (balanced)
50kΩ (single-ended) _ Voltage gain: 26.8 dB _ Input sensitivity (2.83V output):
130 mV (all models) _ Input sensitivity (full output): 2.25V for Nº333 1.80V for
Nº332 1.30V for Nº331 _ Power consumption (Nº333): 350W (±5%) at idle, 200W
(±5%) in standby _ Mains voltage: determined by the needs of country for which
the unit was manufactured; cannot be reset by dealer or user _ Overall
dimensions: See “Dimensions” _ Nº333 Shipping weight: 150 lbs. (68.2kg) each _
Connector complement: four custom binding posts per channel one 3-pin XLR
balanced input connector per channel one RCA input connector per channel two
1⁄8" mini-jacks for remote turn-on two Mark Levinson communications ports one
captive high current AC mains cord (Nº333 only), or one IEC-standard high
current AC receptacle (Nº332, Nº331) _ Output impedance: less than 0.05Ω from
20–20,000 Hz _ Damping factor: greater than 800, 20–20,000 Hz @ 8Ω peso: 70kg
Specifications
Description:Solid-state monoblock power amplifier. Rated
continuous-power outputs: 150W into 8 ohms (21.8dBW),
300W into 4 ohms (21.8dBW), 600W into 2 ohms (21.8dBW),
1200W into 1 ohm (21.8dBW). Frequency response:
20Hz-20kHz, <0.5% THD. S/N ratio: better than 80dB (ref.
1W), better than 105dB (ref. full output). Input
impedance: 100k ohms balanced, 50k ohms unbalanced.
Output impedance: <0.05 ohms, 20Hz-20kHz. Damping factor:
greater than 800 at 20Hz. Input sensitivity: 130mV for
2.83V output, 1.59V for full-rated output. Voltage gain:
26.8dB. Typical power consumption: 540W ±5% at idle,
210W ±5% in standby. Mains voltages: 100V, 120V, 200V,
210V, 220V, 230V, or 240V AC mains operation at 50 or
60Hz, set at factory. Dimensions: 11" (279mm) W by 18.5"
(470mm) H by 22.88" (581mm) D. Shipping weight: 220 lbs.

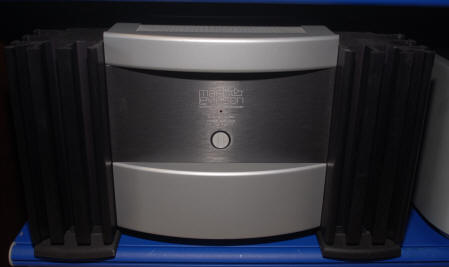

Mark levinson 336 350 x 2 @ 8 ohms
amplifier ns. 2 sets of binding posts for shotgun by wiring. standby, master
off, active modes. weighs in at 155 pounds (dry) 350 watts per channel @ 8 ohms.
700 watts per channel @ 4 ohms. 1400 watts per channel @ 2 ohms.
Description: Solid-state monoblock power
amplifier with one pair Madrigal speaker binding posts, one 3-pin XLR balanced
input, two 1/8" minijacks for remote turn-on, one RS-232 port on RJ-11, two Mark
Levinson communication ports on RJ-45, and two PHAST communications ports on
RJ-45. Rated power output (20Hz-20kHz, <0.3%. THD, FTC): 350Wpc into 8 ohms
(25.4dBW), 700W minimum continuous into 4 ohms (25.4dBW), 1400W minimum
continuous RMS power at 2 ohms (25.4dBW). Frequency response: 20Hz-20kHz,
±0.2dB. Output impedance: ±0.05 ohm, 20Hz-20kHz. S/N Ratio: better than -89dB (ref.
2.83V). Damping factor: >800, 20Hz-20kHz into 8 ohms. Power consumption: 100W in
standby, 180W at idle. Current draw at rated output at 120V: 8.5A (350W into 8
ohms), 14.6A (700W into 4 ohms), 25.6A (1400W into 2 ohms). Dimensions: 17.75"
(455mm) W by 7.65" (194mm) H by 20.2" (518mm) D. Weight: 85 lbs (38.6kg) net, 95
lbs (43.2kg) shipping.
Krell
FPB600 amplifier Krell Industries, Inc., 45 Connair Road, Orange, CT 06477
USA.Direct coupled, current mode, bipolar transistor stereo amplifier. Fully
balanced circuitry from input to output. Power transformer capacity, 8 kVA.
Nominal output rating: 600 watts/ch into 8 ohms, 1200 watts/ch into 4 ohms, 2400
watts/ch into 2 ohms. Fully regulated input and output supplies and 'sustained
plateau biasing', permitting full class A operation and low or high output
levels but allowing the amplifier to run cool at idle or low input.Weight: 180 lbs.Description: Two-channel, solid-state power amplifier with
Sustained Plateau Biasing output stages. Power output: 600Wpc into 8 ohms
(27.8dBW), 1200W into 4 ohms (27.8dBW). Power bandwidth (-3dB): 4Hz-20kHz.
Output impedance: 0.03 ohms. Input sensitivity: 4.3V RMS (balanced) for rated
output. Input impedance: 85k ohms. Dimensions: 19" W by 10" H by 25.5" D.
Shipping weight: 182 lbs.
2 X 150 w/ch @ 8ohms, all channels driven
20hz-20khz with no more than 0.1% THD 250 w/ch into 4 ohms The Proceed amp 2 is
a true multiple monaural design. Each audio channel has its own dedicated power
supply. Each channel of the proceed amp 2 has both balanced XLR and single ended
RCA inputs, with a small switch between the two connectors to select between
them. Using these switches, select the appropriate input for each channel, given
your interconnecting cables and preamplifier's capabilities.
One used Madrigal Audio Laboratories Proceed
Amp 3. A 3 X 150 w/ch @ 8ohms, all channels driven 20hz-20khz with no more than
0.1% THD 250 w/ch into 4 ohms The Proceed amp 3 is a true multiple monaural
design. Each audio channel has its own dedicated power supply. Each channel of
the proceed amp 3 has both balanced XLR and single ended RCA inputs, with a
small switch between the two connectors to select between them. Using these
switches, select the appropriate input for each channel, given your
interconnecting cables and preamplifier's capabilities.
Potenza2x100 W, Dimensioni : 435x135x412, Peso 22 Kg
100wpc
into 8ohms,160wpc into 4ohmsDynamic power 150wpc into 8ohms, 270wpc into 4ohms
Dynamic Headroom 1.7db into 4ohms, 2.2db into 4ohms Output current capability 12
amps continuous, 35 amps peak per channel Power supply; 450 watt toroidal
transformer. 700 Watt toroidal transformer, dual rectifiers 17" wide x 15" deep
x 6" tall
Specifications 500 Watts Class at 8 Ohms; 40 Ampere Contineous, 150 A Peak; 40 Volts at 16, 8, 4
and 2 Ohms; 1 kW torodial (can deliver 2 kW for minutes) with 328.000 uF
Capacity; Weight: 36 Kilogram a piece; Dimensions: 48,3 (w) x 22,2 (h) x 43,5
(d) cm.
SA/3, made in USA by legendary Nelson Pass. Very rare and in VERY good condition.
2 x 50 watt in pure class A.
Ersteigern Sie eine Legende! Die Stereoendstufe Threshold SA 3 aus einem
Nichtraucherhaushalt ist in einem sehr guten optischen Zustand, technisch
einwandfrei. Es sind leichte Gebrauchsspuren vorhanden , die allerdings erst bei
genauem Hinsehen ins Auge fallen. Vergleichbare Geräte in diesem guten Zustand
werden sehr selten angeboten. Betrieben habe ich das Gerät eher selten, da ich
als Sammler noch andere hochwertige Geräte besitze. Die Endstufe ist ein pure
Class A-Gerät d.h., sie wird bei Gebrauch sehr warm. Deshalb sind die
überdimensionierten Kühlrippen keine Show, sondern zwingend für die Wärmeabfuhr
notwendig. Aufgrund dieser Technik ist das Gerät klanglich ein absoluter Traum.
Betrieben habe ich die Endstufe an einer Infiniti Gamma. Wer diesen Lautsprecher
kennt der weiss, dass es kaum kritischere Klangwandler gibt. Die techn.
Qualitäten, insbesondere die akustischen Möglichkeiten in Verbindung mit
passenden Lautsprechern sind phänomenal. Sie steigern auf eine Stereoendstufe,
die allein durch durch den massiven Materialeisatz, eine imposante Erscheinung
ist. Das Gerät wird mit techn. Beschreibung bzw. Betriebsanleitung (engl.) und
Netzkabel geliefert. Gerne würde ich das Gerät bei mir persönlich übergeben,
Abholung ausdrücklich erwünscht! Sollte das Gerät geliefert werden, würde ich
dieses mit Hermes abwickeln. Bitte erkundigen Sie sich bei Hermes über die
Lieferkosten. Das Gesamtgewicht liegt bei ca. 30 kg. Zum Schluß noch einige
techn. Daten. Leistung 50 Watt Class A pro Kanal an 8 Ohm/Sinus. 700 Watt Trafo
60.000 microFarad. Viel Spaß beim Bieten. Als private Person kann ich leider
keine Garantie geben. Allerdings gebe ich dem Höchstbietenden gerne die
Möglichkeit, bei mir zu Hause das Gerät zu begutachten und abzuholen.
Non-inverting complementary symmetry power amplifier
utilizing N-channel Jfets in the front-end signal path and Threshold's
propietary Statis output consisting of a binary stage employng a
voltage amplifier section operated in pure classe A and
a current bootstrap section operated in class A/B.Fully
discrete components are used throughout .No feedback loop is employed around the
aggregate front-end and output power stage.Rated output power:2 x 90 watt @ 8 ohm-Both
channel driven at more than 0.1%distortion in to 8Ohms of resistive or reactive
inpedance.Bandwidth response :hallpower (-3db) points st 7Hz and 100Khz. Slave
rate:50 volts per microsecond. Output current capability 10 continuous, 80 peak
amperes per channel-Power supply:400 watt torodial trasformer 30,000 microFarads
capacitance -Imput impedance 75,000Ohms- ouptput impedance : less than 0.1 OHMS
20 hz trough 20Khz- gain factor +26.6 -Noise greater -100db class A /AB
-18KG
Non-inverting complementary symmetry power amplifier
utilizing N-channel Jfets in the front-end signal path and Threshold's
propietary Statis output consisting of a binary stage employng a
voltage amplifier section operated in pure classe A and
a current bootstrap section operated in class A/B.Fully
discrete components are used throughout .No feedback loop is employed around the
aggregate front-end and output power stage.Rated output power:2 x 150 watt @ 8 ohm-Both
channel driven at more than 0.1%distortion in to 8Ohms of resistive or reactive
inpedance.Bandwidth response :hallpower (-3db) points st 7Hz and 100Khz. Slave
rate:50 volts per microsecond. Output current capability 10 continuous, 80 peak
amperes per channel-Power supply:700 watt torodial trasformer 60,000 microFarads
capacitance -Imput impedance 75,000Ohms- ouptput impedance : less than 0.1 OHMS
20 hz trough 20Khz- gain factor +26.6 -Noise greater -100db cl ass A /AB
-30KG
Specifications: 120 Watt per channel into 8
Ohms RMS; 0.008% THD at rated output; FR. 1 Hz - 100 KHz +0dB -3 dB; Input
sensitivity 1.1V; Input Impedance 47 KOhms; Signal to noise ratio 110 dB;
Power requirements 220 - 230 V 50 Hz; Please note the voltage is for UK / EU
Only. Weight - 12.3 kg.
2
beleuchtete analoge VU-Leistungsmeter getrennt regelbare Eingangs-Level (hinten)
2 Paar vergoldete Cinch-Eingangs-Buchsen 2ter Cinch-Eingang mit High-Cut-Filter
Subsonic-Filter-schaltbar 3 LED-Anzeigelämpchen für den
Einschalt-Selbstkontroll-Prüfzyklus 2 schaltbare LS-Ausgänge mit LED-Anzeige,
intern über Relais geschaltet Ausgangsleistung: 2 x 150 Watt sinus an 8 Ohm,
20-20.000 Hz 2 x 240 Watt sinus an 4 Ohm Frequenzgang: 1 Hz. bis 300
kHz Anstiegsgeschwindigkeit: 400 Volt / µS (!!)
Geräuschspannungsabstand: 123 dB misure: 470 x 168 x 418 mm peso: 20
kg
Marantz MA500 125w Mono Power Amplifier Each amplifier delivers 125 watts RMS @
8 ohms (20 Hz - 20 kHz 0.05% THD) and 180 watts RMS @ 4 ohms (20 Hz - 20 kHz
0.09% THD). The MA500 is a very versatile amplifier because of its small size
and high output capability. Inside is housed a very reasonably sized
transformer, two 10,000uF Elna audio grade capacitors, and 4 heavy duty output
transistors. If you get a 5th MA500 you're looking at 100,000uF total
capacitance!Another great feature of these compact wonders is their capability
to be paired for bridging (please observe the diagram below). Bridged the power
output can reach 360 watts @ 8 ohms continuous power! Marantz also claims a
dynamic peak of 500 watts @ 8 ohms and 600 watts at 4 ohms when the amplifiers
are bridged. Dimensions - W/H/D 3 5⁄16” x 5 1⁄2” x 17 3⁄4” Weight -
14 pounds each.
Amplificatore finale di potenza
a 3 canali. 25 W x 3 canali su 8 ohm (canale centrale e canali surround). Ideale
in abbinamento al AVRF100 per creare un sistema multicanale A/V.Stadi finali
separati a componenti discreti. Accensione e spegnimento controllati dal
telecomando in dotazione all'AVR-F100.
Denon-Design-Endstufe
POA-100 Dreikanal.Äußerlich sehr gut erhalten. Technisch i.O. Aus Ausstellung gekauft und von mir
seither fast unbenutzt. Reduziere jetzt meine Sammlung.
Design: silber. Leistungseigenschaften: - Anzahl der Signal-Kanäle: 3 - Mitte:25
W Sinusleistung - Hinten:25 W Sinusleistung, pro Kanal - Sinusleistung (Mitte)
gemessen an 6 Ohm - Sinusleistung (Hinten) gemessen an 6 Ohm -
Frequenzgang-Untergrenze, Line: 20 Hz - Frequenzgang-Obergrenze, Line: 50000 Hz
- bei max. Abweichung, Line von + 1 dB - bei max. Abweichung, Line von - 3 dB -
Eingangsempfindl., normal/direkt: 0,435 V - Eingangsimpedanz: 47 KOhm Geräuschspannungsabstand: 90 dB.Anschlüsse: - Cinch-IN, gesamt: 3. Konstruktionsmerkmale:diskreterVerstärkeraufbau.Leistungsaufnahme/Spannungsversorgung: - Leistungsaufnahme, Betrieb: 72 W.GehäuseEigenschaften: - Breite: 27 cm - Höhe: 8,4 cm - Tiefe: 25 cm- Gewicht:
3,9 kg.

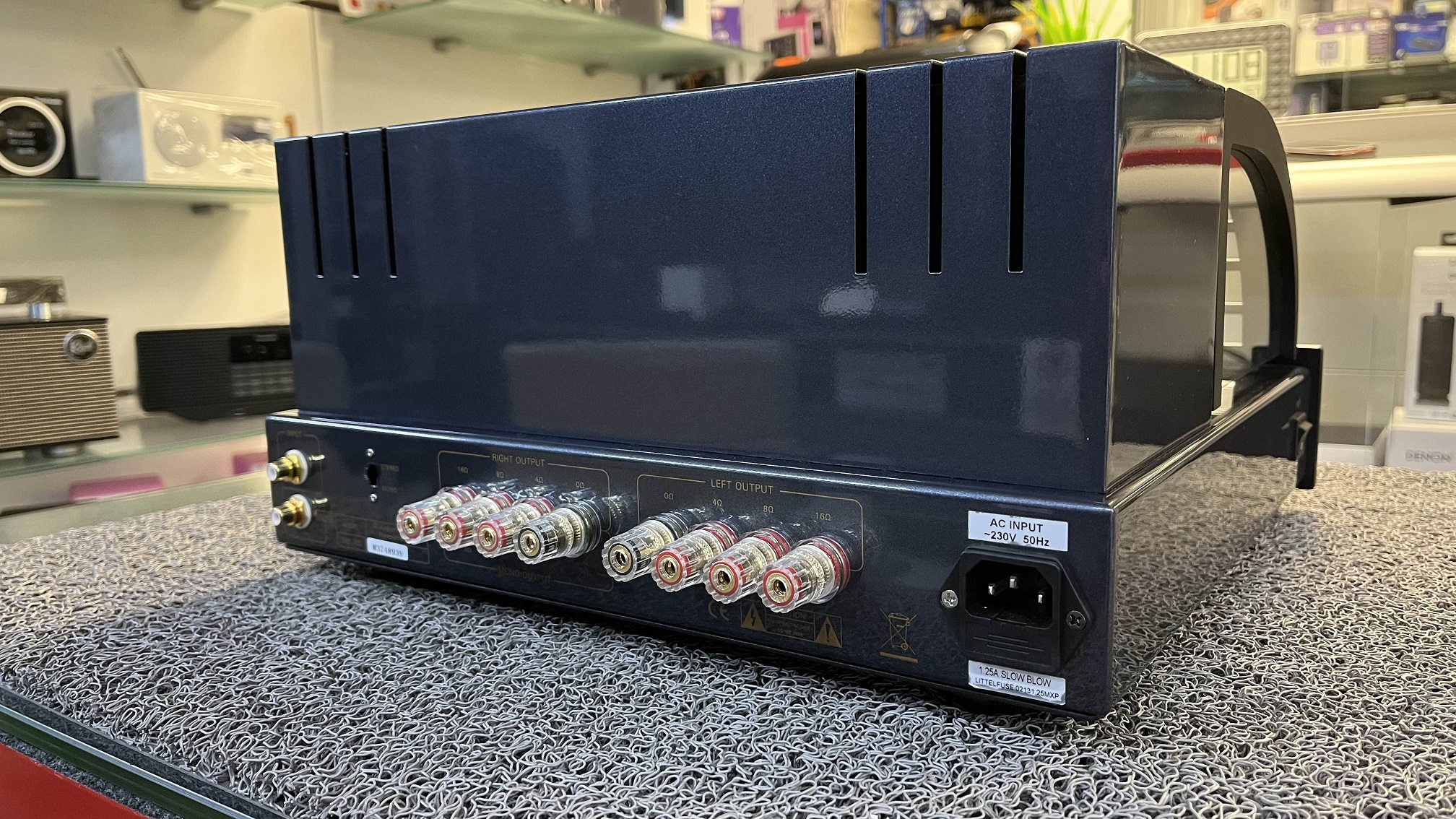

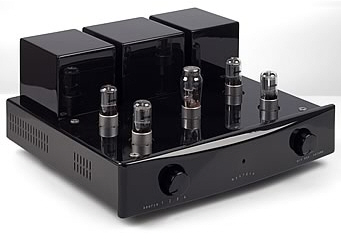

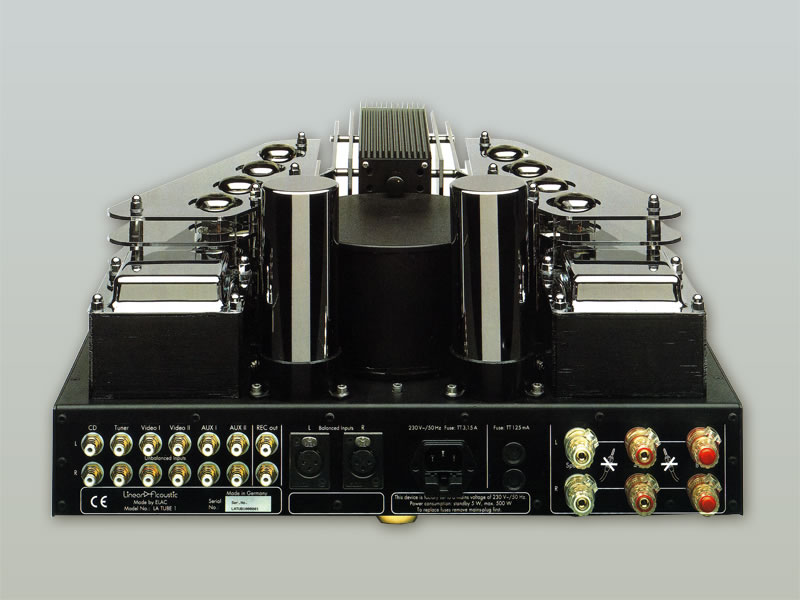

Nennleistung/Rated power Triodenmodus/"Triode"
mode of operation: Ultralinearmodus/"Ultra-linear" mode of operation: 2x45 W an
4 oder 8 Ω/ 2x45 W at 4Ω or 8Ω 2x80 W an 4 oder 8 Ω/ 2x80 W at 4Ω or 8Ω
Eingangsempfindlichkeit für Nennleistung/ Input sensitivity for rated power
Cinch: 450 mV XLR: 850 mV Eingangsimpedanz/ Input impedance Cinch: 7 kΩ XLR: 26
kΩ Ausgangsimpedanz/ Output impedance 0.17 Ω (am 4Ω-Anschluß/at the 4Ω-terminal)
0.29 Ω (am 8Ω-Anschluß/at the 8Ω terminal) Signal/Rauschabstand bezogen auf
Vollaussteuerung/ Signal/noise ratio(SNR) rel. full modulation better than 98 dB
(A) Klirrfaktor/ Distortion factor (THD+N) 1 kHz/10 W 4Ω-Anschluß/4Ω-terminal:
0.03% 8Ω-Anschluß/ 8Ω-terminal: 0.07% Frequenzgang/ Frequency response 20 Hz-20
kHz Cinch: + 0.1/-1.2 dB XLR: +0.1/-0.4 dB Garantie/ Guarantee 3 Jahre
inkl. Röhren/ 3 years including tubes Gewicht/ Weight 45 kg Abmessungen/
Dimensions HxBxT/ H x W x D: 230 mm x 450 mm x 446 mm
Massive integrated audio amplifier with built-in 1-bit MASH digirtal stages and
monitoring loop - plus bombastic reservoirs of caps, heatsinks and transformers.
Each X-Pro capacitor is in fact two-in-one: one for positive phase and one for
negative. Besides this, these beer cans are copper topped and plotted into
composite materials for less vibrations and even less magnetic leakage. The two
300VA transformers are of the EI kind and wound with OFC copper. The dual-mono
structure is followed through the back with the input terminals centered
vertically and the output posts being, previsibly, spread over the left and
right sections.The MASH d/a section, running the entire depth near the bottom
plate, is typical of MASH sections: multi-stage noise shaping with several PLL
loops to output every digital bit in good order and amplitude. This MASH section
is connected directly to the power output section. Added to it is "Class AA":
stabilizing input and output voltages for a 140dB digital s/n ratio...Part of
the penultimate high-end Technics full lineup, at 107,000¥, loaded as it was,
the 25kg SU-MA10 was quite a bargain. It still is but it's pretty rare anywhere.
High capacity, 200VA custom-made toroidal power transformer and power supply
capacitors. Improved all-aluminium casework and extruded front panel to
control resonance and stray electro-magnetic fields. High quality
capacitors used in the signal path. Uniquely tuned short signal and power
supply path PCB. Cascode circuitry utilised for improved power supply
immunity. Sanken bipolar output transistors for dynamic and performance.
Separate pre-amp output with class A buffer stage. FBi-wiring compatible.
75 watts per channel into 8 ohms. Improved system remote control.
Three-year guarantee
Based on the DM-10, the BEAT-100 was designed to bring you the best qualities of
the DM-10 at a much lower price. The BEAT-100 is a true non-feedback amplifier,
and contains designer goodies like Alps potentiometer, massive toroidal
transformer, custom-made capacitors, doublesided teflon PCB and goldplated in-
and output terminals. The circuit is optimized for SMD (surface mounted devices),
and the transistors, capacitors and resistors are all measured before mounting,
to obtain the highest precision. The reviews has confirmed the quality of
the BEAT-100 by awarding the BEAT-100 with a string of very favourable reviews;
"you just can't beat it", "rhythmic magic" and "build quality that should
embarrass everyone fighting in this price category", tells you it is time to
open your ears and listen. DATA poweroutput in 8 ohms: 2x60W Poweroutput
in 4 ohms: 2x120W Powersupply size: 360VA Storagecapacity: 40.000uF
THD + Noise @ rated output: Less than 0.01% Frequency response (+0 -3db):
2-200.000Hz Weight/shippingweight: 10/12 Kg Product dimensions (WxDxH):
440x310x64mm
Merkmale /
Funktionen / Ausstattung: Harmonic Time Alignment Prinzip - Minimum an
Verzerrung für bessere Tonqualität Hochpegelstufe mit diskreten
Bauelementen großzügig dimensionierte Leistungstrafos für enorme
Stromkapazität niederohmige Aussteuerung für besseren Klang Netzteil
in "Multi-Regulated"-Technik - separate Transformatorwicklungen "Isolated Group"-Prinzip
- Referenzpotential bleibt immer konstant, was stabiles Arbeiten aller
Schaltungen garantiert Phono: MM/MC - Schalter hinten Tone Schalter-
der Klang kann mit den entsprechenden Reglern eingestellt werden
Systemsteuerung RI - zur Steuerung weiteren RI- fähigen Nakamichi-Geräte
Muting Funktion Bass, Treble, Balance Regler Rec Selector
Input Selector: Tape2, Tape1, Phono, Tuner, CD, AUX
Lautsprecherwahlschalter: A/B, A+B Anschlüsse s. Bilder Technische
Daten: (alle Angaben ohne Gewähr) DIN Ausgangsleistung an 4 Ohm: 2 x 80 W
RMS Ausgangsleistung an 8 Ohm: 2 x 50 W Musikleistung an 2 /4 Ohm: 2 x 140
W / 2 x 90 W Gesamtklirrfaktor: 0,01% Aufnahmeleistung: 370 W
Abmessungen ca. (B x H x T): 430 x 125 x 360 mm Gewicht: ca. 12,5 kg
Nella storia della Mark Levinson ci sono
stati molti prodotti che hanno rappresentato vere e proprie pietre miliari. In
quest’illustre gruppo figurano il pre phono JC-1 (1972), il preamplificatore
ML-1 (1977), i finali mono ML-2 (1977), il primo componente “Reference”, il
finale mono N°20 (1986) e i leggendari Processore Digitale Reference N°30 (1991)
e Pre Reference N°32 (1999). Questi prodotti, sin dalla loro presentazione,
erano ovviamente destinati a diventare dei classici. In molti casi questi
classici erano notevolmente più costosi di qualsiasi altro prodotto della stessa
classe, e spesso offrivano meno funzioni (o meno potenza) rispetto ad apparecchi
concorrenti. Tuttavia sono diventati dei classici. Questi ed altri leggendari
prodotti Mark Levinson condividono una straordinaria caratteristica,
surclassando, infatti, qualsiasi altro apparecchio della loro categoria.
Il motivo principale per possedere un prodotto Mark Levinson è il livello delle
prestazioni offerte, e sono proprio le eccezionali prestazioni quello che
caratterizza il Media Console Mark Levinson N°40. Il N°40 è probabilmente il
prodotto più innovativo dei 29 anni di storia del marchio, sicuramente destinato
ad entrare nella lista dei classici. Come i prodotti Reference anche il N°40 va
considerato uno spartiacque, rappresentando una transizione importante tra come
sono stati progettati i prodotti nel passato e come lo saranno nel futuro. Come
i prodotti Reference il N°40 ingloba una raffinata esecuzione di molte
tecnologie sviluppate e sperimentate in apparecchi Mark Levinson precedenti,
insieme a nuovi dispositivi e nuove tecniche. Molte innovazioni tecniche
sviluppate per il N°40 troveranno spazio in futuri progetti Madrigal. In
effetti, è già successo: sia il CD Processor Mark Levinson N°390S, di
eccezionali doti timbriche, che il Proceed AVP2, nuovo pre audio/video, ne hanno
già beneficiato. Perché, allora, il N°40 non è stato designato come prodotto
Reference? Per quanto buono sia, infatti, il N°40 non eguaglia le prestazioni di
quattro Pre Reference n°32 e di quattro Processori Reference N°30.6. Le sue
prestazioni sono molto vicine ai prodotti Reference, e la combinazione del N°40
con i N°32 e N°30.6 offre grandi risultati. Configurazione modulare Il N°40 è un
progetto modulare in grado di accettare le più svariate configurazioni: la sua
configurazione standard viene incontro alle esigenze della maggior parte degli
impianti. Sia il processore audio che quello video hanno diversi “slot” liberi
per espansioni tramite i moduli opzionali, dei quali alcuni già disponibili:
moduli per ulteriori ingressi/uscite, per ulteriori R-Zone, per speciali
esigenze di comunicazione, per interfacce sicure audio o video, per la gestione
avanzata video, per risorse addizionali DSP. Configurazione Standard del N°40 3x
ingressi compositi 6x ingressi S-Video 3x ingressi video component 6x SPDIF su
RCA 4x Toslink 2x AES/EBU su XLR 1x SPDIF su BNC 1x coppia audio analogica
bilanciata su XLR 6x coppie audio analogiche sbilanciate su RCA 8 canali audio
principali d’uscita (bilanciati e sbilanciati) Uscite principali Composita,
S-Video e Component 2x R Zones (zone remote/record, audio e video) Interfaccia
utente grafica La caratteristica del pannello frontale che attira
maggiormente l’attenzione è la presenza di un piccolo schermo LCD sul processore
video. Questo schermo può essere usato in molte, utili, maniere inclusa quella
di accedere a tutti i menù di setup e relative opzioni di controllo attraverso
la nostra interfaccia utente grafica (GUI). La GUI (che è anche disponibile
sull’uscita monitor o sovrapponibile all’uscita video main) rende la taratura di
un sistema complesso operazione relativamente semplice, guidando in maniera
logica nel processo. Questa GUI è implementata nel dominio video digitale per la
massima chiarezza e intelligibilità e incorpora diverse tecnologie proprietarie
Madrigal. La sua struttura gerarchica è logica e facilmente navigabile,
presentata visivamente in maniera da sapere sempre dove si è nel sistema a menù,
e come ci si è arrivati. È praticamente impossibile perdersi, anche se si è ai
livelli gerarchici più profondi. Il Mark Levinson N°40 è una centrale di
controllo di estrema potenza e flessibilità, anche per i più avanzati sistemi
d’intrattenimento domestici. Tuttavia il possedere queste straordinarie capacità
può non sempre essere un vantaggio, fatto al quale la Madrigal è molto
sensibile. Quando si progetta un prodotto di alte prestazioni come il N°40
occorre sempre tenere a mente a che tipo di utente l’apparecchio è rivolto. Da
un lato prodotti come questo attraggono gli “utenti avanzati” che pretendono il
massimo delle prestazioni e della funzionalità. Dall’altro attraggono anche
quelle persone che apprezzano i migliori prodotti in genere, siano essi di
natura elettronica che automobili di lusso. Oltre a questo, ambedue queste
categorie hanno altri componenti della famiglia che usano l’impianto e non sono
certo dei patiti dell’elettronica. Come soddisfare esigenze così diverse? Il
livello di sofisticazione richiesto dall’utente avanzato può intimidire l’utente
occasionale, eppure ambedue sono importanti. In prodotti come questo ci sono
spesso conflitti tra tre opposti fattori:Funzionalità (fa tutto quello che la
gente vorrebbe che facesse?) Facilità d’uso (è semplice e intuitivo per
l’uso quotidiano?) Facilità di impostazione (è un “plug and play” nel
miglior senso del termine?) La gran parte dei prodotti sono validi solo in
una di queste aree. I prodotti veramente eccezionali eccellono in due aspetti su
tre. Con il N°40 si è fatto il massimo per curare tutti e tre gli aspetti. In
quei casi dove è risultato impossibile massimizzarli tutti si è deliberatamente
resa più laboriosa la fase di set-up, piuttosto che compromettere le altre due.
Dopo tutto la fase di impostazione è una sola, mentre funzionalità e facilità
d’uso sono invece fattori quotidiani. Stadi di Alimentazione I migliori circuiti
sono limitati nelle prestazioni se non possono contare su delle stabili
fondamenta sulle quali costruire le proprie forme d’onda. Sia il Processore
Audio sia quello Video del N°40 usano stadi di alimentazione ibridi switching/lineari.
Questi circuiti assommano i vantaggi delle alimentazioni lineari a basso rumore
con un convertitore CC-CC d’alta efficienza e bassa temperatura d’esercizio. La
tensione alternata in ingresso è convertita in due tensioni continue isolate e
non regolate. Come in tutti i prodotti Mark Levinson s’inizia con un
trasformatore a basso rumore, un rettificatore a basso rumore di commutazione e
generosi condensatori d’alta qualità. Queste tensioni sono quindi trasformate in
quelle richieste da circuiti switching di regolazione. Questi circuiti sono
stati progettati e ottimizzati dalla Madrigal per la massima stabilità e per il
minimo rumore RF. L’uso di topologie inerentemente a basso rumore come quelle
dei converter forward e Cuk, così come avanzati circuiti integrati switching di
regolazione, induttanze toroidali e nuovi condensatori ceramici permettono a
queste alimentazioni di ottenere livelli di rumore tipici di quelle lineari.
L’alta efficienza di questi stadi di regolazione permette di soddisfare le alte
richieste di corrente del N°40 senza generare calore eccessivo e avendo scarsa
sensibilità alle fluttuazioni della corrente di rete. I vantaggi di questa
soluzione ibrida hanno permesso di ottenere pura corrente continua in tutti gli
stadi, con minor ingombro e minor calore di quelli possibili con
un’alimentazione esclusivamente lineare. In altre parole l’approccio ibrido ha
permesso di realizzare gli obiettivi di progetto, mantenendo ancora ragionevoli
le dimensioni dell’apparecchio e la temperatura d’esercizio. Come in tutti i
progetti di alte prestazioni Mark Levinson il N°40 fa uso estensivo di stadi di
regolazione locali a basso rumore. Le superbe prestazioni di svariate decine di
questi stadi forniscono una sorgente di corrente pura, veloce e a bassa
impedenza per i circuiti adiacenti
Six Audio and Six Audio/Video Inputs
Audio Only: MM Phono/Aux, CD1, CD2, Tuner, Tape 1, Tape 2
Audio/Video: Satellite, TV, LV and/or DVD, VCR1, VCR2, Video/Aux, including
S-video ins and outs.
The capability to control two separate areas for multi-room applications.
Balanced Stereo Outputs for lower noise (-105db).
Separate Listen and Record Selectors allow you to listen and/or view one source
while listening and/or viewing another source.
Bass and Treble controls 12db boost and cut to match the program material to
your taste.
Variable Loudness Control matches the sound levels to the sensitivity of your
ears.
Low Distortion (under .002%) for clean sound.
The Classic McIntosh Glass Front Panel will look new for years to come.
Front panel audio/video input and headphone output for your convenience.
Size: 17.5" Wide X 7.125" High X 17.25" Deep
Weight: 30 lbs ELECTRICAL: Response: stereo, mono and hall
mode left, center and right front channels 20-20kHz (+0 -0.5dB), hall mode left
and right surround: 100-7kHz (+0 -3dB), dolby pro-logic mode: left center and
right front channels 30-16kHz, left and right surround channels 100-6.3kHz (+1
-1dB), dolby pro-logic and THX modes combined: left, center and right front
channels 30-1kHz (+1 -1dB), left and right surround channels 100-6.3kHz (+1
-1dB). subwoofer 10-80Hz with 24dB rolloff. With rear panel high pass switch on,
left, center and right front channels include high pass filter at 12dB rolloff.
Distortion: left, center & right 0.005%, hall mode left and right surround
channels 0.01%, dolby pro-logic and THX modes: left, center and right front
channels 0.01%, left and right surround channels 0.1%. Noise and hum -100dB aux,
-90dB phono, dolby pro-logic and THX modes -70dB. Output rated 2.5V. Maximum
output 6V. Output impedance 600 ohms. Input sensitivity and mpedance: high
level 0.5V (5V max, 2.1V max hall, dolby pro-logic and THX) at 22k, phono 5.0mV
(60mV max) at 47k and 65pF. Tone controls: boost or cut 12dB. Voltage gain 14dB
high level, 54dB phono.
FRONT PANEL: Glass panel. Illuminated. Bass. Treble. Record switch: CD 1, CD 2,
tuner, tape 1, tape 2, ph/aux, sat, tv, lv, vcr 1, vcr 2, v aux. Mode switch:
mono, stereo, hall, cinema 1, cinema 2. Listen switch: CD 1, CD 2, tuner, tape
1, tape 2, ph/aux, sat, tv, lv, vcr 1, vcr 2, v aux. Volume. Delay switch (ms):
12, 16, 20, 24, 28. Balance, Loudness: flat to max. Pushbutton switches with
indicator lights: sys cal, surr level: up or down, surr proc, access, rec lock,
mute, power. Headphone, camcorder jacks: s-video, video, l and r. Indicator
lights for dolby pro-logic and home THX audio. Digital volume readout.
BACK PANEL: Audio outputs: area A: sur, center, subwoof, center, front. vcr 2,
vcr 1, tape 2, tape 1, area B. Record processor: from and to. Balanced outputs.
Audio inputs: v-aux, vcr 2, vcr 1, lv, tv, sat, tape 2, tape 1, tuner, CD2, CD1,
aux, ph. Ground binding post. Video outputs (s or standard): mon B, mon A, vcr
2, vcr 1. Video inputs (s or standard): v-aux, vcr 2, vcr 1, lv, tv, sat. Data
ports: v-aux, vcr 2, vcr 1, lv, tv, sat, tape 2, tape 1, tuner, CD 2, CD 1, aux,
home, sum. Control connectors: to multi-room controller, tuner control, CD
control, CD1 control. External sensors: area A and area B. 6 channel output.
Surround calibrate switch: auto or man. Center speaker switch: none, small and
large THX. Center fill switch: off or on. Subwoof switch: off or on. High pass
filter switch: off or on. Power control jack. Ant/cable coax input. TV coax
output. TV audio volume control, TV input switch: B or A. Channel switch: 3 or
4. AC outlets: 1 switched, 1 area B pwr amp, 1 area A pwr amp
Features : Dolby
Digital and Dolby Pro-Logic decoding; Cinema DSP modes compromising enhanced and
theatrical Dolby Digital, TV Sports, Stadium, Disco, Rock Concert, Jazz Club,
Church and Concert Hall; dynamic range adjustment; bass management; learning
handset with macros and illuminated keys; 5x80W amplification plus 2x25W for
front effects; centre speaker delay; test tone; onscreen graphicsConnections : Phono composite video and stereo audio inputs; S-Video four-pin
mini DIN; phono preamp outputs; phono digital coaxial; TOSLink optical digital;
6.3mm headphone jackDimensions : 435(w) x 170(h) x476.5(d)mm
Description
High-performance processor for converting a digital audio input stream To
an analog output signal at fixed line level. Operating format is an ultra linear
1 bit system performing @ 24 bit equivalent static linearity in a dual parallel
balanced differential configuration. Computer optimized passive filtration
maintains phase linearity to 80 kHz. Proprietary "jitter" reduction circuitry
assures extreme accuracy in the conversion of each bit. Master clocking is
performed by three separate precision lithium-tantalite crystals each clocking
an associated PLL reference oscillator and dedicated to a single one of the
processor's sampling rates. Analog signal output is developed by a proprietary
discrete FET /bi-polar buffer. Four digital inputs are provided, 2 via coaxial,
and 2 via optical connectors. One optical digital output and balanced or
single-ended characteristic stereo analog output signals are available. The
analog output signal characteristic may be phase rotated 1800 • Front panel
controls: INPUT SELECTOR, PHASE. Front panel displays indicate: sampling rate;
emphasis present; lock lost; standby mode. Frequency response 48 kHz sampling:
DC to 22 kHz ± 0.15dB. 44.1 kHz sampling: DC to 20 kHz ± 0.15dB 32 kHz sampling:
DC to 15 kHz ± 0.15dB. Decoding system 1 bit performing @ 24 bit
equivalent static linearity. (500Hz, pass band filtered) Oversampling
clocked @ 768 times incoming data Jitter MApproximately 20 picoseconds
Linearity Within ± 0.3 dB @ - 120 db below digital maximum level Output
filtration 3rd order (passive) with phase linearity to 80 kHz De-emphasis
MPassive analog Distortion Below 0.002% typical 20 Hz through 20 kHz.
Description: Digital/digital converter.
Input sample rates: 32, 44.1, 48, 88, and 96kHz. Output sample rates: 32, 44.1,
48, 88, 96, 176.4, and 192kHz. Output word lengths: 16, 18, 20, 22, and 24 bits.
Noiseshaping options: first-, third-, and ninth-order. Dither options:
Triangular, Noise Shaped Triangular, Top Hat PDF. Digital interfaces: S/PDIF
(RCA and BNC), AES (XLR), and ST (optional extra). Output digital interfaces: S/PDIF
(RCA and BNC), AES, dual AES (XLR).
Dimensions: 18" (461mm) W by 2.4" (62mm) H by 15.8" (406mm) D. Weight: not noted.
General
Specifications: Auto-detection of Disc type and data format Reads CD-R, CD-RW,
and CD-Video Silver faceplate with Black Full function remote control CD
Specifications: Upgradeable to HDCD Auto detect and decoding Two channel
balanced analog output (XLR) Two channel single-ended analog output (RCA)
Digital Audio outputs (3): 1 each AES/EBU (XLR), Co-axial (RCA), Optical (TOSlink)
DVD Specifications: SP/DIF Digital Audio Outputs(3): 1 each AES/EBU (XLR),
Co-axial (RCA), Optical (TOSlink) Outputs all Digital audio formats: AC3 (Dolby
Digital), DTS, Dolby Pro-Logic Component Video Output YCrCb (RCA) Composite
Video Output (RCA) S-Video Output Video Section Specifications 10-bit video D/A
Converter Multi-Sound Function (*) Multi-Subtitle (*) Multi-Angle Function(*)
Frame/Field Still Image Video Output: 1 Vp-p (with 75 &Mac189; load) Y Output: 1
Vp-p (with 75 &Mac189; load) Cr Output: 0.7 Vp-p (with 75 &Mac189; load) Cb
Output: 0.7 Vp-p (with 75 &Mac189; load) S-Video output connector TV Signal
System: NTSC and PAL Audio Section Specifications Audio output Fixed: 2 V rms (1
kHz, 0 dB) DVD linear audio Frequency response: CD audio Frequency response:
44.1 kHz sampling 2 Hz to 20 kHz Sampling Frequency: 44.1, 48, 96 KHz S/N Ratio:
115 dB Dynamic range: 106 dB Total harmonic distortion: 0.003% Physical
Specifications Energy-Saving During Standby Dimensions: w: 19 x d: 14.6 x h:
4.15” Power consumption: 25 W Weight: 25 lbs
Wadia 270: CD
transport. Outputs: ST-Type glass fiber, coaxial S/PDIF on BNC jack, AES/EBU on
XLR. Mechanism: modified Teac/Esoteric "Vibration-free Rigid Disc Clamping
System" (VRDS).
Dimensions: 17" (342mm) W by 7" (184mm) H by 16.5" (420mm) D. Weight: 53 lbs.
No.37 Description: CD transport with four
digital outputs: AES/EBU on XLR, S/PDIF on BNC, S/PDIF on RCA, ST optical.
Dimensions: 15.75" W by 3.76" H by 14.3" D. Weight: 34 lbs (shipping).
Input Connectors: 1 IEC mains connector
Mains Frequency: 50 or 60 Hz, factory set for destination country only
Mains Voltage: 100V, 120V, 200V, 220V, 240V, factory set for destination country
only Output Connectors: Direct digital output, XLR: AES/EBU 110 ohms, 3.5V
Direct digital output, RCA: S/PDIF 75 ohms, 0.5V Direct digital output, ST:
Hewlett-Packard® ST optical Direct digital output, EIAJ: Sharp® EIAJ optical
Power Consumption: 36 watts maximum Weight: 63 lbs. (28 kg)
Riproduzione
SACD (stereo) e CD, Sistema di filtraggio DSP esclusivo Marantz derivato dal
modello SA-7S1, Meccanica di nuova progettazione realizzata in metallo,
Invertitore digitale di fase, Ingresso per clock esterno, Trasformatore
toroidale, Telaio rivestito in rame, Filtro DC commutabile e Noise Shaper,
Pannello superiore da 5mm di spessore, Uscite XLR e sbilanciate, Telecomando in
alluminio
The SA-11S1 Super Audio CD player launches new heights in stunning audio
excellence. All sections of this integrated player are in perfect harmony and
built in a fully symmetric layout. The SA-11S1 will give you the most detailed
and dynamic reproduction ever heard, ensured by our highly advanced digital
filter techniques, which use Marantz’s own filter characteristics. Because of
this the SA-11S1 SA-CD player has a unsurpassed rhythmic intensity, quality of
dynamics and pace more usually associated with the recording studio. Playback of
SA-CD has never been exhilarating, even Audio CD will sound as never heard
before making it a must for every audiophile and true music lovers.
NEW SA-CD playback Marantz exclusive digital filters New high grade Toroidal
transformer New heavy aluminum top cover for extra stability Current Feedback
HDAM-SA2 Digital phase inverter External clock input High grade balanced XLR and
unbalanced RCA terminals
The Denon DCM-5000 offers a variety of control options that make it easier than
ever for the user to organize and access an entire CD music library. Standard
control functions such as play, stop, random play and so on can be activated
from either the ergonomically designed front panel or via the supplied remote
control—but that’s just the beginning. The user can also connect a standard PC
keyboard directly to the DCM-5000 and enter disc/name information into the
DCM-5000’s memory; once entered, this information is displayed for easy
identification when the disc is selected for playback. Each CD can be assigned
to any of up to eight musical categories (i.e., "Rock," "Jazz," "Country" and so
on), and the user can choose to listen to only CDs within a particular category
at any time. CD TEXT CDs are also supported.The DCM-5000 also includes a standard RS-232 serial port, allowing it to be
controlled by a personal computer. And for the ultimate user interface, the
Denon DCM-5000 is compatible with the Escient Tune-Base CD management system.
Escient’s Tune-Base system, which has an Internet PC-based engine and
proprietary software, connects to the DCM-5000 and the home theater system’s
monitor TV. Because every CD has a unique Table of Contents, the Escient
Tune-Base system is able to look up the names of each CD (using the CD’s unique
identification code) and enters its title, artist’s name, song title and even
album cover into a custom, personalized database. A graphical on-screen
interface then allows the user to choose and play the desired music simply by
clicking on album cover art and song titles!Advanced Engineering for Audiophile Sound QualityAlong with its unparalleled playback versatility, the Denon DCM-5000 provides
true audiophile sound quality, superior to even esoteric high-end CD transport/
D/A converter combinations. Key to the DCM-5000’s superb audio performance is
Denon’s new 24-bit ALPHA processing technology, a proprietary analog waveform
reproduction technology that uses newly developed interpolation algorithms to
provide 24-bit resolution from conventional 16-bit CDs. The DCM-5000
incorporates the finest available 24-bit Burr-Brown D/A converters for ultimate
sound quality. The DCM-5000’s ALPHA processor also incorporates an adaptive
digital filter that automatically adjusts the low pass cutoff frequency, for
improved pass-band and impulse response. The result is a dramatic leap forward
in CD sound quality, with vastly improved low-level detail resolution,
outstanding dynamic range, precise imaging, a wider and deeper soundstage and a
far more natural musical presentation.Built-In HDCD Decoding
In addition, the DCM-5000 incorporates the Pacific Microsonics HDCD decoder chip
to obtain the full sonic benefits of HDCD-encoded CDs, which offer greater
resolution and dynamic range than standard CDs. HDCD is a multi-stage process
that overcomes the limitations of the 16-bit CD format by using a patented
system to extend the dynamic range of CDs to a 20-bit level, while remaining
completely compatible with the CD format. The DCM-5000’s built-in HDCD decoder
also improves the sound of non-HDCD discs, thanks to its high-precision digital
filter. More than 2,000 HDCD titles from major artists are currently available,
with the list growing rapidly. The Denon DCM-5000 carries a suggested retail
price of $1,800, and the DCM-5001 100-disc slave changer unit is available at
$1,300 suggested retail.Denon Electronics is Japan’s oldest audio company.
Founded nearly 90 years ago, the company has a long history of technical
innovations, including the development and first commercialization of PCM
digital audio recording.100 disc CD Changer •
Dual CD drives • Slide-out, non-removable linear CD tray • HDCD decoding via
Pacific Microsonics PMD-100 filter/decoder • 24 bit Burr-Brown premium DACs
(Audio output 1) • 20 bit digital filter, 18 bit Burr-Brown premium DACs(Audio
output 2 - second zone) • CD Text • Disc naming function, via front panel
controls or via external PC keyboard input, or via remote control • 8 Music
groups • 40 step programming X 4 functions = 160 step programming capacity • 2
sets analog ouptuts (main and second zones) • 2 sets digital outputs (coaxial) •
Digital inputs for connection to optional DCM-5001 auxilliary drives • Crossfade
in analog mode • Up to 5 DCM-5001 aux drives can be connected to DCM-5000
control drive • Remote control supplied • RS-232/422 serial port • Composite
video output for on-screen display •
assorbimento: 42 W-misure: 434(B) x 243 (H) x 474,5 (T) mm-peso 16,2 Kg.
100 disc CD Changer •
Companion to DCM-5000 • Dual CD drives • Slide-out, non-removable CD tray • 20
bit digital filter, 18 bit premium Burr-Brown DACs for both analog outputs • 2
sets analog outputs (main zone/second zone) • Digital connections (2 coaxial) to
DCM-5000 for all digital transfer • Up to 5 DCM-5001 drives can be connected to
DCM-5000 master drive • RS-232/422 serial port •
misure :434(B) x 243 (H) x 474,5 (T) mm-peso 16,2 Kg.
Lettore digitale per DVD
Audio/Video, DVD-R, DVD-RW, CD, CD-R, CD-RW, MP3, Foto JPEG e Kodak.
Certificazione THX Ultra. Nuovo circuito Progressive Scan Sil504 Silicon Image
(solo NTSC). 5 regolazioni video tra cui contrasto e colore. Sofisticata sezione
di conversione con 8 DAC audio a 24bit192kHz. Modalità Pure Direct. Elaborazione
AL24. Filtri Super Sub Alias e Noise Shaped Video. Chassis in rame a struttura
ibrida per lo smorzamento delle vibrazioni. Sezioni di alimentazioni separate.
Decoder HDCD. Riproduzione sia PAL che NTSC. Convertitore D/A video
14bit/108MHz. Denon Digital Link. Uscite audio digitali AC-3, DTS, e PCM 24/96.
Uscita analogica stereo, uscite digitali (ottico e coassiale) ed uscite
analogiche separate 5.1. Ingressi digitali ottici e coassiali. 2 uscite video
composito, 2 S-Video, 1 Scart RGB e 1 component. Porta RS-232. Telecomando
retroilluminato glow-key multifunzione in dotazione.
Finitura in nero o oro.
THX Ultra Certified • Powered by the latest
Silicon Image/DVDO PureProgressive (SiI504) Decoding Engine - highest quality
progressive decoding engine available • Accurate 2:3 pulldown detection and
reconstruction • Optimum processing for film content, video content, graphics
content and mixed-mode content • New ESS Vibratto ES6038F MPEG/DVD-Audio
Decoder • New highest resolution Analog Devices 108 MHz, 4:4:4, 14 bit Video D/A
Conversion system featuring Noise Shaped Video processing(progressive and
interlace output) • 4x Oversampling Progressive and 8x Interlace output
• (2)Composite and (2)"S" outputs • 2X DVD read speed; 4X CD/CD-R/CD-RW read
speed; with 4MB drive buffer memory • 4:3 Squeeze and Zoom Controls • Top audio
performance, featuring 8 Burr-Brown 24-bit, 192-kHz PCM 1704 Audio DACs, with 2
per Main L/R Channels in differential mode • Pure Direct Modes to defeat
unneeded portions of player for the ultimate in audio performance • Full Digital
Bass Management for DVD-Audio, featuring Analog Devices 32-bit processor; 80Hz
crossover with 12dB high and 24dB low pass slopes; Adjustable delay time • HDCD
decoding • AL24 Processing Plus • MP3 Playback • Plays Audio/Video CDs; HDCDs;
DVD-Video; DVD-R/RW (conditional); Audio CD-R/RW; MP3 CD-R/RW (128 or higher
kbps recommended) • JPEG photo file viewer and Kodak Picture CD compatible • 24/96
digital outputs; optical and coaxial • Optical and Digital Inputs to allow
player to be used as outboard D/A converter • DENON Link for connection to
AVR-5803 • Internal Copper construction, and multi-layer top and bottom plates • 3
box, 6 block internal layout to isolate analog, digital and video circuits • RS-232C
and remote in/out ports • Backlit remote control • Dimensions: 17.1"w x 5.4"h x
16.2"d • Weight: 40.8lbs. • Download Setup Tips for DVD-Audio Playback in pdf
format, click on tech note icon .
■
Il nuovo circuito Progressive di FAROUDJA (Uscita NTSC / PAL) Oltre al Motion
Adaptive Deinterlacer, che elabora i segnali video in unità di pixel, la
tecnologia video a scansione progressiva ad alta definizione è resa
possibile da un processore in modalità mFilm, che supporta materiale pulldown
3:2 e 2:2. La tecnologia DCDi, famosa per la sua capacità m,di elaborare
linee diagonali e bordi, produce immagini omogenee, naturali e prive di
disturbi. m,Il DVD-A11 è inoltre dotato di 5 modalità di scansione progressive
che permettono all’utente di selezionare la conversione progressiva ideale per
ciascuna delle sorgenti di programma scelte fra un’ampia gamma. ■ Convertitore
Video Dual a 12-bit, 216-MHz Il DVD-A11 utilizza un totale di sei convertitori
D/A video 12 bit/216 MHz per trarre il massimo potenziale dalle prestazioni del
nuovo circuito di FAROUDJA. Il DVD-A11 utilizza convertitori D/A indipendenti
per la riproduzione delle immagini Progressive med Interlacciate. Questi
convertitori garantiscono una frequenza di campionatura molto elevata, pari a
216 MHz, con una sovracampionatura 8x utilizzata per il funzionamento in
modalità Progressiva ed una sovracampionatura 16x in modalità Interlacciata,
ottenendo come risultato la conversione D/A più precisa attualmente disponibile.
■ Sezione Video Utilizzando un filtro con estese caratteristiche di sezionamento
come filtro analogico passa basso, il DVD-A11 riesce a riprodurre le delicate
sfumature dei segnali video, consentendo allo spettatore di apprezzare le
immagini originali al massimo livello di realismo. ■ Alimentazioni indipendenti
Sono state studiate alimentazioni indipendenti per lo stadio di elaborazione del
segnale audio, lo stadio del segnale video ed altre sezioni, allo scopo di
eliminare le interferenze reciproche. L’alimentazione di potenza che viene
fornita ai vari circuiti contribuisce ad una elevata qualità delle immagini e
del suono. ■ Noise Shaped Video (NSV) ■ Filtro Super Sub Alias ■ Circuito di
Riduzione Rumore Rumore di fondo e sfarfallio, caratteristici problemi dei
segnali video compressi in formato MPEG, vengono efficacemente eliminati per
produrre un’immagine video più naturale. Inoltre, la riduzione del rumore 3D
elimina i disturbi minori presenti nell’immagine video per riprodurre
splendidamente solo le informazioni video richieste. ■ Modalità Pure Direct Il
DVD-A11 include due modalità Pure Direct che migliorano ulteriormente la qualità
del suono. Ad esempio, durante l’utilizzo dell’uscita audio analogica, il Pure
Direct può disattivare le alimentazioni della sezione digitale, della sezione
video ed il display frontale, che potrebbero influire sulla qualità sonora dei
segnali audio analogici. ■ Elaborazione AL24 per tutti i canali Denon ha
ulteriormente sviluppato la propria tecnologia brevettata AL24 Processing per la
riproduzione delle forme d’onda analogiche, a supporto della frequenza di
campionatura di 192 kHz del DVD-Audio. Questa nuova tecnologia, AL24 Processing
Plus, sopprime efficacemente il rumore di quantizzazione associato alla
conversione D/A dei segnali LPCM, per riprodurre i segnali di basso livello con
un’eccezionale chiarezza, che mette in luce tutte le delicate sfumature
musicali. ■ DENON Link Quando il DVD-A11 è collegato tramite un apposito cavo
con terminali RJ-45, ad un amplificatore A/V dotato di ingresso Denon Link, il
trasferimento bilanciato di segnali offre una tensione inferiore rispetto ai
cavi coassiali o non bilanciati. Dato che DenonLink è molto meno sensibile
al rumore irradiato, garantisce il massimo livello di trasferimento di segnale.
L’interfaccia Denon Link è in grado di trasferire un’uscita digitale di alta
qualità LPCM 24-bit / 192-kHz / a 2 canali (*1). ■ Costruzione multistrato
Poiché i dati ad alta densità registrati su DVD devono essere letti con assoluta
precisione, le vibrazioni provenienti da sorgenti esterne o interne, come
l’alimentazione, influiscono negativamente sulla qualità del sonoro e delle
immagini. Nel DVD-A11 sono state adottate diverse soluzioni per sopprimere
queste vibrazioni indesiderate. Il fondo del telaio del DVD-A11 è caratterizzato
da una solida struttura a 3 strati progettata per meliminare le vibrazioni.
Robuste flange di rinforzo vengono utilizzate anche sul frontale e sul retro del
telaio stesso. L’aggiunta di una copertura superiore a 2 strati e di materiale
isolante, servono ad eliminare le vibrazioni esterne. E la base del
trasformatore è realizzata di alluminio pressofuso che assorbe le vibrazioni
esterne e quelle provenienti dal trasformatore stesso per garantire un
funzionamento ottimale.
Lettore digitale per DVD, DVD-R, CD, CD-R, CD-RW e MP3. Convertitore D/A audio a
24 bit/192 kHz. Uscite audio digitali AC-3, DTS e PCM, uscita analogica stereo.
Convertitore D/A video a 10 bit, 27MHz. 1 uscita video composito, 1 S-Video, 1
SCART (RGB). Pannello frontale in alluminio. Funzione di zoom x2 e x4. On screen
display. Telecomando multifunzione in dotazione.Finitura in nero o oro.
Progressive Scan DVD Player • Progressive Scan
featuring DCDi by Faroudja decoding engine • 3:2 Pulldown Detection • Plays
CD/CD-R/CD-RW Discs, *DVD-R Conditionally • MP3 Decoder for encoded CD-R/RW
Discs (128 or higher kbps recommended) • 12-bit, 54-MHz Video DAC • Burr-Brown
24-bit, 192-kHz Audio DACs • 2MB Memory Buffer to decrease layer change pauses
or pickup dropouts • Selectable 24 bit, 96 kHz PCM output pass-through
capability • PCM, DD, dts compatible Optical and Coaxial Digital Outputs •
Component, S-Video and Composite video outputs • Passes Below Black(Pluge) for
proper Monitor Calibration • Picture Zoom • Dimensions: 17.1"w x 3"h x 8.3"d
DENON DVD-800cod.0900Prezzo offerta
€. 159,00 Lettore digitale per DVD, CD, CD-R, Video CD e DAD. Convertitore D/A audio a 24
bit/96 kHz.Uscite audio digitali AC-3, DTS e PCM, uscita analogica stereo.
Convertitore D/A video a 10 bit.1 uscita video composite, 1 S-Video e 1
Y/C(SCART).Filtro Super Sub Alias. On screen display.Telecomando multifunzione
in dotazione.Finitura nero I dischi CD-R registrati senza un corretto
procedimento di finalizzazione potrebbero risultare leggibili soltanto in parte
o completamente illeggibili.
DVD Player • Plays CD, DVD, Video CD, CD-R and CD-RW
music discs • Built-in MP3 Decoder for CD-R/RW encoded discs (128 or higher kbps
recommended) • 10 bit, 27 MHz video DAC • 3MB Memory Buffer to decrease or
eliminate layer change pauses or pickup dropout • 24 bit, 96 kHz DACs • Real 24
bit, 96 kHz digital output capability • Dolby Digital & DTS digital outputs •
Optical digital output • "S" & Composite video outputs • Subwoofer output •
Component video outputs (Y, Pr, Pb) • On Screen Display • Picture Mode
Adjustments • Passes PLUGE (below black) • Dimensions: 17.1"w x 3.2"h x 9.7"d
Lettore digitale per DVD, CD, CD-R, Video CD e DAD. Convertitore D/A audio a 24
bit/96 kHz.Uscite audio digitali AC-3, DTS e PCM, uscita analogica stereo.
Convertitore D/A video a 10 bit. 1 uscita video composite, 1 S-Video, 1
componenti e 1 Y/C (SCART). Nuovo meccanismo. Telecomando multifunzione in
dotazione.Finitura in nero o oro.Il sistema On-screen Display consente una
facile visualizzazione ed utilizzo delle funzioni.Dotato di uscite video
component e SCART, il DVD 1500 adotta un sistema di trasmissione a doppia
velocità ed è in grado di riprodurre CD-R audio (*1).(Nota; *1 I dischi CD-R
registrati senza un corretto procedimento di finalizzazione potrebbero risultare
leggibili soltanto in parte o completamente illeggibili.)
DVD Player • "S"
video output; composite video output • DTS compatible digital output • CD-R
Playback compatible • 24 bit, 96 kHz DACs • Component video outputs (Y, R-Y,
B-Y) • Dolby Digital (AC-3) digital output • Plays MPEG-2 DVD's; also plays
MPEG-1 Video CD's, and music CDs • GUI graphical user interface • 2 digital
outputs - 1 optical, 1 coaxial
Lettore digitale per DVD, CD, CD-R e Video CD. Convertitore D/A audio a 24
bit/96 kHz. Uscite audio digitali AC-3, DTS e PCM, uscita analogicastereo.
Convertitore D/A video a 10 bit/27MHz. Circuito Virtual Surround Sound. 1 uscita
video composito. +Filtro Super Sub Alias.
Telecomando multifunzione in dotazione
When
you meet someone at a party or down the pub and get talking about hi-fi, here's
a great way to find out just how well they know the subject: If they reckon
Nakamichis are the best cassette decks ever made, they know something. If they
say the Dragon is the best, they think they know a lot. If they say it's the
CR-7E, they really do. You see, the Dragon - wonderful, mad creation that it is
- isn't actually the best thing the legendary Nipponese cassette masters did.
It's a big, bold, lavish technological tour-de-force, that's for sure - but it
was never their last word in terms of sound quality. That accolade went to the
ZX-9, and then the CR-7E came along with better record/ replay electronics and
sounded even better still.
The Dragon isn't a one-off product. In Japan, Nakamichi have traditionally been
known as cassette deck specialists, but actually produce a whole range of audio
electronics - from receivers to CD players - most of which is pretty
unremarkable stuff. Commonly available in Japanese hi-fi shops at prices some
40% lower than over here, it's seen as good, solid, respectable fare - quite
like Audiolab used to be known here. To differentiate their high end 'statement'
products they market a range of gear under the Dragon brand, including CD
players and amps. It's madly expensive, complex and packed with high tech. In
1988 though, Nakamichi decided that all their conspicuous technology used in the
Dragon could be refocused towards getting the very best sound with absolutely no
compromises. Out went mind-bogglingly complex auto-reverse mechanism with
automatic electronic azimuth adjustment, and in came a beautifully engineered
direct-drive, dual capstan unidirectional transport automated for convenience
and given remote control too. less than its flagship bigger brother, but sounded
even more stunning. Its feature list is Spartan by comparison - the usual logic
controlled transport keys in the middle, with fader up, down and REC MUTE
buttons beneath. Counter mode selectors and timer controls made a token gesture
towards domestic acceptability, and then there was the manual tape sector (for
types I, II and IV cassettes) with switchable EQ. For the first time on a
Nakamichi though, these weren't strictly necessary as the CR-7E could also chose
tape types automatically if desired. Adjustable playback azimuth - a grand name
for what NAD modestly call PLAY TRIM - meant the '7's record/replay head could
be motor-adjusted by up to two- thirds of a degree to play tapes recorded on
lesser decks to their best potential. There was switchable Dolby NR (B and C,
but as per Nak tradition, no HX or S). You also got an amazing set of meters
with switchable PEAK HOLD - and the claim that they read up to +10dB was no idle
boast! Although Nakamichi's rivals had offered auto tape calibration for many a
long year, Nak debuted theirs with the CR-7E. It was simple to use - you just
loaded a blank tape, pressed AUTO CALIBRATION, a light flashed for fifteen
seconds and you were ready to record. Sound quality is startling - better than
every other cassette deck in the world bar none; it even gives high quality
semi-pro open reels (like Revox's B77) a sharp slap around the face. With a
decent metal tape, you can casually record at +10dB, such are the Nak's stunning
discrete heads, and even beer-budget ferrics sound better than anyone else's
cassette deck running the most expensive metals. Pitch stability, dynamics,
depth perspective, noise levels - everything - is superb. Replay of
pre-recordeds is a revelation - if they're decent all-analogue copies they'll
trounce even a modern high end CD player. In fact, the Nak's resolution far
exceeds CDs - to fully hear what it's capable of you need live recordings or a
high end vinyl source. Discrete 3-head with asymetrical dual capstan drive FG
servo brushless direct drive motor Digital tape counter with real time display
Playback head azimuth fine-tuning system
Auto calibration for tape type EX (normal) SX (Cro2) ZX (metal) tape capability
Auto fader for recording Memory stop and auto repeat
The CR-7 from Nakamichi is a
direct drive, three-head cassette deck with Dolby B and Dolby C noise reduction.
The deck features manual playback azimuth tuning, asymmetrical dual-capstan
transport, auto calibration of azimuth, level and bias andwireless remote
control. The display shows remaining time elapsed time, or a four-digit counter
reading in all transport modes including fast-forward and rewind. Other features
include auto repeat, memoty stop, timer recording/playback, and a two-speed
master fader control. Escape from the ordinary.Escape to the realism of
Nakamichi sound.The Nakamichi CR-7A Discrete-Head Cassette Deck - the most
convenient - and sophisticated - recording instrument conceived by man. It
selects equalization automatically - yet you can override the choice. It adjusts
azimuth, level and bias automatically - yet you can match azimuth to any tape -
from your armchair - with a wirless remote control. Its real-time counter
readselapsedtime and time remaining. It will even fade out a recording just
before the end - if you'd like.Specifications Main Unit Track Configuration: 4
tracks/2-channel stereo Heads: 3 (1 x erase, 1 x record, 1 x playback) Motors:
mTape Transport: FG servo brushless, slotless, coreless DD motor (capstan
drive), DC motor (reel drive) Mechanism: DC motor (cam drive), DC motor
(playback head azimuth control) Power Source: 100, 120, 120/220-240, 220 or 240
V AC 50/60 Hz Power Consumption: 55 W max. Tape Speed: 1-7/8 ips. (4,8 cm/sec.)
±0,5% Wow-and-Flutter: Less than ±0,048% WTD Peak; Less than 0,027% WTD RMS
Frequency response: 18 - 21,000 Hz ±3 dB; 20 - 20,000 Hz ±2 dB Signal-to-Noise
Ratio: Dolby C-Type NR on [70 μs, ZX tape] Better than 72 dB (400 Hz, 3%
THD, IHF A-WTD RMS) Dolby B-Type NR on [70 μs, ZX tape] Better than 66dB (400
Hz, 3% THD, IHF A- WTD RMS)Total Harmonic Distortion: Less than 0,8% (400 Hz, 0
dB, ZX tape); Less than 1,0% (400 HZ, 0 dB, SX, EXII tape)Erasure: Better than
60 dB (100 Hz, +10 dB) Separation: Better than 37 dB (1 kHz, 0 dB) Crosstalk:
Better than 60 dB (1 kHz, 0 dB) Bias Frequency: 105 kHz Input (Line): 50 mV/40k
ohms Output:Line: 1,0 V (400 Hz, 0 dB, output levelcontrol at max.) 2,2k
ohms;Headphones: 12 mW into 8 ohms (400 Hz, 0 dB, output level control at max.)Fast-Wind
Time: Approx. 80 sec. (with C-60 cassette) Dimensions: (WxHxD) 435 x 135 x 306
mm, ( 17⅛ x 5⁵⁄₁₆ x 12 inches)Weight: 9,0 kg, (19 lbs. 13 oz) Remote Control
Unit RM-7C (supplied with CR-7A) System: Infrared pulse system Power Suply: DC 3
V (1,5 V x 2)Dimensions: (WxHxD) 57 x 19 x 175 mm, ( 2¼ x ¾ x 6⅞ inches)Weight:
140 g, (5 oz)
The Nakamichi ST-7 / ST-7E is a digital synthesis tuner with the Schotz Noise
Reduction technology. This revolutionary system improves effective stereo
sensitivity by about 9db and lets you enjoy clean stereo on broadcasts that
previously could only be received in mono. Other features include seek and
manual tuning as well as 16 FM/AM presets that can be programmed at random, thus
combining convenience with top-level capability
2BAND DYNAMIC RANGE EXPANDER dbx 2BX two band
dynamic range expander. The limitations of the recording process requires record
and tape manufactureers to sacrifice nearly half the dynamic content of live
music. Crescendos and loudness variations containing vital musical information
must be reduced in scale, compromising the presence and excitement of the
original performance. A dynamic range expander is a complex electronic system
which makes quiet sounds quieter and loud sounds louder to restore the dynamics
sacrificed in the recording process
Equalizzatore
grafico stereo Technics 8065 lo storico equalizzatore a 33 bande per canale
.-Risposta in frequenza da 16 a 25.000 Hz con variazioni da + - 12 db o + - 3
db-Selettore delle caratteristiche-Distorsione totale 0,0025 20 a 20.000
Hz-Rapporto segnale disturbo 100db-Voltaggio massimo in uscita 8V-Risposta in
frequenza 5 -100.000 Hz -1db-Indicatore della gamma variabil
Audio video program route
selector A switching console for people who have more equipment than their
receivers have inputs.
* 3 video input/output (play & record, that is) plus one video input-only (for
laserdisc or DVD)
* 3 audio input/output
* Multiple audio and video effects processing loops for noise reduction units,
equaliser, etc.
The only difference between the video and audio sections is the passing of video
through the circuit. I have almost always used it for six audio connections and
ignored the video
Full size
MD recorder/player • Advanced SLC D/A conversion system • Dual enhanced
20 bit Delta-Sigma A/D converters • Digital sampling rate converter - 32 kHz,
44.1 kHz, 48 kHz • 2 optical digital inputs; 1 coaxial digital input • 1 optical
digital output • Synchro level recording auto-start • Character input function • Stereo-Mono
selectable recording • Full MD editing including Disc Recovery • Auto record
pause function • Remote control supplied
FM Tuner
Frequency Range: 87.5-107.9 MHz in 200 kHz steps or 87.5-108.0 MHz in 50 kHz
steps
Sensitivity: Better than 25 dBf
50 dB Quieting Sensitivity: Better than 25 dBf
Signal-to-Noise Ratio: Better than 65 dB
Stereo Separation: Better than 30 dB at 1 kHz
Antenna Input: 75 ohms
AM Tuner
Frequency Response: 530-1,710 kHz in 10 kHz steps, 522-1,629 kHz in 9 kHz steps,
or 531-1,602 kHz in 9kHz steps
Sensitivity: 32 dBµ
Preamplifier
Frequency Response: 5-50,000 Hz ± 3 dB
Output Level / Impedance: 1 V / 600 ohms
Total Harmonic Distortion: Less than 0.018%
Tone Controls: Bass: Mid: treble: ±8 dB at 20 Hz ±8 dB at 200 Hz ±8 dB at 20 kHz
General
Power Requirement: 14.4 V DC, negative ground (operable within 10.8 to 15.6 V)
Current Consumption: 1.5 A max.
Dimensions (WxHxD): Tuner/Control Unit: Preamplifier Unit: 178 x 50 x 165 mm 7 x
1-15/16 x 6-1/2 in. 229 x 65 x 278 mm 9 x 2-9/16 x 10-15/16 in,
Approximate Weight: Tuner/Control Unit: Preamplifier Unit: 1.1 kg / 2 lb. 7 oz.
3.3 kg / 7 lb. 4
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a info@sinergy.us
Il presente listino
sostituisce ed annulla ogni precedente.
Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco nostro magazzino.
Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
Audio Video
s.a.s.
Largo Cesare Campana N°2 (stazione ffss)
Mondovì 12084 (CUNEO) ITALIA tel.0174 670100 fax 0174 555700
.JPG)
Pretty
rare, almost non-existent. According to one service engineer, the Dragon CT was
much more reliable and better sounding than the bigger TX-1000. I wouldn't know
but the goal was basically the same - and the same as that used in the original
Dragon cassette recorder, only on a larger scale.Off-center records are a pain
and there isn't much one can do if the record is pressed that way ! Well, there
is something one can do : search for the real center of the record and adjust
the turntable platter to budge so that the off-centered record can be read as if
it were not off-centered. No small feat on a cassette recorder (for proper head
azimuth) but imagine that on a record player !So, the little arm at the back
scans the record groove, decides where the "absolute center" is and the whole
turntable assembly then moves accordingly - the cart is no more pushed around
left and right and just reads the groove.The main tonearm was sourced from
Jelco.UPDATE ! If the TX-1000 was designed by Etsuro Nakamichi (but quite
probably built by Micro Seiki), the Dragon CT was "sourced" elsewhere :
Nakamichi commissioned Junichi Okumura, then at Fujiya Audio Ltd, to design the
CT after the basic goal outlined by Etsuro !This explains the large differences
in approach and engineering between the TX and the CT.Fujiya was later in the
1980s absorbed by NEC and units such as the Dragon CT were scrapped from the
books. And when NEC shut down its own audio/video activities in the mid 1990s,
well, the Dragon CT definitively vanished from the landscape.Thanks to
Shinichiro Okumura, son of Junichi, for unveiling this revealing bit of history
Two Speed Direct Drive Turntable DescriptionThe Nakamichi Dragon-CT turntable is
a 2-speed, integrated turntable system.The Dragon's platter is a massive glass/cast
alloy design with a dense rubber mat.The fully adjustable subchassis is high
mass and suspended.The Quartz motor is a direct drive type with electronic speed
control and switching.The most unusual feature of the Dragon turntable is the
additional arm which is used to check for disc eccentricity, and the two-part
platter which allows for it's correction.
.JPG)
.JPG){kind=small}
.JPG){kind=small}
.JPG){kind=small}
.JPG){kind=small}
.JPG){kind=small}
.JPG)
.JPG)
.JPG)
.jpg)
.JPG)
.jpg)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.JPG)
.JPG){kind=small}
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.jpg)
.JPG)
.JPG)
.JPG)
.JPG)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.gif)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.jpg)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG){kind=small}
.JPG){kind=small}
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.jpg)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
