Since
Peter Walker founded the business in 1936, all Quad products have displayed an
originality in design, born from a full and proper understanding of every aspect
of sound reproduction. A world leader in audio amplifier and electrostatic
speaker design, Quad has, over the years, made a major contribution to the
improvement of sound quality. This contribution has been recognised by awards
from around the world including the Queen's Award for Technological Achievement
in 1978 – the only one ever presented to an audio hi-fi equipment
manufacturer.For many people, buying their first Quad sound system can be a life
changing experience. They enjoy the confidence of knowing that the complete
system has been engineered to achieve optimal performance, free from
compatibility problems. They relax in the knowledge that Quad's legendary
service department will give support throughout the system's useful life. They
derive pleasure from knowing that Quad is a company of individuals who care
about both the design and construction of their products, while sharing their
love of music. These are just some of the reasons why we now serve the children
and even grandchildren of our first customers.The history of Quad is one of
technical achievement in the field of sound reproduction. It is a story that
began with the Quad 1 amplifier, which brought the benefits of 15 years
knowledge and experience in professional audio and industrial products to the
task of making the most accurate domestic audio amplifier of its age. A few
years later, in 1953, the product which set the standard for amplifiers was the
Quad II Power Amplifier, the time of Queen Elizabeth's Coronation and the year
in which Mount Everest was finally conquered. This amplifier pioneered the
principle of cathode coupling through the output transformer to reduce harmonic
distortion to almost negligible levels. Such was its clear superiority that this
model remained in production for 18 years. Three years later, in 1956, Quad
demonstrated the first true full-range electrostatic loudspeaker. This
remarkable product (known later as the ESL 57) used a virtually mass-less
plastic film as a moving diaphragm between two charged plates. Compared
with moving coil loudspeakers, the ESL 57 was free of unwanted colourations and
distortions. This landmark product remained in production, virtually unchanged,
for 28 years.In 1967 Quad introduced its first transistorised amplifiers, the 33
Control Unit and the 303 power amplifier. These amplifiers introduced a new 'Triples'
output stage that solved all the thermal instability problems that plagued early
transistor designs. Radical in both circuit design and appearance, they went on
to win a Design Council Award in 1969.Amplifier performance
took a further step forward in 1975 with the arrival of the Quad 405 'Current
Dumping' amplifier. This remarkable new circuit topology remains one of the few
truly original amplifier designs and has featured in Quad products ever since.
For this technology Quad was awarded the Queen's Award for Technological
Achievement in 1978. Numerous other prestigious awards were presented to
Quad from all over the world. In 1981 Quad announced the ESL 63; a full-range
electrostatic loudspeaker based upon two sets of concentric annular electrodes
fed through sequential. delay lines. This patented system produces a sound
pressure pattern identical to the theoretical ideal of a point source origin.
Once again a Quad electrostatic loudspeaker became the reference standard around
the world.The arrival of the radical 77 Series in 1994 introduced the concept of
a fully integrated sound system operated with a two-way remote control system.
The system boasted numerous new types of circuit technology as well as some of
the most advanced control software seen in a consumer product. Two years after
the launch, Quad was presented with the 'European Amplifier of the Year' award
for the 77 Series Integrated Amplifier. In 1999, Quad launched the successor to
the 77 series, the current 99 series, and supplemented this with a range of
moving-coil loudspeakers, the L series and two new models of electrostatic - the
ESL 988 and ESL 989.Every product in our current portfolio has received
international acclaim, resulting in Quad receiving more ‘Product of the Year’
awards in 2004-2005 than at any prior period in the company’s history. These are
just some of the highlights from Quad’s pedigree line of technological
achievement. However, Quad has never indulged in technical ‘one-upmanship’. The
technology is there for a purpose – that has remained constant over the years.
To reproduce music in a form that is the closest approach to the original.
DIFFUSORI
ELETTROSTATICI
I fabbricanti ad avere intrapreso
la strada della produzione di una linea di diffusori elettrostatici si possano
contare sulle dita di una mano. Per quanto concerne la QUAD si può anche
aggiungere che è un'azienda unica nella produzione di una linea di diffusori
elettrostatici di tipo full range e a sorgente puntiforme. La serie ESL è
universalmente riconosciuta come la più naturale, pulita, precisa e trasparente
linea di diffusori elettrostatici del mondo.I diffusori elettrostatici QUAD non aggiungono alcun colore proprio alla
sorgente musicale e possono essere ascoltati per ore, senza mai affaticare
nell'ascolto. In poche parole, i diffusori ESL creano totale dipendenza e sono
come nient'altro abbiate avuto mai il piacere di ascoltare. Quando si ha a che
fare con la vera musica, i Quad ESL fanno parte di una categoria a sé! I nostri
ultimi modelli hanno vinto numerosi premi internazionali per la qualità del loro
suono, incluso il prestigioso Diapason D'Or e due 'Golden Ears'.
 The new ESL-2805 and ESL-2905
Electrostatics are Quad's latest reference loudspeakers and like their
predecessors should be regarded amongst the finest loudspeakers in the world
today. In areas such as transparency, and lack of colouration, they are without
peer.It should be noted that whilst moving-coil loudspeakers are the norm, the
physical principles upon which they work are fatally flawed - and not even the
latest advances in materials science can address their shortcomings.Quad alone
has sought a different path - to push the boundaries of electrostatic technology
to the point where our ESLs are closer to the ideal loudspeaker than any
other.Quad's patented panel technology results in a combination of the speed and
accuracy only possible from an electrostatic loudspeaker; together with the
imaging and soundstaging only possible from a theoretically ideal point source;
and the coherence and continuity of a single drive unit.With possibly the lowest
distortion of any loudspeaker, the ESL can be enjoyed for hours on end without
fatigue; never adding or subtracting from the original recording. Even at low
volume levels, they retain the full detail and drama of the music

QUAD
ESL
2805
€. 5.900,00 Per offerta
TELEFONA / UN E-MAIL
Caratteristiche :posizione inclinata di 3° struttura alluminio/acciaio ampl. consigliato 30-120 W
protezione elettronica 4/15 ohm risp. in freq. (-6dB) 37Hz-21kHz sensibilità: 86
dB linea ritardo ad anelli concentrici 2 elementi permedio/alti 4 elementi
perbassi mm (hxlxp)1040x695x385 peso 34,9kg colore nero-argento

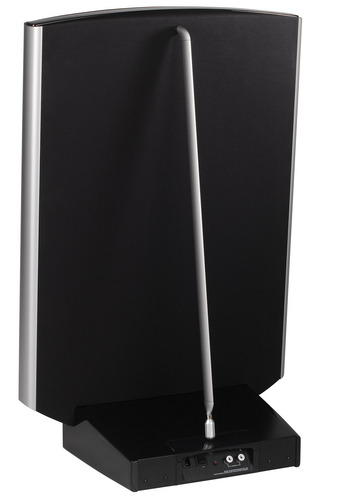

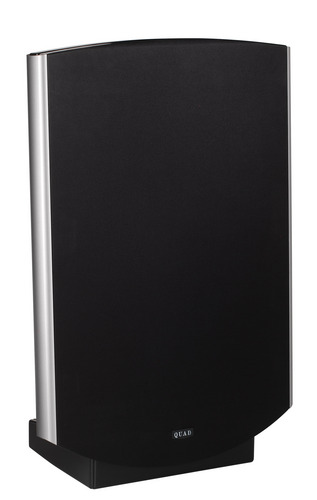

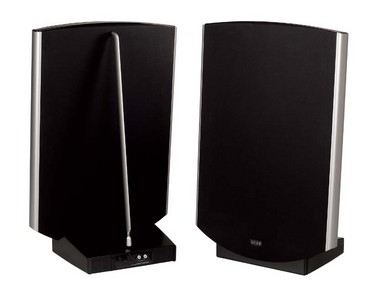

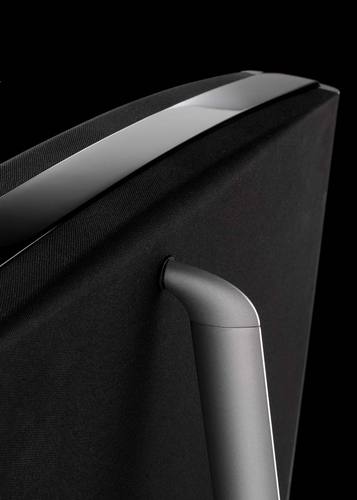

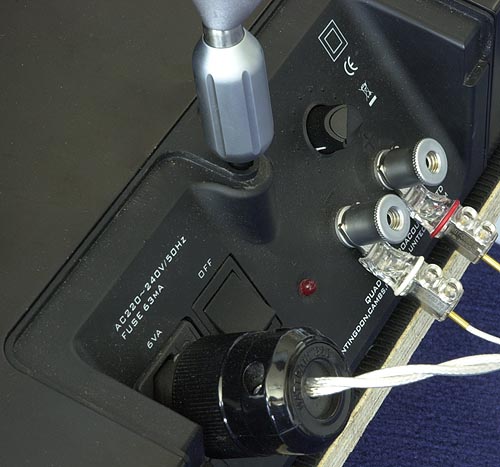

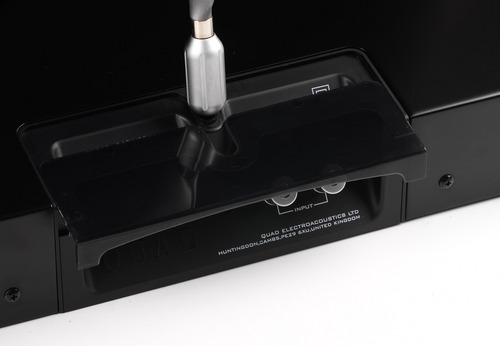

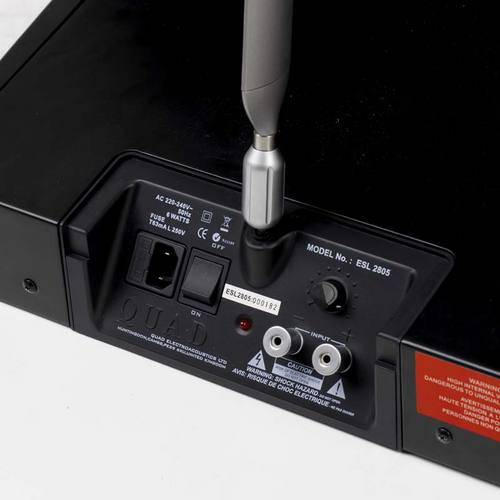

The ESL-2805 is the smaller of the two models using six panels rather than the 8
of the larger model. The inner two panels of the ESL-2805s construction, again
utilise the concentric anode rings for point source imaging, and the outer rings
are again linear in their response. Whilst absolute bass extension and dynamic
ability is less than it’s larger brother, the ESL-2805 offers a
sublime performance.The
clarity of mid-range for which the Quad’s are most famed is
fully in evidence, as is the sparkling detail and transparency that has long
been thehallmark of this series. Their response characteristics are virtually
identical and a base weight of 34.8kg together with the rigid bracing, ensures
they are suitably deep inbass and dynamic enough to fill all but the largest of
listening rooms. For the Quad aficionado without the need or desire for the
additional bass extension of the largermodel this, the smaller of the ESLs is
still regarded as the pinnacle of electrostatic refinement. Maximum Power Output
2N/m2 at 2m on-axis Sensitivity 1.5u Bar / Volt referred to 1m Impedance 8 Ohm
nominal Maximum continuous input voltage 10V Programme Peak (for undistorted
output) 40V Programme Peak (permitted) 55V Distortion (100dB @1m) - Above 1kHz
0.0015 Distortion (100dB @1m) - Above 100Hz 0.005 Distortion (100dB @1m) - Above
50Hz 0.01 Frequency Response 37Hz - 21kHz (-6dB), 33Hz - 23kHz (usable) Axis
band limits -6dB at 35Hz (3rd Order) Axis band limits (low level) -6dB >25kHz AC
input 220-240V or 110-120V Power fuse 100mA anti-surge (100-120V) Dimensions (H
x W x D) 1040 x 695 x 385mm (add 25-55mm for feet) Weight 34.8kg net
.gif)
QUAD
ESL
2812
€.
7.000,00 Per offerta
TELEFONA / UN E-MAIL
CODICE 6702010 QUAD ESL-2812
DIFFUSORE DIPOLO ELETTROSTATICO DA PAVIMENTO, SENZA CROSSOVER - PANNELLO CON
INCLINAZIONE FISSA DI 3 GRADI COSTITUITO DA 6 MEMBRANE ELETTROSTATICHE, I 2
STRATI PIù INTERNI CON ELETTRODI AD ANELLI CONCENTRICI PROGRESSIVI - USCITA
MASSIMA 2 N/M2 IN ASSE A 2 METRI - SENSIBILITA` 1.5 MBAR PER VOLT RIFERITO A 1
METRO (EQUIVALENTE A 86 DB/2.83 VRMS) - IMPEDENZA NOMINALE 8 OHM (VARIAZIONI DA
4 A 15 OHM) - RISPOSTA IN FREQUENZA FINO A 33 HZ - 23 KHZ - STUPEFACENTE TASSO
DI DISTORSIONE (100 DB @ 1 M), INFERIORE ALLO 0.15% OLTRE 1 KHZ (0,5% A 100 HZ,
1% A 50 HZ) - COMPONENTI INTERNI E TRASFORMATORI DI QUALITA` HI-END - TRIPLO
SISTEMA DI PROTEZIONE - STRUTTURA IN ESTRUSIONE DI ALLUMINIO E ACCIAIO INOX -
FINITURA CON PANNELLI LATERALI PIANO GLOSS BLACK (NERO LACCATO PIANO) E BASE IN
RAFFINATO MOGANO LACCATO - CONSUMO 6 WATT
.gif)
QUAD
ESL
2912
€.
9.000,00 Per offerta
TELEFONA / UN E-MAIL
CODICE 6702015
QUAD ESL-2912 DIFFUSORE DIPOLO ELETTROSTATICO DA PAVIMENTO, SENZA CROSSOVER -
PANNELLO CON INCLINAZIONE FISSA DI 3 GRADI COSTITUITO DA 6 MEMBRANE
ELETTROSTATICHE, I 2 STRATI PIù INTERNI CON ELETTRODI AD ANELLI CONCENTRICI
PROGRESSIVI - USCITA MASSIMA 2 N/M2 IN ASSE A 2 METRI - SENSIBILITA` 1.5 MBAR
PER VOLT RIFERITO A 1 METRO (EQUIVALENTE A 86 DB/2.83 VRMS) - IMPEDENZA NOMINALE
8 OHM (VARIAZIONI DA 4 A 20 OHM) - RISPOSTA IN FREQUENZA FINO A 28 HZ - 23 KHZ -
STUPEFACENTE TASSO DI DISTORSIONE (100 DB @ 1 M), INFERIORE ALLO 0.15% OLTRE 1
KHZ (0,5% A 100 HZ, 1% A 50 HZ) - COMPONENTI INTERNI E TRASFORMATORI DI QUALITA`
HI-END - TRIPLO SISTEMA DI PROTEZIONE - STRUTTURA IN ESTRUSIONE DI ALLUMINIO E
ACCIAIO INOX - FINITURA CON PANNELLI LATERALI PIANO GLOSS BLACK (NERO LACCATO
PIANO) E BASE IN RAFFINATO MOGANO LACCATO - CONSUMO 6 WATT
DIFFUSORI DINAMICI
Come è tipico della tradizione
QUAD, la serie di diffusori dinamici 'L' offre un livello di dettaglio,
neutralità e di immagine stereo aldilà di ogni aspettativa. Sulla scia della
serie ESL, i modelli 'L' segnano nuovi standards di performance per il loro
contenuto prezzo.L'ampia risposta in frequenza e l'utilizzo di driver ultra
precisi consentono alla serie L di riprodurre un suono naturale e fedele, così
vivido e coerente da ricreare, con estrema precisione, la distinta percezione
tridimensionale. La qualità costruttiva è, semplicemente, superba. Ogni cabinet
è costruito con MDF rinforzato da 18mm, con una scelta di quattro finiture in
vero legno. Ogni cabinet è ricoperto da ben sette strati di laccatura "piano
finish", per ognuno dei quali sono stati impiegati singoli cicli d'asciugatura
di 24 ore.Per garantire la più fedele trasmissione possibile del segnale sono
stati impiegati terminali 'bi-wiring' di alta qualità con placcatura in oro e
cavi interni di tipo oxygen-free. La gamma completa è comprensiva di quattro
diffusori stereo, un canale centrale ed un subwoofer (per impieghi AV), tutti
con la medesima qualità costruttiva e di riproduzione.

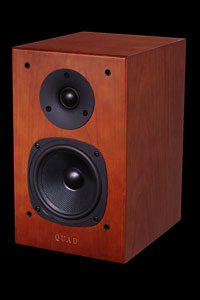

The L2 series was launched in
September 2006. A follow-up to the original L-series it has been
updated and improved in every respect whilst maintaining the
same clear identity and level of refinement.Aluminium voice coils, a new
profiled tweeter pod, improved chassis design for lower
mid-range distortion and improved terminals, spikes and plinths.Set to become every bit as
influential as its predecessor, the L2 series is once again
redefining expectations in its class
SERIE L CLASSIC
QUAD
11L
CLASSIC
€.
350,00 Per offerta
TELEFONA / UN E-MAIL
CODICE 6702168 QUAD 11L CLASSIC SIGNATURE
VENEER SAPELE MAHOGANY DIFFUSORE DA SUPPORTO BASS REFLEX A 2 VIE -
EDIZIONE SPECIALE CON CERTIFICATO DI AUTENTICITA` - 1 TWEETER A CUPOLA MORBIDA
DA 25 MM - 1 MIDWOOFER A LUNGA ESCURSIONE CON CONO IN KEVLAR E SOSPENSIONI IN
GOMMA DA 125 MM - RISPOSTA IN FREQUENZA 48 HZ - 22 KHZ - IMPEDENZA NOMINALE 6
OHM (MINIMA 4 OHM) - EFFICIENZA 87 DB - CROSSOVER CON COMPONENTI AUDIOPHILE
GRADE, INCROCIO A 2.2 KHZ - POTENZA AMPLIFICATORE RACCOMANDATA DA 30 A 150 WATT
- CONNETTORI DORATI PREDISPOSTI PER BI-WIRING E BI-AMPING - GRIGLIA MAGNETICA
CON ATTACCHI SUL PANNELLO FRONTALE NASCOSTI SOTTO LA FINITURA - CABINET CON
COSTRUZIONE MULTI-LAYER DOTATO DI RINFORZI INTERNI E SPECIALI FIBRE SMORZANTI,
ACCURATAMENTE PROGETTATO PER DISPERDERE LE ONDE STAZIONARIE E LE RIFLESSIONI,
CON SENSIBILE RIDUZIONE DI RISONANZE E COLORAZIONI - LEGNI ACCURATAMENTE
SELEZIONATI E LUCIDATI PER METTERNE IN RISALTO LE VENATURE E IL COLORE -
FINITURA VENEER SAPELE MAHOGANY (MOGANO AFRICANO LUCIDATO)
VERSIONE SIGNATURA PIANO COLORE
NERO O MOGANO 470,00 euro
The 11L Classic is the first model in the L Classic Series. It employs the
format and characteristics of its award-winning forebears, but in its
formulation and construction is a major advancement in performance. It is
tonally balanced to suit all music genres and is virtually unrivalled in its
ability to retrieve all nuances captured by recording engineers, whilst avoiding
a clinical sound. It is thoroughly musically involving for the listener,
majoring in timbral accuracy, exceptional detail retrieval and low colouration,
the 11L Classic is everything a small monitor-class loudspeaker is meant to be,
and it perfectly follows Quad’s tradition of ‘the closest approach to the
original sound Model 11L Classic General Description 2-way bookshelf
speaker Enclosure Type Bass reflex Bass/Mid Driver 125mm woven
Kevlar cone Treble Driver 25mm fabric dome Magnetic Shielding No
Crossover Frequency 2.2kHz Frequency Response (+/-3dB) 48Hz-22kHz
Sensitivity (2.83V@1m) 87dB Recommended Amplifier Power 30-150W
Nominal Impedance 6Ohms Minimum Impedance 4.2 Ohms Size (H×W×D)
310×190×263(mm) Net Weight 6.3kg each Standard Accessories spikes, plinth,
user manual, certificate, gloves
QUAD
12L
CLASSIC
€.
510,00 Per offerta
TELEFONA / UN E-MAIL
QUAD 12L CLASSIC SIGNATURE DIFFUSORE
DA SUPPORTO BASS REFLEX A 2 VIE - EDIZIONE SPECIALE CON CERTIFICATO DI
AUTENTICITA` - 1 TWEETER A CUPOLA MORBIDA DA 25 MM - 1 MIDWOOFER A LUNGA
ESCURSIONE CON CONO IN KEVLAR E SOSPENSIONI IN GOMMA DA 165 MM - RISPOSTA IN
FREQUENZA 48 HZ - 23 KHZ - IMPEDENZA NOMINALE 6 OHM (MINIMA 3.8 OHM) -
EFFICIENZA 87 DB - CROSSOVER CON COMPONENTI AUDIOPHILE GRADE, INCROCIO A 2.4 KHZ
- POTENZA AMPLIFICATORE RACCOMANDATA DA 50 A 150 WATT - CONNETTORI DORATI
PREDISPOSTI PER BI-WIRING E BI-AMPING - GRIGLIA MAGNETICA CON ATTACCHI SUL
PANNELLO FRONTALE NASCOSTI SOTTO LA FINITURA - CABINET CON COSTRUZIONE
MULTI-LAYER DOTATO DI RINFORZI INTERNI E SPECIALI FIBRE SMORZANTI, ACCURATAMENTE
PROGETTATO PER DISPERDERE LE ONDE STAZIONARIE E LE RIFLESSIONI, CON SENSIBILE
RIDUZIONE DI RISONANZE E COLORAZIONI - LEGNI ACCURATAMENTE SELEZIONATI E
LUCIDATI PER METTERNE IN RISALTO LE VENATURE E IL COLORE - FINITURA VENEER
SAPELE MAHOGANY (MOGANO AFRICANO LUCIDATO) ALTEZZA (IN MM) 340 LARGHEZZA
(IN MM) 205 PROFONDITA' (IN MM) 279 PESO (IN KG) 7.1colore: SIGNATURE
VENEER SAPELE VERSIONE SIGNATURA
PIANO COLORE NERO O MOGANO 650,00 euro
Mini monitor loudspeakers have distinct advantages both for near field
monitoring and for music reproduction in the home. Using small drivers offer the
possibility of seamless integration for the delivery of accurate power response
both for the forward axis and in the room itself. The 12L Classic loudspeaker is
equipped with the same internal characteristics as its smaller sibling including
the long-throw Kevlar cone driver, a tweeter that utilises a
precision-engineered waveguide for a totally coherent midrange and treble, but
now incorporates enhanced bass capabilities for a more realistic sound
experience.Its cabinet maintains a multi-layer construction, combining two
varied wood materials to reduce panel resonance allowing the cabinet to produce
a more solid sound, and incorporates twin reflex ports placed in its rear to
baffle any effects of airflow distortion and midrange leakage. Model 12L Classic
General Description 2-way bookshelf speaker Enclosure Type Bass reflex
Bass/Mid Driver 165mm woven Kevlar cone Treble Driver 25mm fabric dome
Magnetic Shielding No Crossover Frequency 2.4kHz Frequency Response
(+/-3dB) 48Hz-23kHz Sensitivity (2.83V@1m) 87dB Recommended
Amplifier Power 50-150W Nominal Impedance 6Ohms Minimum Impedance
3.8 Ohms Size (H×W×D) 340×205×279(mm) Net Weight 7.12kg each
Standard Accessories spikes, plinth, user manual, certificate, gloves
SERIE S
.gif)
QUAD
S1 €.
700,00 Per offerta
TELEFONA / UN E-MAIL
QUAD S-1 DIFFUSORE DA
SUPPORTO BASS REFLEX A 2 VIE - 1 TWEETER A NASTRO DA 12X45 MM - 1 MIDWOOFER A
LUNGA ESCURSIONE CON CONO IN KEVLAR E SOSPENSIONI IN GOMMA DA 100 MM - RISPOSTA
IN FREQUENZA 58 HZ - 20 KHZ - ESTENSIONE IN GAMMA BASSA (-6 DB) 55 HZ -
IMPEDENZA NOMINALE 8 OHM (MINIMA 4.2 OHM) - EFFICIENZA 84 DB - CROSSOVER CON
COMPONENTI AUDIOPHILE GRADE, INCROCIO A 3.2 KHZ - POTENZA AMPLIFICATORE
RACCOMANDATA DA 25 A 100 WATT - CONNETTORI PREDISPOSTI PER BI-WIRING E BI-AMPING
- FINITURA BLACK OAK (ROVERE NERO) FINITURA SAPELE MAHOGANY (MOGANO AFRICANO)
.gif)
QUAD
S2
€.
800,00 Per offerta
TELEFONA / UN E-MAIL
QUAD S-2 DIFFUSORE DA SUPPORTO BASS REFLEX A 2 VIE - 1 TWEETER A NASTRO DA
12X45 MM - 1 MIDWOOFER A LUNGA ESCURSIONE CON CONO IN KEVLAR E SOSPENSIONI IN
GOMMA DA 125 MM - RISPOSTA IN FREQUENZA 48 HZ - 22 KHZ - ESTENSIONE IN GAMMA
BASSA (-6 DB) 37 HZ - IMPEDENZA NOMINALE 8 OHM (MINIMA 4.5 OHM) - EFFICIENZA 87
DB - CROSSOVER CON COMPONENTI AUDIOPHILE GRADE, INCROCIO A 3 KHZ - POTENZA
AMPLIFICATORE RACCOMANDATA DA 25 A 100 WATT - CONNETTORI PREDISPOSTI PER
BI-WIRING E BI-AMPING - FINITURA BLACK OAK (ROVERE NERO) FINITURA SAPELE
MAHOGANY (MOGANO AFRICANO)
.gif)
QUAD
S4
€.
1.300,00 Per offerta
TELEFONA / UN E-MAIL
QUAD S-4 DIFFUSORE DA PAVIMENTO A 3 VIE IN CASSA CHIUSA CON RADIATORI PASSIVI (ABR)
- 1 TWEETER A NASTRO DA 12X45 MM - 1 MIDWOOFER CON CONO IN FIBRA DI CARBONIO E
SOSPENSIONI IN GOMMA DA 100 MM - 2 WOOFER CON CONO IN FIBRA DI CARBONIO E
SOSPENSIONI IN GOMMA DA 125 MM - 2 RADIATORI PASSIVI DA 125 MM - RISPOSTA IN
FREQUENZA 44 HZ - 23 KHZ - ESTENSIONE IN GAMMA BASSA (-6 DB) 37 HZ - IMPEDENZA
NOMINALE 6 OHM (MINIMA 3.5 OHM) - EFFICIENZA 88 DB - CROSSOVER CON COMPONENTI
AUDIOPHILE GRADE, INCROCI A 520 HZ E 3.9 KHZ - POTENZA AMPLIFICATORE
RACCOMANDATA DA 25 A 100 WATT - CONNETTORI PREDISPOSTI PER BI-WIRING E BI-AMPING
- DOTATO DI BASE CON PUNTE CONICHE REGOLABILI - FINITURA BLACK OAK (ROVERE NERO)
FINITURA SAPELE MAHOGANY (MOGANO AFRICANO)
.gif)
QUAD
S5 €.
1.600,00 Per offerta
TELEFONA / UN E-MAIL
QUAD S-5 DIFFUSORE DA PAVIMENTO A 3 VIE IN CASSA CHIUSA CON RADIATORI PASSIVI (ABR)
- 1 TWEETER A NASTRO DA 12X45 MM - 1 MIDWOOFER CON CONO IN FIBRA DI CARBONIO E
SOSPENSIONI IN GOMMA DA 125 MM - 2 WOOFER CON CONO IN FIBRA DI CARBONIO E
SOSPENSIONI IN GOMMA DA 165 MM - 3 RADIATORI PASSIVI DA 125 MM - RISPOSTA IN
FREQUENZA 42 HZ - 23 KHZ - ESTENSIONE IN GAMMA BASSA (-6 DB) 35 HZ - IMPEDENZA
NOMINALE 6 OHM (MINIMA 3.2 OHM) - EFFICIENZA 90 DB - CROSSOVER CON COMPONENTI
AUDIOPHILE GRADE, INCROCI A 570 HZ E 3.2 KHZ - POTENZA AMPLIFICATORE
RACCOMANDATA DA 25 A 100 WATT - CONNETTORI PREDISPOSTI PER BI-WIRING E BI-AMPING
- DOTATO DI BASE CON PUNTE CONICHE REGOLABILI - FINITURA BLACK OAK (ROVERE NERO)
FINITURA SAPELE MAHOGANY (MOGANO AFRICANO)
.gif)
QUAD
SC €.
1.000,00 Per offerta
TELEFONA / UN E-MAIL
QUAD S-C DIFFUSORE PER CANALE CENTRALE BASS REFLEX A 2 - 1 TWEETER A
NASTRO DA 12X45 MM - 2 MIDWOOFER CON CONO IN FIBRA DI CARBONIO E SOSPENSIONI IN
GOMMA DA 100 MM - RISPOSTA IN FREQUENZA 65 HZ - 20 KHZ - ESTENSIONE IN GAMMA
BASSA (-6 DB) 60 HZ - IMPEDENZA NOMINALE 8 OHM (MINIMA 4.4 OHM) - EFFICIENZA 86
DB - CROSSOVER CON COMPONENTI AUDIOPHILE GRADE, INCROCIO A 2.8 KHZ - POTENZA
AMPLIFICATORE RACCOMANDATA DA 25 A 100 WATT - CONNETTORI PREDISPOSTI PER
BI-WIRING E BI-AMPING - FINITURA BLACK OAK (ROVERE NERO) FINITURA SAPELE
MAHOGANY (MOGANO AFRICANO)

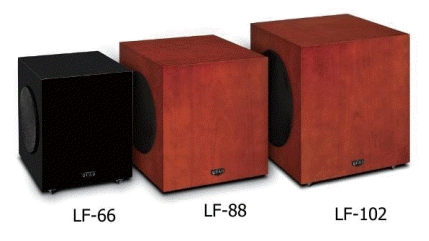

SUBWOOFEER
QUAD
LF66 €.
900,00 Per offerta
TELEFONA / UN E-MAIL
QUAD
LF88 €.
1.200,00 Per offerta
TELEFONA / UN E-MAIL
QUAD
LF102 €.
1.700,00 Per offerta
TELEFONA / UN E-MAIL

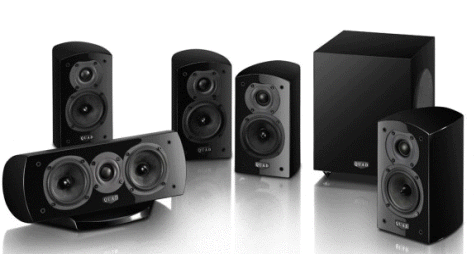

KIT 5+1
QUAD
L-ITE
€. 2.000,00 Per offerta
TELEFONA / UN E-MAIL
DIFFUSORI ATTIVI
QUAD
11L
STUDIO
€.
640,00 Per offerta
TELEFONA / UN E-MAIL
Diffusore attivo 2 vie
reflex biamplificato - woof. 170mm, tw. 25mm -60Wxwoof.+40Wxtw. - schermatura
magnetica - max SPL 110dB -45Hz?24kHz?3dB - freq. rison. 50 Hz - filtro 1,8kHz
6dB/Oct. - mm360x210x310 - peso 9,7 kg - piano finish
The Active L-series is a powered version of Quad's famous L-series loudsepaker.
The 11L active features not only one amplifier, but two amplifiers per speaker,
each tailored to perfectly match its drive unit.Use with PCs, network media
clients, iPods - indeed anything with a volume controlled output - including
Quad's own 99CDP-2. Each speaker requires mains power and has RCA, XLR (balanced)
inputs and volume controls. the 11L studio monitor is an 'Active' Loudspeaker
with built-in amplifier. Based upon the multi award-winning L-series loudspeaker,
the 11L Studio monitor features not just one but two internal amplifiers, each
driving a single drive unit. Balanced and calibrated to provide a rular-flat
response, the 11L Studio monitor is ideal, not only for hi-fi, it can be used
directly with an MP3 player, multi-roomer server, games console - or computer
.gif)
QUAD
9AS
€. 700,00 Per offerta
TELEFONA / UN E-MAIL

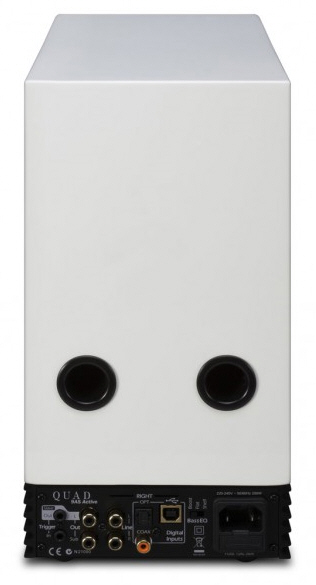

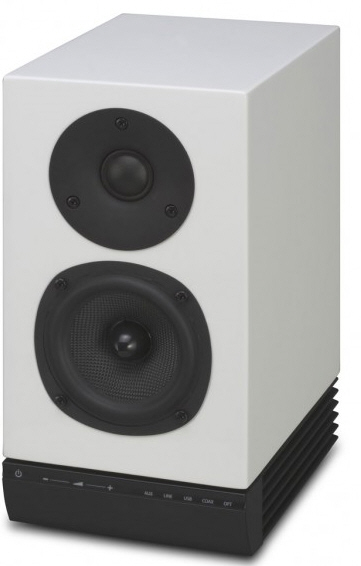

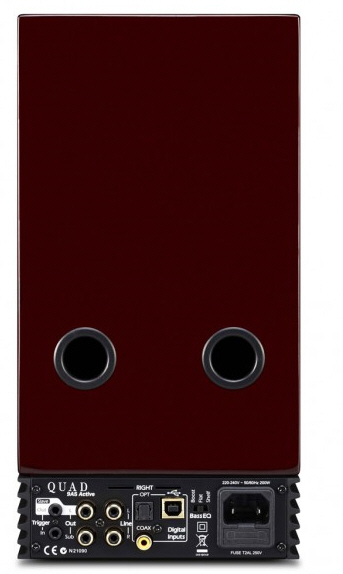

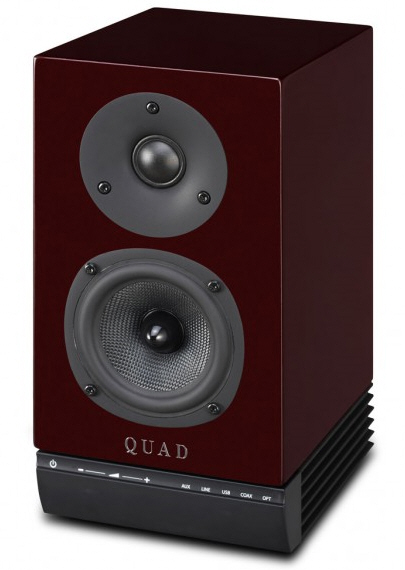

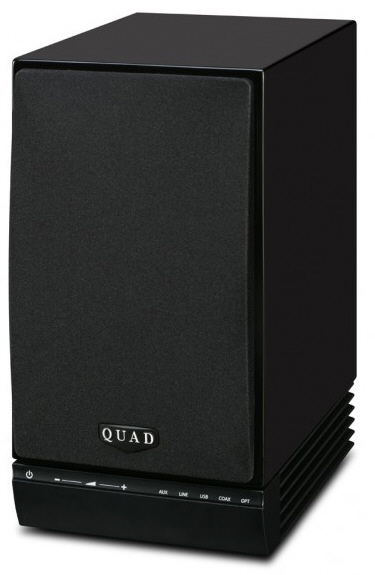

QUAD 9AS DIFFUSORI MONITOR ATTIVI DA
SUPPORTO BASS REFLEX A 2 VIE CON DAC INCORPORATO - 1 TWEETER A CUPOLA MORBIDA DA
25 MM - 1 WOOFER CON MEMBRANA IN KEVLAR DA 100 MM - AMPLIFICATORE IN CLASSE AB
CON POTENZA DA 65 WATT PER CANALE (PICCO 130 WATT) - RICEVITORE USB ASINCRONO
XMOS - CONVERTITORE DAC CRYSTAL CS4398 CON RISOLUZIONE FINO A 24 BIT/192 KHZ -
INGRESSI ANALOGICI: 1X L/R SINGLE-ENDED RCA, 1X AUX JACK STEREO 3,5 MM -
INGRESSI DIGITALI: 1X USB, 1X COASSIALE ELETTRICO S/PDIF RCA, 1X OTTICO TOSLINK
- USCITA SUBWOOFER - RISPOSTA IN FREQUENZA 65 HZ - 23 KHZ (ESTENSIONE IN GAMMA
BASSA FINO A 47 HZ) - INCROCIO CROSSOVER 2,5 KHZ - CONNESSIONI DI CONTROLLO
TRIGGER 12 VOLT JACK 3,5 MM - GRIGLIA MAGNETICA CON ATTACCHI SUL PANNELLO
FRONTALE NASCOSTI SOTTO LA FINITURA - TELECOMANDO IN DOTAZIONE - FINITURA Black
, white, red ruby.
MEDIA PLAYER
QUAD
PLATINUM
DMP
€.
4.000,00 Per
prezzo
scontato
TELEFONA/UN E-MAIL

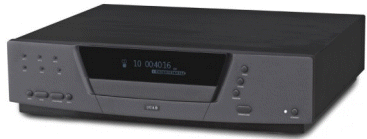

CODICE 6701105 QUAD PLATINUM DMP
DIGITAL MEDIA PLAYER MULTIFORMATO, MECCANICA CD E PREAMPLIFICATORE BILANCIATO
CON DAC INTEGRATO - RICEVITORE USB ASINCRONO XMOS - CONVERTITORE DAC CRYSTAL
CS4398 CON RISOLUZIONE FINO A 24 BIT/192 KHZ - RIPRODUZIONE CD CON SUPPORTO
FORMATI MP3 E WMA - ATTENUATORE DEL VOLUME ESCLUDIBILE - INGRESSI DIGITALI: 1X
USB, 2X COASSIALE ELETTRICO S/PDIF RCA, 3X OTTICO TOSLINK - USCITE DIGITALI: 1X
AES/EBU XLR, 1X COASSIALE ELETTRICA BNC, 1X COASSIALE ELETTRICA S/PDIF RCA, 1X
OTTICA TOSLINK - USCITE ANALOGICHE (IMPOSTABILI COME FISSE O VARIABILI): 1X L/R
BILANCIATA XLR, 1X L/R SINGLE-ENDED RCA - RISPOSTA IN FREQUENZA 20 HZ - 20 KHZ
(+- 0,5 DB) - DISTORSIONE ARMONICA TOTALE (THD) <0,001% - RAPPORTO
SEGNALE/RUMORE (SN RATIO): >110 DB (1 KHZ) - GAMMA DINAMICA >98 DB (1 KHZ) -
SEPARAZIONE CANALI >100 DB (1 KHZ) - CONNESSIONI DI CONTROLLO TRIGGER 12 VOLT
JACK 3,5 MM E QUAD SYSTEM-LINK RJ45 - TELECOMANDO IN DOTAZIONE - FINITURA
ALUMINUM MATTE BLACK (ALLUMINIO NERO OPACO) ALTEZZA (IN MM) 100
LARGHEZZA (IN MM) 380 PROFONDITA' (IN MM) 315 PESO (IN KG) 5.5
AMPLIFICATORI INTEGRATI
.gif)
.gif)

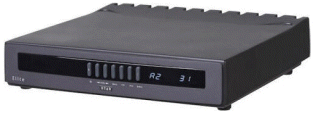

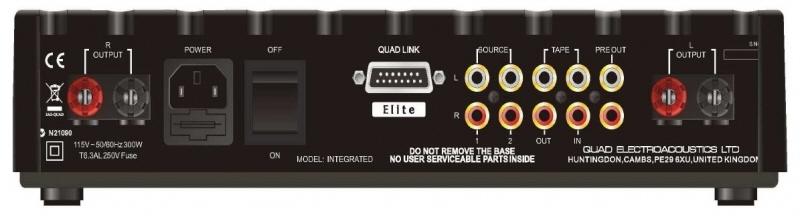

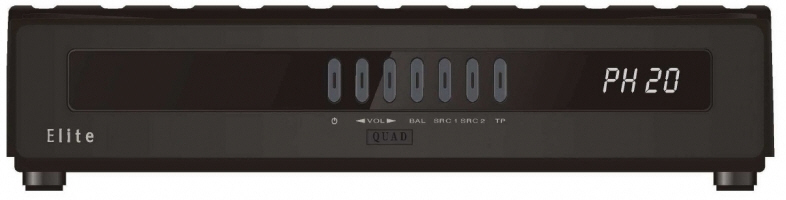

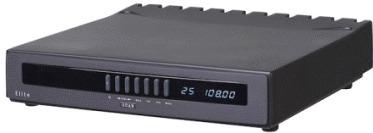

QUAD
ELITE
INT
€. 1.250,00
Per
offerta
TELEFONA/UN E-MAIL
L’Elite integrata è un discendente di
‘avvicinamento al suono originale’ di Quad filosofia e combina tutte le virtù
possedute dal Elite Pre e amplificatore di potenza stereo in un unico chassis.
Una selezione di collegamenti e funzioni di ingresso e di uscita sono
disponibili nella Elite Integrated completato da un terminale QuadlinkTM situato
nella parte posteriore dell’unità che funge da collegamento di comunicazione e
fornisce la trasmissione bilanciata del segnale dal lettore CD Elite CDS e / o
l’Elite FM Tuner – l’indulgenza per gli audiofili più esigenti semplicità di
funzionamento.Model ELITE INT Pre-amplifier
Section Input Sensitivity 330mV or 775mV (Source 1 & 2) Tape In
775mV Output Voltage 775mV Tape Out same as input level Output
Impedance 850 Ohms Tape Output Impedance 300 Ohms Inputs CD & Tuner
via Quadlink, 2 × Line (RCA), TAPE IN Outputs 1 × Pre-out, TAPE OUT
Power Amplifier Section Rated Power Output 2 × 80W RMS, 8 Ohms
Frequency Response 20Hz – 20kHz (+/-0.3dB) Total Harmonic Distortion
<0.005% at 70W, 1kHz <0.05% at 70W, 20kHz Signal to Noise Ratio >105dB (A)
Main Power On/Off Switch Yes Dimensions (H x W x D) 70 × 321 × 310 (mm)
Weight 6.6kg Finish Black Remote Control 31 Keys
.gif)
.gif)
QUAD
VENA
€. 1.400,00 Per
offerta
TELEFONA/UN E-MAIL
CODICE 6701180 QUAD VENA HI-GLOSS BLACK
AMPLIFICATORE INTEGRATO CON DAC INCORPORATO E CONNESSIONE BLUETOOTH 3.0 APTX
(COMPATIBILE CON QUALUNQUE DISPOSITIVO DOTATO DI BLUETOOTH) - POTENZA 45 WATT
PER CANALE SU 8 OHM - CONVERTITORE DAC 24 BIT/192 KHZ CRYSTAL CS4398 - 2
INGRESSI ANALOGICI L/R SINGLE-ENDED RCA - INGRESSI DIGITALI: 1X USB, 1X
COASSIALE ELETTRICO S/PDIF RCA, 2X OTTICI TOSLINK, 1X IPHONE/IPAD/IPOD (A-TYPE
USB) - USCITA CUFFIE JACK 6,3 MM (LIVELLO D'USCITA SELEZIONABILE, MASSIMO 3,5 V)
- PRE-OUT (LIVELLO MASSIMO 2,3 V) - USCITE DIGITALI COASSIALE ELETTRICA S/PDIF
RCA E OTTICA TOSLINK - RISPOSTA IN FREQUENZA 20 HZ - 30 KHZ - DISTORSIONE
ARMONICA TOTALE (THD) < 0,009% A 10 WATT / 1 KHZ - RAPPORTO SEGNALE/RUMORE (SN
RATIO) > 108 DB A 45 WATT - SENSIBILITA` IN INGRESSO 450 MV (ANALOGICO RCA) -
TELECOMANDO IN DOTAZIONE - CABINET IN LEGNO, FINITURA HI-GLOSS BLACK (NERO
LACCATO) GREY(GRIGIO) MOHGANY (MOGANO) WHITE (BIANCO)ALTEZZA (IN MM)
94 LARGHEZZA (IN MM) 313 PROFONDITA' (IN MM) 302 PESO (IN KG)
7.5
.gif)
.gif)
QUAD
II
CLASSIC INTEGRATED
€.
6.800,00
Per prezzo
scontato
TELEFONA/UN E-MAIL
CODICE 6701035 QUAD II-CLASSIC
INTEGRATED LANCASTER GREY AMPLIFICATORE INTEGRATO STEREOFONICO VALVOLARE
IN CLASSE A - VALVOLE: 4X 12AX7, 4X KT66, 2X 6922EH - 4 INGRESSI LINEA
SINGLE-ENDED RCA, TAPE LOOP, 1 INGRESSO PHONO MM/MC - POTENZA 25 WATT PER CANALE
SU 8 OHM - GUADAGNO 34 DB - RISPOSTA IN FREQUENZA 20 HZ - 20 KHZ - DISTORSIONE
ARMONICA TOTALE (THD) 0,06% A 15 WATT / 700 HZ - RAPPORTO SEGNALE/RUMORE (SN
RATIO) SUPERIORE A 98 DBA - CROSSTALK SUPERIORE A 75 DB - SENSIBILITA` IN
INGRESSO: 275 MV RMS (LINEA E TAPE MONITOR), 2 MV RMS (PHONO MM), 200 UV RMS (PHONO
MC) - CONSUMO MASSIMO 195 WATT - FINITURA LANCASTER GREY (GRIGIO SATINATO)
ALTEZZA (IN MM) 200 LARGHEZZA (IN MM) 310 PROFONDITA' (IN MM) 380
The
rekindled interest in 2 channel analogue hi-fi has been remarkable to witness.
The popularity of vinyl has grown steadily over the last 5 years and now
represents a significant proportion amongst real music enthusiasts. Quad has
been at the forefront of this trend with its development of some of the world's
most stunning amplifiers, loudspeakers and phono stages. Creating a compact
audiophile integrated solution for LP and Vintage Hi-End Audio lovers while
working in collaboration with one of the industry's esteemed legendary figures,
Tim DeParavicini.Through his contemporary designs based on Quad's novel
amplifier technology developed over half a century ago, our classic range of
amplifier and speaker components represent far more than a nostalgic trip down
memory lane. Each product represents as significant a design statement as their
original counterparts.The new Quad II Classic Integrated Amplifier is a
perfectly balanced and completely integrated amplifier system to resolve system
matching and offer exceptional performance and value within a relatively compact
and classically styled chassis. Performance, as you would expect from one of the
most famous names in hi-fi, is nothing short of breathtaking. The
25watt-per-channel specified, belies their power and ability to drive even the
most difficult loads. The remarkable output transformer design is characterized
through its speed, agility and ability to convey the genuine passion of live
performance. Valve Type 4 x KT66; 4 x ECC88; 2 x ECC83
Input Channel 3 x Line Level, 1 x MM/MC Phono (selectable) and Tape Monitor
Stereo Power Output 25W per channel into 8 ohms THD 0.06% @ 15W 9700Hz) Noise >
-95dBr (ref 25W into 8R) Frequency Response 20Hz-20kHz +0dB/-0.5dB Crosstalk
>75dB Gain 34dB Noise '-98dB (275mV input) Dimensions (HxWxD) 200 x 310 x
380mm
PREAMPLIFICATORI
.gif)
.gif)
QUAD
ELITE PRE
€. 1.800,00
Per
offerta
TELEFONA/UN E-MAIL
CODICE 6701150 QUAD ELITE PRE PREAMPLIFICATORE
STEREOFONICO CON STADIO PHONO MM/MC INTEGRATO - INGRESSI: 3X LINEA SINGLE-ENDED
RCA, 1X TAPE LOOP RCA, 1X PHONO MM/MC RCA - 1 USCITA LINEA SINGLE-ENDED RCA -
CONNESSIONI PROPRIETARIE BILANCIATE IN/OUT QUADLINK E AMPBUS - RISPOSTA IN
FREQUENZA: LINEA FINO A 0.1 HZ - 55 KHZ, PHONO MM/MC 20 HZ - 20 KHZ -
DISTORSIONE ARMONICA TOTALE (THD) < 0,05% - RAPPORTO SEGNALE/RUMORE (SN RATIO):
LINEA > 105 DBA, PHONO > 78 DBA - SENSIBILITA` INGRESSO PHONO SELEZIONABILE (MM
1.3, 7.75 MV - MC 100, 300, 500 UV) - LIVELLI DI USCITA: SINGLE-ENDED RCA 775 MV
(MASSIMO 3,3 V), AMPBUS 2 V (MASSIMO 8 V) - ATTENUATORE DEL VOLUME E
BILANCIAMENTO CANALI ANALOGICI A CONTROLLO DIGITALE, CON SEPARAZIONE CANALI
ACCURATISSIMA (INFERIORE A 0.1 DB) - CONTROLLO TONI CON AGGIUNTA DI SOFISTICATI
FILTRI PROPRIETARI - SELEZIONE INGRESSI A STATO SOLIDO - TELECOMANDO IN
DOTAZIONE - FINITURA BLACK (NERO) ALTEZZA (IN MM) 70 LARGHEZZA (IN MM) 321
PROFONDITA' (IN MM) 310 PESO (IN KG) 4.4
The Quad Elite Series has been developed employing the strongest design features
derived from its 99 series predecessor, but exhibiting updated internal
audiophile-class components, highly specified transformers, multi-layer circuit
boards and the latest, most advanced software available. Building upon the
classic Quad sound but adding increased clarity and definition, the series
ensures that the quality of musical performance is more accessible and conveys
the actual message of the artist. Intended as a fully integrated system, each
Elite series model works best when paired with one another. Each product in the
Elite Series is enhanced according to the highest of our engineering standards
to ensure that ease of use, seamless connectivity, fully balanced audio signals
and intelligent control systems that allow complete control via the remote
handset is achieved. Encased with a sleek new modern aluminium casework design
in deep grey with a matte black front panel which maintains Quad's bold but
stylishly elegant aesthetic. Constructed using superior class cast alloy which
ensures that quality is according to Quad's standards and in turn guarantees a
valuable investment that will last a lifetime whilst garnering much merit over
years of use. The Elite Series include: Elite CD-S, Elite CD-P, Elite Stereo,
Elite Mono, Elite FM and Elite PreQuad has announced the new Elite Series Pre
Stereo Preamplifier, which replaces Quad's 99 Series Preampliflier. The Elite
Pre forms the heart of any system in which it is placed, and a great deal of
work has been undertaken to further enhance the excellent levels of musical
transparency delivered by its 99 Series predecessor. This has been achieved by
careful component selection and re-tuning of the signal path, whilst maintaining
the advanced facilities that are unique to Quad's solid-state preamps, including
Quad Link and Amp Bus connectivity, bypass-switchable filter adjustment for bass
and treble, and Quad's unique 'Tilt' control that tailors the entire frequency
response to suit the user's preferred balance. The Elite Pre is packed with
technical innovation including noiseless solid-state signal switching and
digitally addressed analogue volume and balance controls, which track both left
and right channels with exceptional accuracy (better than 0.1dB). A highly
specified phono stage is provided for turntables, too. FeaturesTone adjust: bass
and treble filters; Quad Tilt Line-level inputs: 4x RCA (inc. tape loop)
MM/MC phono input Outputs: 1x pre-out (RCA) Quad system connections: Quad
Link; Amp Bus Supplied with Elite system remote handset Dimensions:
(WxHxD): 321 x 70 x 310m
QUAD
PLATINUM PRE
€. 2.500,00 Per
prezzo
scontato
TELEFONA/UN E-MAIL
CODICE 6701120 QUAD PLATINUM PRE
MPREAMPLIFICATORE STEREOFONICO CON STADIO PHONO MM/MC INTEGRATO - INGRESSI: 1X
BILANCIATO XLR, 4X LINEA SINGLE-ENDED RCA, 1X TAPE LOOP RCA, 1X PHONO MM/MC RCA,
1X JACK STEREO 3,5 MM - USCITE PRE-OUT: 1X BILANCIATA XLR, 1X SINGLE-ENDED RCA -
USCITA CUFFIE JACK STEREO 3,5 MM - RISPOSTA IN FREQUENZA: 20 HZ - 150 KHZ -
DISTORSIONE ARMONICA TOTALE (THD) < 0,005% - RAPPORTO SEGNALE/RUMORE (SN RATIO):
-100 DB - SENSIBILITA` INGRESSO PHONO: MM 2 MV RMS, MC 200 UV RMS - CONNESSIONI
DI CONTROLLO TRIGGER 12 VOLT JACK 3,5 MM E QUAD SYSTEM-LINK RJ45 - TELECOMANDO
IN DOTAZIONE - FINITURA ALUMINUM MATTE BLACK (ALLUMINIO NERO OPACO)
.gif)
.gif)
QUAD
QC 24
€.
1.400,00 Per
offerta
TELEFONA/UN E-MAIL
CODICE 6701010 QUAD QC-TWENTY FOUR
LANCASTER GREY PREAMPLIFICATORE STEREOFONICO VALVOLARE (1X 6111 DOPPIO
TRIODO) - GUADAGNO 15 DB - RISPOSTA IN FREQUENZA 5 HZ - 50 KHZ - DISTORSIONE
ARMONICA TOTALE (THD) < 0,2% - RAPPORTO SEGNALE/RUMORE (SN RATIO) 80 DB -
SELEZIONE INGRESSI A RELE` - 5 INGRESSI LINEA SINGLE-ENDED RCA - 2 BUFFERED TAPE
LOOPS - CONSUMO 15 WATT - STADIO PHONO DEDICATO (QUAD QC-TWENTY FOUR P)
ACQUISTABILE SEPARATAMENTE - FINITURA LANCASTER GREY (GRIGIO SATINATO)
ALTEZZA (IN MM) 90 LARGHEZZA (IN MM) 220 PROFONDITA' (IN MM) 300
Specifications
Valve complement 1 x 6111 twin triode
Total Harmonic Distortion at 1V RMS <0.2%, 0.02% @ 1W
Frequency Response 5Hz to 50kHz (+0 / -0.5dB)
Hum and Noise better than -80dB
Line Stage Gain 15dB
Recommended minimum load 50k ohms
Inputs 5 x line level
2 x buffered tape loops
.gif)
.gif)
QUAD
QC 24
PHONO
€.
2.100,00 Per
offerta
TELEFONA/UN E-MAIL
CODICE 6701012
QUAD QC-TWENTY FOUR P LANCASTER GREY PREAMPLIFICATORE PHONO MM / MC
VALVOLARE (4X 6111 DOPPIO TRIODO), PROGETTATO DA TIM DEPARAVICINI - IMPEDENZA IN
INGRESSO MM 47 OHM / MC 10 OHM - SENSIBILITA` IN INGRESSO SELEZIONABILE (HIGH
SENSITIVITY MM 1.3 MV / MC 130 UV, MEDIUM SENSITIVITY MM 2.6 MV / MC 260 UV, LOW
SENSITIVITY MM 5.2 MV / MC 520 UV) - RISPOSTA IN FREQUENZA 20 HZ - 20 KHZ -
DISTORSIONE ARMONICA TOTALE (THD) < 0,08% - RAPPORTO SEGNALE/RUMORE (SN RATIO)
SUPERIORE A 60 DB - 1 USCITA LINEA SINGLE-ENDED RCA, 1 USCITA LINEA VARIABILE
SINGLE-ENDED RCA CON ATTENUATORE DEL VOLUME SUL FRONTALE CHE CONSENTE DI
COLLEGARE IL QC-TWENTY FOUR P DIRETTAMENTE AD UN FINALE DI POTENZA - CONSUMO
MASSIMO 12 VA - FINITURA LANCASTER GREY (GRIGIO SATINATO)
Specifications
Valve complement 1 x 6111 twin triode
Total Harmonic Distortion at 1V RMS <0.2%, 0.02% @ 1W
Frequency Response 5Hz to 50kHz (+0 / -0.5dB)
Hum and Noise better than -80dB
Line Stage Gain 15dB
Recommended minimum load 50k ohms
Inputs 5 x line level
2 x buffered tape loops
PRE CUFFIA
.gif)
.gif)
QUAD
PA -ONE
€.
2.500,00 Per
offerta
TELEFONA/UN E-MAIL
CODICE 6701040 QUAD PA-ONE LANCASTER
GREY AMPLIFICATORE INTEGRATO VALVOLARE PER CUFFIE CON DAC INCORPORATO -
VALVOLE: 2X 6SL7, 2X SN7, 1X EZ81 (RETTIFICATRICE) - POTENZA 500 MW SU 32 OHM -
SENSIBILITA` IN INGRESSO: 300 MV (500 MW SU 32 OHM) - RISPOSTA IN FREQUENZA 15
HZ - 30 KHZ - DISTORSIONE ARMONICA TOTALE (THD) 0,5% A 1 KHZ - RAPPORTO
SEGNALE/RUMORE (SN RATIO) 105 DB - BILANCIAMENTO CANALI +-0,5 DB - RICEVITORE
USB XMOS (COMPLIANT USB 2.0 E 1.1) - CONVERTITORE DIGITALE/ANALOGICO PER FLUSSI
AUDIO FINO A 24 BIT/192 KHZ - INGRESSI ANALOGICI: 1X L/R BILANCIATO XLR, 1X L/R
SINGLE-ENDED RCA - INGRESSI DIGITALI: 1X USB, 1X COASSIALE ELETTRICO S/PDIF RCA,
1X OTTICO TOSLINK - 2X USCITE CUFFIE JACK 6,3 MM (1X ALTA IMPEDENZA, 1X BASSA
IMPEDENZA) - USCITA PRE-OUT - FINITURA LANCASTER GREY (GRIGIO SATINATO)
ALTEZZA (IN MM) 164 LARGHEZZA (IN MM) 180 PROFONDITA' (IN MM) 285
PESO (IN KG) 7.5
AMPLIFICATORI FINALI
QUAD ELITE
STEREO AMP €.
1.400,00 Per
offerta
TELEFONA/UN E-MAIL
Amplificatore finale stereo 2 x 90 WRMS 8Ω - 2
x 120 WRMS 4Ω - corrente max 11A - S/N 110dB - risp. freq. 3Hz÷50kHz+0dB/-3dB -
prot. elettronica - 6,3 kg - mm (hxlxp)70x321x310
The Quad Elite Series has been developed employing the strongest design features
derived from its 99 series predecessor, but exhibiting updated internal
audiophile-class components, highly specified transformers, multi-layer circuit
boards and the latest, most advanced software available. Building upon the
classic Quad sound but adding increased clarity and definition, the series
ensures that the quality of musical performance is more accessible and conveys
the actual message of the artist. Intended as a fully integrated system, each
Elite series model works best when paired with one another. Each product in the
Elite Series is enhanced according to the highest of our engineering standards
to ensure that ease of use, seamless connectivity, fully balanced audio signals
and intelligent control systems that allow complete control via the remote
handset is achieved. Encased with a sleek new modern aluminium casework design
in deep grey with a matte black front panel which maintains Quad's bold but
stylishly elegant aesthetic. Constructed using superior class cast alloy which
ensures that quality is according to Quad's standards and in turn guarantees a
valuable investment that will last a lifetime whilst garnering much merit over
years of use. The Elite Series include: Elite CD-S, Elite CD-P, Elite Stereo,
Elite Mono, Elite FM and Elite PreQuad has announced the new Elite Series Stereo
Power Amplifier, which replaces Quad's 99 Series Stereo Amplifier. The Quad
Elite Stereo power amp has been carefully revised to ensure they retain their
predecessors' acclaimed musicality, whilst delivering enhanced punch and drive,
alongside greater finesse and resolution. New ultra-low-noise transformers are
used, and all power supply components have been specially selected following
extensive listening tests. Delivering 2x80-watts of power, instantaneous
overload recovery and full protection against over-driving without resorting to
output line fuses or relays, which degrade the quality of the audio signal. Quad
claims the the Elite Stereo amp delivers more sonic presence and impact than
their predecessors, whenever the music requires it. FeaturesPower output (8 ohms):
2x80W Power output (4 ohms): 2x120W Quad system connection: Amp Bus Frequency
Response: 0.2Hz - 75kHz (±3dB) Total Harmonic Distortion: <0.005% at 70W, 1kHz
or <0.05% at 70W, 20kHz Signal to Noise Ratio: < -110dB (20Hz - 20kHz) ref 100w
Other inputs: RCA Outputs: five-way binding posts Facility to daisy-chain for
bi-amping/tri-amping Impedance: 10K Ohms Dimensions: (WxHxD): 321 x 70 x
310mm
.gif)
QUAD ELITE
QSP STEREO AMP
€. 2.200,00 Per
prezzo
scontato
TELEFONA/UN E-MAIL
CODICE 6701170 QUAD ELITE QSP
FINALE DI POTENZA STEREOFONICO - TECNOLOGIA PROPRIETARIA QUAD CURRENT DAMPING,
CHE CONSISTE NELL'ACCOPPIAMENTO DI DUE DIFFERENTI AMPLIFICATORI: UN SOFISTICATO
CIRCUITO DI AMPLIFICAZIONE IN CLASSE A A BASSA POTENZA E UNO AD ALTA POTENZA IN
CLASSE B PER IL PILOTAGGIO DEI DIFFUSORI - CONNESSIONE LINEA L/R SINGLE-ENDED
RCA E BILANCIATA AMPBUS - POTENZA 140 WATT RMS PER CANALE SU 8 OHM - GUADAGNO 33
DB - RISPOSTA IN FREQUENZA DC - 29 KHZ - DISTORSIONE ARMONICA TOTALE (THD) <
0,004% A 100 WATT / 1 KHZ - RAPPORTO SEGNALE/RUMORE (SN RATIO) > 108 DB (A 140
WATT / 20 HZ - 20 KHZ) - DAMPING FACTOR 230 - SENSIBILITA` IN INGRESSO:
SINGLE-ENDED RCA 760 MV, AMPBUS 2.0 V - FINITURA BLACK (NERO) ALTEZZA (IN
MM) 149 LARGHEZZA (IN MM) 328 PROFONDITA' (IN MM) 270 PESO (IN
KG) 12.5
The QSP Stereo Power Amplifier is a by-product of
the famed Quad 909 Stereo. This product was designed in keeping with the
traditional built of QUAD Power Amplifiers, but is right up with the latest
technology and the finest audiophile components available. With 140W per channel
into an 8 ohm load, and plenty more into lower impedances ensures that there is
ample power into a wide range of speakers, including the QUAD ESL range.
Current Dumping - The QSP Amplifier incorporates QUAD's patented current dumping
technology developed by QUAD's founder Peter Walker, and is one of the finest
audio amplifiers available. One of the few truly innovative amplifier topologies,
it is essentially a combination of two amplifiers to give the best of both in
each channel. The current dumping circuit like the Quad QSP Amplifier consists
of a very high quality class A low-power amp which provides the details of the
signal, while a high-power current dumping section provides the grip to keep the
speakers under control. These two amplifier circuits are combined with a
precision network to perfectly impose the finesse of the class A output onto the
power of the current dumper.This technology eliminates the problems of crossover
distortion, quiescent current adjustment, thermal tracking and transistor
matching. There are no internal adjustments or alignments and the choice of
power transistor types is less restrictive.
.gif)
.gif)

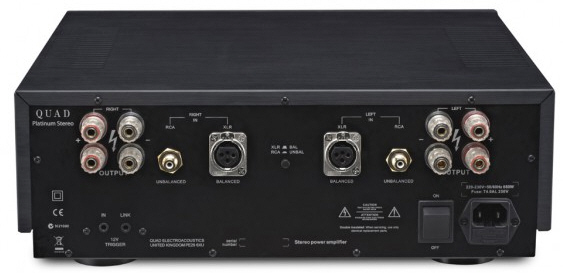

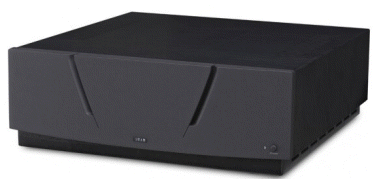

QUAD PLATINUM
STEREO
€. 3.200,00 Per
offerta
TELEFONA/UN E-MAIL
CODICE 6701110 QUAD PLATINUM STEREO
FINALE DI POTENZA STEREOFONICO - CONNESSIONI L/R BILANCIATA XLR E SINGLE-ENDED
RCA - POTENZA 140 WATT PER CANALE SU 8 OHM - GUADAGNO 29.5 DB - RISPOSTA IN
FREQUENZA 5 HZ - 50 KHZ (-1 DB / 1 KHZ) - DISTORSIONE ARMONICA TOTALE (THD)
0,009% A 100 WATT / 1 KHZ - RAPPORTO SEGNALE/RUMORE (SN RATIO) 114 DB (140 WATT
/ 1 KHZ) - SISTEMA DI PROTEZIONE DIFFUSORI CONTRO DISPERSIONE DI CORRENTE
CONTINUA, SURRISCALDAMENTO, CORTO-CIRCUITI E CARICO IMPEDENZA ECCESSIVAMENTE
BASSA - CONNESSIONI DI CONTROLLO TRIGGER 12 VOLT JACK 3,5 MM - FINITURA ALUMINUM
MATTE BLACK (ALLUMINIO NERO OPACO)
AMPLIFICATORI FINALI MONO
.gif)
QUAD ELITE
QMP
MONO €.
2.200,00 Per
offerta
TELEFONA/UN E-MAIL
CODICE 6701165 QUAD ELITE QMP
FINALE DI POTENZA MONOFONICO - TECNOLOGIA PROPRIETARIA QUAD CURRENT DAMPING, CHE
CONSISTE NELL'ACCOPPIAMENTO DI DUE DIFFERENTI AMPLIFICATORI: UN SOFISTICATO
CIRCUITO DI AMPLIFICAZIONE IN CLASSE A A BASSA POTENZA E UNO AD ALTA POTENZA IN
CLASSE B PER IL PILOTAGGIO DEI DIFFUSORI - CONNESSIONE LINEA SINGLE-ENDED RCA,
BILANCIATA XLR E BILANCIATA AMPBUS - POTENZA 260 WATT RMS SU 8 OHM - GUADAGNO 33
DB - RISPOSTA IN FREQUENZA 10 HZ - 50 KHZ - DISTORSIONE ARMONICA TOTALE (THD) <
0,005% A 100 WATT / 1 KHZ - RAPPORTO SEGNALE/RUMORE (SN RATIO) > 105 DB (20 HZ -
20 KHZ) - SENSIBILITA` IN INGRESSO: SINGLE-ENDED RCA 845 MV, XLR/AMPBUS 2.0 V -
FINITURA BLACK (NERO)
The QMP Mono Power Amplifier is a by-product of
the earlier 909 Mono with enhancements distinctly noticeable in amplifier
construction and circuitry, and is capable of producing an accurately balanced
XLR. Moreover, the new Elite QMP now incorporates a ‘current dumping’ feature
allowing for a cleaner, more versatile performance. The QMP Amplifier is a
bridged mono bloc version of the QUAD QSP Stereo Power Amplifier and can be used
used in conjunction with it. Current Dumping - The QMP Amplifier
incorporates QUAD's patented current dumping technology developed by QUAD's
founder Peter Walker, and is one of the finest audio amplifiers available. One
of the few truly innovative amplifier topologies, it is essentially a
combination of two amplifiers to give the best of both in each channel. The
current dumping circuit like the Quad QMP Amplifier consists of a very high
quality class A low-power amp which provides the details of the signal, while a
high-power current dumping section provides the grip to keep the speakers under
control. These two amplifier circuits are combined with a precision network to
perfectly impose the finesse of the class A output onto the power of the current
dumper.This technology eliminates the problems of crossover distortion,
quiescent current adjustment, thermal tracking and transistor matching. There
are no internal adjustments or alignments and the choice of power transistor
types is less restrictive
.gif)
.gif)

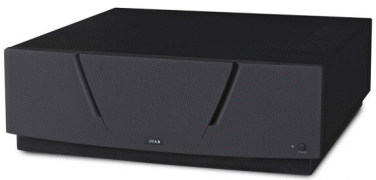

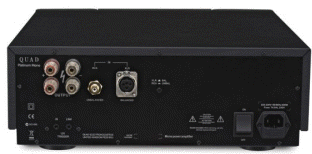

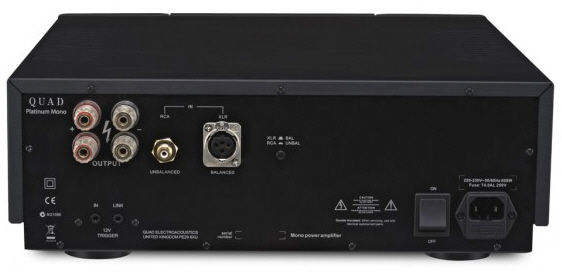

QUAD PLATINUM
MONO
€. 3.200,00 Per
offerta
TELEFONA/UN E-MAIL
CODICE 6701115 QUAD PLATINUM MONO
FINALE DI POTENZA MONOFONICO - CONNESSIONE BILANCIATA XLR E SINGLE-ENDED RCA -
POTENZA 170 WATT SU 8 OHM - GUADAGNO 29.5 DB - RISPOSTA IN FREQUENZA 5 HZ - 50
KHZ (-1 DB / 1 KHZ) - DISTORSIONE ARMONICA TOTALE (THD) 0,006% A 120 WATT / 1
KHZ - RAPPORTO SEGNALE/RUMORE (SN RATIO) 117 DB (170 WATT / 1 KHZ) - SISTEMA DI
PROTEZIONE DIFFUSORI CONTRO DISPERSIONE DI CORRENTE CONTINUA, SURRISCALDAMENTO,
CORTO-CIRCUITI E CARICO IMPEDENZA ECCESSIVAMENTE BASSA - CONNESSIONI DI
CONTROLLO TRIGGER 12 VOLT JACK 3,5 MM - FINITURA ALUMINUM MATTE BLACK (ALLUMINIO
NERO OPACO) ALTEZZA (IN MM) 135 LARGHEZZA (IN MM) 380
PROFONDITA' (IN MM) 410 PESO (IN KG) 13 ALTEZZA (IN MM) 135
LARGHEZZA (IN MM) 380 PROFONDITA' (IN MM) 410 PESO (IN KG) 13
.gif)
.gif)
QUAD
II-CLASSIC
€. 2.200,00 Per
offerta
TELEFONA/UN E-MAIL
CODICE 6701030 QUAD II-CLASSIC LANCASTER
GREY FINALE DI POTENZA VALVOLARE MONOFONICO IN CLASSE A - VALVOLE: 2X EF86
IN INGRESSO, 2X KT66 IN USCITA, 1X GZ34 RETTIFICATRICE - POTENZA 15 WATT RMS -
RISPOSTA IN FREQUENZA 10 HZ - 20 KHZ - DISTORSIONE ARMONICA TOTALE (THD) 0,8% A
12 WATT / 700 HZ - RAPPORTO SEGNALE/RUMORE (SN RATIO) SUPERIORE A 90 DB -
SENSIBILITA` IN INGRESSO 775 MV RMS - CONSUMO MASSIMO 90 VA - FINITURA LANCASTER
GREY (GRIGIO SATINATO) ALTEZZA (IN MM) 171 LARGHEZZA (IN MM) 335
PROFONDITA' (IN MM) 121 PESO (IN KG) 8.3
.gif)
.gif)
QUAD
II-FORTY
€. 2.900,00 Per
offerta
TELEFONA/UN E-MAIL
CODICE 6701020 QUAD II-FORTY
LANCASTER GREY FINALE DI POTENZA VALVOLARE MONOFONICO - VALVOLE: 2X 6SH7
IN INGRESSO, 2X KT88 IN USCITA, 1X 5U4G RETTIFICATRICE - POTENZA 40 WATT RMS -
RISPOSTA IN FREQUENZA 10 HZ - 30 KHZ - DISTORSIONE ARMONICA TOTALE (THD) FINO A
0,03% - RAPPORTO SEGNALE/RUMORE (SN RATIO) SUPERIORE A 80 DB - SENSIBILITA` IN
INGRESSO 1 VOLT RMS - CONSUMO MASSIMO 180 VA - FINITURA LANCASTER GREY (GRIGIO
SATINATO)
.gif)
.gif)
QUAD
II-EIGHT
€. 5.600,00 Per
offerta
TELEFONA/UN E-MAIL
CODICE
6701025 QUAD II-EIGHTY LANCASTER GREY FINALE DI POTENZA
VALVOLARE MONOFONICO, PROGETTATO DA TIM DEPARAVICINI - VALVOLE: 2X 6SL7 IN
INGRESSO, 4X KT88 IN USCITA, 1X 6SN7 RETTIFICATRICE - POTENZA 80 WATT RMS -
RISPOSTA IN FREQUENZA 3 HZ - 50 KHZ - DISTORSIONE ARMONICA TOTALE (THD) 0,2% A
80 WATT / 1 KHZ - RAPPORTO SEGNALE/RUMORE (SN RATIO) SUPERIORE A 94 DB -
SENSIBILITA` IN INGRESSO 1 VOLT RMS - CONSUMO MASSIMO 240 VA - FINITURA
LANCASTER GREY (GRIGIO SATINATO)
COMPACT DISC
QUAD ELITE
CDS
€. 1.700,00 Per
offerta
TELEFONA/UN E-MAIL
CODICE 6701155 QUAD ELITE CDS LETTORE CD
INTEGRATO - MECCANICA E MASTER CLOCK AD ALTA PRECISIONE CON CORREZIONE AVANZATA
DEGLI ERRORI DI LETTURA E JITTER RIDOTTISSIMO - CONVERTITORE DAC 24 BIT/192 KHZ
CRYSTAL CS4398 - USCITE ANALOGICHE: 1X L/R SINGLE-ENDED RCA, 1X BILANCIATA
QUADLINK - USCITA DIGITALE OTTICA TOSLINK - RISPOSTA IN FREQUENZA 20 HZ - 20 KHZ
- DISTORSIONE ARMONICA TOTALE (THD) < 0,0013% A 1 KHZ - RAPPORTO SEGNALE/RUMORE
(SN RATIO) FINO A 116 DB (> 97 DB A 16 BIT / 20 HZ - 20 KHZ) - CROSSTALK <-120
DB A 1 KHZ - DYNAMIC RANGE > 100 DB A 16 BIT - LIVELLO D'USCITA MASSIMO:
SINGLE-ENDED RCA 2.4 V RMS, BILANCIATO QUADLINK 4.8 V RMS - TELECOMANDO IN
DOTAZIONE - FINITURA BLACK (NERO) ALTEZZA (IN MM) 70 LARGHEZZA (IN MM) 321
PROFONDITA' (IN MM) 310 PESO (IN KG) 4.5
The Quad Elite Series has been developed employing the strongest design features
derived from its 99 series predecessor, but exhibiting updated internal
audiophile-class components, highly specified transformers, multi-layer circuit
boards and the latest, most advanced software available. Building upon the
classic Quad sound but adding increased clarity and definition, the series
ensures that the quality of musical performance is more accessible and conveys
the actual message of the artist. Intended as a fully integrated system, each
Elite series model works best when paired with one another. Each product in the
Elite Series is enhanced according to the highest of our engineering standards
to ensure that ease of use, seamless connectivity, fully balanced audio signals
and intelligent control systems that allow complete control via the remote
handset is achieved. Encased with a sleek new modern aluminium casework design
in deep grey with a matte black front panel which maintains Quad's bold but
stylishly elegant aesthetic. Constructed using superior class cast alloy which
ensures that quality is according to Quad's standards and in turn guarantees a
valuable investment that will last a lifetime whilst garnering much merit over
years of use. The Elite Series include: Elite CD-S, Elite CD-P, Elite Stereo,
Elite Mono, Elite FM and Elite PreQuad has announced the new Elite CDS CD
Player, which replaces Quad's 99 Series CD Player. The Elite CDS enjoys
significant revisions throughout, including a new transport mechanism and servo
system. Audio data is regulated by a high-performance master clock to minimise
jitter (digital distortion), then fed to a top-end Crystal 24-bit/192kHz DAC,
which replaces the older 24-bit/96kHz chip used by the player's predecessor. The
highest quality electronic components are specified throughout, with multi-layer
circuit boards and Quad's advanced, proprietary filtering and control software.
FeaturesD/A Converter: Crystal CS4398 DAC type: Hybrid multi-bit delta-sigma
Mechanism: Sony KM-313AAM Sampling Frequency: 96kHz Upsampling: x2 Frequency
Response: 20Hz to 20kHz (+0dB / -0.7dB) Maximum resolution: 24-bit Oversampling:
x8 Total Harmonic Distortion: <0.0013% at 1kzHz Dynamic Range: >100dB 'A' wtd.
16 bits Outputs: RCA (analogue); optical (digital) Quad system connection: Quad
Link Dimensions (WxHxD): 321 x 80 x 310mm
.gif)
.gif)
QUAD ELITE
CDX
€. 2.400,00 Per
offerta
TELEFONA/UN E-MAIL
CODICE 6701160 QUAD ELITE CDX LETTORE
CD INTEGRATO E PREAMPLIFICATORE DIGITALE - MECCANICA E MASTER CLOCK AD ALTA
PRECISIONE CON CORREZIONE AVANZATA DEGLI ERRORI DI LETTURA E JITTER RIDOTTISSIMO
- CONVERTITORE DAC 24 BIT/192 KHZ CRYSTAL CS4398 - USCITE ANALOGICHE: 1X L/R
SINGLE-ENDED RCA (FISSA), 1X L/R SINGLE-ENDED RCA (VARIABILE), 1X BILANCIATA
QUADLINK - USCITA DIGITALE OTTICA TOSLINK - INGRESSI DIGITALI (CAMPIONAMENTO
MASSIMO 32 BIT/192 KHZ): 1X USB, 2X COASSIALI ELETTRICI S/PDIF RCA, 3X OTTICI
TOSLINK - RISPOSTA IN FREQUENZA 20 HZ - 20 KHZ - DISTORSIONE ARMONICA TOTALE (THD)
< 0,0013% A 1 KHZ - RAPPORTO SEGNALE/RUMORE (SN RATIO) > 115 DB (20 HZ - 20 KHZ)
- CROSSTALK <-110 DB A 1 KHZ - DYNAMIC RANGE > 100 DB A 16 BIT - LIVELLO
D'USCITA MASSIMO: SINGLE-ENDED RCA 2.4 V RMS (FISSA E VARIABILE), BILANCIATO
QUADLINK 4.8 V RMS - TELECOMANDO IN DOTAZIONE - FINITURA BLACK (NERO)ALTEZZA (IN
MM) 70 LARGHEZZA (IN MM) 321 PROFONDITA' (IN MM) 310
PESO (IN KG) 4.5
SINTONIZZATORI
.gif)
QUAD
E TUNER
Per
offerta
TELEFONA/UN E-MAIL
Sintonizzatore FM stereo - sens. mono
8dBμV, stereo 18dBμV - S/N mono 72dB(A), stereo 67db(A) - deenfasi 50 o 75μS -
alimentazione da preampl. Quad 99 - mm (hxlxp)70x321x310
The Quad Elite Series has been developed employing the strongest design features
derived from its 99 series predecessor, but exhibiting updated internal
audiophile-class components, highly specified transformers, multi-layer circuit
boards and the latest, most advanced software available. Building upon the
classic Quad sound but adding increased clarity and definition, the series
ensures that the quality of musical performance is more accessible and conveys
the actual message of the artist. Intended as a fully integrated system, each
Elite series model works best when paired with one another. Each product in the
Elite Series is enhanced according to the highest of our engineering standards
to ensure that ease of use, seamless connectivity, fully balanced audio signals
and intelligent control systems that allow complete control via the remote
handset is achieved. Encased with a sleek new modern aluminium casework design
in deep grey with a matte black front panel which maintains Quad's bold but
stylishly elegant aesthetic. Constructed using superior class cast alloy which
ensures that quality is according to Quad's standards and in turn guarantees a
valuable investment that will last a lifetime whilst garnering much merit over
years of use. The Elite Series include: Elite CD-S, Elite CD-P, Elite Stereo,
Elite Mono, Elite FM and Elite PreQuad has announced the new Elite FM Tuner,
which replaces Quad's 99 Series FM Tuner. The Elite FM is a clean-sheet design
incorporating a high-grade FM stereo decoder with discrete Class A stages,
coupled to Class A output stages and high-quality polypropylene capacitors in
the signal path. Genuine audiophile quality is assured from FM signals anywhere
in the world, eclipsing the performance of many highly rated and considerably
more costly hi-fi radio tuners in the process.
FeaturesTuning range: 88-108MHz Channel spacing: 50kHz Presets: 20 Aerial inputs:
2x75 ohms unbalanced Quad system connection: Quad Link Powered by Quad Elite Pre
Dimensions (WxHxD): 321 x 70 x 310mm
Se su un prodotto presente o non presente
nel nostro catalogo ci puoi richiedere il prezzo
scontato telefonando 0174 670100 - 0174 481045 o inviando un e-mail a
info@newaudio.it
ti faremo la migliore offerta .
Essendo rivenditori ufficiali Italia le aziende ci
chiedono di non creare turbative di mercato
pubblicando prezzi scontati non di listino ufficiale .
Se hai trovato un prezzo più basso * in rete ,
segnalacelo e noi faremo di tutto per applicare quel prezzo. Altrimenti fai tu
un'offerta e noi la valutateremo. La segnalazione può essere effettuata via
email oppure telefonando . (*Per prezzo più basso si riferisce
ad offerte praticate sul Web da aziende che sono distributori ufficiali
con sede in Italia , con regolare fatturazione e garanzia italiana fornita dal
distributore ufficiale. Qualora il prezzo da confrontare fosse riferito a
venditori esteri o che non offrono le caratteristiche suddette, queste non
verranno prese in considerazione.)
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a info@sinergy.us
info@sinergy.usIl presente listino
sostituisce ed annulla ogni precedente.Se non specificato
prezzi a singola cassa
Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco nostro magazzino.
Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
|
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg)
.jpg){kind=small}
.jpg)
.jpg)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg)
.jpg)
.jpg){kind=small}
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
