Lettore di rete basato sulla piattaforma
del NP30 - Riproduzione di rete a 24/96 - Ingresso USB per audio fino a 24/192 -
Ingressi digitali ottici e S/PDIF - Doppio DAC Wolfson WM8740 -
Sovracampionamento audio Anagram Q5 24-bit/384kHz - Filtri digitali
selezionabili - Controlli volume e bilanciamento completamente digitali:
modalità pre-amp digitale - Completo controllo Apple App e funzioni standby
•
Music stored on your PC, Mac or home network drive can be instantly accessed by
Stream Magic 6 where it’s transformed into stunning quality audio• Thanks to
UPnP Audio Streaming compatibility, no complicated set-up or software is
required • All major formats supported including ‘better than CD’ 24 bit files•
Stream Magic 6 gives you access to over 20,000 vetted Internet Radio stations –
search by name, genre or location • Dramatically enhances quality from external
digital music sources. Twin 24-bit digital inputs allow TVs, Blu-ray players,
digital iPod/iPad docks and any other gadget with a digital audio connection to
be significantly upgraded• Meanwhile, a 24-bit USB audio-in enables audio from
PCs and Macs to also be enjoyed in ‘Better than CD quality’• Compatible with
Cambridge Audio’s new BT100 wireless audio receiver. Allows you to stream music
wirelessly from your iPhone, smartphone, iPad, tablet, laptop or any device that
supports Bluetooth to your hi-fi or entertainment system • All this and much
more from an elegant, simple-to-use package. To find out more about the
sensational Stream Magic 6, complete your details and we’ll keep you up to speed
with launch dates, news and reviews. Specifications Stream Magic 6 Upsampling
Network Music Player D/A Converters: Dual Wolfson WM8740 24-bit DACs Digital
filter: 2nd Generation ATF2 up-sampling to 24-bit/384kHz. Linear Phase, Minimum
phase or Steep modes. Analogue filter: 2-Pole Dual Differential Bessel Double
Virtual Earth Balanced Digital Inputs: S/PDIF 75 ohms or Toslink optical USB
Audio Input USB Type B conforming to Audio profile 1.0 or USB Audio profile 2.0
(user 1.0 or USB Audio profile 2.0 (user selectable) Local USB media 2 x USB 1.1
current limited to 1A each File systems FAT32, NTFS Digital Outputs: S/PDIF
Co-axial and Toslink Optical 16-24 Bits, 32-96kHz Analogue audio outputs
Balanced XLR and unbalanced RCA analogue audio outputs THD @ 1Khz 0dBFs: <0.001%
24bit (at volume set to full) THD @ 1kHz -10dBFs: <0.001% (at volume set to
full) THD @ 20kHz 0dBFs: <0.002% (at volume set to full) Frequency Response:
20Hz-20kHz +/- 0.1dB * Signal to Noise Ratio: -112dBr (at volume set to full)
Total correlated jitter: < 130pS Crosstalk @ 1kHz: < -100dB Crosstalk @ 20kHz: <
-90dB Audio Formats WAV containing uncompressed PCM 16-24 bit 32-96kHz FLAC
containing losslessly compressed PCM 16-24 bit 32-96kHz AIFF containing
uncompressed PCM 16 bit 32-48kHz Microsoft® Windows MediaTM Audio (WMA 9
Standard) 32-320kbps MP3 (CBR or VBR) 16-320kbps AAC, HE AAC and AAC+ (CBR or
VBR) 16-320kbps OGG Vorbis 32-320kbps Streaming Protocols RTSP (Real Time
Streaming Protocol) MMS (Microsoft Media Server Protocol) HTTP (Hyper Text
Transfer Protocol) Wi-Fi IEEE 802.11 b/g or n (2.4GHz connection used only)
Wi-Fi Encryption WEP, WPA, WPA2 Ethernet IEEE 802.3, 10 Base-T or 100 Base-T
Mains inlet voltage 100-240 VAC (switch mode) Standby consumption <0.5W Max
power consumption 30W Dimensions (H x W x D): 85 x 430 x 305mm (3.4 x 16.9 x
12.2”) Weight: 4 Kg (8.8lbs)
Amplificatore integrato 45W - 2 set di
uscite diffusori - ingresso 3,5mm sul pannello frontale - telecomando Slimline
Azur
Developing
the best-in-class entry-level hi-fi is, in many ways far more challenging than
creating more expensive equipment. At this end of the spectrum, the true
test of a development team is its ability to eek-out every last drop of
potential from affordable internal components to achieve performance that not
only leaves you breathless, but gives a quality and definition of sound that you
wouldn’t believe could be achieved from such great value products.
There is of course only one way to discover this for yourself and when you hear
the new 350 Series, you’ll immediately know you’re listening to something very
special indeed. This new range boasts a raft of genuine innovations which
are not intended to add a roster of unnecessary and irrelevant gimmicks to the
feature list but to truly make a difference to the audible quality which you can
appreciate. Sound first!Prepare to be stunned by the all-new 350A integrated
amplifier and 350C CD player - a new age in high performance value hi-fi
separates. Taking many cues from the highly acclaimed 550 Series and 650 Series,
the 350 Series features an array of components and design principles rarely seen
in mid-end systems, let alone entry-level hi-fi. The 350A and 350C also follow
in the footsteps of their bigger Azur brothers with: • A completely fresh look•
Redesigned casework featuring new displays and knobs • An even more substantial
luxuriously brushed aluminium front panel • Seamless wrap-over lid assembly •
Dual-layer damped feet all help contribute to yet superior resonance control.
Amplificatore integrato 75W - Ingresso
audio USB che consente lo streaming audio USB dal computer - connessione
iPod / MP3 frontale
So we listened to you and instead of adopting the more common and simpler
approach of including USB connectivity on a CD player, we’ve developed a direct
USB audio connection to the 651A amplifier. So now, you can simply plug your Mac
or PC directly into the 651A amplifier and with the addition of your chosen
speakers, you’ll instantly enjoy a whole world of digital music stored or
streamed from your computer. Computers are fast becoming a great addition
to the hi-fi but they’re not without their faults. Poor quality soundcards plus
jitter – a side effect of digital music stored on computer hard drives – means
audio performance can be really lousy. But plug your PC into the 651A and you’ll
be amazed just how incredible it sounds. Our in-house developed USB audio
processor extracts audio data directly from your PC hard drive – bypassing its
soundcard – and takes care of the critical digital to analogue conversion
process bringing dull and lifeless MP3 files alive like you’ve never heard them
before!Meanwhile, connection support for analogue sources like CD players, iPod
docks and tuners is better than ever so whether you store or stream music from
your computer, iPhone or maybe you prefer the luscious sound of good old vinyl,
the all new Cambridge Audio 651 will make all your music sound amazing. At
Cambridge Audio we don’t believe in gimmicks. Instead we like to invest in
components that really make a difference to the sound you hear. That’s why in

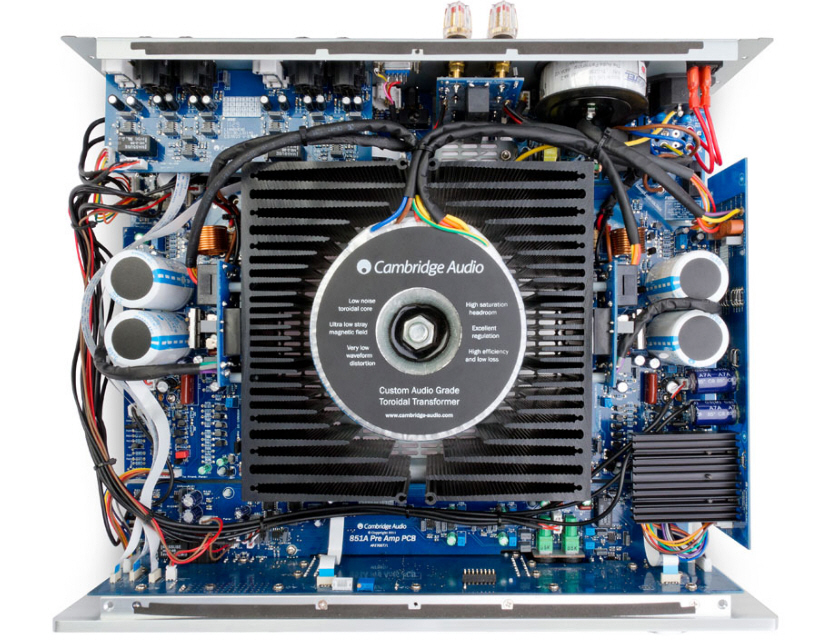

the 651A, we use a premium toroidal transformer which is key to its unruffled
performance with music of all types. Class-leading power of 75 Watts per channel
remains another massive advantage and a whole host of custom designed components
together with our legendary approach to design means whatever you’re listening
to, it’ll simply sound fantastic. For those who want to know even more
about the 651A Integrated Amplifier... Adding to the audiophile specifications
are separate transformer taps for left & right channels, twin rectifiers and
separate PSUs for dual-mono operation of the left and right power amplifiers.
Meanwhile a high grade film type volume pot means the 651A also performs as well
at low levels as at higher volumes. Whatever hi-fi speaker you choose, the 651A
is designed to drive almost any model with ease. Our retuned output stage
featuring Sanken output transistors gives excellent bass response and dynamic
control. We all like to crank up the volume from time to time and our
proprietary CAP5 system ensures unrivalled peace of mind against overloads,
faults and clipping.

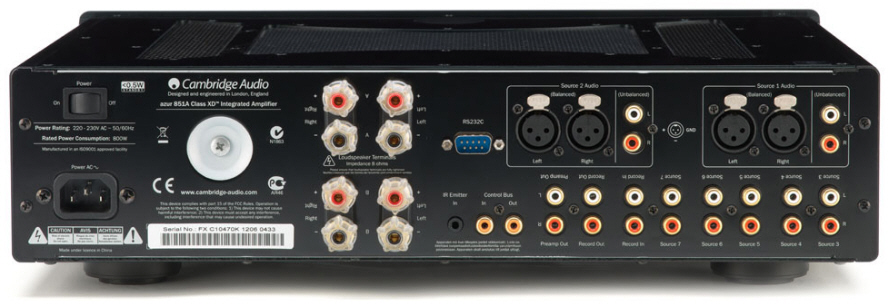

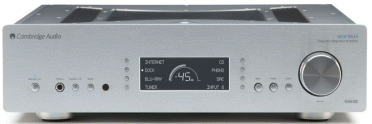

Amplificazione in Classe XD proprietaria -
2 x 120 watt su 8 ohm - 2 ingressi XLR - Nuovo cabinet con frontale in alluminio
spazzolato - Nuovo display Reverse black DSFTN - Controllo volume in silicone
bilanciato che sostituisce i relè
Azur 840E pre amplificatore
caratteristiche Moduli di amplificazione Terrapin ™ progettati e costruiti da
Cambridge Audio Sofisticati controlli di volume e tono con attenuatori a
reti resistive e relè Controlli di tono selezionabili e memorizzabile
individualmente, per ogni ingresso rinominabile Uscite bilanciate per
amplificatore di potenza 840W Regolazioni di guadagno di ingresso 8
ingressi - due con connessioni XLR bilanciate in aggiunta alle prese fono / RCA
Display del pannello frontale personalizzabile Controllo Trigger In / Out
per accensione e spegnimento automatico di amplificatori di potenza Azur 840W
Porta RS232, emettitore IR In e Control Bus In / Out per una perfetta
integrazione con i sistemi di installazione personalizzata A-BUS ™ / Incognito
Ready ™ compatibile con le connessioni delle tastiere del sistema multi-room
Incognito di Cambridge Audio o altri tastierini A-BUS compatibili, per
consentire a 840E di essere il fulcro di un semplice, ma estremamente
funzionale, sistema multi-room a 3 zoneIngressi a livello fisso di consentire a
840E di essere l’unità di amplificazione dei canali frontali, in integrazione a
sistemi home cinema che utilizza un processore AV Telecomando Azur, in stile
Navigator che controlla anche le funzioni salto brano e volume di iPod ™, i
tastierini Incognito Cambridge Audio e comandi discreti per sistemi di
installazione personalizzata. Pannelli laterali in alluminio estruso e pannello
anteriore maggiorato di alluminio di 7 di spessore millimetri e un telaio ultra
rigido, acusticamente smorzato Disponibile in finitura argento o nero
Cambridge
Audio has taken the Azur 840 series to its peak with the introduction of two new
models – the 840E pre-amplifier and 840W power amplifier. The 840E is a high-end
pre-amplifier which uses Cambridge Audio’s new proprietary Terrapin™ modules for
unprecedented audio fidelity forming the perfect partner for the accompanying
840W power amplifier. A customisable front panel display means tone controls can
be selected and stored by nameable input. Volume, input and tone are also all
controlled by highly sophisticated relay driven circuits. Rather than use
common op-amps for the critical low level gain stages of the 840E (and 840W)
Cambridge Audio instead decided to design its own audiophile amplifier modules.
The subject of a separate research and development project these unique modules
have been designed with single minded dedication to the very best audio
performance possible. Two types exist, the TPA amplifier and TPB buffer module
fully optimised for their respective roles. Nicknamed the Terrapins (because of
their 10 pins) they add yet another dimension to Cambridge Audio’s commitment to
audio excellence.A sophisticated resistor ladder and relay based attenuator for
volume (1dB steps) and balance controls allows remarkably accurate volume
control with channel balance. Each channel has its own relays and ladder for
superb stereo separation and imaging. This kind of feature is normally the
preserve of exotic high-end equipment and is relatively unheard of at this price
point As the pre-amp has its own power supply, it operates in complete
isolation to the power amplifier and does not suffer from any interference,
something which is also aided by two balanced inputs. The 840E features an
extremely attractive and user friendly front panel display which is customisable
to show which input is selected. The Azur 840E makes room for eight inputs,
two of which have both fully balanced (XLR) and unbalanced connections, ideal
for use with the Azur 840C upsampling CD player. These inputs can be named as
desired by the user on the custom-designed display to show CD, MP3, Phono etc.
Completing the rear panel is an RS232 control port, and multi-room outputs to
connect the 840E to custom installations. This plethora of connections enables
complete integration with multi-room entertainment systems including two way
interface with touchscreen control panels. Alternatively, the 840E is Incognito
Ready™. This means that two additional rooms can access the source components
connected to the 840E via Cambridge Audio’s Incognito system amplified keypads
and passive speakers or active in-ceiling speakers. An independent Incognito
power supply links to the 840E, enabling audio and low voltage power to be
transmitted to each Incognito keypad using only one run of CAT5 cable.As with
all Azur products, the foundation of the 840E’s excellence is a bespoke chassis.
This comprises an incredibly thick 7mm front panel and extruded side panels,
both fashioned from aluminium, which combine with a 2mm formed steel base plate
and specially designed vibration absorbing feet. The result is an ultra rigid,
low resonance, acoustically dampened platform for the electronics to sit in.
The 840E is available in either silver or black and comes complete with the
latest elegant, slim-line navigator style Azur remote handset offering full
control of Azur CD players, Incognito keypads and discrete commands for custom
install use. As an additional facet, all Cambridge Audio remotes feature iPod™
Command – which means that basic iPod controls such as volume and track select
can be controlled from the comfort of the user’s sofa. This boon requires the
use of an Apple or other universal dock.
Amplificatore di
potenza Azur 840W in Classe XD ™ Potenza di uscita: 200 Watts per channel
into 8 Ohms 350 Watts per channel into 4 Ohms 500 Watts mono into 8 Ohms in
bridged mode 800 Watts mono into 4 Ohms in bridged mode Ingressi audio: 1 pairs
gold plated RCA stereo phono inputs 1 pair XLR balanced inputs Uscite audio: 1
pairs gold plated RCA stereo phono outputs 1 pair XLR balanced outputs
Connessioni: 12v trigger in/out, control bus in/out, IR emitter in. A & B
speaker premium gold plated binding posts Damping factor: >125 at 1 kHz Risposta
in frequenza: 5Hz – 80kHz +/- 1dB Rapporto segnale rumore: >90 dB (unweighed)
THD (non pesato): <0.001% 1kHz <0.005% 20Hz - 20kHz Power Consumption: Maximum
2400 Watts Active (no signal) <180Watts Standby <5 Watts Dimensioni (A x L
x P): 430 x 365 x 148m Peso: 19.1kg/42.1 lbs
Cambridge
Audio has taken the Azur 840 series to its peak with the introduction of two new
models – the 840E pre-amplifier and 840W power amplifier. The 840W is a high-end
power amplifier that has been designed by the same team behind the 840A and uses
an evolution of Cambridge Audio’s hugely innovative Class XD™ technology for a
highly detailed naturally musical performance. The second generation Class XD is
now complemented by a new output stage carefully adjusted to integrate with this
novel technology, revised balanced inputs for lower distortion and noise. An
awesome 200W @ 8 Ohms gives excellent load driving ability or, a truly massive
500W bridged mono can be harnessed for even ‘difficult’ high-end speakers.
At the core of the 840W’s strength is a patent pending, Class XD (crossover
displacement) technology (first seen in the 840A) and which has been subtly
revised following continuing post-launch development and critical evaluation.
This unique design gives pure Class A operation at low levels, moving smoothly
into an enhanced version of Class B at higher levels. This system should not be
confused with Class AB, which inherently generates greater distortion at high
levels than a pure Class B design. XD technology feeds a controlled current into
the output stage actively displacing the crossover point in a new way so that
the usual Class B crossover point no longer occurs at zero volume - the worst
possible position in terms of distortion – but at a significant output level.
The result is a smooth and linear transition between the two modes of operation,
which differs significantly from the abrupt, gain transition of a Class AB
amplifier. To facilitate this, the Azur 840W amplifier includes a massive,
oversized low flux toroidal transformer, incorporating a silicone-steel
screen.In our ongoing development of Class XD we have conducted exhaustive
research into further improvements of our amplifier designs to squeeze
everything out of this innovative technique. This in turn led to a new output
stage topology being developed which has been incorporated into the 840W. Four
pairs of very high current output transistors are used per channel (for the
amplifier output) plus two extra high current transistors per channel for the XD
circuit. The 840W can also be used in either bi-amped or bridged mono
configurations. When bi-amping, one 840W (of the pair) powers each speaker so
that the tweeters and woofers each have their own dedicated amplifier channel.
Alternatively the bridged mono mode allows the use of two 840Ws with each
configured as a 500 watt monobloc. In fact combinations of the two regimes allow
the use of one, two, four or even more 840Ws to be used, taking it to the truly
stratospheric high-end. Also included is the latest development of Cambridge
Audio’s proprietary CAP5 protection system. CAP5 (Cambridge Audio Protection 5)
is an innovative and intelligent protection system. It constantly monitors the
amplifier, without degrading signal purity, ensuring ultimate reliability. There
is also short-circuit detection and a solid-state temperature sensor with
over-heat cut out to ensure the amplifier delivers high performance.
Ingresso USB 24/96 driverless - Ingresso
USB 24/192 con driver separato per la riproduzione di audio di altissima
risoluzione con modalità bit perfect ASIO o WASAPI Exclusive - DAC Twin
AnalogDevices AD1955 - Sovracampionamento di 2a generazione - Ingresso ed uscita
AES Balanced Digital - Controllo volume digitale che consente l’utilizzo del
lettore CD C851 come pre digitale - 3 filtri selezionabili (linear/minimum/steep)
Twin WolfsonWM8742 DAC - High performance
op amps - Soluzione servo S3 specifica per l’audio - Trasformatore toroidale
audiograde
If
you’re after a way of extracting every last piece of data from your CDs and
turning it into the most musical experience imaginable, then look no further
than the all-new 651C CD Player. Developed to offer a true taste of high-end
musical reproduction at an altogether more affordable price, it features an
all-new twin Digital to Analogue Conversion system (DAC) with the same
selectable filter arrangement used in the legendary DacMagic. These enhancements,
in addition to completely retuned audio circuits, make for an even purer, more
lifelike experience than its highly regarded predecessor. Where many CD players
use drives designed for computers, at Cambridge Audio we went the extra mile and
created a CD-only S3 Custom CD ServoTM drive. This audiophile design gives the
651C the ability to retrieve maximum digital information which in turn means you
hear every last detail from your discs. A thousand words cannot convey just how
lifelike the 651C sounds but a two minute audition at your nearest Cambridge
Audio dealer will tell you everything you need to know! For those who want to
know even more about the 651C CD Player... Twin Wolfson WM8742 DACs deliver a
significant performance upgrade over the 651C’s award-winning predecessor and
are implemented in a dual differential configuration (each channel has its own
DAC to process information). A sophisticated Two-Pole Dual Differential Double
Virtual Earth Balanced Bessel filter configuration rejects virtually all noise
and distortion present in the DACs and filters them to produce an unprecedented
level of performance. The new DACs also feature a selectable digital filter with
three settings to suit your own listening preferences and of course your own
system: • The Steep roll-off filter exhibits strong attenuation of
aliasing images outside the pass band (i.e. above 22.05kHz) at the expense of a
little pre and post-ringing in the time domain. • The Linear phase filter
uniquely features ‘constant group delay’ which delays all audio signals at all
frequencies by the same amount meaning all audio is fully time-coherent at the
output.• Minimum phase meanwhile does not feature constant group delay but
rather the co-efficients have been optimised without feed-forward so that the
impulse response exhibits no pre-ringing in the time domain. Cambridge Audio’s
CD-only S3 Custom CD ServoTM employs a custom designed chipset and the latest
double-sided surface-mount technology for ultra short signal paths with freedom
from wire links. Circuits and software have been meticulously designed and S3
dynamically adjusts focusing, tracking and output level of the laser in
real-time, allowing for maximum retrieval of the digital information and jitter
minimisation. This is all made possible by the implementation of a powerful ARM7
processor and complemented by a highly accurate master clock oscillator and
carefully designed impedance-matched clock buffering scheme. Meanwhile,
the well-proven transport guarantees incredible rigidity and the CD drawer
itself has been designed to offer a smooth, high-end feel. And to ensure simple
operation, a high contrast reverse black DFSTN (Double Film Super Twisted
Nematic) display offers excellent feedback of the 651C’s impressive features
which now include CD-text support. As with all our Azur CD players, a high
quality toroidal transformer ensures lower noise and less waveform distortion
for quieter PSU operation. This complicated sounding ecosystem is, in fact, the
result of over ten years’ research and development. A long process but we think
that when you hear the 651C, it’ll raise the hairs on your neck and put a smile
on your face. Just like it does every time we listen to it… Azur 651C CD player
D/A Converters: Dual Wolfson Microelectronics WM8742 24-bit/192kHz capable
Filter 2-Pole Dual Differential Bessel Double Virtual Earth Balanced Frequency
Response: 20Hz - 20kHz (+/-0.1dB) THD @ 1Khz 0dBFs: <0.003% THD @ 1kHz -10dBFs:
<0.0005% THD @ 20kHz 0dBFs: <0.002% IMD (19/20kHz) 0dBFs <0.002% Linearity @
-90dBFs: +/- 0.5dB Clock deviation +/- 20ppm Stopband rejection (>24kHz): >90dB
Signal to Noise Ratio: >-115dB Total correlated jitter: <140pS Crosstalk @ 1kHz:
<-100dB Crosstalk @ 20kHz: <-99dB Output Impedance: <50ohms Max. Power
Consumption: 25W Standby Power Consumption: <1W Dimensions (H x W x D): 85 x 430
x 305mm (3.4 x 16.9 x 12.2”) Weight 4.8kg (10.6lbs
Lettore CD - DAC Wolfson WM8716 - Standby a
basso consumo - telecomando Slimline Azur Suono caldo ma incredibilmente
dettagliato
Rispetto al rinomato predecessore, il nuovo 350C offre molteplici
perfezionamenti, uno dei più importanti è rappresentato dall’implementazione di
una topologia DAC (Digital/Analogic converter) Wolfson WM8728 unitamente alla
presenza di un filtro Butterworth di tipo Sallen-Key a 2 poli. Una selezione
così complessa di componenti per il suono è fondamentale per la prestazione
ricca e lineare del 350C, come per la purezza e la riproduzione dei minimi
dettagli. Inoltre, un oscillatore dotato di temporizzatore principale
estremamente accurato e schemi di buffer con temporizzatore a conformità
d’impedenza contribuiscono ulteriormente alla quantità di dati recuperabili da
un CD. Come l’amplificatore 350A, anche il 350C trae vantaggio da un
trasformatore toroidale che consente ridotti disturbi e distorsioni consentendo
di massimizzare realmente il piacere dell’ascolto. Che ascoltiate smooth jazz o
electronic dance, la serie 350 è configurata per definire nuovamente le infinite
possibilità della vostra musica… Salvate il pianeta e deliziate le vostre
orecchie! Molti dei nostri clienti considerano di importanza fondamentale
l’impatto ambientale dei loro hi-fi, per non menzionare il consumo energetico,
quindi… ciliegina sulla torta: il modello 350C beneficia dell’ambita
certificazione Energy Star per la sua capacità di consumare meno di un watt in
standby. Tali vantaggi sono offerti senza alcun impatto sulla resa del suono in
quanto i circuiti Cambridge Audio relativi alla modalità standby sono
completamente isolati durante l'ascolto della musica. Convertitori D/A: Wolfson
Microelectronics WM8728 24-Bit/192kHz capable Filtro: 2-Pole Sallen-Key
Butterworth filter Risposta in frequenza: 20Hz – 20kHz THD @ 1Khz 0dBFs: <0.003%
IMD (19/20kHz) 0dBFs <0.001% Linearity @ -90dBFs: +/-0.5dB S/N ratio, A weighted
>99dB Stopband rejection (>24kHz): >90dB Total correlated jitter: <250pS
Intermodulazione @ 1kHz: <-90dB Intermodulazione @ 20kHz: <-80dB Output
Impedance: <50 ohms Assorbimento a potenza massima: 25W Assorbimento in standby:
<1W Dimensioni (A x L x P): 85 x 430 x 305mm (3.4 x 16.9 x 12.2’’)
Whilst
an off-the-shelf CD/DVD-ROM drive might be fine for your laptop, if you’re
really serious about extracting every last detail from your discs then look no
further than the 350C which features Cambridge Audio’s dedicated audio-only CD
transport. This is then coupled to Cambridge Audio’s third generation
proprietary S3 servo solution which dynamically adjusts the focussing, tracking
and output level of the laser in real time. This in turn enables maximum
retrieval of disc data, guarantees extremely low jitter and delivers amazingly
dynamic sound. Warm yet incredibly detailed The new 350C offers a raft of
upgrades over its award-winning predecessor and one of the most important is its
implementation of a Wolfson WM8728 DAC coupled to a 2-pole Sallen-Key
Butterworth filter topology. This complex sounding component selection is key to
the 350C’s warm, fluid performance and its measurable purity and detail.
Furthermore, a highly accurate master clock oscillator and impedance-matched
clock buffering schemes further contribute to the amount of data it is possible
to extract from a CD. And like its 350A amplifier partner, the 350C also
benefits from a superior toroidal transformer which offers much lower noise and
waveform distortion than lower cost laminate transformers which are more
commonplace amongst the competition. Save the planet and delight your ears! We
know that many customers are genuinely considering the environmental impact of
their hi-fi – not to mention electricity consumption – and to add the icing on
the cake, the 350C benefits from a highly coveted stamp of approval by Energy
Star thanks to its ability to consume less than one watt in standby mode.
Critically, this benefit is offered without any effect on sound quality since
Cambridge Audio’s proprietary standby circuit is totally isolated when you’re
listening to music.
Lettore CD Sonata CD30
Risposta in frequenza: 20Hz – 20kHz (+/-0.5dB) THD: <0.003% @ 1kHz 0dBFs <0.005%
20Hz – 20kHz 0dBFs Convertitori D/A: Wolfson Microelectronics WM8716
24-Bit/192kHz capable Assorbimento a potenza massima: 7W Dimensioni (A x L x P):
270 x 285 x 67mm Peso: 2.3kg (5.0lbs)
The
audiophile CD30 player features an entirely new servo transport solution
providing the ultimate platform for which Cambridge Audio is renowned and shuns
the DVD-ROM derived design commonplace in this category. The CD30 uses a high
grade Wolfson WM8716 DAC (digital to analogue converter) for sensational sound
and stereo imaging and switches on automatically when CD source is selected from
the receiverSonata CD30 CD player Frequency Response: 20Hz – 20kHz (+/-0.5dB)
THD: <0.003% @ 1kHz 0dBFs <0.005% 20Hz – 20kHz 0dBFs D/A Converters: Wolfson
Microelectronics WM8716 24-Bit/192kHz capable Max. Power Consumption: 7W
Dimensions (W x D x H): 270 x 285 x 67mm Weight: 2.3kg (5.0lbs)
Un DAC di elevata qualità in un cabinet
minimo (le stesse dimensioni di un iD100) - 1 x USB, 1 x Optical, 2 x S/PDIF -
L’ingresso USB accetta 24/96 native e fino a 24/1 92 con driver separato
installato sul PC (donwload gratuito dal sito Cambridge) - DAC Wolfson WM8740 -
Uscite phono RCA
Revolutionise
music from computers and all your digital audio devices DacMagic 100 is a
mini marvel of digital engineering. Designed to significantly improve the sound
quality of your existing digital music devices, DacMagic 100 is capable of
extracting real hi-fi sound from all manner of gadgets. By simply
connecting any device with a digital audio output – like Blu-ray players, Apple
Macs, PCs, TVs and set-top boxes – DacMagic 100 digitally processes the audio
signal, dramatically improving sound quality and reducing distortion in an
instant. The result is greater detail, sparkling clarity and a real sense of
scale and drama. There’s an incredible amount of hi-tech engineering
inside. We selected the very latest digital to analogue converter from
market-leader Wolfson, enabling up to studio-master-quality audio
(24-bit/192kHz) to be enjoyed for a truly breathtaking hi-fi experience. Our
innovative USB technology also means high-resolution digital audio files stored
on your computer can be shared with your hi-fi allowing you to benefit from a
level of sound quality far in excess of CD. With three different digital
connectivity options and the ability to connect four devices concurrently,
DacMagic 100 is a true digital music enhancement hub. Set-up is a breeze and you
can begin to enjoy better audio quality in minutes. It also makes the
perfect partner for your iPad, iPhone or iPod when used in conjunction with
Cambridge Audio’s iD100 dock. DacMagic 100 Digital to Analogue converter
D/A Converters: Wolfson WM8742 24-bit DAC Frequency Response: 20Hz to 20kHz
(±0.1dB) THD @ 1Khz 0dBFs: <0.0025% 24-bit THD @ 1kHz -10dBFs: <0.0025% 24-bit
THD @ 20kHz 0dBFs: <0.0025% Signal to Noise Ratio: -113dBr Total correlated
jitter: <130pS Crosstalk @ 1kHz: < -130dB Crosstalk @ 20kHz: < -112dB Output
Impedance: <50ohms Max. output level (unbalanced) 2.3V rms Digital input word
widths supported: 16-24bit Digital input sampling frequencies supported: 32kHz,
44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz Max. Power Consumption: 5W Dimensions (H
x W x D): 46 x 106 x 130mm (1.8 x 4.1 x 5.1") Weight 0.5kg (1.1 lbs)
2xWM8740 DAC, sovracampionamento 24 bit 384kHz Anagram, Ingresso USB 24/96
driverless, Ingresso USB 24/192 con free driver separato che permette una
ripoduzione audio di altissima risoluzione, Uscita audio bilanciata XLR,
Controllo Volume (jack cuffia e uscite analogiche)

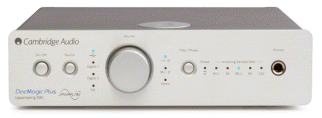

Improving
on a legend is never easy, but Cambridge Audio has gone back to the drawing
board to create the DacMagic Plus with exciting new features, wireless device
connectivity, and best of all, significantly enhanced audio performance. We live
in a world of immense musical opportunity. Computers, TVs and Blu-ray players
can all deliver audio to your hi-fi system, but because they’re primarily
designed to perform other functions, their audio outputs lack quality. But by
simply connecting them to DacMagic Plus, you can bypass their inbuilt digital to
analogue converters transforming their humdrum performance into something
altogether more spectacular!DacMagic Plus works by taking a digital audio signal
from your PC, digital iPod dock or TV which it analyses and upgrades using our
clever ATF2 algorithm. It’s totally flexible and supports digital music of all
formats. DacMagic Plus even supports 24-bit data over USB so you can enjoy
better than CD quality from uncompressed music stored on your PC.And by linking
our plug-and-play BT100 wireless audio receiver to DacMagic Plus, you can also
stream music wirelessly from your iPhone, Android smartphone, iPad, tablet,
laptop or any device that supports Bluetooth*. Best of all, if your smartphone,
tablet or Apple Mac supports the high-end audio aptX CODEC, you can stream
audiophile quality music from your device to DacMagic Plus.Of course the range
of music available from today’s mobile devices is almost endless and as well as
controlling and playing stored music, online music services like Spotify and
Last FM can be shared with your hi-fi in stunning quality.
Lettore BluRay 3D, lettore di DVD, CD,
DVD-A, SACD, HDCD - 2xHDMI 1.4 - porte USB & eSata - Pure Audio Mode & DAC
Cirrus Logic - 8 uscite audio analogico
The only player you’ll ever need! The
perfect picture is only half the story and the 651BD’s audio performance is
every bit as impressive as its video abilities. Cirrus Logic audio DACs
and incredible attention to the design of audio circuits ensure this latest
player sounds truly amazing whether playing movies or music. Indeed the 651BD
not only supports Blu-ray discs – including those with 3D content – but also CD,
HDCD, DVD-Video, DVD-Audio and SACD. Twin screen connection With twin HDMI
outputs, the 651BD can deliver video to multiple displays (such as a your 3D TV
and your projector) and both are fully compatible with the HDMI 1.4 standard for
3DTV and Deep Colour support. The primary HDMI output also features a high
quality Marvell QDEO video scaler with motion adaptive noise reduction for quiet
and natural video, free from noise and artefacts. As well as stunning
performance with Blu-ray discs, the 651BD delivers unbeatable picture quality
from existing DVDs, which can also be up-scaled to 1080p resolution.
Comprehensive format support... The 651BD supports decoding of the very latest
formats including Dolby TrueHD and DTS-HD Master Audio. And for the ultimate in
user choice, these formats can be output as bitstreams over HDMI for an AV
receiver to decode internally. An audiophile extravaganza... However it is
the 651BD’s musical performance that really sets it apart from its peers. The
651BD can reproduce the dynamics and scale required for the most elaborate movie
soundtracks. The 651BD truly excels as an audio source supporting all
high-resolution formats including DVD-A, SACD plus of course CD. Designed
for all the family... With such a vast specification you might expect the 651BD
to take some getting used to but you’ll be delighted to hear that’s not the
case. Genuinely simple to use with essential operations available on the
ergonomic front panel and more comprehensive control via a clear on-screen menu,
the 651BD is as easy to operate as any ordinary player. In use it’s whisper
quiet and lightning fast for delay-free access to your movies and music.
Aesthetics and premium build quality are further strengths and Cambridge Audio’s
trademark wrap-around casework houses the 651BD’s proprietary engineering within
a low resonance, acoustically damped chassis. The 651BD is ready to
connect to the internet via Ethernet and supports BD Profile 2.0 (BD-Live and
BonusView) and other interactive features. With an immense combination of
multi-format capability, 3D video performance and spine-tingling audio
capability, the 651BD is waiting to show you how Blu-ray can really perform
Lettore BluRay 3D, lettore di DVD, CD,
DVD-A, SACD, HDCD, 2xHDMI1.4 - 2xUSB & 1xeSata - Pure Audio Mode & 5xDAC
WM8740/192kHz - 8 uscite audio analogico e una uscita stereo dedicata
With
support for BD-3D, all the latest surround sound formats, QDEO video processing
and Anagram Technologies audio up-sampling, the 751BD is a lightning-fast, easy
to use player and is guaranteed to reproduce your movies and music with all the
gusto of the original performance! The only player you’ll ever need! Featuring
almost universal disc compatibility, the 751BD not only plays Blu-ray discs –
including those with 3D content – but also CD, HDCD, DVD-Video, DVD-Audio and
SACD. Twin screen connection With twin HDMI outputs, the 751BD can deliver
video to multiple displays (such as a your 3D TV and your projector) and both
are fully compatible with the HDMI 1.4 standard for 3DTV and Deep Colour support.
The primary HDMI output also features a high quality Marvell QDEO video scaler
with motion adaptive noise reduction for quiet and natural video, free from
noise and artefacts. As well as stunning performance with Blu-ray discs,
the 751BD delivers unbeatable picture quality from existing DVDs, which can also
be up-scaled to 1080p resolution. Comprehensive format support... The 751BD
supports decoding of the very latest formats including Dolby TrueHD and DTS-HD
Master Audio. And for the ultimate in user choice, these formats can be output
as bitstreams over HDMI for an AV receiver to decode internally. An
audiophile extravaganza... However it is the 751BD’s musical performance that
really sets it apart from its peers with genuinely uncontested audiophile
credentials. A mouth watering specification including five Wolfson WM8740
24-bit/192kHz Digital to Analogue converters, Anagram Technologies Q5 192 kHz
upsampling, a choice of digital filters and zealous attention to the design of
audio circuits ensures the 751BD can reproduce the dynamics and scale required
for the most elaborate movie soundtracks. The 751BD truly excels as an audio
source supporting all high-resolution formats including DVD-A, SACD plus of
course CD. Designed for all the family... With such a vast specification
you might expect the 751BD to take some getting used to but you’ll be delighted
to hear that’s not the case. Genuinely simple to use with essential operations
available on the ergonomic front panel and more comprehensive control via a
clear on-screen menu, the 751BD is as easy to operate as any ordinary player. In
use it’s whisper quiet and lightning fast for delay-free access to your movies
and music. Aesthetics and premium build quality are further strengths and
Cambridge Audio’s trademark wrap-around casework houses the 751BD’s proprietary
engineering within a low resonance, acoustically damped chassis. Supplied
with a wireless dongle... The 751BD is ready to connect to the internet
via Ethernet or Wi-Fi and supports BD Profile 2.0 (BD-Live and BonusView) and
other interactive features. With an immense combination of multi-format
capability, 3D video performance and spine-tingling audio capability, the 751BD
is waiting to show you how Blu-ray can really perform
sintoamplificatore 7.1, 7 x 70 watt - 4
HDMI in, 1 out con supporto per 3D TV / Deep colour pass-thru / ARC - Full video
scaling fino a 1080p con Faroudja FLI2310 CAMCAS auto setup
Azur
551R 7.1 HDMI AV Receiver Audio: Power Output: All Channels : 110 watts rms per
channel, 6 ohms (two channels driven) All Channels : 90 watts rms per channel, 8
ohms (two channels driven) All Channels : 60 watts rms per channel, 8 ohms (all
7 channels driven) THD: <0.006% @1kHz Crosstalk: <-60dB @ 1kHz Frequency
Response: 10Hz - 20kHz -1dB Signal to Noise Ratio: >90dB 'A' weighted Audio
input impedance/sensitivity 47kOhms / 175mV or greater Digital input impedance:
75 ohms (Coaxial/S/P DIF) Tone Controls: Bass: +/-10dB @ 100Hz Treble: +/-10dB @
10kHz Tuner: FM mode: 87.5-108MHz, 75 ohm coaxial aerial AM mode: 522-1629kHz,
300 ohm loop aerial Video: Video levels/impedance - Composite (CVBS): 1Vp-p / 75
ohm - S-Video (S-VHS): Y 1Vp-p / 75 ohm C 0.286 Vp-p / 75 ohm Component: Y 1Vp-p
/ 75 ohm Cb/Cr 0.75Vp-p / 75 ohm Pb/Pr 0.75Vp-p / 75 ohm HDMI HDMI 1.4 EIA/CEA -
861D HDCP 1.1 All audio modes supported except reception of native Direct Stream
Digital (DSD). ARC and 3D-TV/deep colour pass through supported. CEC and HEC not
supported. General Architecture Cirrus Logic CS43122 24 Bit 192kHz capable DAC
for Front Left & Right Cirrus Logic CS52526 24 Bit 192kHz capable CODEC for
surround channels + 24 Bit 2 channel A/D conversion Cirrus Logic CS497004 dual
32 bit DSP Faroudja FLI2310 scaler Audio Inputs: 6 Line Level Analogue Tuner
(FM/AM) 7.1 Analogue Input 4 Digital Co-axial, 4 Digital Optical Video Inputs: 2
Composite, 2 S-Video, 2 Component Video, 4 HDMI Audio Outputs: 7 Amplified
Speaker Outputs 7.1 Preamp outputs Video output 1 HDMI Recording Audio outputs:
1 Line Level Analogue 1 Digital Co-Axial, 1 Digital Optical Other Connections 1
1/4" / 6.35mm Headphone Outpu (32 To 600 ohms recommended) 1 IR Emitter In 1
RS232C 1 IEC type mains inlet Standby Power Consumption: <1w Quiescent power
consumption: <70w Max. Power Consumption: 700w Dimensions (H x W x D): 110 x 430
x 340mm (4.3 x 16.9 x 13.3’’) Weight: 10kg (22lbs)
Sintonizzatore RDS FM/AM - 20 preselezioni per
banda - Orologio sveglia - Control Bus
Cambridge’s
Audio 550T is a fully featured FM/AM RDS tuner complete with 20 presets per band
and an RDS interface to display station names. A high sensitivity design,
the 550T will quickly lock onto radio signals with a vice-like grip and offers
excellent detail and rich delivery across all broadcasts. The 550T features a
clock with wake-up alarm that can power-up and switch off connected Cambridge
Audio amplifiers fitted with Control Bus inputs/outputs and select the tuner
input for the Alarm function. A full-function remote is supplied which also
controls either the 550A or 650A amplifiers
Sintonizzatore DAB e RDS FM - DAC 24bit /
192kHz - Control Bus & IR in - Trasformatore toroidale Azur 650T
DAB+ / FM / AM RDS tuner
Convertitori D/A: Wolfson WM8740 24-Bit/192kHz capable Gamma di frequenza: FM
(87.5 – 108MHz) Europe FM (88 – 108MHz) US AM (531 – 1620kHz) Europe AM (530 –
1720kHz) US DAB Band 3 (175MHz – 240MHz) DAB L Band (1453MHz – 1491MHz Aerial
Inputs: 50 ohm F-Type (DAB) 75 ohm (FM) Loop Antenna (AM) Sensibilità: -25dBm
typical Signal to Noise: 105dB typical (DAB) 60dB typical (FM) 47dB typical (AM)
DAB Codec types supported: DAB (MP2) / DAB+ (AAC+) Risposta in frequenza: 20Hz –
20kHz ±0.3dB (NCT at Flat, DAB) 20Hz – 18kHz ±1dB (NCT at Flat, FM) Distorsione:
<0.005%, @1kHz 2vrms o/p (DAB) <0.3%, @ 1kHz, 50kHz deviation (FM) <0.9%, @1kHz
(AM) S/P DIF output sample rate: 48kHz Input Voltage: 220 – 230V AC ~ 50/60Hz (Europe)
115V AC ~ 50/60Hz (US) Stereo Separation: @ 1kHz >50dB (FM) Assorbimento a
potenza massima: 15W Assorbimento in standby: <1W Dimensioni (A x L x P): 70 x
430 x 305mm (2.75 x 16.9 x 12.2’’) Weight (unboxed): 4.8kg (10.6lbs) Weight (boxed):
4.10kg (9lbs)
lettore musicale di rete - UpnP Universal
Plug'n'Play - lettura di file 24/94 alta risoluzione - lettura di file Wav, MP3,
WMA, AAC, FLAC - Internet Radio con più di 20.000 stazioni - serivizi in
streaming - applicazione Phone Control - colelgamento ethernet e wifi - portale
online dedicato
Sonata AR30 sintoamplificatore
2.1 AM / FM Potenza di uscita: 40 watts per channel (into 8 Ω) THD (non
pesato): <0.05% 20Hz-20kHz @ 80% max power <0.009% @ 1kHz 10w Risposta in
frequenza: 10Hz – 50kHz +/- 1dB Signal to Noise Ratio A-wtd: >80dB (ref 1W)
Controllo di toni: +/-12dB @ 100Hz and 10kHz (shelving) Sintonizzatore radio:
Bands: AM (530-1710kHz) FM/VHF (87.5MHz to 108 MHz Aerial inputs: FM 75ohms,
Coxial. AM 300 ohms wire loop / single wire Assorbimento a potenza massima: 300W
Dimensioni (A x L x P): 270 x 285 x 67mm Peso: 4.0kg (8.6lbs) Power Supply:
230V AC ~ 50Hz (UK/EU)
Sonata DR30 sintoamplificatore
2.1 DAB / FM Potenza di uscita: 40 watts per channel (into 8 Ω) THD:
<0.05% 20Hz-20kHz “ 80% max power <0.009% @ 1kHz 10w Risposta in frequenza: 10Hz
– 50kHz +/- 1dB Signal to Noise Ratio A-wtd: >80dB (ref 1W) Controllo di toni:
+/-12dB @ 100Hz and 10kHz (shelving) Sintonizzatore radio: Bands: FM/VHF
(87.5MHz to 108MHz) DAB Band 3 (175MHz to 240MHz) DAB L Band (1453MHz to
1491MHz) Aerial inputs: Combined FM/DAB: 50-75 ohms, F-Type Assorbimento a
potenza massima: 300W Dimensioni (A x L x P): 270 x 285 x 67mm Peso: 4.0kg
(8.6lbs) Power Supply: 230V AC ~ 50Hz (UK/EU/AU)
CAMBRIGE AUDIO
ONE
€.625,00 Per
prezzo scontato
TELEFONARE/EMAIL
One sistema integrato sintoamplificatore 2.1 DAB / FM e lettore Potenza di
uscita: 2 x 30W per channel into 6 Ohms (both channels driven)(2 x 25W into 8
Ohms) Inputs: 2 x line level phono input (Aux1, Aux2) (back panel) 1 x MP3
line level input (3.5mm jack) connects to AUX1 input (front panel) F type aerial
socket for DAB and FM (supplied with antenna fitted) Outputs: 1 x tape output
(back panel) 1 x sub out (back panel)Headphone output 3.5mm jack (front panel)
4mm banana sockets left and right speaker outputs (back panel) Dedicated 9 pin
socket for DD30 iPod dock (back panel) Prestazioni DAB: DAB band III and L band
FM with RDS display modes include station name, programme type 10 presets per
band (10 for FM, 10 for DAB = 20 total) DAB display modes include: station name,
ensemble, DLS (scrolling text) THD (non pesato): <0.01% @ 1kHz Risposta in
frequenza: 20Hz – 20kHz +/- 1dB Rapporto segnale rumore: >80dB Assorbimento a
potenza massima: 150W Dimensioni (A x L x P): 215 x 350 x 90mm Peso: 4.6kg

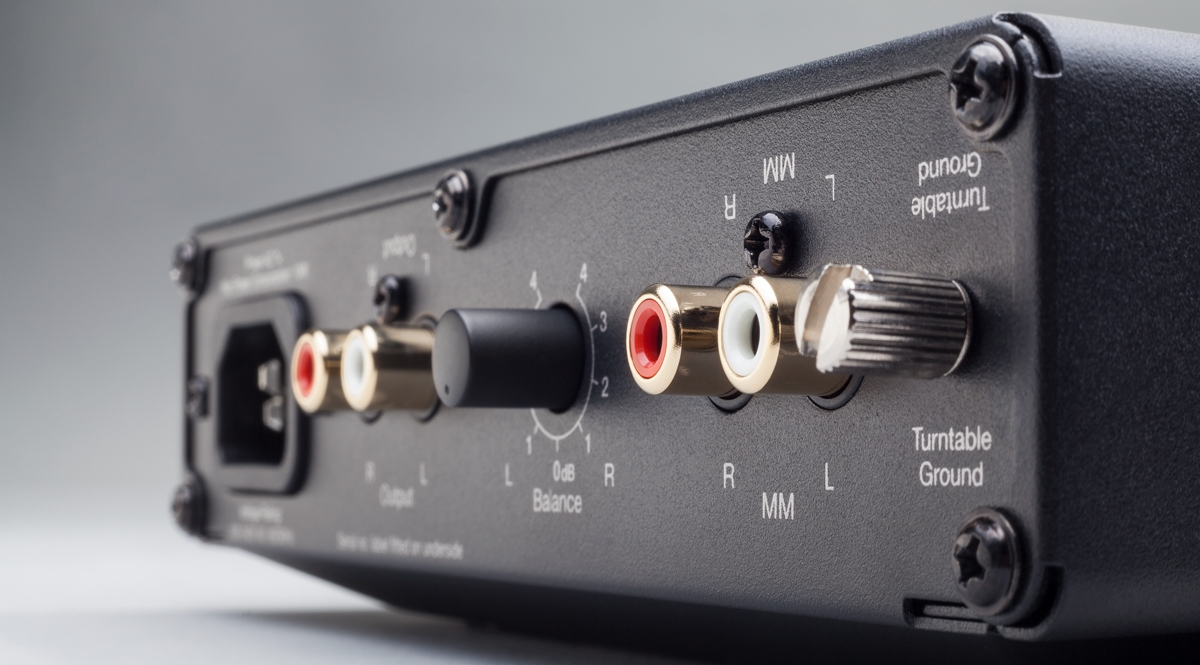

Preamplificatore Phono
Azur 540 PAssorbimento a potenza massima: 5W Gain @ 1kHz: 39dB Nominal output:
300mV Sensitivity for nominal output: 3.35mV THD 20Hz-20kHz: <0.009% RIAA curve
accuracy <+/-0.65dB 25Hz-20kHz 20Hz-50kHz (filtro subsonico disinserito)
Rapporto segnale rumore: >85dB using Audio Precision RIAA-1 con ingressi a massa
Intermodulazione @ 20kHz: >76dB Dimensioni (A x L x P): 215 x 133 x 46mm Peso:
0.8kg
Il presente listino
sostituisce ed annulla ogni precedente.I prezzi indicati si
riferiscono a singolo diffusore.
Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco
nostro magazzino
Nota bene Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.gif)
.gif)
.jpg){kind=small}
•
Music stored on your PC, Mac or home network drive can be instantly accessed by
Stream Magic 6 where it’s transformed into stunning quality audio• Thanks to
UPnP Audio Streaming compatibility, no complicated set-up or software is
required • All major formats supported including ‘better than CD’ 24 bit files•
Stream Magic 6 gives you access to over 20,000 vetted Internet Radio stations –
search by name, genre or location • Dramatically enhances quality from external
digital music sources. Twin 24-bit digital inputs allow TVs, Blu-ray players,
digital iPod/iPad docks and any other gadget with a digital audio connection to
be significantly upgraded• Meanwhile, a 24-bit USB audio-in enables audio from
PCs and Macs to also be enjoyed in ‘Better than CD quality’• Compatible with
Cambridge Audio’s new BT100 wireless audio receiver. Allows you to stream music
wirelessly from your iPhone, smartphone, iPad, tablet, laptop or any device that
supports Bluetooth to your hi-fi or entertainment system • All this and much
more from an elegant, simple-to-use package. To find out more about the
sensational Stream Magic 6, complete your details and we’ll keep you up to speed
with launch dates, news and reviews. Specifications Stream Magic 6 Upsampling
Network Music Player D/A Converters: Dual Wolfson WM8740 24-bit DACs Digital
filter: 2nd Generation ATF2 up-sampling to 24-bit/384kHz. Linear Phase, Minimum
phase or Steep modes. Analogue filter: 2-Pole Dual Differential Bessel Double
Virtual Earth Balanced Digital Inputs: S/PDIF 75 ohms or Toslink optical USB
Audio Input USB Type B conforming to Audio profile 1.0 or USB Audio profile 2.0
(user 1.0 or USB Audio profile 2.0 (user selectable) Local USB media 2 x USB 1.1
current limited to 1A each File systems FAT32, NTFS Digital Outputs: S/PDIF
Co-axial and Toslink Optical 16-24 Bits, 32-96kHz Analogue audio outputs
Balanced XLR and unbalanced RCA analogue audio outputs THD @ 1Khz 0dBFs: <0.001%
24bit (at volume set to full) THD @ 1kHz -10dBFs: <0.001% (at volume set to
full) THD @ 20kHz 0dBFs: <0.002% (at volume set to full) Frequency Response:
20Hz-20kHz +/- 0.1dB * Signal to Noise Ratio: -112dBr (at volume set to full)
Total correlated jitter: < 130pS Crosstalk @ 1kHz: < -100dB Crosstalk @ 20kHz: <
-90dB Audio Formats WAV containing uncompressed PCM 16-24 bit 32-96kHz FLAC
containing losslessly compressed PCM 16-24 bit 32-96kHz AIFF containing
uncompressed PCM 16 bit 32-48kHz Microsoft® Windows MediaTM Audio (WMA 9
Standard) 32-320kbps MP3 (CBR or VBR) 16-320kbps AAC, HE AAC and AAC+ (CBR or
VBR) 16-320kbps OGG Vorbis 32-320kbps Streaming Protocols RTSP (Real Time
Streaming Protocol) MMS (Microsoft Media Server Protocol) HTTP (Hyper Text
Transfer Protocol) Wi-Fi IEEE 802.11 b/g or n (2.4GHz connection used only)
Wi-Fi Encryption WEP, WPA, WPA2 Ethernet IEEE 802.3, 10 Base-T or 100 Base-T
Mains inlet voltage 100-240 VAC (switch mode) Standby consumption <0.5W Max
power consumption 30W Dimensions (H x W x D): 85 x 430 x 305mm (3.4 x 16.9 x
12.2”) Weight: 4 Kg (8.8lbs).gif)
.jpg){kind=small}
.jpg)
.gif)
.jpg)
.jpg){kind=small}
.gif)
.gif)
.gif)
.gif)
.jpg){kind=small}
.gif)
.jpg){kind=small}
.jpg)
.gif)
.gif)
.jpg)
.jpg){kind=small}
.jpg){kind=small}
.gif)
.jpg)
.gif)
.jpg)
.gif)
.jpg)
.gif)
.jpg)
.gif)
.jpg)
.gif)
.jpg){kind=small}
.gif)
.gif)
.gif)
.gif)
.gif)
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
