Amplificatore integrato 2 x 90 W 8 Ohms
5 ingressi sbilanciati ingresso bilanciato (CD) 1 Tape Loop ingresso
diretto al finale doppio set di uscite speaker con selettore (A, B. A+B)
controlli di tono e loudness escludibili selettore mono/stereo - uscita cuffia
controllo di volume AAVA II 1 slot di ingresso per schede aggiuntive
(DAC-20, AD-20, Line 10) telecomando dimensioni mm 465 x 150 x 420 (LxAxP)
peso 19,9 Kg.
The
Accuphase E-200 series of basic integrated amplifiers enjoys an excellent
reputation both in Japan and on the international stage. The E-250 represents a
full model change of the E-213, featuring the new AAVA-II volume control and
reflecting the latest design technology advances achieved by Accuphase.
Carefully selected highquality materials and parts are used throughout, in order
to bring out even the fi nest nuances of the source. Using this integrated
amplifier affords pure musical enjoyment. In the category of integrated
amplifiers, AAVA implemented in the E-550 and AAVA-II in the E-450 and E-350
have received high praise for being a clearly superior volume control principle.The
E-250 inherits this advanced design technology. In order to fit within the more
limited space available, circuitry and component layout have been further
refined and advanced integration technology is used to increase mounting
density. This was achieved while retaining the outstanding performance that made
AAVA and previous AAVA-II implementations such impressive feats of technology.
AAVA-II in the E-250 of course also completely eliminates variable resistors
from the signal path. Amplification and volume control are integrated in a
single entity consisting only of top-quality and highly reliable semiconductor
parts. This eliminates mechanical wear and associated problems, allowing the
control to function perfectly for many years.Revolutionary AAVA-II volume
control Parallel push-pull output stage with high-power transistors delivers
plenty of quality power Instrumentation amplifier principle in power amplifier
section allows fully balanced signal transmission Current feedback topology
Logic-control relays for straight and short signal paths Robust power
supply with large transformer and high filtering capacity
AMPLIFICATORE INTEGRATO - 2
X100 W/8 OHMS (2 X 140 SU 4 OHMS) - SPECIALE VOLUME AAVA - 7 INGRESSI LINEA (2
BILANCIATI, 5 SBILANCIATI) + 2 SLOT PER SCHEDE OPZIONALI (AD 20, LINE 10 E
DAC-30) - SEPARAZIONE PRE/FINALE CON USCITA PRE SECONDARIA - VU METER -
CONTROLLI DI TONO E BILANCIAMENTO - USCITA SPEAKERS SDOPPIATA (BIAMPLIFICAZIONE
O A/B) - USCITA CUFFIA - TELECOMANDO - DIMENSIONI 465 X 171 X 422 - PESO 21,7 KG

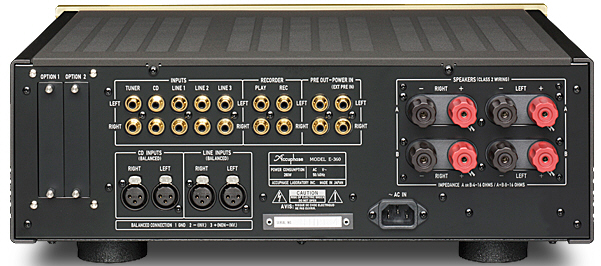

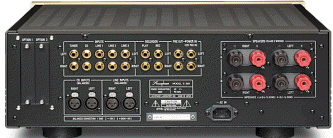

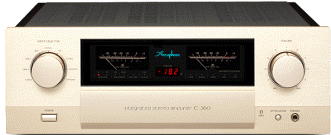

The
E-360 represents a full model change from the E-350, incorporating the AAVA
volume control and other sophisticated technological know-how gained by
Accuphase over the years. Only strictly selected high-grade materials and parts
are used, resulting in an integrated amplifier that brings out the full
potential of every source, for a truly enchanting musical experience. AAVA
is a revolutionary principle that redefines the concept of volume control from
the ground up. Unlike the digital approach involving A/D and D/A processing, it
operates purely in the analog domain for high performance and ultimate sound.
Because the music signal does not pass through any variable resistors, it is not
subject to the adverse effects of impedance changes. Adjusting the volume level
is accomplished practically without altering the sonic quality. As the
amplification and volume control tasks are integrated in a single electronic
entity without any variable resistors, performance and sonic purity do not
deteriorate over the years, providing excellent reliability. The selected volume
level is clearly shown by the numeric display in the center of the front panel,
allowing the user to set precisely the desired level every time. The power
amplifier section is built as an advanced instrumentation amplifier, which
enables fully balanced signal transmission throughout. Together with the highly
acclaimed current feedback principle, this makes for even better electrical
characteristics. In the output stage, high-power audio grade transistors are
arranged in a parallel push-pull configuration which significantly enhances
drive capability of low-impedance loads. Revolutionary AAVA volume control
Output stage with high-power transistors in parallel push-pull arrangement
delivers high quality power: 100 watts 2 into 8 ohms Instrumentation amplifier
principle for power amplifier input stage allows fully balanced signal
transmission Logic-control relays for shortest signal path Robust power supply
with large high-efficiency transformer and high filtering capacity Numeric
indication of volume level
2 x 180 W/8 ohms speciale
volume AAVA-II - 6 ingressi linea (2 bilanciati) + 2 slot per schede opzionali
MM/MC AD 20/Line 10/ DAC20 - separazione pre/finale - VU meter -controlli di
tono - loudness - telecomando
The
E-460 represents a modelchange from the popular E-450. It incorporatesthe
sophisticated technological know-howgained by Accuphase over the years,
andfeatures a further refined AAVA volume control.It also marks a return to
MOS-FET devices inclass A/B integrated amplifier from Accuphase. AAVA is a
revolutionary principle that redefinesthe concept of volume control from the
groundup. Unlike the digital approach involving A/Dand D/A processing, it
operates purely in theanalog domain for high performance andultimate sound.
Because the amplification andvolume control tasks are integrated in a
singleelectronic entity without any variable resistors,performance and sonic
purity do not deteriorateover the years, providing excellent reliability. The
power amplifier section is built as anadvanced instrumentation amplifier,
whichenables fully balanced signal transmissionthroughout. Together with the
further improvedMCS+ circuit topology and the highlyacclaimed current feedback
principle, thismakes for even better electrical characteristics. In the output
stage, high-power MOS-FETdevices renowned for their great sound andutter
reliability are arranged in a triple parallelpush-pull configuration per channel.
MOSFETshave excellent frequency response andhigh input impedance which reduces
the loadon the preceding driver stage. Revolutionary AAVA volume control Output
stage with triple parallel push-pull power MOS-FETs delivers high quality power:
Amplificatore integrato in classe A - 2 x
30 W/8 Ohms (60 W su 4 Ohms) con entrambi i canali pilotati - stadio finale con
triplo Push-pull parallelo di MOS-FET, current feedBack e circuito MCS+ -
speciale volume AAVA-II - 7 ingressi linea (2 bilanciati) + 2 slot per schede
opzionali (AD 20, Line 10, DAC20 E DAC-30) - separazione pre/ finale - VU meter
- controlli di tono e bilanciamento - uscita speakers sdoppiata (biamplificazione
o A/B) - telecomando dimensioni: 191 x 465 x 426 mm (AxLxP) peso 30 Kg.
The
integrated amplifiers from Accuphase operating in full class A enjoy an
excellent reputation both in Japan and overseas for their outstanding musical
qualities. The E-560 represents a model change from the popular E-550. While
incorporating the sophisticated technological know-how gained by Accuphase over
the years, it features a further refined AAVA volume control and uses the latest
circuit topology and strictly selected parts of the utmost quality. The E-560 is
destined to become the new reference model for high-class integrated amplifiers.
AAVA is a revolutionary principle designed for high performance and ultimate
sound. It integrates the amplification and volume control tasks in a single
electronic entity that uses analog processing and eliminates all variable
resistors from the signal path. Its performance and sonic purity do not
deteriorate over the years, providing excellent reliability. The AAVA version in
the E-560 takes the principle to the next level, delivering the same peerless
performance in a more compact form factor. The power amplifier section is built
as an advanced instrumentation amplifier, which enables fully balanced signal
transmission throughout. Together with the further improved MCS+ circuit
topology and the highly acclaimed current feedback principle, this makes for
even better electrical characteristics. In the output stage, high-power MOS-FET
devices renowned for their great sound and utter reliability are arranged in a
triple parallel push-pull configuration per channel. Revolutionary AAVA
volume control Output stage with triple parallel push-pull power MOS-FETs
Instrumentation amplifier principle for power amplifier input stage allows fully
balanced signal transmission and enhances current feedback and MCS+ topology
Logic-control relays for straight and short signal paths Robust power supply
with large high-efficiency toroidal transformer and high filtering capacity EXT
PRE button allows separation of preamplifier and power amplifier stage
LETTORE CD CON MECCANICA ACCHUPASE OTTIMIZZATA PER LETTURA CD - CONVERTITORE
MDS++ (4 CONVERTITORI SIGMA DELTA PCM 1796 IN PARALLELO) - 2 INGRESSI E 2 USCITE
DIGITALI ELETTRICHE E OTTICHE TOSLINK - USCITE ANALOGICHE BILANCIATE E
SBILANCIATE - TELECOMANDO - DIMENSIONI 465 X 150 X 393 (LXAXP) - PESO 13,6 KG further
refi ned MDS++ type D/A converters. Fully separate transport and processor
section, with coaxial and optical transport outputs and digital inputs, allowing
easy insertion of DG-48 into signal path for sound fi eld correction in the
digital domain.High-precision CD drive, high-quality CD tray, and ultra quiet
and smooth loading mechanism MDS++ D/A converters and low-pass Direct Balanced
Filter with totally separate balanced and unbalanced signal paths Two sets of
transport outputs and digital inputs allow insertion of DG-48 into signal path
for sound field correction Balanced and unbalanced analog outputs
Lettore CD con meccanica
Acchupase ottimizzata per lettura CD - convertitore MDS++ (6 convertitori in
parallelo) - 2 ingressi e 2 uscite digitali elettriche e ottiche Toslink
ingresso digitale coassiale con supporto fino a 24 BIT/192Khz - attenuatore
volume digitale a passi da 1 dB - uscite analogiche bilanciate e sbilanciate -
telecomando - dimensioni 465 x 151 x 393 (LxAxP) - peso 17,9 Kg
The
DP-510 is the successor to the DP-500. The CD mechanism in the DP-510 was
developed with a simple yet demanding aim: extract the information encoded on
the CD one-hundred percent. Accuphase has created an extremely rigid and ultra
precise transport mechanism that attains new levels of performance. The
processor section employs six strictly selected high performance delta-sigma
devices operating in parallel, forming a further refined MDS++ D/A conversion
system. The analog filter which has a significant influence on sound quality is
a so-called "Direct Balanced Filter" which provides totally separate analog
low-pass filtering for the balanced and line signal paths. The D/A converter
section can be accessed also by external equipment. The coaxial input can
handle audio data up to a sampling frequency of 192 kHz and 24-bit resolution.
High-precision CD drive High-quality CD tray and ultra quiet and smooth loading
mechanism MDS++ D/A converters Low-pass "Direct Balanced Filter" with
totally separate line and balanced signal paths Two sets of transport
outputs and digital inputs allow insertion of DG-48 into signal path for sound
field correction Balanced output phase selector

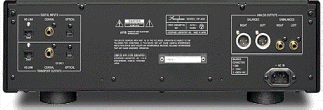

Lettore CD/SACD stereo con meccanica
Accuhpase - convertitore MDS++ (6 convertitori in parallelo) - circuito
Direct Balanced Filter - stadi di uscita bilanciato e sbilanciato con
circuitazione totalemnte separata - 3 ingressi e 3 uscite digitali HS-Link,
elettricha e ottica Toslink - attenuatore volume digitale a passi da 1 dB
- telecomando - dimensioni 477 x 156 x 394 (LxAxP) - peso 18,5 Kg.

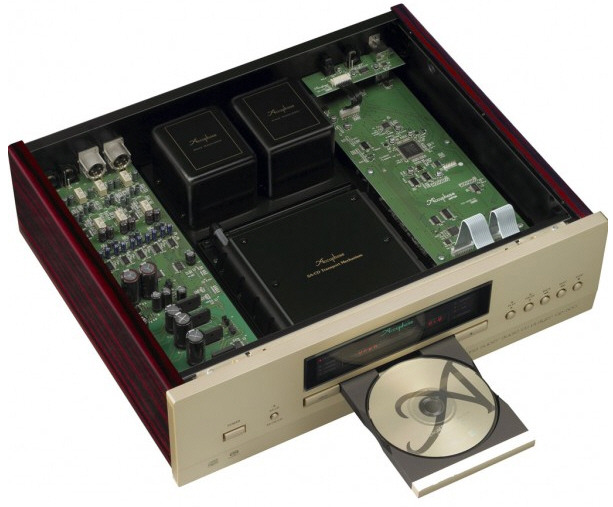

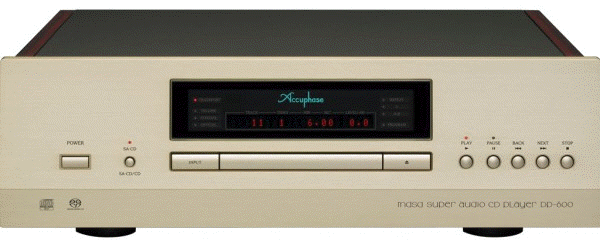

The
reference-level separate-type combo DP-800/DC-801 and the integrated DP-700 with
their exclusive mechanism developed in-house by Accuphase have garnered high
praise and acclaim the world over. The new DP-600 is positioned as a companion
model to the DP-700, benefi ting from its sophisticated know-how, but it is also
a high-end integrated SA-CD player in its own right. Extensive listening tests
were conducted to ensure optimum reproduction quality. As with all Accuphase
players so far, a conscious decision was made not to support multi-channel
formats but rather focus on obtaining the ultimate in musical fi delity from
two-channel SA-CD music sources.
The high-grade SA-CD drive mechanism in the DP-600 is the ultimate tool for
extracting the information on SA-CD discs one hundred percent. It not only keeps
internal vibrations of rotating parts to a minimum, but is also highly
impervious to external vibrations. This ensures that the digital signal remains
in a highly pure and accurate state. A dedicated DSP chip controls the digital
servo, allowing the digital signal encoded on the SA-CD in DSD (Direct Stream
Digital) format to be processed with utmost accuracy. The high-speed access
mechanism with its singlelens/ twin laser diode combines optimum precision with
lightning-swift operation.High-grade SA-CD/CD drive Innovative MDSD digital
signal processing MDS++ type D/A converter using six parallel devices
"Direct Balanced Filter" with totally separate balanced and unbalanced signal
paths HS-Link digital interface Transport outputs and digital inputs
allow insertion of DG-48 into signal path for sound field correction Balanced
and unbalanced analog outputs
ACCUPHASE DP700.20.000,00 Per offerta TELEFONA / E-MAIL
Lettore CD/SACD stereo con
meccanica Accuhpase - convertitore MDS++ (8 convertitori in parallelo) -
circuito Ulta Jitter-free Plus - stadi di uscita bilanciato e sbilanciato con
circuitazione totalemnte separata - 3 ingressi e 3 uscite digitali HS-Link,
elettricha e ottica Toslink - attenuatore volume digitale a passi da 1 dB -
uscite analogiche bilanciate e sbilanciate telecomando dimensioni 477 x 156
x 394 (LxAxP) peso 27 Kg
When
Accuphase introduced the ultimate separate-type SA-CD/CD player, the models
DP-800 and DC-801, a new epoch in audio history had begun.Garnering worldwide
acclaim both for their technological excellence and sound quality, the transport
and processor pair has become the new reference for SA-CD reproduction. The new
DP-700 is an integrated type SA-CD player incorporating that very same
state-of-the-art technology.In the transport section, a dedicated DSP chip
controls the digital servo to assure accurate readout of the signal recorded on
the SA-CD. Another vital aspect is the single-lens/twin laser diode pickup
mounted to a high-speed positioning mechanism, providing a significant
improvement in read access times and accuracy.The processor section features the
innovative MDSD principle forming a sophisticated moving average filter circuit,
together with the MDS++ D/A system that keeps conversion errors to an absolute
minimum and at the same time acts as high-cut filter efficiently removing noise
components in the high frequency domain.Internally, the transport and processor
sections of the DP-700 are kept entirely separate. Digital inputs allow
independent use of the processor section for external sources to enjoy music
reproduction with the same superb quality.High-rigidity, high-precision SA-CD/CD
drive Innovative digital signal processor with MDSD technology MDS++ D/A
converter with eight DACs driven in parallel "Ultra Jitter-Free Plus" PLL
circuit "Direct Balanced Filter" with totally separate balanced and unbalanced
signal paths Transport outputs and digital inputs m Accuphase HS-Link
digital interface
Unit di lettura DC/SACD con meccanica ad
alta precisione e massa elevata (10.7 Kg totali) realizzata interamente in
alluminio e metallo antirisonante uscita digitale HS-Link (cavo in dotazione)
e coassiale doppio Pick-up laser per i formati CD e SACD montati su lente
singola per una maggiore velocit di riconoscimento del formato sezione di
alimentazione con doppio trasformatore toroidale dimensioni: 477 156 x
394 (LxAxP) peso 30 Kg.

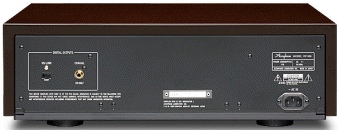

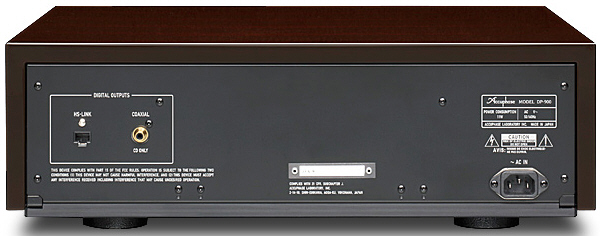

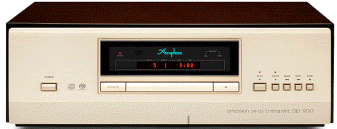

The
SA-CD drive in the DP-900 was developed in-house by Accuphase to assure the best
possible performance. Its ultra-massive design combines superior rigidity with
outstanding accuracy. Compared to a CD drive, an SA-CD drive has a higher
revolution rate, and pickup positioning accuracy as well as suppression of
vibrations must be of a higher order, to allow full access to the enormous
amount of information stored on the disc. In the transport, a digital
servo with a dedicated DSP assures accurate readout of the signal recorded on
the SA-CD using the DSD (Direct Stream Digital) principle. This is sustained by
a single-lens/twin laser diode pickup mounted to a high-speed access mechanism.
The mechanism not only realizes optimal reproduction of SA-CDs, it also is
capable of extracting a super-accurate signal from conventional CDs. The output
for both SA-CD and CD is provided via the Accuphase exclusive high-performance
digital interface HS-LINK (RJ-45 connector). The CD output is also available via
a dedicated coaxial connector. Dedicated digital output only SA-CD/CD
transport with ultra-high-speed FPGA for digital processing and highly accurate
signal pickup. Ultra massive chassis construction and newly developed
high-rigidity, high-precision SA-CD/CD drive. Sophisticated signal processing
technology assures excellent signal quality also from conventional CD media.
Single-lens/twin pickup high-speed access mechanism employs two laser diodes,
one for SA-CD (650 nm) and one for CD (780 nm).Accuphases proprietary
high-quality digital audio interface HS-LINK. RJ-45 output (HS-LINK) for SA-CD
and CD, and dedicated coaxial output for CD. HSLINK connection to DC-901 can
carry both SA-CD and CD signals. Power supply with two high-efficiency toroidal
transformers and custom-made high quality filtering capacitors (3000μF 10)
allows separate powering of signal processing circuitry and drive section.
Display can show text data with disc title, artist information, etc. High
Carbon cast iron insulator feet with superior damping characteristics ensure
quiet operation of both DP-900 and DC-901, and further enhance sound quality.
Both DP-900 and DC-901 feature massive cabinets with wood finish.
8 ingressi linea (2 bilanciati) - uscite
bilanciate e sbilanciate controllo volume AAVA - loudness -filtro subsonico -
controlli di tono - presa cuffia -telecomando - modulo fono MM/MC AD 10
opzionale

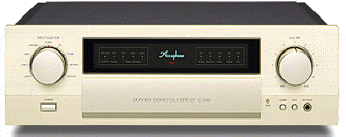

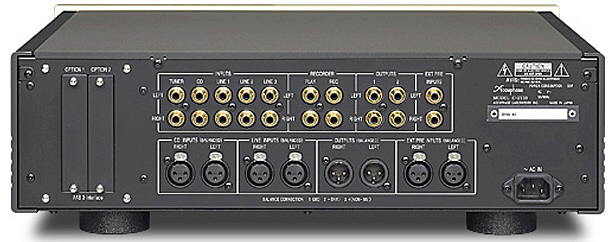

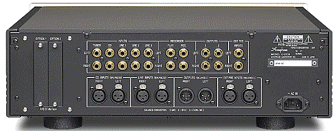

Accuphasefs
ground-breaking AAVA (Accuphase Analog Vari-gain Amplifier) volume control has
undergone further refinements, reflecting accumulated technical know-how. The
C-2110 is a successor to the model C-2000. It inherits advanced design
technology from the C-2810 and C-2410 and features AAVA volume control with the
same outstanding specifications and configuration but further augmented
circuitry. AAVA is a new kind of volume control that assures excellent sonic
Operation principle of AAVA in C-2110 performance by integrating the
amplification and volume control tasks and eliminating all mechanical contact
points from the signal path.The fact that the music signal no longer has to pass
through any variable resistors brings a number of distinct design advantages and
enhances sonic purity.performance and sound quality of the amplifier will remain
undiminished for many years to come. Revolutionary AAVA volume control
Separate power transformers for left and right channels Selectable preamp
gain Independent phase selection for each input position Fully modular
construction with individual left/right amplifier units on motherboard
Logic-controlled relays for shortest signal paths Tone controls designed for
optimum sound quality Option board slots provide versatility for handling
digital input signals or analog record playback

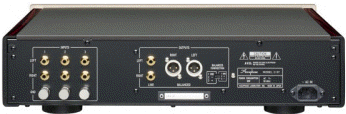

Preamplificatore dedicato agli ingressi
phono circuitazione MM e MC separata equalizzazione con deviazione massima
dalla curva RIIA di 0,3 dB impedenza variabile su 3 posizioni per MM e 6
posizioni per MC tre ingressi sbilanciati uscite sbilanciata e bilanciata
filtro subsonico guadagno variabile su due posizioni (+ 10 dB) Dimensioni (LxAxP)
465 x 121 x 405 mm peso Kg.14,5
The
analog phono record is experiencing a quiet boom among discerning music lovers.
It goes without saying that a phono equalizer of high quality is essential to
extract the enormous richness of sonic information engraved on vinyl records.
Furthermore, the selection of tonearm, cartridge and other parts of the playback
system requires a thorough understanding of audio fundamentals. This is a
fi eld where some investment of time and effort can yield immensely satisfying
results. Accuphase has gained considerable expertise in designing and building
phono equalizers, either integrated in preamplifi ers or available as option
(AD-2810 and AD-20). In response to the wishes of audiophiles worldwide, we have
now developed the C-27 as a high-end standalone phono equalizer amplifier,
capable of exploring the possibilities of the analog disc to the fullest.
Separate MM/MC amplifi er circuitry ensures ultra low noise Highly precise
equalization with only 0.3 dB RIAA deviation Versatile impedance switching with
three settings for MM and six settings for MC Gain switching enables high gain
of up to 70 dB Three analog player inputs with separate settings memory Balanced
and unbalanced analog outputs Polarity selector for balanced outputs
Preamplificatore Top Level derivato dal
C2800 - speciale controllo di volume analogico AAVA-II 5 ingressi sbilanciati,
due bilanciati pi doppia barra di registrazione uscite sdoppiate sia
sbilanciate che bilanciate dual mono predisposizione 2 schede opzionali
telecomando

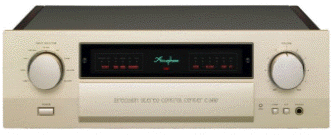

The
C-2410 inherits the superb design technology of the C-2810, including the
improved AAVA (Accuphase Analog Vari-gain Amplifier) volume control with similar
specs and configuration. AAVA is a revolutionary concept that takes a radically
different approach from conventional volume controls. The result is high
performance and sound quality far exceeding conventional designs.
Logic-controlled relays assure high sound quality and long-term reliability EXT
PRE function allows use of external preamplifier Selectable preamp gain
Independent phase selection for each input position Dedicated headphone
amplifier optimized for sound quality Aluminum-base side panels with persimmons
wood finish provide a striking visual appeal Tone controls using summing active
filters for highest sound quality
Preamplificatore Top Level speciale
controllo di volume analogico AAVA scheda madre in teflon 5 ingressi
sbilanciati, due bilanciati pi doppia barra di registrazione uscite sdoppiate
sbilanciate e bilanciate dual mono predisposizione 2 schede opzionali
telecomando caratteristiche preliminari
Meet
the new flagship model - Preamplifier with further improved revolutionary AAVA
volume control. Complete dual mono construction with two R-toroidal power
transformers. Modular amplifiers using printed circuit boards made from Teflon.
Independent phase selection for each input position. Phono Equalizer Unit
allowing high-quality playback of analog records.Revolutionary AAVA volume
control Fully modular construction with individual left/right amplifier units
Separate R-toroidal transformers for left and right channels Selectable preamp
gain Printed circuit boards made from Teflon material Logic-controlled relays
for shortest signal paths Optional support for analog record playback. Massive
cabinet of natural persimmons wood

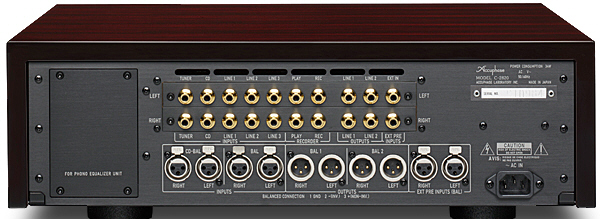

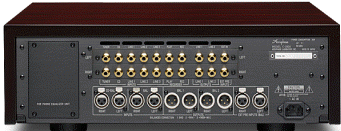

PREAMPLIFICATORE TOP LEVEL - SPECIALE
CONTROLLO DI VOLUME ANALOGICO AAVA - SCHEDA MADRE IN FLUOROCARBON A BASSA
COSTANTE DIELETTRICA - 5 INGRESSI SBILANCIATI, DUE BILANCIATI E DOPPIA BARRA DI
REGISTRAZIONE - USCITE SDOPPIATE SBILANCIATE E BILANCIATE - GUADAGNO REGOLABILE
- INVERSIONE DI FASE SU SINGOLO INGRESSO - COSTRUZIONE MODULARE COMPLETAMENTE
DUAL MONO A PARTIRE DA DUE TRASFORMATORI TOROIDALI - PREDISPOSIZIONE SCHEDA
PHONO DEDICATA AD2820 OPZIONALE - TELECOMANDO - DIMENSIONI 477 X 156 X 412 -
PESO 23,7 KG
The
C-2820 incorporates AAVA technology developed for the C-3800 and features
strictly selected materials and parts. AAVA is fundamentally different
from the digital signal processing approach involving A/D and D/A conversion.
The volume control operates purely in the analog domain. Using AAVA to change
the volume means that the high S/N ratio and low distortion of the amplifier
remain totally unaffected. Frequency response and sound quality do not suffer at
any listening level. There are no left/right tracking differences or crosstalk,
and no other performance related degradations. The conventional concept of
volume control in analog preamplifiers is well and truly a thing of the past.
Another benefit of AAVA is the fact that it consists entirely of highly reliable
semiconductor parts, so that performance and sound quality will remain
undiminished for many years to come. The C-2820 features separate power supplies
for left and right channel, each with a dedicated high-efficiency toroidal power
transformer and filtering capacitors. A total of 16 units for the line input,
balanced input, AAVA, and other circuit stages are arranged separately for left
and right channels on a mother board. This full mono construction eliminates any
risk of unwanted electrical or mechanical interaction between the two stereo
channels. The printed circuit boards are an important element of a preamplifier
both regarding electrical performance as well as sound quality. In the C-2820,
these are made from glass cloth fluorocarbon resin with low dielectric constant
and minimum loss. The result is a product that ushers in a new era of
preamplifier excellence. "AAVA Volume Control" for high performance and
outstanding sound Separate high-efficiency toroidal power transformers for left
and right channels Selectable preamp gain Fully modular construction with
separate left/right units for each amplifier stage Logic-controlled relays for
shortest signal paths Independent phase selection for each input position
Printed circuit boards made from glass cloth fluorocarbon resin Elegant cabinet
with natural wood finish
Preamplificatore di riferimento - speciale
controllo di volume analogico balanced AAVA - scheda madre in vetro al
fluoro-carbone - 6 ingressi sbilanciati, 4 bilanciati tape loop - uscite
sdoppiate sbilanciate e bilanciate alimentazione con due trasformatori
separati per i due canali guadagno variabile loudness uscita cuffia fase
variabile display escludibile dimensioni 477 x 156 x 412 mm (LxAxP) peso
24,8 Kg.

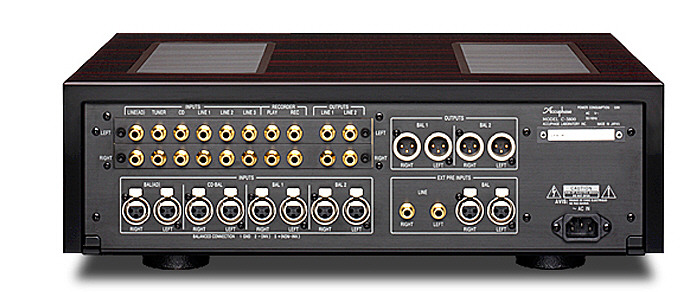

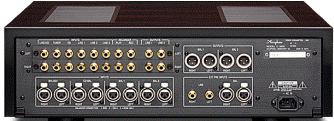

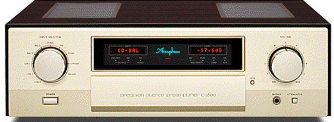

The
C-3800 now concentrates the extensive know-how and expertise gained over the
years in the field of preamplifiers into a product that is destined to become
the new reference for the next generation. Both in concept and circuit execution,
this preamplifier stands at the very forefront of technology. Foremost
among the distinguishing features of the C-3800 is the further evolved "Balanced
AAVA" concept. Two AAVA circuits are driven in a balanced configuration,
resulting in ideal volume control behavior from balanced input to balanced
output. The complete path for all signals from the input connectors to the
outputs is fully balanced, ensuring utmost purity and further improved
electrical characteristics. Revolutionary "Balanced AAVA Volume Control"
Separate high-efficiency toroidal power transformers for left and right channels
Selectable preamp gain Fully modular construction with separate left/right
units for each amplifier stage Logic-controlled relays for shortest signal
paths Independent phase selection for each input position Printed
circuit boards made from glass cloth fluorocarbon resin Elegant cabinet
with natural persimmons wood finish
Amplificatore finale - 2X30 W/8 Ohms, 2X60
W/4 Ohms in classe A pura funzionalit mono 1 x 120 W/8 Ohms - 240 W 4 Ohms
stadio di uscita con MOS-FET in configurazione triplo push-pull parallelo
circuito Current FeedBack E MCS+ - guadagno variabile a passi da 3 dB - VU meter
- ingressi bilanciati e sbilanciati - dimensioni 465 x 170 x 425 (LxHxP) - peso
22,8 Kg

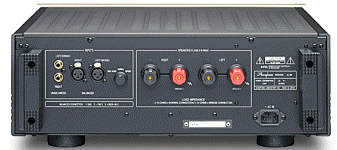

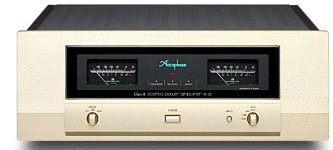

The
A-35 was developed as a successor to the A-30 while inheriting many design
aspects of the A-65. Dedication to the best sound possible is always an
Accuphase hallmark. The use of the instrumentation amplifier principle allows
fully balanced input signal paths, and further refined MCS+ topology pushes
noise and distortion down to absolutely minimal levels. In terms of its design
as well as its sound, the A-35 offers a highly attractive entry point to the
world of pure class A. In the output stage of the A-35, proven power
MOS-FET devices are used in a triple-parallel configuration for each channel.
MOS-FETs have excellent frequency characteristics, and their high input
impedance reduces the load imposed on the preceding drive stage. The power
supply of an amplifier is its ultimate source of energy. Unless it provides
ample reserves, sound quality will suffer, and even basic performance parameters
may not be met. The A-35 has a massive power transformer and two 47,000 μF
smoothing capacitors specially selected for their sonic properties. This
sustains an output power rating of 120 watts into 2 ohms, 60 watts into 4 ohms,
or 30 watts into 8 ohms per channel, and it enables the A-35 to perfectly handle
even very-low impedance speakers or speakers with wildly fluctuating impedance
characteristics. Pure Class A operation delivers quality power : 30 watts
2 into 8 ohms Power MOS-FET output stage features triple parallel
push-pull configuration Instrumentation amplifier principle Further
improved MCS+ circuit topology Current feedback combines operation
stability with outstanding sound Bridged mode allows upgrading to true
monophonic amplifier Strong power supply with large power transformer and
ample filtering capacity 4-step gain control
2x90 W/8 Ohms, 2x180 W/4 Ohms, 2x500 W/1
Ohms (mono 1300 W 2 Ohms) - VU meter - ingressi bilanciati e sbilanciati 6
stadi di uscita in push-pull parallelo trasformatore di alimentazione da 1
kilowatt circuitazione Current FeedBack - dimensioni 465L190A427P mm - peso
Kg 28,5
The
P-4100 is a stereo power amplifier that takes sophisticated sound to the next
level. While inheriting design technology from highly renowned Accuphase models
such as the P-7100 and M-6000, the new model features instrumentation amplifier
topology and a refined MCS+ circuit to lower the noise floor even further. Only
specially selected top-grade materials and parts are used throughout with
impressive results. The overall configuration of the P-4100 employs the latest
instrumentation amplifier principle, allowing fully balanced signal paths
throughout. In addition, the power amplifier section features refined MCS+
topology in combination with current feedback, for further enhanced electrical
performance characteristics. Output stage with 3-parallel push-pull
configuration for each channel delivers high power and handles very low
impedance loads Instrumentation amplifier principle used for signal paths
Further refined MCS+ circuit topology Current feedback circuit combines
excellent sound quality with total operation stability Bridged connection
mode allows upgrading to monophonic amplifier Massive toroidal transformer
rated for 950 VA 4-step gain control
Amplificatore finale in classe A pura da 2
x 45 W/8 Ohms, oppure 2 x 180 W/2 Ohms (360 W/4 Ohms in mono) Stadio
finale dotato di 6 MOS-FET per canale in configurazione push-pull parallelo
selettore per la sensibilit di ingresso a 4 posizioni (Max/-3/-6/-12 dB)
selettore posteriore per configurazione uscite (Dual Mono/Normal/ Bridge)
selettore frontale per ingressi (bilanciato/sbilanciato) VUmeter
Circuitazione Current FeedBack e MCS+ - dimensioni: 465 x 211 x 464 (LxAxP)
peso 31.9 Kg.

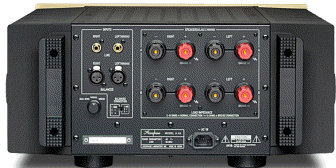

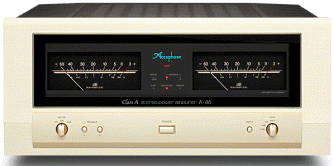

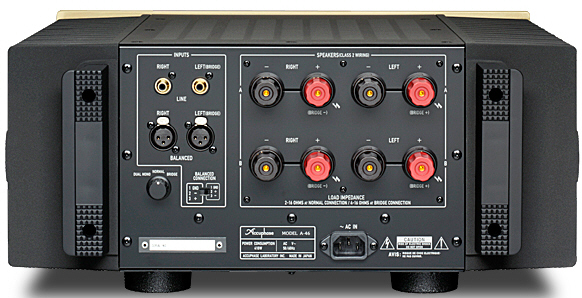

The
A-46 uses latest instrumentation amplifier topology throughout, which allows
fully balanced transmission in all signal handling stages. The power amplifier
section features further improved MCS+ topology and the renowned current
feedback approach. This results in electrical characteristics that surpass even
the demanding standards set by its predecessors. Employing only highest grade
materials and strictly selected parts, the A-46 realizes very low output
impedance which ensures that constant drive voltage is available for the
speakers. The output stage features power MOS-FETs renowned for their excellent
sound and superior reliability. For each channel, six of these devices are
arranged in a parallel push-pull class A arrangement. MOS-FETs have excellent
frequency response characteristics and high input impedance, which reduces the
load of the preceding (drive)stage. Driving these devices in pure class A means
that constant power is always supplied, regardless of the presence or absence of
a musical signal. This makes the amplifier completely immune to external
influences and ensures stable operation at all times. Pure Class A operation
delivers quality power: 45 watts 2 into 8 ohms Power MOS-FET output stage
features 6-parallel push-pull configuration Instrumentation amplifier principle
Further improved MCS+ circuit topology Current feedback combines stable
operation with outstanding sound Bridged mode allows upgrading to true
monophonic amplifier Large high-efficiency toroidal transformer 4-step gain
control
Amplificatore di potenza stereofonico -
2x110W/8 Ohms 2x700 W/1 Ohms (mono 1400W/2 Ohms) selettori di guadagno -
indicatori digitali watt d uscita -ingressi - bilanciati e sbilanciati -
modalit di funzionamento dual mono, stereo, mono circuitazione MCS+ e current
feedBack - 8 coppie di transistor (MOS-FET) in configurazione push-pull
parallela per canale - trasformatore di alimentazione sovradimensionato con
57000 microfarad di filtro doppia serie di connettori di uscita speaker
selezionabili singolarmente dal pannello frontale - dimensioni 465 x 221 x499 -
assorbimento 670 W - peso 42,7 Kg

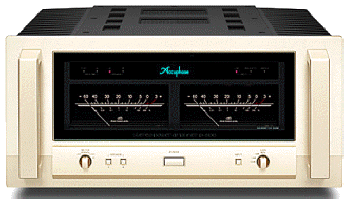

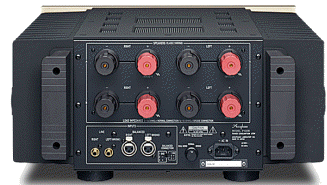

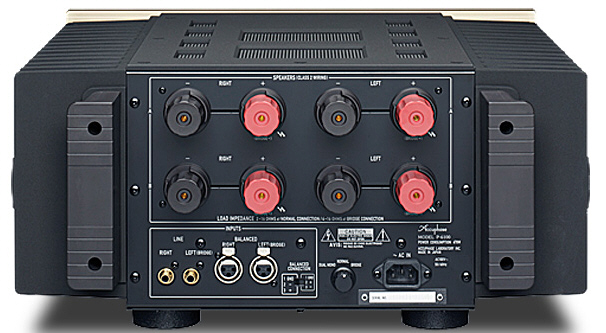

The
P-6100 is a stereo version ofclass AB monophonic power amplifier
M-6000, inheriting its outstanding designtechnology. It features
instrumentation amplifiertopology and a further refined MCS+ circuit,
aswell as the current feedback principle to minimizenoise. In the
output stage, high-power MOS-FET devicesrenowned for their great
sound and utter reliabilityare used. MOS-FETs have excellent
frequencyresponse and high input impedance which reducesthe load on
the preceding driver stage. They alsohave perfect thermal stability.
In each channel ofthe P-6100, 16 of these devices are arranged in
an8-parallel push-pull configuration. The massive heat sinks on both
sides of thechassis achieve efficient dissipation of thermalenergy
and ensure stable operation. This allowsthe amplifier to deliver an
amazing 700 watts ofpower per channel into an ultra-low
impedanceload of 1 ohm (music signals). The linear powerprogression
with a rating of 440 watts into 2 ohms,220 watts into 4 ohms, and
110 watts into 8 ohmsmeans that the amplifier can competently
handleeven speakers with very low impedance or withdifficult
impedance curves.Output stage with 8-parallel push-pull power
MOS-FETs delivers high power:700 watts x 2 into 1 ohm with music
signalsInput stage featuring instrumentationamplifier topology
Further refined MCS+ circuit Current feedbackprinciple combines
excellent sound quality with total operation stability Bridged
connection mode allows upgrading to monophonic amplifie Powersupply
with highly efficient toroidal transformer and large filtering
capacitors
Amplificatore finale - 2X60 W/8
Ohms, 2X120 W/4 Ohms in classe A pura funzionalit mono 1 x 240 W/8
Ohms - 480 W 4 Ohms stadio di uscita con 10 MOS-FET in
configurazione push-pull parallelo circuito Current FeedBack E
MCS+ - guadagno variabile a passi da 3 dB - VU meter con
visualizzazione analogica o digitale - ingressi bilanciati e
sbilanciati - dimensioni 465 x 238 x 515 (LxHxP) - peso 43 Kg
As
a model-change successor to the A-60, the new A-65 incorporates accumulated
Accuphase know-how while featuring a number of further improvements. The input
stage is configured as an instrumentation amplifier to allow fully balanced
input signal paths. The output stage of the A-65 features power MOS-FETs
renowned for their excellent sound and superior reliability. For each channel,
ten of these devices are arranged in a parallel push-pull arrangement. MOS-FETs
have excellent frequency characteristics, and their high input impedance reduces
the load imposed on the preceding drive stage. Pure Class A operation delivers
quality power: 60 watts 2 into 8 ohms Power MOS-FET output stage features
10-parallel push-pull configuration and delivers linear high power progression
to ultra-low 1-ohm impedances Input section configured as instrumentation
amplifier Further improved MCS+ circuit in amplifier section Current
feedback topology combines stable operation with outstanding sound Bridged
mode allows upgrading to monophonic amplifier Two selectable meter types:
digital power meters showing true power values and bar graph indicators
Amplificatore di potenza
stereofonico 2x125W/8 Ohms 2x1000 W/1 Ohms (mono 2000W/2 Ohms) - attenuatori
dingresso - indicatori digitali watt duscita -ingressi - bilanciati e
sbilanciati modalit di funzionamento dual mono, stereo, mono scheda madre
in teflon 11 coppie di transistor in configurazione push-pull parallela per
canale - trasformatore di alimentazione da 1,5 kVA dimensioni 465 x 258 x 545
assorbimento 945 W - peso 49 Kg
Impressive
power amplifier capable of delivering 1000 watts2 into 1 ohm. Amplification
stages feature fully balanced signal paths as found in high quality
instrumentation amplifiers. Further refined MCS+ topology and current feedback
design result in even better S/N ratio, distortion, and other performance
parameters. Massive, high-efficiency 1.5 kVA toroidal transformer and
11-parallel push-pull arrangement of high-power transistors deliver enormous
amounts of linear power into ultra-low loads down to one ohm.Powerful
11-parallel push-pull output stage in each channel delivers linear power into
loads as low as one ohm Instrumentation amplifier type design of amplification
stages Further refined MCS+ circuit topology Current feedback circuit combines
excellent sound quality with total operation stability Bridged connection mode
allows upgrading to true monophonic amplifier 4-step gain control. Massive Super
Ring toroidal transformer rated for 1.5 kVA
Mono 150 W/8 Ohms, 300 W/4 Ohms, 1.200W/1
Ohms - possibilit di collegamento a ponte di 2 unit con potenze quadruple -
invertitore di fase scheda madre in teflon - VU meter - ingresso bilanciato -
16 MOS-FET in configurazione push-pull parallela dimensioni 465 x 220 x 500
assorbimento 550 W - peso 38.5 Kg

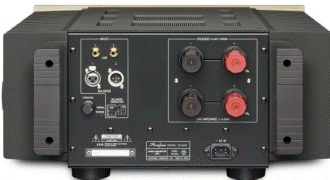

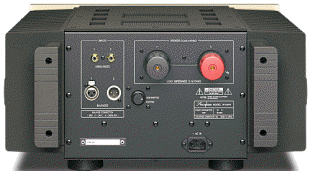

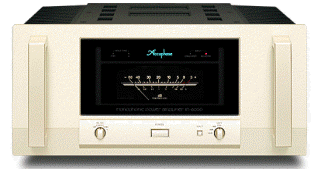

The
M-6000 was born out of a thorough re-evaluation of the power amplifier from a
new vantage point. Aiming for nothing less than the ultimate in sound quality,
this monophonic power amplifier with its massive heat sinks on both sides stands
as an impressive achievement. The decisive difference to conventional designs
lies in the fact that the M-6000 possesses two completely identical power
amplifier circuits which are driven in parallel. Kept entirely separate and
mounted on the left and right sides of the chassis, these circuits deliver
output current reserves on a previously almost unheard-of level. A damping
factor rating of more than 500 demonstrates that this amplifier is capable of
driving even the most difficult, ultra-low impedance loads with ease. Two
totally identical power amplifier circuits driven in parallel 16 parallel
push-pull arrangement of MOS-FET devices in output stage Input stage
configured as double instrumentation amplifier Double MCS+ circuit and
current feedback topology in amplification stage Support for bridged use
of two M-6000 units with even higher output power Power supply with
massive high-efficiency 900-VA toroidal transformer and large filtering
capacitors
Sintonizzatore FM circuitazione DDS
sezione di ingresso a due stadi circuito DS-DC con DSP per la demodulazione
stereo 32 locazioni di memoria per stazioni e relative regolazioni uscita
bilanciata analogica o digitale

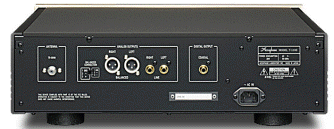

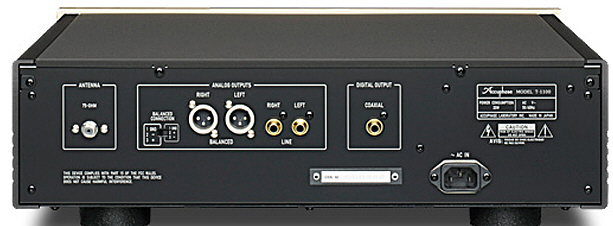

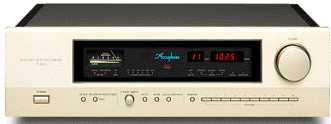

The
T-1100 is a successor model to the highly praised T-1000. Thanks to a blend of
latest RF circuit design with sophisticated digital signal processing
implemented by a high-speed, high-precision DSP chip, it has become possible to
move most major functions of the tuner into the digital domain without
sacrificing performance or sound quality. Audiophiles and music lovers can now
enjoy FM stereo at its best. The newly developed front end features a
double-tuned circuit that optimizes sensitivity and selectivity, as well as the
revolutionary DDS (Direct Digital Synthesis) principle for the local oscillator.
All functions after the intermediate frequency (IF) stage are implemented using
digital signal processing in completely new and innovative ways. This comprises
the variable bandwidth IF filter, multipath reduction function, digital FM
detector and DS-DC stereo demodulator. The result is an FM tuner unlike any
other, offering further enhanced performance and sound quality.
Double-tuned front end easily handles high signal levelsRevolutionary DDS
principle for local oscillator Variable bandwidth IF filter prevents
interference Multipath reduction function Digital FM detector keeps
distortion and noise to a minimum DS-DCachieves ideal stereo demodulation
with DSP technology MDS plustype D/A converter 20-station memories
also store function settings

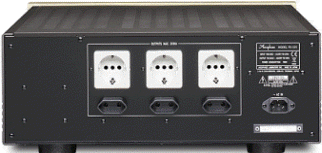

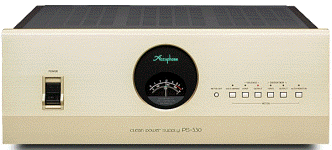

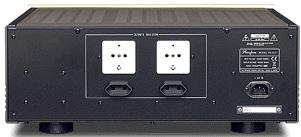

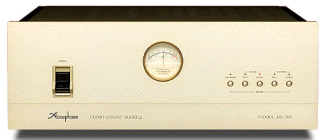

Filtro/stabilizzatore di rete da 500 VA con
trasformatore di isolamento regolazione 2% -corrente di picco 30 A -
circuito di rimodellamento della forma donda adatto per lettori CD,
preamplificatori, piccoli finali ed integrati
Tap
into a totally clean source of AC energy for up to 510 VA - Revolutionary
waveform shaping technology enables highly precise compensation, creating a pure
energy source of 230 V AC (or 120 V AC)2% with max. 0.22% THD. Connect audio or
video equipment for a drastic improvement in sound and picture quality. Monitor
output power (VA), input/output voltage (V), and input/output distortion (%) on
the built-in meter. AC voltage stabilizer based on waveform shaping
technology Supplies up to 510 VA of extremely clean energy
Low-distortion reference waveform generator Highly effective waveform
compensation Outstanding current capability Built-in meter for
monitoring five vital parameters: output power, input/output voltage,
input/output distortion Elaborate protection features Large "Max
Ring" toroidal transformer

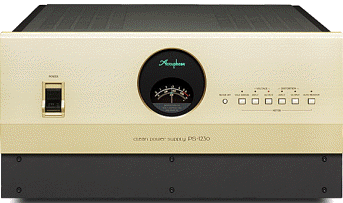

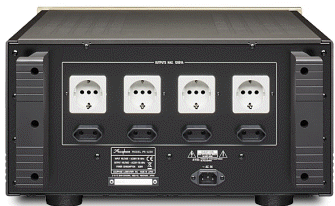

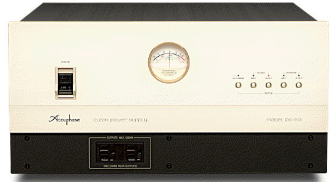

Filtro/stabilizzatore di rete da 1200 VA
con trasformatore di isolamento picco 60 A 8 prese di uscita (4 in formato
Shuko e 4 bipolari di tipo C) tensione costante in uscita 230 V (+/- 3V)
adatto per apparati audio e video dimensioni: 465 x 243 x 500 (LxAxP) peso
41.2 Kg.
Tap
into a totally clean source of AC energy - Revolutionary waveform shaping
technology enables highly precise compensation, creating a pure energy source of
230 V AC (or 120 V AC) 2% with max. 0.22% THD. Connect audio or video equipment
for a drastic improvement in sound and picture quality. Monitor output power
(VA), input/output voltage (V), and input/output distortion (%) on the built-in
meter.AC voltage stabilizer based on waveform shaping technology Acts as a
source of extremely clean energy Low-distortion reference waveform
generator Highly effective waveform compensation Outstanding current
capability Built-in meter for monitoring five vital parameters: output
power, input/output voltage, input/output distortion Elaborate protection
features Large "Max Ring" toroidal transformer
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a info@sinergy.us
Il presente listino
sostituisce ed annulla ogni precedente.I prezzi indicati si
riferiscono a singolo diffusore.
Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco
nostro magazzino
Nota bene Tutti i marchi citati nel presente listino sono di propriet e
registrati alle rispettive Case Produttrici
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}

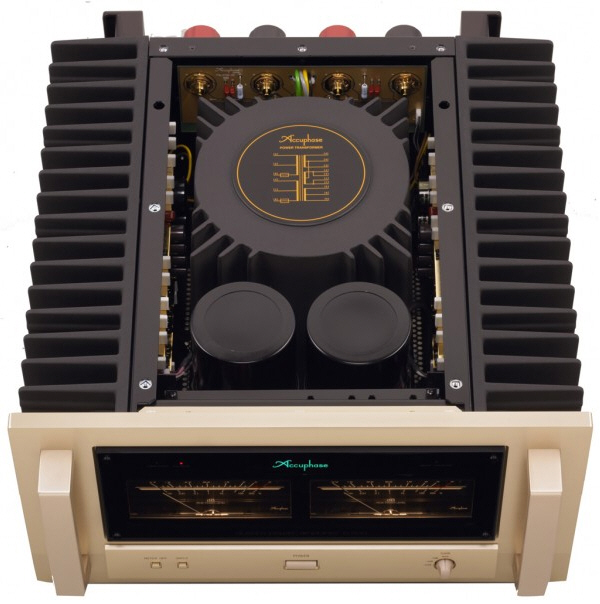

The
P-6100 is a stereo version ofclass AB monophonic power amplifier
M-6000, inheriting its outstanding designtechnology. It features
instrumentation amplifiertopology and a further refined MCS+ circuit,
aswell as the current feedback principle to minimizenoise. In the
output stage, high-power MOS-FET devicesrenowned for their great
sound and utter reliabilityare used. MOS-FETs have excellent
frequencyresponse and high input impedance which reducesthe load on
the preceding driver stage. They alsohave perfect thermal stability.
In each channel ofthe P-6100, 16 of these devices are arranged in
an8-parallel push-pull configuration. The massive heat sinks on both
sides of thechassis achieve efficient dissipation of thermalenergy
and ensure stable operation. This allowsthe amplifier to deliver an
amazing 700 watts ofpower per channel into an ultra-low
impedanceload of 1 ohm (music signals). The linear powerprogression
with a rating of 440 watts into 2 ohms,220 watts into 4 ohms, and
110 watts into 8 ohmsmeans that the amplifier can competently
handleeven speakers with very low impedance or withdifficult
impedance curves.Output stage with 8-parallel push-pull power
MOS-FETs delivers high power:700 watts x 2 into 1 ohm with music
signalsInput stage featuring instrumentationamplifier topology
Further refined MCS+ circuit Current feedbackprinciple combines
excellent sound quality with total operation stability Bridged
connection mode allows upgrading to monophonic amplifie Powersupply
with highly efficient toroidal transformer and large filtering
capacitors
.gif)
.jpg){kind=small}
.gif)
.jpg)
.gif)
.jpg)
.gif)
.jpg)
.gif)
.jpg)
.gif)
.jpg){kind=small}
.gif)
.jpg){kind=small}
.gif)
.gif)
.jpg)
.gif)
.jpg)
.gif)
.jpg){kind=small}
.jpg)
.jpg){kind=small}
.jpg){kind=small}
.gif)
.jpg){kind=small}
.gif)
.gif)
.jpg)
.gif)
.jpg)
.gif)
.gif)
.gif)
.jpg)
.gif)
.jpg)
.gif)
.gif)
.gif)
.gif)
.gif)
.jpg)
.gif)
.gif)
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
