 Rockport Technologies Founded in 1984 as Payor
acoustics, Rockport has provided audio engineering consulting for many companies
over the years. Rockport is based in Rockport, Missouri, USA. Rockport's
philosophy is to concentrate on the transducers at each end of the audio
reproduction chain, where, it feels there is greatest room for improvement.
Their range of loudspeakers is both visually and musically awesome.

.jpg)

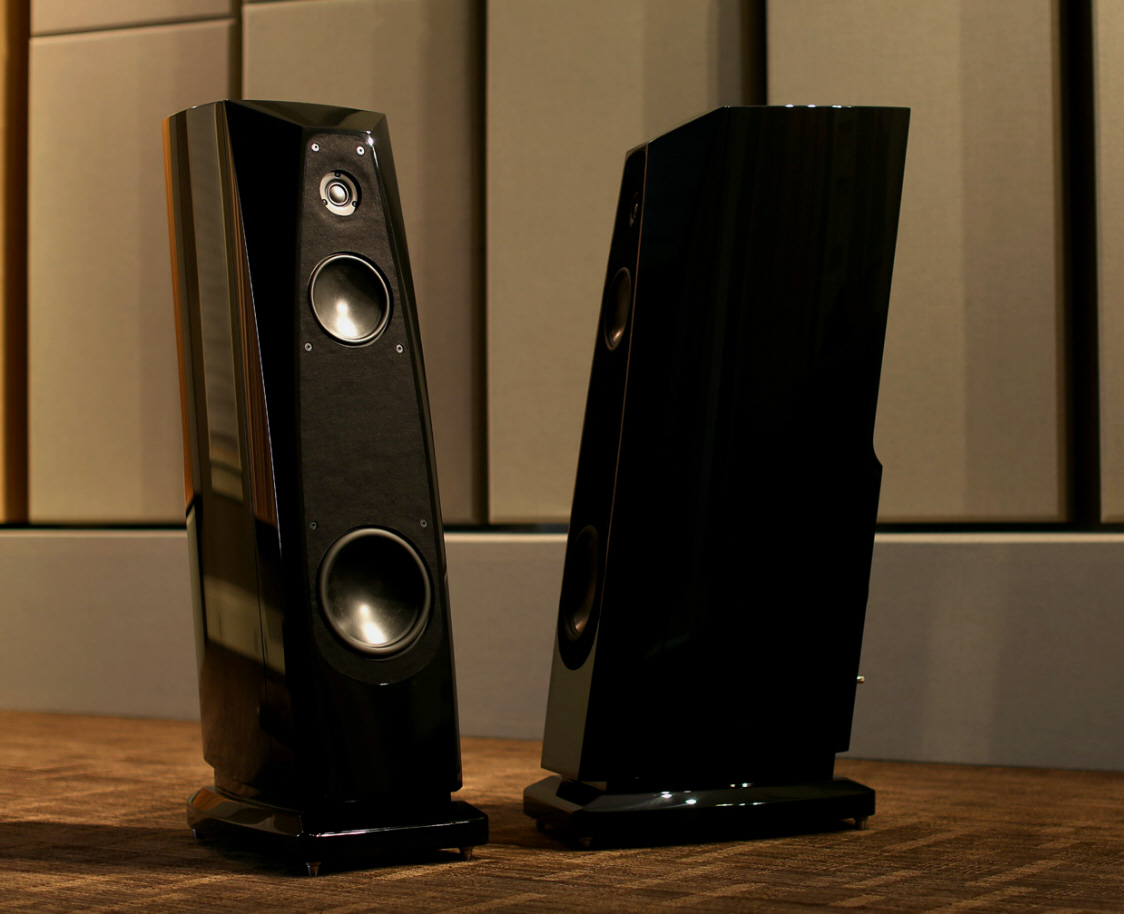

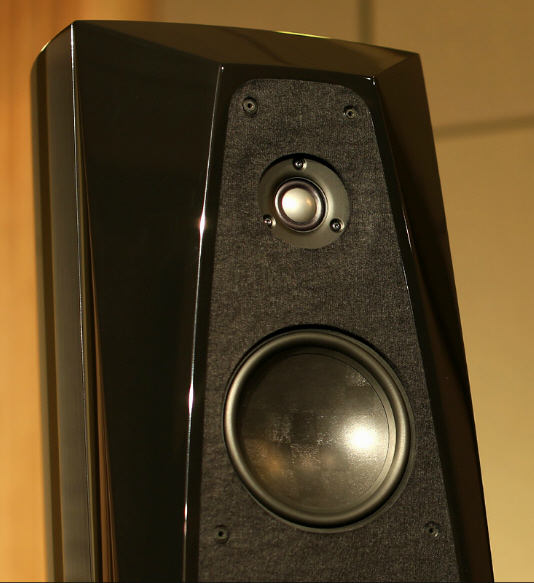

ROCKPORT   ATRIA   €.
15.825,00
Per
offerta  e  promozioni
TELEFONA / E-MAIL Diffusore da pavimento, woofer in fibra di
carbonio multistrato da 9", midrange in fibra di carbonio multistrato da
6", tweeter con cupola in berillio da 1", cablaggio interno Transparent Audio.
Risposta in frequenza 28 Hz ‐ 30 kHz @‐3dB, impedenza nominale 4 ohm, sensibilità 87,5 dB SPL/2,83 V, amplificazione
minima raccomandata 50 watt. Peso
68 kg ciascun diffusore.Dimensioni (ingombro con base) LxAxP in mm: 318 x 1105 x
508

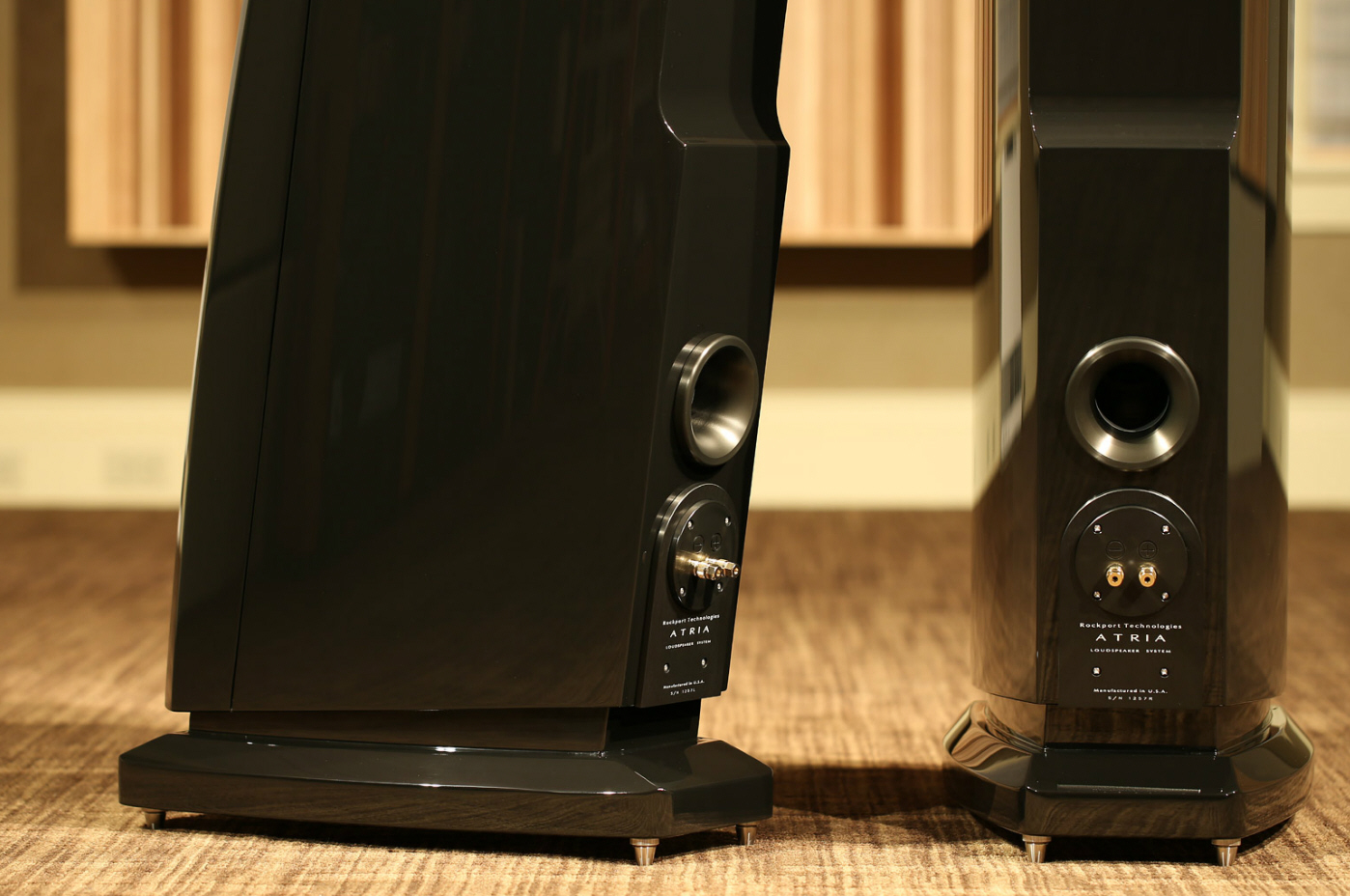

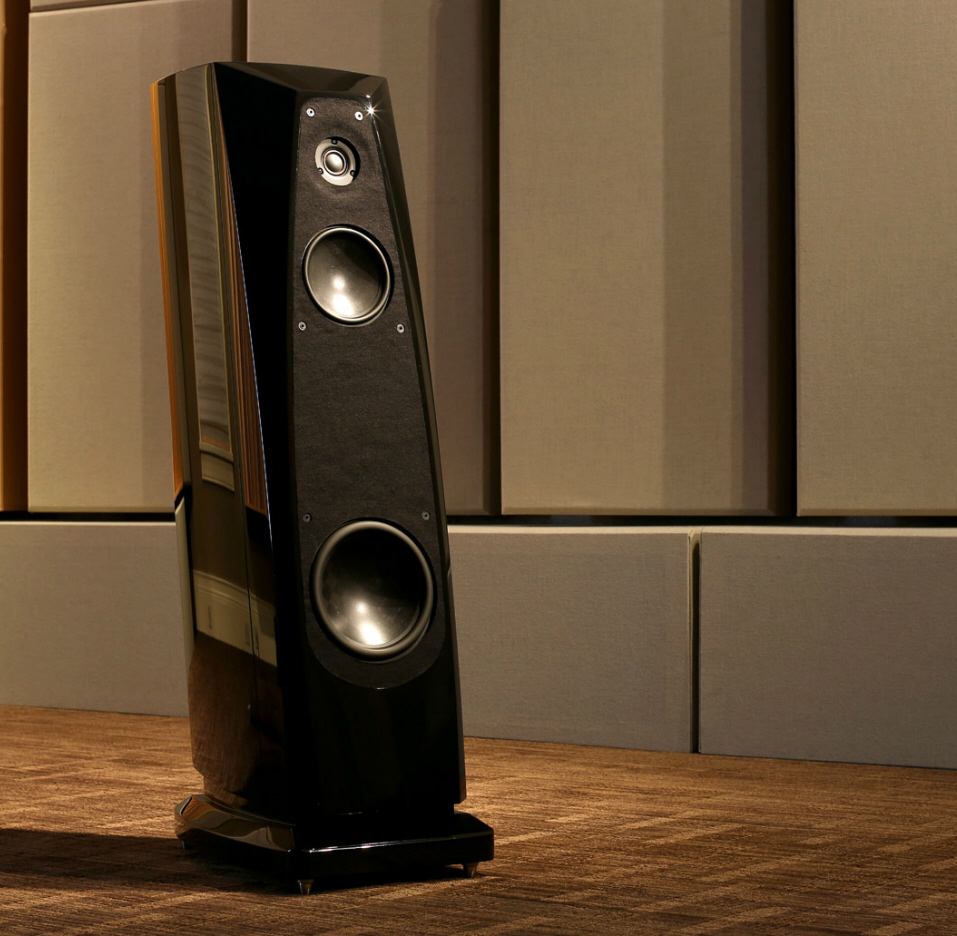

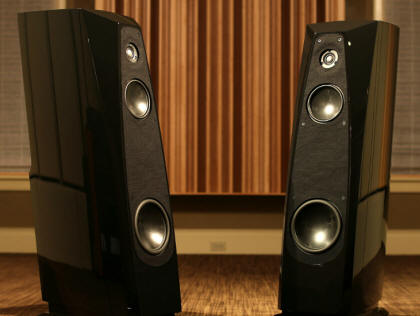

 Atria is the newest model from Rockport Technologies and follows the pattern set
by Avior for visual elegance in a loudspeaker which is moderate in size, yet
delivers true, full range sound. Atria is suited to compact spaces where Avior
would be too large or too powerful. Immediately apparent is the potent
combination of the newest generation of custom, carbon fibre sandwich composite
cone drivers designed and developed from the ground up by Rockport Technologies.
Both the bass driver and midrange driver utilize a revolutionary new carbon
fibre fabric in their cone construction that further increases the stiffness/weight
ratio of the cones, ensuring pure pistonic behaviour throughout their entire
operating range. Both drivers also feature newly designed cone profiles as well
as state of the art, ultra-linear, high-power motor systms. The result is
vanishingly low distortion, and enormous dynamic range. Scanspeak's spectacular
new beryllium dome tweeter provides the Avior's astonishingly expressive and
airy top end, perfectly complementing its extraordinarily textured, ultra high
resolution midband and aurhoritative, yet nimble lower registers. The Atria's
triple laminated, constrained mode damped enclosure boasts a solid 6" thick
baffle and variable section thickness, gracefully curved side panels and crowned
top surface. Together, these not only create an elegant form, but also endow the
enclosure with immense stiffness and minimum resonant signature. The enclosure's
large sweeping chamfers and ever changing baffle dimensions virtually eliminate
diffraction anomalies, while the Avior's visually stunning, raked back form and
high gloss black piano finish are the ideal complement to its awesome sonic

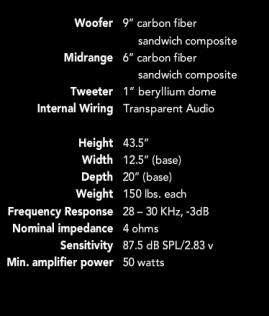

accomplishment.. Specifications: •Woofers 1 x 9" Carbon Fibre Sandwich
Composite Cone •Midrange 6" Carbon Fibre Sandwich Composite Cone •Tweeter 1"
Scan Speak Beryllium Dome •Internal Wiring Transparent Audio •Crossovers with
the highest quality components and every speaker hand tuned by Andy Payor
•Dimensions H1100 x W317 x D508 mm •Weight 66kgs each Shipping Weight 70kgs each
•Frequency Response 28Hz - 30KHz, -3dB •Nominal Impedance 4 ohms •Sensitivity
87.5dB SPL/2.83v •Minimum Amplifier Power 50 watts
.jpg) .jpg)

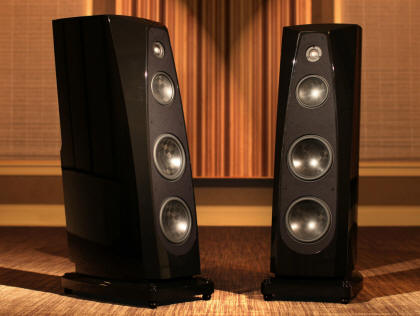

ROCKPORT   AVIOR
€. 22.900,00
Per offerta  e  promozioni
TELEFONA / E-MAIL Diffusore da pavimento, due woofer in fibra
di carbonio multistrato da 9", midrange in fibra di carbonio multistrato
da 6", tweeter con cupola in berillio da 1", cablaggio interno Transparent
Audio. Risposta in frequenza 20 Hz ‐ 30 kHz
@ ‐3dB, impedenza nominale 4 ohm, sensibilità 89,5 dB SPL/2,83 V, amplificazione
minima raccomandata 50 watt.
Peso 100 kg ciascun diffusore.Dimensioni (ingombro con base) LxAxP in mm: 381 x
1181 x 622.

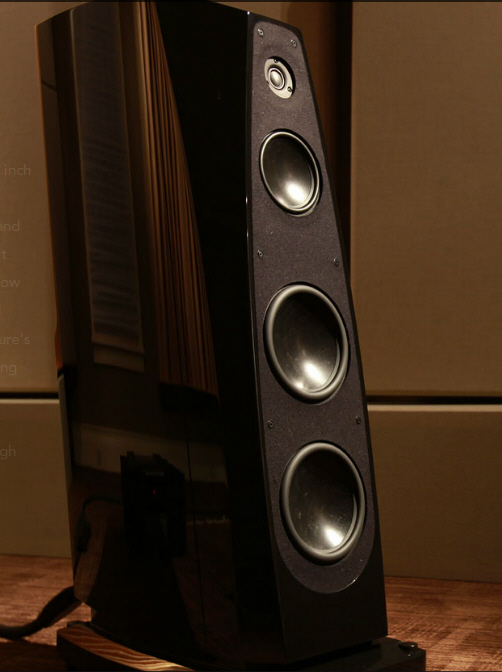

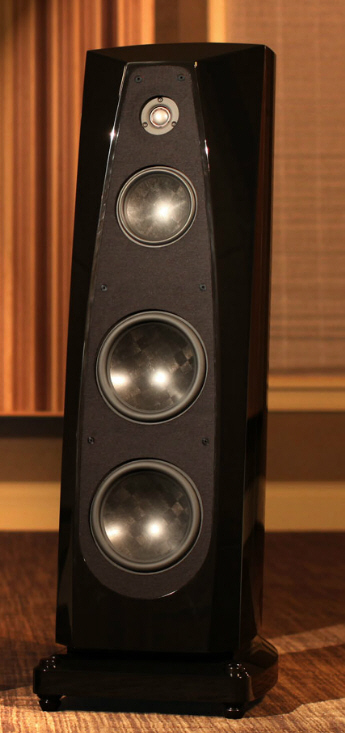

 Avior is the epitome of high performance and visual elegance in a loudspeaker
which is moderate in size, yet delivers true, full range sound.
Immediately apparent is the potent combination of the newest generation of
custom, carbon fibre sandwich composite cone drivers designed and developed from
the ground up by Rockport Technologies. Both the bass drivers and midrange
driver utilize a revolutionary new carbon fibre fabric in their cone
construction that further increases the stiffness/weight ratio of the cones,
ensuring pure pistonic behaviour throughout their entire operating range. Both
drivers also feature newly designed cone profiles as well as state of the art,
ultra-linear, high-power motor systms. The result is vanishingly low distortion,
and enormous dynamic range. Scanspeak's spectacular new beryllium dome tweeter
provides the Avior's astonishingly expressive and airy top end, perfectly
complementing its extraordinarily textured, ultra high resolution midband and
aurhoritative, yet nimble lower registers.The Avior's triple laminated,
constrained mode damped enclosure boasts a solid 6" thick baffle and variable
section thickness, gracefully curved side panels and crowned top surface.
Together, these not only create an elegant form, but also endow the enclosure
with immense stiffness and minimum resonant signature. The enclosure's large
sweeping chamfers and ever changing baffle dimensions virtually eliminate
diffraction anomalies, while the Avior's visually stunning, raked back form and
high gloss black piano finish are the ideal complement to its awesome sonic

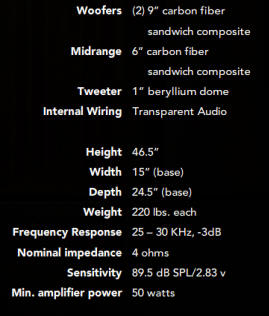

accomplishment..Specifications:
•Woofers 2 x 9" Carbon Fibre Sandwich Composite Cone •Midrange 6" Carbon Fibre
Sandwich Composite Cone •Tweeter 1" Scan Speak Beryllium Dome•Internal Wiring
Transparent Audio •Crossovers with the highest quality components and every
speaker hand tuned by Andy Payor •Dimensions H1180 x W380 x D620 mm•Weight
100kgs each Shipping Weight 180kgs each•Frequency Response 25Hz - 30KHz,
-3dB•Nominal Impedance 4 ohms•Sensitivity 89.5dB SPL/2.83v•Minimum Amplifier
Power 50 watts

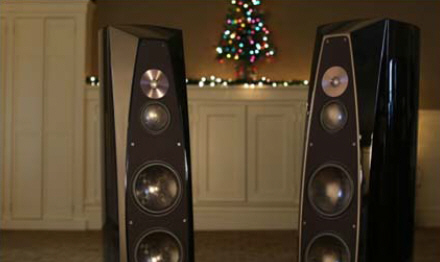

ROCKPORT   CYGNUS
€. 42.500,00
Per offerta  e  promozioni
TELEFONA / E-MAIL
Diffusore da pavimento, due woofer in fibra di
carbonio multistrato da 10", midrange in fibra di carbonio multistratoda 6",
tweeter con cupola in berillio da 1", cablaggio interno Transparent Audio.
Risposta in frequenza 20 Hz ‐ 30 kHz @ ‐3dB, impedenza nominale 4 ohm,
sensibilità 90 dB SPL/2,83 V, amplificazione minima raccomandata 50 watt. Peso
130 kg ciascun diffusore. Dimensioni (ingombro con base) LxAxP in mm: 343 x 1283
x 686
.jpg)

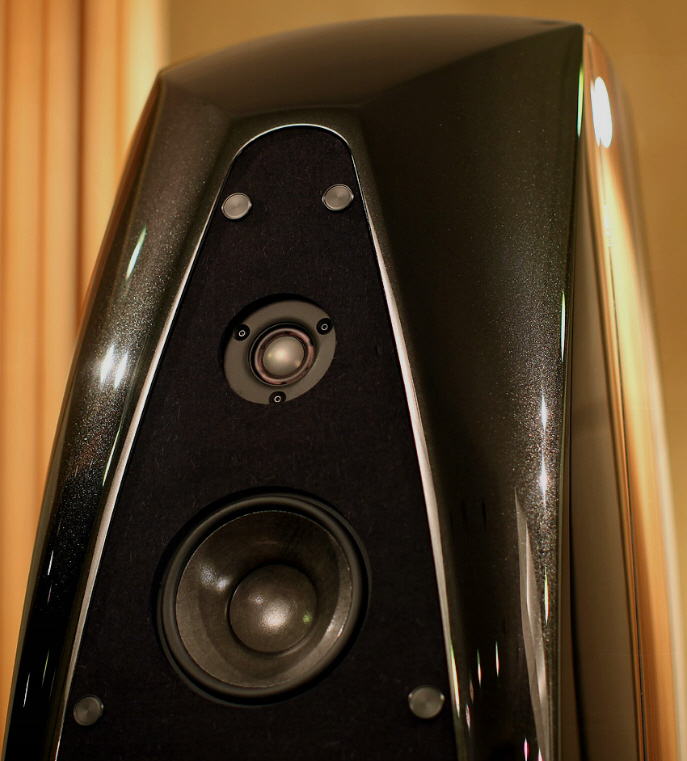

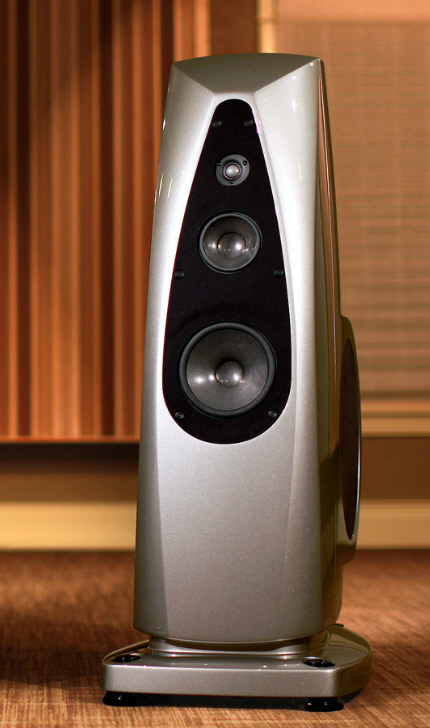

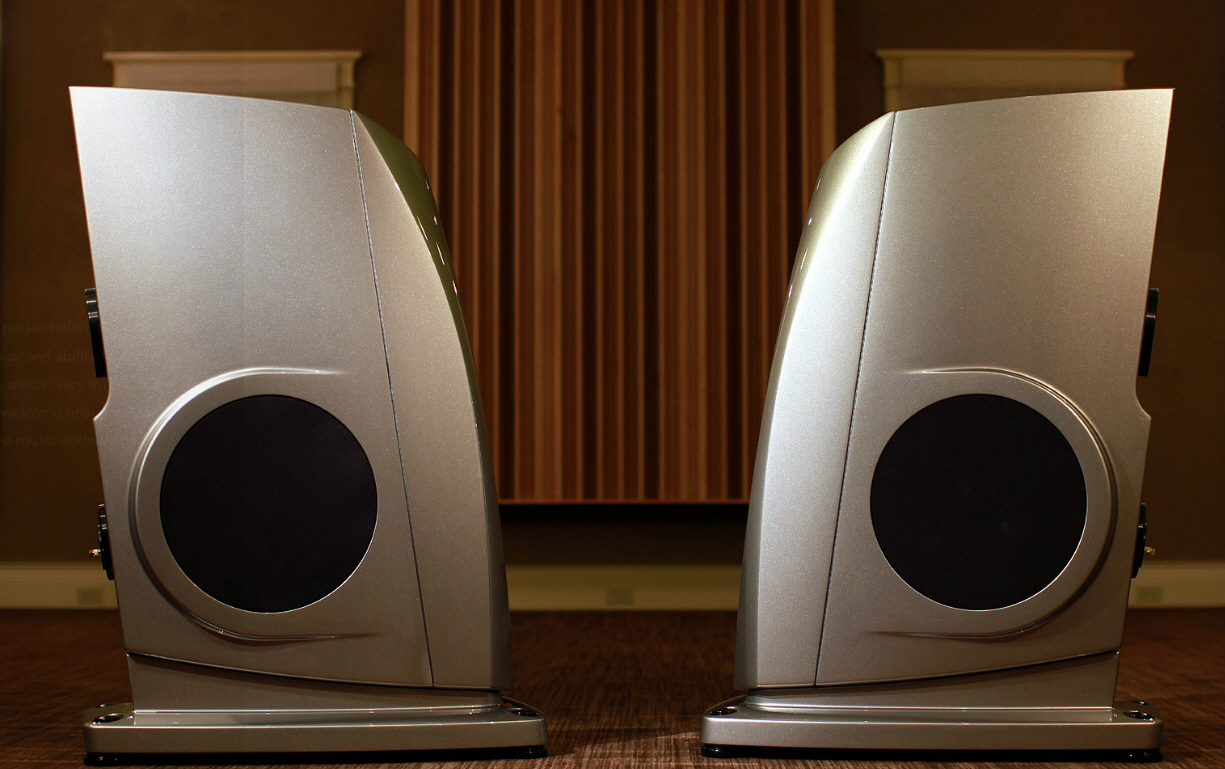

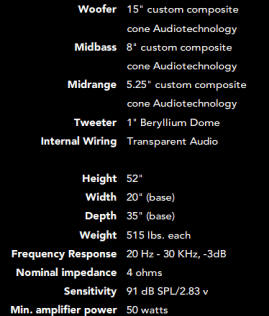

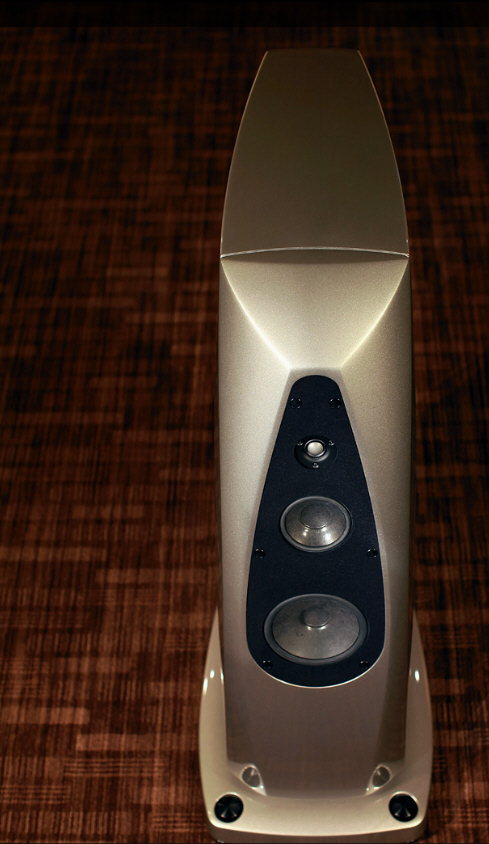

ROCKPORT   ALTAIR
€. 63.200,00
Per offerta  e  promozioni
TELEFONA / E-MAIL Diffusore da pavimento, woofer custom
Audiotechnology da 15", midwoofer custom Audiotechnology da 8", midrange custom
Audiotechnology da 5,25", tweeter con cupola in berillio da 1", cablaggio
interno Transparent Audio. Risposta in frequenza 20 Hz ‐ 30 kHz @ ‐3dB,
impedenza nominale 4 ohm, sensibilità 91 dB SPL/2,83 V, amplificazione minima
raccomandata 50 watt. Peso 234 kg ciascun diffusore. Dimensioni (ingombro con
base) LxAxP in mm: 508 x 1320 x 889

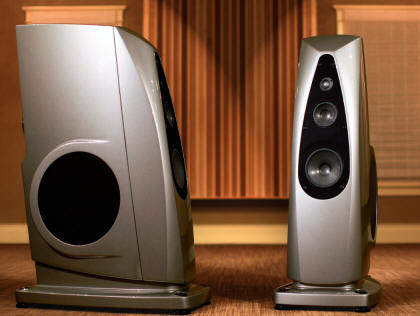

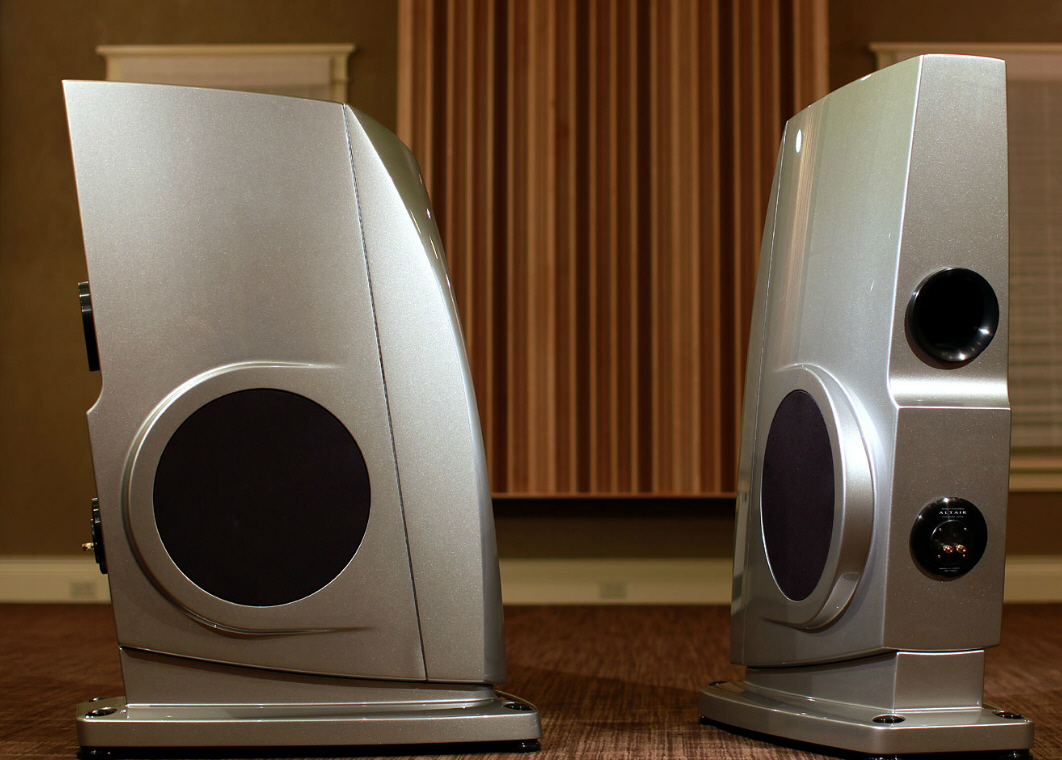

 The Altair loudspeaker is for music lovers who are seeking the ultimate in a
reasonably sized, yet completely full range loudspeaker. Its mirror imaged, 233
kg composite cabinets are an exquisite marriage of elegant industrial design and
optimized acoustic proportion. The quality and extension of the Altair's bass is
shocking for a cabinet of these apparent dimensions, yet visually, the cabinet's
high gloss automotive finish and gracefully curved form belie its actual size.
The frontal area of the cabinet is also quite small with respect to its actual
volume, thereby allowing an unobstructed view into the utterly lifelike
soundstage that it developsThe direct successor to the Arrakis, the Altair's
drive unit complement is equally advanced as its cabinet form and construction.
Each Altair houses the latest generation of drivers built specially for Rockport
Technologies by Audio Technology of Denmark. The bass, midbass and midrange
drive units all use proprietary cone profiles and carbon fibre composite
construction developed by Rockport Technologies, coupled to Audio Technology
motor systems. The result is the highest resolution obtainable from a dynamic
driver loudspeaker, combined with unsurpassed harmonic integrity and a stunning
dynamic presentation.  The Altair is capable of resolving the most
intricate delicacies of the musical fabric in a way that was previously
associated only with electrostatics; however the Altair also displays correct
image perspective in a manner that is the exclusive territory of a point source
design. Because it is a dynamic type design, large scale dynamic contrasts are
easily rendered as well. The solidity of its presentation, singular voice with
which it speakes, and ability to actually communicate the artists' very intent,
will make the Altair a welcome final purchase for many well traveled music
enthusiasts.Features:
•1" Beryllium Dome Tweeter•5.25" Midrange driver using Rockport Carbon Composite
cone and Audio Technology motor assembly•8" Mid-Bass driver using Rockport
Carbon Composite cones and Audio Technology motor assemblies•15" Woofer driver
using Rockport Carbon Composite cones and Audio Technology motor assemblies•Crossovers
with the highest quality components and every speaker hand tuned by Andy Payor•Cabinet
construction with utmost attention paid to the lowest resonant signature,
minimum diffraction and correct time alignment •Sensitivity 91dB (1m.2.83V)
Impedance 4 Ohms •Frequency Response 20Hz to 30kHz +/- 3dB •Dimensions H1170 x
W380 x D660 mm •Loudspeaker Weight 233kgs each Shipping Weight 300kgs each
/ARRAKIS%20(1).jpg) /ARRAKIS%20%20DATA.jpg)

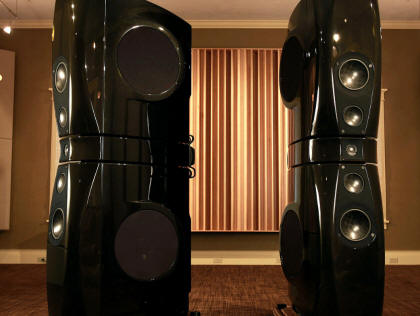

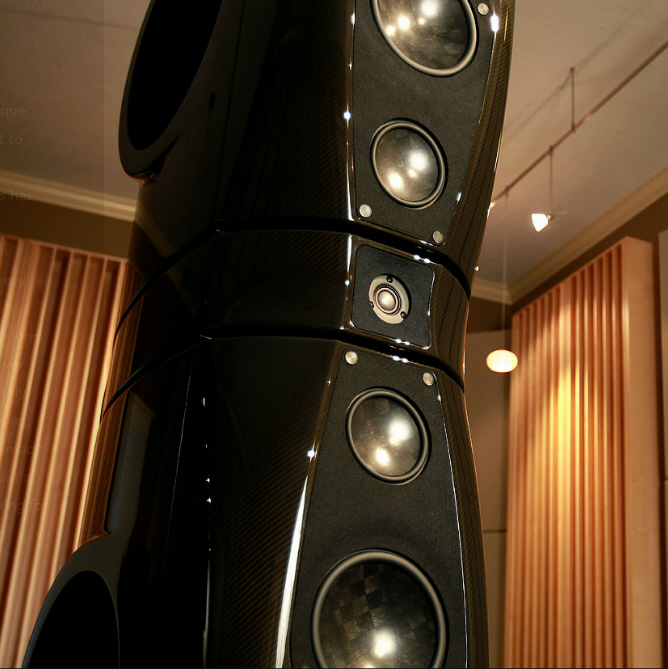

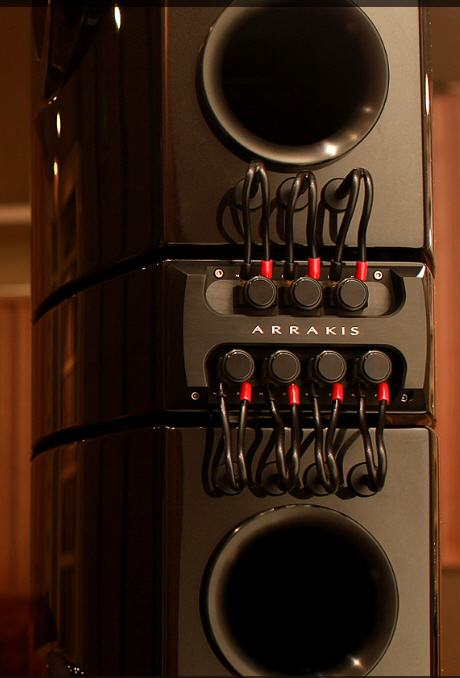

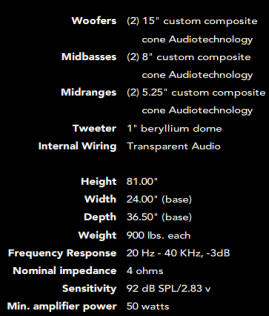

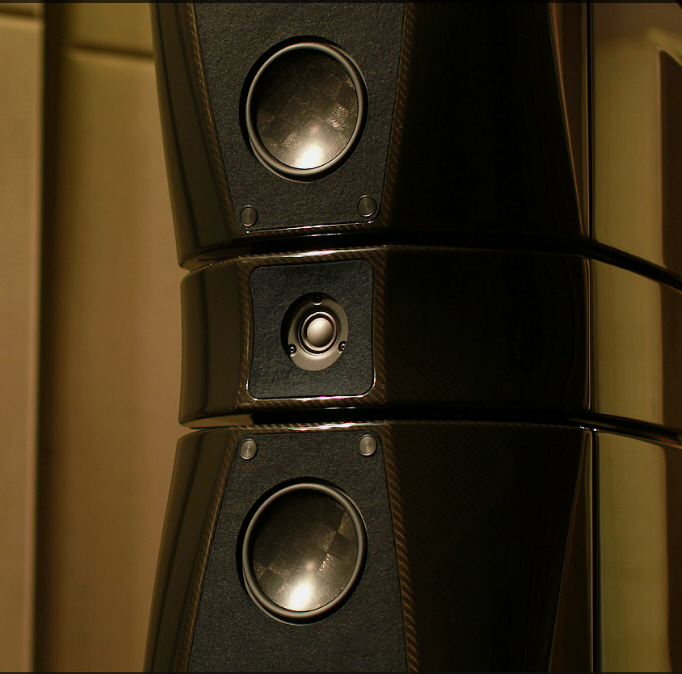

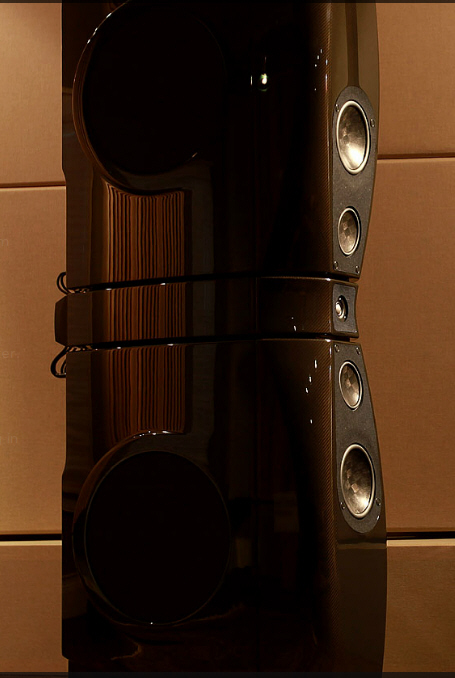

ROCKPORT   ARRAKIS
€. 143.500,00
Per offerta  e  promozioni
TELEFONA / E-MAIL Diffusore da pavimento, due woofer custom
Audiotechnology da 15", due midwoofer custom Audiotechnology da 8", due midrange
custom Audiotechnology da 5,25", tweeter con cupola in berillio da 1", cablaggio
interno Transparent Audio. Risposta in frequenza 20 Hz ‐ 40 kHz @ ‐3dB,
impedenza nominale 4 ohm, sensibilità 92 dB SPL/2,83 V, amplificazione minima
raccomandata 50 watt. Peso 408 kg ciascun diffusore. Dimensioni (ingombro con
base) LxAxP in mm: 610 x 2057 x 927
 Rockport Technologies has added a new chapter to the annals of music
reproduction history - destined to become the loudspeaker against which all
others will be judged, the Arrakis completely transcends the boundaries of
believability. Equally arresting visually as it is sonically, the Arrakis'
uncluttered contours are as elegant as they are essential. The purposeful lack
of cabinet discontinuities ensures a clean wavelaunch, free from destructive
diffraction effects, while its advanced composites construction prevents sonic
contribution of any kind from its enclosure.At 408kgs per channel, the cabinet
is always at rest and presents an ideal platform for housing its custom,
variable section thickness, carbon fibre composite cone drivers, yielding the
lowest resolution floor available from any direct radiating loudspeaker. The
enormous surface area of the drivers, coupled with their pure pistonic behaviour
enables dynamic contracts that are alarming in their realism. The ports for the
Arrakis are machined from 7 inch diameter aircraft grade aluminium alloy, and
feature deeply radiused edges to prevent port turbulence. The port dimensions
are carefully selected to ensure tactile, well delineated bass with maximum
transient accuracy, while avoiding any of the distortion artifacts associated

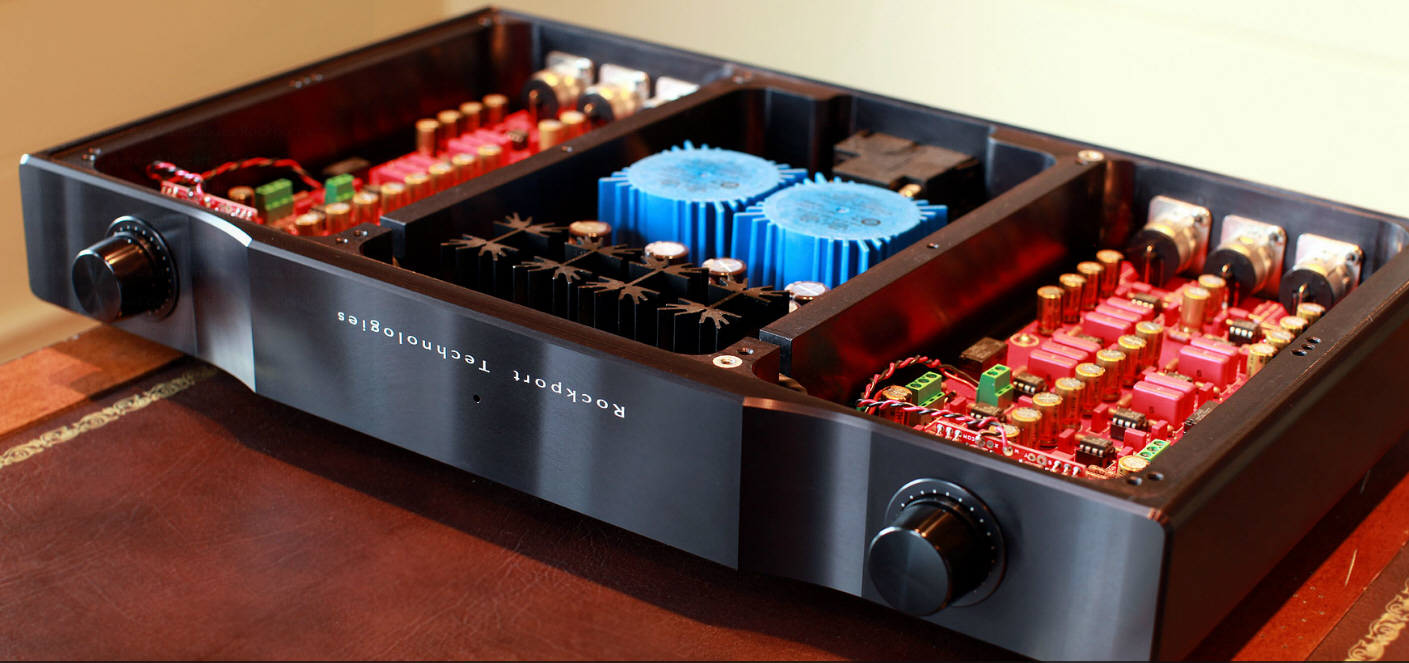

with excessive air velocity in the ports. The bi-amplified Arrakis includes
Rockport's own custom, state of the art, 24 dB per octave active crossover
module. The unit is a true dual mono design with minimalist topology in order to
maintain the absolute highest level of resolution in the system. Each channel
has its own dedicated power supply and filter sections that utilize the finest
componenets to provide frequency division between the 15" side firing woofers
and forward firing drive elements. The crossover module also has dual precision
attenuators for precise level matching and optimum bass integration within the
listening room. In keeping with the elegant minimalist crossover architecture,
the entire chassis for the active crossover is exquisitely diamond-machined from
a single, solid billet of 6061-T6 aluminium alloy. Apart from its aesthetic
beauty, this construction also results in superior resonance control as well as
RFI/EMI shielding. The Arrakis comes standard with a unique new feature: musical
realism sufficient to make you forget you're listening to a loudspeaker. Every
facet of the Arrakis has been designed to produce the most stunningly lifelike,
natural presentation obtainable from a loudspeaker, and every opportunity has
been siezed to create a working masterpiece whose distinctive form is truly born
of matchless function. Never before has one loudspeaker so seamlessly combined
such contradictory elements as huge dynamic range and scale with intimacy and
incomparable resolution - all without a vestige of compromise. For those looking
for the definitive loudspeaker, your search has just ended.Specifications:
•Woofers 2 x 15" Custom Composite Cone Audio Technology•Midranges 2 x 8" Audio
Technology with Rockport Carbon Composite Cone•Tweeter 1" Scan Speak Berylium
Dome Internal Wiring Transparent Audio •Active Crossover - Dual Mono - for
Bi-Amplification •Dimensions H2057 x W609 x D927 mm•Weight 408kgs each Shipping
Weight 500kgs each•Frequency Response 20Hz - 40KHz, -3dB•Nominal Impedance 4
ohms•Sensitivity 92dB SPL/2.83v •Minimum Amplifier Power 50 wa







 Se su un prodotto presente o  non presente
nel nostro catalogo ci  puoi  richiedere  il  prezzo
scontato telefonando 0174 670100 - 0174 481045 o  inviando un e-mail a
info@newaudio.it
ti  faremo  la   migliore  offerta .
Essendo   rivenditori ufficiali Italia  le  aziende  ci
chiedono  di  non creare  turbative  di  mercato
pubblicando prezzi scontati non  di listino ufficiale .
 Se hai trovato un prezzo più basso * in rete ,
segnalacelo e noi faremo di tutto per applicare quel prezzo. Altrimenti fai tu
un'offerta e noi la valutateremo. La segnalazione può essere effettuata via
email  oppure telefonando .  (*Per  prezzo più basso si riferisce
ad offerte praticate sul Web da aziende che sono distributori  ufficiali
con sede in Italia , con regolare fatturazione e garanzia italiana fornita dal
distributore ufficiale. Qualora il prezzo da confrontare fosse riferito a
venditori esteri o che non offrono le caratteristiche suddette, queste non
verranno prese in considerazione.)



  Legenda istruzioni
 Clicca
per qui per vedere :  FOTO PRODOTTO
 Clicca
per qui per vedere :  ISTRUZIONI PRODOTTO
 Clicca
per qui per vedere :  CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
 Nota
bene * Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a
info@newaudio.it *I prezzi indicati
sono  di  listino  ufficiale  delle case produttrici ,nel
caso  di  diffusori  si  riferisce al prezzo  del
singolo  diffusore  per  offerte  ed  eventuali
promozioni  telefonare o  inviare e-mail. *Il
presente listino sostituisce ed annulla ogni precedente. Le caratteristiche e i
prezzi indicati  possono variare senza preavviso telefonare o inviare un
e-mail per ulteriori domande e conferme sui prezzi sopra riportati.

 *Tutti i marchi citati nel presente listino sono di proprietà e
				registrati alle rispettive Case Produttrici
*Prezzi
franco
nostro magazzino


 |
