AMPLIFICATORI INTEGRATI
.jpg) .jpg)

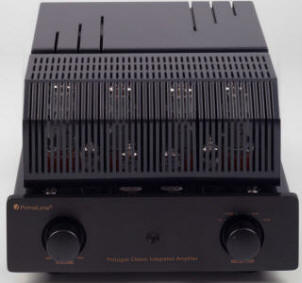

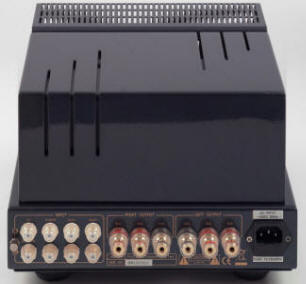

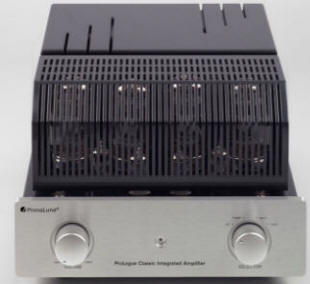

PRIMALUNA PROLOGUE
CLASSIC
EL34 €.1.750,00
Per
ordine e sconto
TELEFONARE/EMAIL
PROLOGUE CLASSIC EL34 Amplificatore
integrato stereo a valvole. Stadio d'uscita con 4 valvole EL34. Potenza 2 x 35W.
Stadio raddrizzatore e pre con 2 valvole 12AX7 e 2 12AU7. Circuito AAB,
Calibrazione Automatica del Bias. Circuito PTP, Protezione del Trasformatore di
Potenza Toroidale. Circuito OTP, Protezione del Trasformatore d'Uscita.
Potenziometro del volume ALPS. 4 ingressi RCA. Terminali per diffusori sia a 4
che 8ohm. Finitura Nera o Silver.
The ProLogue Classic Integrated Amplifier is the newest version of the original
first members of our family of affordable, high-quality tube products. The
designers and builders of the PrimaLuna equipment all have a long history in
high-end audio. We feel we have shown with PrimaLuna that we are able to offer a
range of affordable audio instruments that can easily compete with today's most
expensive brands and assure you we will continue that way. We firmly believe
that our quality level will set the bar at a difficult height for other products
to match. This PrimaLuna Classic Premium Integrated amp features: Hand-made
construction with the finest point-to-point wiring, using workmanship that is
equal to or better than any product you can buy at any price. A
heavy-gauge, fully-vented steel chassis with a five coat finish. Each coat is
hand-rubbed and polished. Premium parts that include a toroidal
transformer for power supply; custom designed -in conjunction with one of the
most prestigious transformer designers in the USA- encapsulated output
transformers for lowest hum; wide bandwidth for great bass and extended highs;
ceramic tube sockets; ALPS volume control; Nichicon and Solen capacitors;
superfast Philips-diode-circuitry; gold-plated heavy duty WBT style speaker
terminals (all speakerconnectors are solid shaft, without hole, for better
conductance, better sound and higher reliability); gold-plated panel mounted
input jacks. SoftStart™ circuit for extended life of sensitive components,
plus a reduced chance of tube failure from thermal shock. A new generation
Adaptive AutoBias™ exclusive to PrimaLuna. This circuit monitors and smoothly
adjusts bias constantly and instantly, reducing maintenance and increasing
performance due to the dramatic reduction in distortion. It comes with a new
extensive output stage protection circuitry with +B relay to protect output
transformers, resistors and high voltage power supply in case a tube fails.
The ProLogue Classic Integrated Amplifiers come with an EL34/KT88 bias switch.
This means that with the flip of a switch you can choose for the optimum bias
setting for EL34 type of tubes or KT88 type of tubes. No hassle with
screwdrivers, no messing around with meters etc. Just switch tubes, switch bias!
All new PrimaLuna PTP™ (Power Transformer Protection) circuit. When the power
transformer overheats due to environmental circumstances, overloading or some
problem in the unit, an internal thermal switch breaks the primary, allowing the
unit to cool down before harm is done. After it’s cooled, contact is restored
and if nothing is broken, the amp will repower and function properly. All
new PrimaLuna OTP™ (Output Transformer Protection) circuit which further
protects the amplifier. LIVE side of AC input connector indicated by
aluminiumcolor screw. 4 line level inputs
Power Frequency Response THD with AABB
S/N Ratio Input Impedance Input Sensitivity Maximum Gain Power
Consumption Net Weight Shipping Weight Dimensions Shipping
Dimensions Inputs Outputs Tube Complement 35 / 40 Watts per channel
(EL34 / KT88) 10Hz - 65 kHz +/- 3 dB 0,25% @ 1W; less than 1% up to
full power 89 dB 65 kOhm 265 / 285 mV (for rated power at max.
volumesetting) 37,0 dB 285 Watts 37.5 lbs / 17 kg 41.9 lbs / 19 kg
15.5”x11”x7.5”/395mm x280mm x190mm (LxWxH) 18.3”x15”x12”/465mm x380mm x305mm (LxWxH)
4 pairs RCA 4 & 8 Ohm Speaker Taps 4 x EL-34 or 4 x KT-88, 2 x
12AX7, 2 x 12AU7
.jpg)

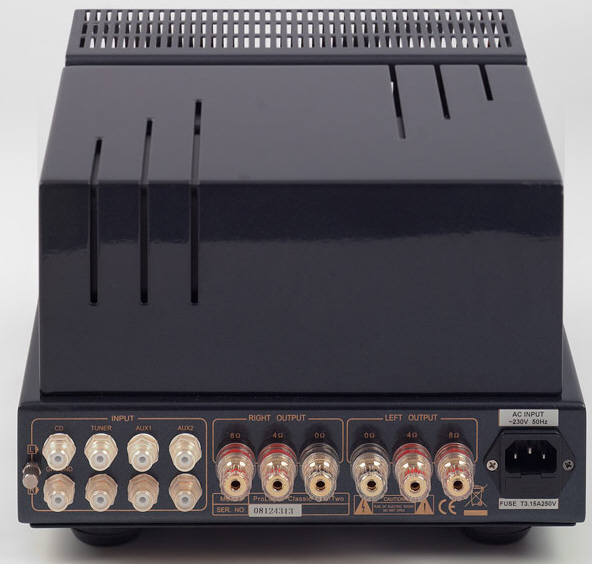

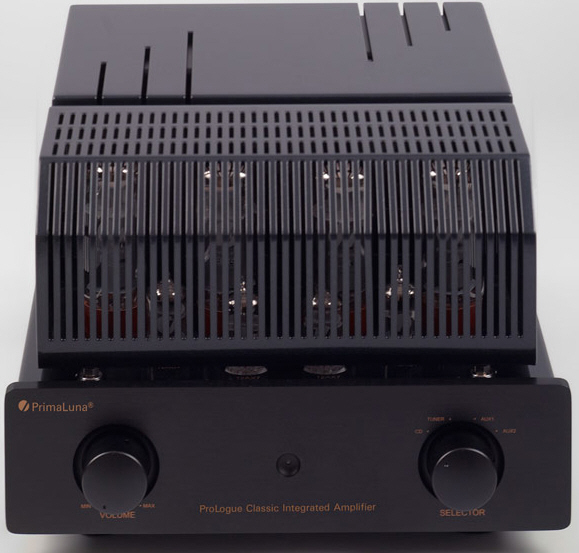

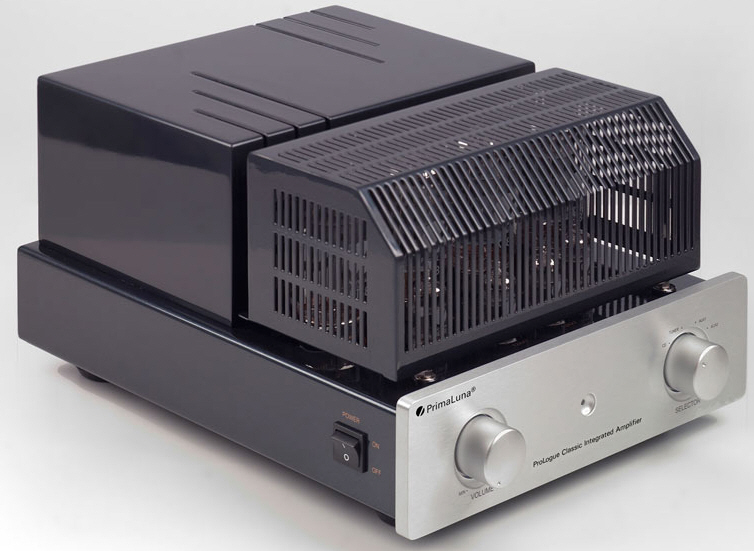

PRIMALUNA PROLOGUE
CLASSIC
KT88 €.2.050,00
Per
ordine e sconto
TELEFONARE/EMAIL
PROLOGUE CLASSIC KT88 Amplificatore integrato stereo a
valvole. Stadio d'uscita con 4 valvole KT88. Potenza 2 x 40W. Stadio
raddrizzatore e pre con 2 valvole 12AX7 e 2 12AU7. Circuito AAB, Calibrazione
Automatica del Bias. Circuito PTP, Protezione del Trasformatore di Potenza
Toroidale. Circuito OTP, Protezione del Trasformatore d'Uscita. Potenziometro
del volume ALPS. 4 ingressi RCA. Terminali per diffusori sia a 4 che 8ohm.
Finitura Nera o Silver.
The ProLogue Classic Integrated Amplifier is the newest version of the original
first members of our family of affordable, high-quality tube products. The
designers and builders of the PrimaLuna equipment all have a long history in
high-end audio. We feel we have shown with PrimaLuna that we are able to offer a
range of affordable audio instruments that can easily compete with today's most
expensive brands and assure you we will continue that way. We firmly believe
that our quality level will set the bar at a difficult height for other products
to match. This PrimaLuna Classic Premium Integrated amp features: Hand-made
construction with the finest point-to-point wiring, using workmanship that is
equal to or better than any product you can buy at any price. A
heavy-gauge, fully-vented steel chassis with a five coat finish. Each coat is
hand-rubbed and polished. Premium parts that include a toroidal
transformer for power supply; custom designed -in conjunction with one of the
most prestigious transformer designers in the USA- encapsulated output
transformers for lowest hum; wide bandwidth for great bass and extended highs;
ceramic tube sockets; ALPS volume control; Nichicon and Solen capacitors;
superfast Philips-diode-circuitry; gold-plated heavy duty WBT style speaker
terminals (all speakerconnectors are solid shaft, without hole, for better
conductance, better sound and higher reliability); gold-plated panel mounted
input jacks. SoftStart™ circuit for extended life of sensitive components,
plus a reduced chance of tube failure from thermal shock. A new generation
Adaptive AutoBias™ exclusive to PrimaLuna. This circuit monitors and smoothly
adjusts bias constantly and instantly, reducing maintenance and increasing
performance due to the dramatic reduction in distortion. It comes with a new
extensive output stage protection circuitry with +B relay to protect output
transformers, resistors and high voltage power supply in case a tube fails.
The ProLogue Classic Integrated Amplifiers come with an EL34/KT88 bias switch.
This means that with the flip of a switch you can choose for the optimum bias
setting for EL34 type of tubes or KT88 type of tubes. No hassle with
screwdrivers, no messing around with meters etc. Just switch tubes, switch bias!
All new PrimaLuna PTP™ (Power Transformer Protection) circuit. When the power
transformer overheats due to environmental circumstances, overloading or some
problem in the unit, an internal thermal switch breaks the primary, allowing the
unit to cool down before harm is done. After it’s cooled, contact is restored
and if nothing is broken, the amp will repower and function properly. All
new PrimaLuna OTP™ (Output Transformer Protection) circuit which further
protects the amplifier. LIVE side of AC input connector indicated by
aluminiumcolor screw. 4 line level inputs
Power Frequency Response THD with AABB
S/N Ratio Input Impedance Input Sensitivity Maximum Gain Power
Consumption Net Weight Shipping Weight Dimensions Shipping
Dimensions Inputs Outputs Tube Complement 35 / 40 Watts per channel
(EL34 / KT88) 10Hz - 65 kHz +/- 3 dB 0,25% @ 1W; less than 1% up to
full power 89 dB 65 kOhm 265 / 285 mV (for rated power at max.
volumesetting) 37,0 dB 285 Watts 37.5 lbs / 17 kg 41.9 lbs / 19 kg
15.5”x11”x7.5”/395mm x280mm x190mm (LxWxH) 18.3”x15”x12”/465mm x380mm x305mm (LxWxH)
4 pairs RCA 4 & 8 Ohm Speaker Taps 4 x EL-34 or 4 x KT-88, 2 x
12AX7, 2 x 12AU7
.jpg) .jpg)

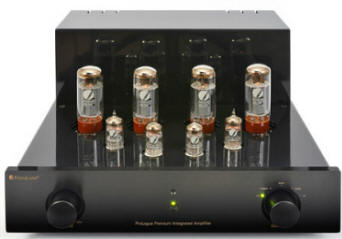

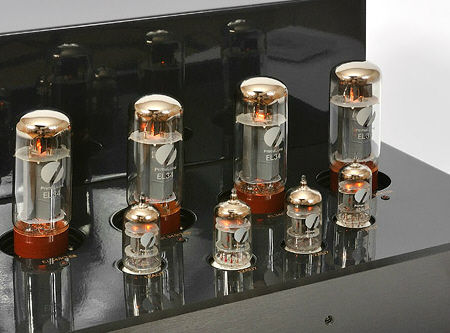

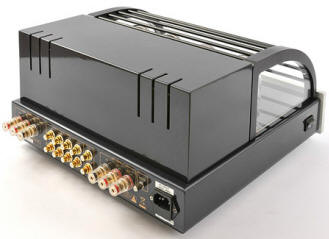

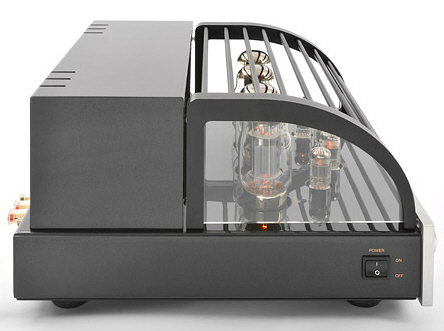

PRIMALUNA PROLOGUE
PREMIUM
EL34 €.2.200,00
Per
ordine e sconto
TELEFONARE/EMAIL
PROLOGUE PREMIUM EL34 Amplificatore integrato stereo a
valvole. Stadio d'uscita con 4 valvole EL34. Potenza 2 x 35W. Stadio
raddrizzatore e pre con 4 valvole 12AU7. Circuito AAB, CalibrazioneAutomatica
del Bias. Circuito PTP, Protezione del Trasformatore di Potenza Toroidale.
Circuito OTP, Protezione del Trasformatore d'Uscita. Circuito BTI, Indicazione
della Valvola Difettosa. Circuito Pass-thru per Home Theater. Potenziometro del
volume ALPS. 5 ingressi RCA, di cui 1 HT Pass-thru. Terminali per diffusori sia
a 4 che 8ohm. Telecomando in dotazione. Finitura Nera o Silver.
The best integrated amp in its class just got
better! By incorporating the best elements of the critically-acclaimed ProLogue
One and Two, plus many of the ground-breaking features from the more advanced
DiaLogue Series, the next generation ProLogue Premium Series, is an engineering
marvel — a single, integrated amplifier that sets a new benchmark in
high-performance audio with the following features: Innovative, new Adaptive
Autobias circuitry. By simply flipping a switch, users can re-calibrate the amp
for optimum operation of EL34s or KT88s. Every ProLogue Premium Series amplifier
can be ordered with either set of power tubes installed. And remember, this
circuit continuously monitors and adjusts each tube to run in its sweet spot. No
biasing—ever!Home theater pass-thru. Straight from the critically-acclaimed
DiaLogue Series, this direct-line circuitry means less noise and coloration over
unity gain circuits.New output and power transformers. Modeled after those in
the DiaLogue Series, these heavy-duty, high-efficiency transformers offer better
control over challenging speaker loads, as well as increased detail and
musicality. New front-end circuitry. Optimized to use two 12AU7 tubes per
channel. With the improved transformers, produces lower distortion.Full-function
remote. Slim, anodized aluminum remote, controls volume, mute, and source
selection, as well as Play/pause and Stop/eject functions of the new ProLogue
Premium CD Player. Next, the ProLogue Premium Series introduces four innovative
circuits that protect the amp at every level: BTI-circuit. BTI stands for "Bad
Tube Indicator." On the chassis’ deck in front of each power tube, is a small
LED that lights up if the tube goes bad. This circuit works hand-in-hand with
the new Adaptive Auto-Bias circuit. PTP-circuit. If the power transformer
should overheat, this "Power Transformer Protection" circuit cuts primary power,
allows the amp to cool down, then resets itself. OTP-circuit. The "Output
Transformer Protection" circuit protects the output transformers in the event of
a massive tube failure or user error. +B relay. Replaces the plate fuse
and works in conjunction with the OTP-circuit to protect the amp against tube
failure. This method is less intrusive sonically and the relay resets itself
once the faulty tube is replaced. As with all PrimaLuna components, the
ProLogue Premium Integrated is made by hand with the finest point-to-point
wiring and quality equal to—or better than—any product you can buy at any price.
Built using premium parts featuring: ceramic tube sockets; Solen and Nichicon
capacitors; WBT-style solid core speaker terminals; ALPS Blue Velvet volume
control; gold-plated RCA jacks; toroidal power transformer. All packaged in a
high-gloss, hand-rubbed finish.ProLogue Premium - Integrated Amplifier Output
Frequency Response THD S/N Ratio Input Sensitivity Power Consumption
Dimensions Weight Inputs Outputs Tube Complement 35 watts x 2 with EL34
power tubes40 watts x 2 with KT88 power tubes 20Hz-30kHz +/- 0.5dB Less than 1%
at full power 89 dB 300mV300 Watts 14.5” x 8” x 15.5” – 37 cm x 20 cm x 40
cm (WxHxD) 46.3 lbs – 21 kg 4 pair RCA, 1 pair HT bypass 4 & 8 ohm speaker taps
4- 12AU7 4- EL34 or KT88

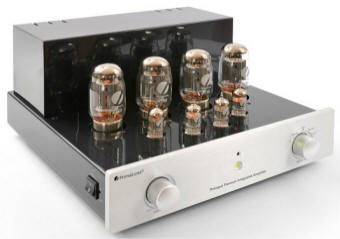

PRIMALUNA PROLOGUE
PREMIUM
KT88 €.2.500,00
Per
ordine e sconto
TELEFONARE/EMAIL
PROLOGUE PREMIUM KT88 Amplificatore integrato stereo a
valvole. Stadio d'uscita con 4 valvole KT88. Potenza 2 x 40W. Stadio
raddrizzatore con 4 valvole 12AU7. Circuito AAB, Calibrazione Automatica del
Bias. Circuito PTP, Protezione del Trasformatore di Potenza Toroidale. Circuito
OTP, Protezione del Trasformatore d'Uscita. Circuito BTI, Indicazione
dellaValvola Difettosa. Circuito Pass-thru per Home Theater. Potenziometro del
volumeALPS. 5 ingressi RCA, di cui 1 HT Pass-thru. Terminali per diffusori sia a
4 che 8ohm. Telecomando in dotazione. Finitura Nera o Silver
The best integrated amp in its class just got
better! By incorporating the best elements of the critically-acclaimed ProLogue
One and Two, plus many of the ground-breaking features from the more advanced
DiaLogue Series, the next generation ProLogue Premium Series, is an engineering
marvel — a single, integrated amplifier that sets a new benchmark in
high-performance audio with the following features: Innovative, new Adaptive
Autobias circuitry. By simply flipping a switch, users can re-calibrate the amp
for optimum operation of EL34s or KT88s. Every ProLogue Premium Series amplifier
can be ordered with either set of power tubes installed. And remember, this
circuit continuously monitors and adjusts each tube to run in its sweet spot. No
biasing—ever!Home theater pass-thru. Straight from the critically-acclaimed
DiaLogue Series, this direct-line circuitry means less noise and coloration over
unity gain circuits.New output and power transformers. Modeled after those in
the DiaLogue Series, these heavy-duty, high-efficiency transformers offer better
control over challenging speaker loads, as well as increased detail and
musicality. New front-end circuitry. Optimized to use two 12AU7 tubes per
channel. With the improved transformers, produces lower distortion.Full-function
remote. Slim, anodized aluminum remote, controls volume, mute, and source
selection, as well as Play/pause and Stop/eject functions of the new ProLogue
Premium CD Player. Next, the ProLogue Premium Series introduces four innovative
circuits that protect the amp at every level: BTI-circuit. BTI stands for "Bad
Tube Indicator." On the chassis’ deck in front of each power tube, is a small
LED that lights up if the tube goes bad. This circuit works hand-in-hand with
the new Adaptive Auto-Bias circuit. PTP-circuit. If the power transformer
should overheat, this "Power Transformer Protection" circuit cuts primary power,
allows the amp to cool down, then resets itself. OTP-circuit. The "Output
Transformer Protection" circuit protects the output transformers in the event of
a massive tube failure or user error. +B relay. Replaces the plate fuse
and works in conjunction with the OTP-circuit to protect the amp against tube
failure. This method is less intrusive sonically and the relay resets itself
once the faulty tube is replaced. As with all PrimaLuna components, the
ProLogue Premium Integrated is made by hand with the finest point-to-point
wiring and quality equal to—or better than—any product you can buy at any price.
Built using premium parts featuring: ceramic tube sockets; Solen and Nichicon
capacitors; WBT-style solid core speaker terminals; ALPS Blue Velvet volume
control; gold-plated RCA jacks; toroidal power transformer. All packaged in a
high-gloss, hand-rubbed finish.Outputs Tube Complement 35 watts x 2
with EL34 power tubes40 watts x 2 with KT88 power tubes 20Hz-30kHz +/- 0.5dB
Less than 1% at full power 89 dB 300mV300 Watts 14.5” x 8” x 15.5” – 37 cm
x 20 cm x 40 cm (WxHxD) 46.3 lbs – 21 kg 4 pair RCA, 1 pair HT bypass 4 & 8 ohm
speaker taps 4- 12AU7 4- EL34 or KT88
PRIMALUNA DIALOGUE
PREMIUM
EL34 €.3.000,00
Per
ordine e sconto
TELEFONARE/EMAIL
DIALOGUE PREMIUM EL34 Amplificatore
integrato stereo a valvole. Stadio d'uscita con 4 valvole EL34. Potenza 2 x 38W
ultra lineare o 2 x 21W a triodo. Stadio raddrizzatore con 6 valvole 12AU7.
Circuito AAB, Calibrazione Automatica del Bias. Circuito PTP, Protezione del
Trasformatore di Potenza Toroidale. Circuito OTP, Protezione del Trasformatore
d'Uscita. Circuito BTI, Indicazione della Valvola Difettosa. Circuito Pass-thru
per Home Theater. Potenziometro del volume ALPS. 5 ingressi RCA, di cui 1 HT
Pass-thru. Terminali per diffusori sia a 4 che 8ohm. Telecomando in dotazione.
Finitura Nera o Silver.
Almost forgot to describe one of the most obvious changes in the DiaLogue
Premium design … the use of 6 x 12au7 tubes …. Lots to tell you about this. One
+ One = Two, but Two + One =THREE … 3 x 12AU7 per channel So far we have used
one 12AU7 tube per channel as phase shifter and driver for the power tubes. In
this situation each leg of the push-pull output stage is driven by only one
triode. That configuration is powerful enough to reasonably drive 1 – 2 power
tubes. But … It is a known fact that an output stage benefits greatly from a
“powerful” drive. The stronger the better, although there are limits to this of
course. For example in military transmitters, the output stage is often driven
by a driver stage which already can supply half the power of the entire
amplifier. So a 100Watt transmitter could have a 50Watt driver stage. Just to
drive the power tubes …The extra 12AU7 tube in this new Dialogue Premium design
allows for a far more powerful driver stage. Suddenly we can use now for each
half of the power amp one full 12AU7, and the two triodes in this tube can be
put in parallel. This reduces the impedance of the driver stage by half. This
creates the situation that the power tubes are driven from a 50% lower impedance,
which results in a double current supply capacity of the signal drive for the
power tubes, which has positive effects on a few key parameters: 1. The
bandwidth of the driver stage becomes twice as wide, increasing the entire
bandwidth of the amplifier significantly, 2. The linearity of the driver stage
becomes twice as linear, reducing the dynamic distortion of the amplifier
significantly,3. The linearity of the power stage is further increased, which
results again in a reduction of the dynamic distortion of the amplifier. This
results in:Less phase-shift in the extreme high frequency range, reason why the
amp is more stable and the harmonics of the instruments are reproduced in a more
accurate way.The amplifier has less phase-shift in the extreme low frequency
range, so the amp can supply more energy and deliver a tighter bass.The feedback
has less phase-shift to compensate, which makes again the amplifier more
stable.The power tubes are driven with more control, which results in a more
dynamic stable output signal. The static distortion, as measured with a tone on
a distortion meter, will not decline significantly. Just a little. But the
dynamic distortion, which the human ear perceives as unpleasant distortion, is
significantly reduced. It makes the amp sound cleaner
PRIMALUNA DIALOGUE
PREMIUM
KT88 €.3.300,00
Per
ordine e sconto
TELEFONARE/EMAIL
DIALOGUE PREMIUM KT88 Amplificatore integrato stereo a valvole. Stadio d'uscita
con 4 valvole KT88. Potenza 2 x 38W ultra lineare o 2 x 21W a triodo. Stadio
raddrizzatore con 6 valvole 12AU7. Circuito AAB, Calibrazione Automatica del
Bias. Circuito PTP, Protezione del Trasformatore di Potenza Toroidale. Circuito
OTP, Protezione del Trasformatore d'Uscita. Circuito BTI, Indicazione della
Valvola Difettosa. Circuito Pass-thru per Home Theater. Potenziometro del volume
ALPS. 5 ingressi RCA, di cui 1 HT Pass-thru. Terminali per diffusori sia a 4 che
8ohm. Telecomando in dotazione. Finitura Nera o Silver.
Almost forgot to describe one of the most obvious changes in the DiaLogue
Premium design … the use of 6 x 12au7 tubes …. Lots to tell you about this. One
+ One = Two, but Two + One =THREE … 3 x 12AU7 per channel So far we have used
one 12AU7 tube per channel as phase shifter and driver for the power tubes. In
this situation each leg of the push-pull output stage is driven by only one
triode. That configuration is powerful enough to reasonably drive 1 – 2 power
tubes. But … It is a known fact that an output stage benefits greatly from a
“powerful” drive. The stronger the better, although there are limits to this of
course. For example in military transmitters, the output stage is often driven
by a driver stage which already can supply half the power of the entire
amplifier. So a 100Watt transmitter could have a 50Watt driver stage. Just to
drive the power tubes …The extra 12AU7 tube in this new Dialogue Premium design
allows for a far more powerful driver stage. Suddenly we can use now for each
half of the power amp one full 12AU7, and the two triodes in this tube can be
put in parallel. This reduces the impedance of the driver stage by half. This
creates the situation that the power tubes are driven from a 50% lower impedance,
which results in a double current supply capacity of the signal drive for the
power tubes, which has positive effects on a few key parameters: 1. The
bandwidth of the driver stage becomes twice as wide, increasing the entire
bandwidth of the amplifier significantly, 2. The linearity of the driver stage
becomes twice as linear, reducing the dynamic distortion of the amplifier
significantly,3. The linearity of the power stage is further increased, which
results again in a reduction of the dynamic distortion of the amplifier. This
results in:Less phase-shift in the extreme high frequency range, reason why the
amp is more stable and the harmonics of the instruments are reproduced in a more
accurate way.The amplifier has less phase-shift in the extreme low frequency
range, so the amp can supply more energy and deliver a tighter bass.The feedback
has less phase-shift to compensate, which makes again the amplifier more stable.The
power tubes are driven with more control, which results in a more dynamic stable
output signal. The static distortion, as measured with a tone on a distortion
meter, will not decline significantly. Just a little. But the dynamic distortion,
which the human ear perceives as unpleasant distortion, is significantly reduced.
It makes the amp sound cleaner
PREAMPLIFICATORI
.jpg) .jpg)
PRIMALUNA PROLOGUE PREMIUM
PREAMP €.2.200,00
Per
ordine e sconto
TELEFONARE/EMAIL

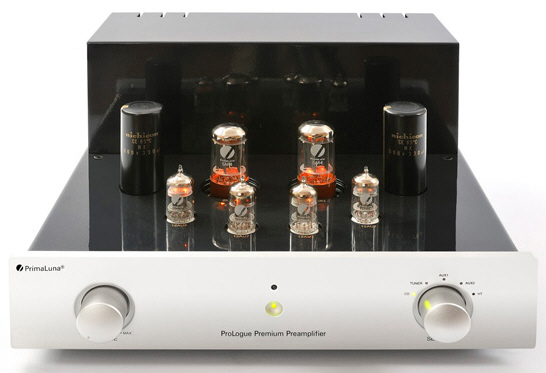

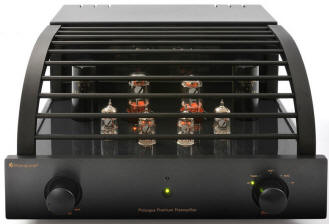

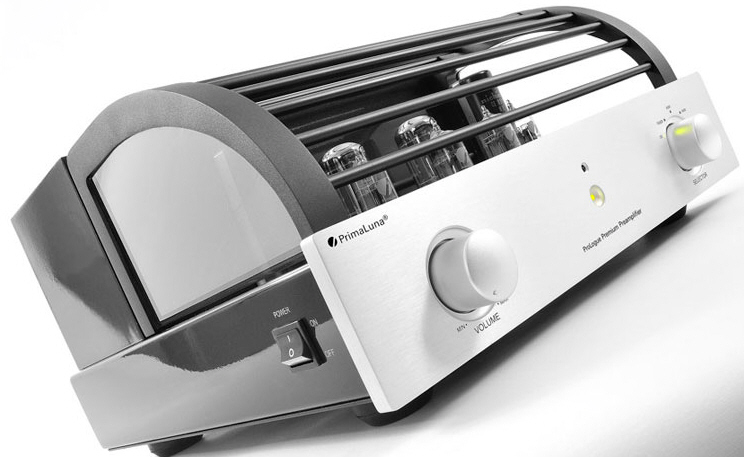

PROLOGUE PREMIUM PREAMP Preamplificatore
stereo a valvole. Costruzione dual mono. Stadio pre con 2 valvole 12AU7 per
canale. Circuito PTP, Protezione dei doppi Trasformatori di Potenza Toroidali.
Circuito Pass-thru per Home Theater. Potenziometro del volume ALPS. 5 ingressi
RCA, di cui 1 HT Pass-thru. 2 uscite RCA, 1 fissa ed una variabile. Telecomando
in dotazione. Finitura Nera o Silver.
The best preamp in its class just got better! By incorporating the best elements
of the critically-acclaimed ProLogue Three, plus many of the ground-breaking
features from the more advanced DiaLogue Series, the next generation ProLogue
Premium Preamplifier sets a new benchmark for tubed preamplifiers using the
following features: New power transformers. Heavy-duty, dual-mono, power
transformers increase control and detail. Addional windings were added to each
transformer for improved synergy with the optional PhonoLogue MM Phonostage. The
preamp weighs in at a substantial 37.5 pounds. Home theater pass-thru.
Straight from the critically-acclaimed DiaLogue Series, this direct-line
circuitry means less noise and coloration over unity gain circuits. New
front end circuitry. Optimized to use two 12AU7 tubes per channel. Combines with
the improved power transformers to further lower distortion, dropping by a
factor of 20 at output levels above one volt! This in turn dramatically improves
sound quality. PTP-circuit. If the power transformer should overheat, this
innovative "Power Transformer Protection" circuit cuts primary power, allows the
preamp to cool down, then resets itself. Full-function remote. Slim,
anodized aluminum remote, controls volume, mute, and source selection, as well
as Play/pause and Stop/eject functions of the new ProLogue Premium CD Player.
As with all PrimaLuna components, the ProLogue Premium Preamplifier is made by
hand with the finest point-to-point wiring and quality equal to—or better than—any
product you can buy at any price. Built using premium parts featuring: ceramic
tube sockets; Solen, Swellong, and Nichicon capacitors; WBT-style solid core
speaker terminals; ALPS Blue Velvet volume control; gold-plated RCA jacks;
toroidal power transformer. All packaged in a high-gloss, hand-rubbed finish.
ProLogue Premium - Preamplifier Frequency Response Gain THD S/N
Ratio Input Sensitivity Input Impedance Output ImpedancePower Consumption
Dimensions Weight Inputs Outputs Tube Complement 4Hz-85kHz +/- 3dB 12 dB
Less than 1% at full power 109 dB unweighted 200mV 100k Ohms 2800 Ohms 46
Watts 14.5” x 8” x 15.5” – 37 cm x 20 cm x 40 cm (WxHxD) 37,5 lbs – 17 kg 4 pair
RCA, 1 pair HT bypass 2 pair variable pre-amp outputs 4- 12AU7 2- 5AR4
AMPLIFICATORI FINALI
PRIMALUNA PROLOGUE PREMIUM
STEREO
EL34 €.2.100,00
Per
ordine e sconto
TELEFONARE/EMAIL
PROLOGUE PREMIUM STEREO EL34 Finale di
potenza stereo a valvole. Stadio d'uscita con 4 valvole EL34. Potenza 2 x 35W.
Stadio raddrizzatore con 4 valvole 12AU7. Circuito AAB, Calibrazione Automatica
del Bias. Circuito PTP, Protezione del Trasformatore di Potenza Toroidale.
Circuito OTP, Protezione del Trasformatore d'Uscita. Circuito BTI, Indicazione
della Valvola Difettosa. Ingresso RCA. Terminali per diffusori sia a 4 che 8ohm.
Finitura Nera o Silver.
Next, the ProLogue Premium Series
introduces four innovative circuits that protect the amp at every level:
BTI-circuit. BTI stands for "Bad Tube Indicator." On the chassis’ deck in front
of each power tube, is a small LED that lights up if the tube goes bad. This
circuit works hand-in-hand with the new Adaptive Auto-Bias circuit.
PTP-circuit. If the power transformer should overheat, this "Power Transformer
Protection" circuit cuts primary power, allows the amp to cool down, then resets
itself. OTP-circuit. The "Output Transformer Protection" circuit protects
the output transformers in the event of a massive tube failure or user error.
+B relay. Replaces the plate fuse and works in conjunction with the OTP-circuit
to protect the amp against tube failure. This method is less intrusive sonically
and the relay resets itself once the faulty tube is replaced. As with all
PrimaLuna components, the ProLogue Premium Stereo Amplifier is made by hand with
the finest point-to-point wiring and quality equal to—or better than—any product
you can buy at any price. Built using premium parts featuring: ceramic tube
sockets; Solen and Nichicon capacitors; WBT-style solid core speaker terminals;
ALPS Blue Velvet volume control; gold-plated RCA jacks; toroidal power
transformer. All packaged in a high-gloss, hand-rubbed finish Output
Frequency Response THD S/N Ratio Input Sensitivity Input Impedance Power
Consumption Dimensions Weight Inputs Outputs Tube Complement 35 watts x 2
with EL34 power tubes 36 watts x 2 with KT88 power tubes 20Hz-85kHz +/- 0.5dB
Less than 1% at full power 89 dB 775mV 100k Ohms 210 Watts 14.5” x 8” x 15.5” –
37 cm x 20 cm x 40 cm (WxHxD) 46.3 lbs – 21 kg 1 single RCA 4 & 8 ohm speaker
taps 4- 12AU7 4 – EL34 or KT88
PRIMALUNA PROLOGUE PREMIUM
STEREO
KT88
€.2.400,00
Per
ordine e sconto
TELEFONARE/EMAIL
PROLOGUE PREMIUM STEREO KT88 Finale di
potenza stereo a valvole. Stadio d'uscita con 4 valvole KT88. Potenza 2 x 36W.
Stadio raddrizzatore con 4 valvole 12AU7. Circuito AAB, Calibrazione Automatica
del Bias. Circuito PTP, Protezione del Trasformatore di Potenza Toroidale.
Circuito OTP, Protezione del Trasformatore d'Uscita. Circuito BTI, Indicazione
della Valvola Difettosa. Ingresso RCA. Terminali per diffusori sia a 4 che 8ohm.
Finitura Nera o Silver.
Next, the ProLogue Premium Series
introduces four innovative circuits that protect the amp at every level:
BTI-circuit. BTI stands for "Bad Tube Indicator." On the chassis’ deck in front
of each power tube, is a small LED that lights up if the tube goes bad. This
circuit works hand-in-hand with the new Adaptive Auto-Bias circuit.
PTP-circuit. If the power transformer should overheat, this "Power Transformer
Protection" circuit cuts primary power, allows the amp to cool down, then resets
itself. OTP-circuit. The "Output Transformer Protection" circuit protects
the output transformers in the event of a massive tube failure or user error.
+B relay. Replaces the plate fuse and works in conjunction with the OTP-circuit
to protect the amp against tube failure. This method is less intrusive sonically
and the relay resets itself once the faulty tube is replaced. As with all
PrimaLuna components, the ProLogue Premium Stereo Amplifier is made by hand with
the finest point-to-point wiring and quality equal to—or better than—any product
you can buy at any price. Built using premium parts featuring: ceramic tube
sockets; Solen and Nichicon capacitors; WBT-style solid core speaker terminals;
ALPS Blue Velvet volume control; gold-plated RCA jacks; toroidal power
transformer. All packaged in a high-gloss, hand-rubbed finish Output
Frequency Response THD S/N Ratio Input Sensitivity Input Impedance Power
Consumption Dimensions Weight Inputs Outputs Tube Complement 35 watts x 2
with EL34 power tubes 36 watts x 2 with KT88 power tubes 20Hz-85kHz +/- 0.5dB
Less than 1% at full power 89 dB 775mV 100k Ohms 210 Watts 14.5” x 8” x 15.5” –
37 cm x 20 cm x 40 cm (WxHxD) 46.3 lbs – 21 kg 1 single RCA 4 & 8 ohm speaker
taps 4- 12AU7 4 – EL34 or KT88
AMPLIFICATORI FINALI MONO
.jpg) .jpg)

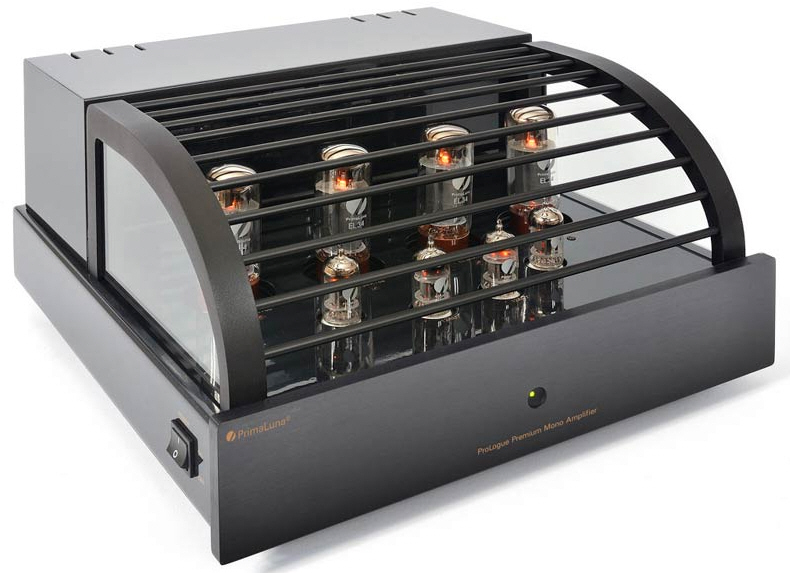

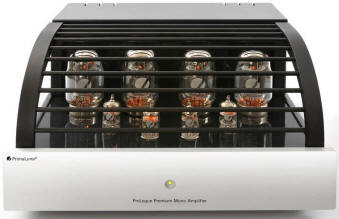

PRIMALUNA PROLOGUE PREMIUM
MONO
EL34 €.2.100,00
Per
ordine e sconto
TELEFONARE/EMAIL
PROLOGUE PREMIUM MONO EL34 Finale di
potenza mono a valvole. Stadio d'uscita con 4 valvole EL34. Potenza 70W. Stadio
raddrizzatore con 4 valvole 12AU7. Circuito AAB, Calibrazione Automatica del
Bias. Circuito PTP, Protezione del Trasformatore di Potenza Toroidale. Circuito
OTP, Protezione del Trasformatore d'Uscita. Circuito BTI, Indicazione della
Valvola Difettosa. Ingresso RCA. Terminali per diffusori sia a 4 che 8ohm.
Finitura Nera o Silver. Cad.
The
critically acclaimed PrimaLuna monoblocks just got better! By incorporating the
best elements of the critically-acclaimed ProLogue Six and Seven monoblocks,
plus many of the ground-breaking features from the more advanced DiaLogue Series,
the next generation ProLogue Premium Series, is an engineering marvel — tube
monoblock amplifiers that sets a new benchmark in high-performance audio with
the following features:Innovative, new Adaptive Auotbias circuitry. By simply
flipping a switch, users can re-calibrate the amp for optimum operation of EL34s
or KT88s. Every ProLogue Premium Series amplifier can be ordered with either set
of power tubes installed. And remember, this circuit continuously monitors and
adjusts each tube to run in its sweet spot. No biasing—ever! Home theater
pass-thru. Straight from the critically-acclaimed DiaLogue Series, this
direct-line circuitry means less noise and coloration over unity gain circuits.
New output and power transformers. Modeled after those in the DiaLogue Series,
these heavy-duty, high-efficiency transformers offer better control over
challenging speaker loads, as well as increased detail and musicality. New
front-end circuitry. Optimized to use two 12AU7 tubes per channel. With the
improved transformers, produces lower distortion. Dual feedback topology:
Cross-coupled current feedback for superior impulse behavior and gain stability.
Next a slight amount of negative feedback is used to achieve exact gain setting,
low distortion, and low output impedance. This effectively cancels the negative
byproducts associated with both feedback circuits. The end result utilizes all
the benefits of feed-back, without all the drawbacks.Next, the ProLogue Premium
Series introduces four innovative circuits that protect the amp at every level:
BTI-circuit. BTI stands for "Bad Tube Indicator." On the chassis’ deck in front
of each power tube, is a small LED that lights up if the tube goes bad. This
circuit works hand-in-hand with the new Adaptive Auto-Bias circuit.
PTP-circuit. If the power transformer should overheat, this "Power Transformer
Protection" circuit cuts primary power, allows the amp to cool down, then resets
itself. OTP-circuit. The "Output Transformer Protection" circuit protects
the output transformers in the event of a massive tube failure or user error.
+B relay. Replaces the plate fuse and works in conjunction with the OTP-circuit
to protect the amp against tube failure. This method is less intrusive sonically
and the relay resets itself once the faulty tube is replaced. As with all
PrimaLuna components, the ProLogue Premium Monoblocks are made by hand with the
finest point-to-point wiring and quality equal to—or better than—any product you
can buy at any price. Built using premium parts featuring: ceramic tube sockets;
Solen and Nichicon capacitors; WBT-style solid core speaker terminals; ALPS Blue
Velvet volume control; gold-plated RCA jacks; toroidal power transformer. All
packaged in a high-gloss, hand-rubbed finish.Output Frequency Response THD
S/N Ratio Input Sensitivity Input Impedance Power Consumption Dimensions Weight
Inputs Outputs Tube Complement 70 watts x 2 with EL34 or KT88 power tubes
20Hz-85kHz +/- 0.5dB Less than 1% at full power 101 dB 911mV 100k Ohms 210 Watts
14.5” x 8” x 15.5” – 37 cm x 20 cm x 40 cm (WxHxD) 46.3 lbs – 21 kg 1 single RCA
2, 4 & 8 ohm speaker taps 4- 12AU7 4 – EL34 or KT88
.jpg)
PRIMALUNA PROLOGUE PREMIUM
MONO
KT88
€.2.400,00
Per
ordine e sconto
TELEFONARE/EMAIL
PROLOGUE PREMIUM MONO KT88 Finale di potenza mono a valvole. Stadio d'uscita con
4 valvole KT88. Potenza 70W. Stadio raddrizzatore con 4 valvole 12AU7. Circuito
AAB, Calibrazione Automatica del Bias. Circuito PTP, Protezione del
Trasformatore di Potenza Toroidale. Circuito OTP, Protezione del Trasformatore
d'Uscita. Circuito BTI, Indicazione della Valvola Difettosa. Ingresso RCA.
Terminali per diffusori sia a 4 che 8ohm. Finitura Nera o Silver. Cad.
The
critically acclaimed PrimaLuna monoblocks just got better! By incorporating the
best elements of the critically-acclaimed ProLogue Six and Seven monoblocks,
plus many of the ground-breaking features from the more advanced DiaLogue Series,
the next generation ProLogue Premium Series, is an engineering marvel — tube
monoblock amplifiers that sets a new benchmark in high-performance audio with
the following features:Innovative, new Adaptive Auotbias circuitry. By simply
flipping a switch, users can re-calibrate the amp for optimum operation of EL34s
or KT88s. Every ProLogue Premium Series amplifier can be ordered with either set
of power tubes installed. And remember, this circuit continuously monitors and
adjusts each tube to run in its sweet spot. No biasing—ever! Home theater
pass-thru. Straight from the critically-acclaimed DiaLogue Series, this
direct-line circuitry means less noise and coloration over unity gain circuits.
New output and power transformers. Modeled after those in the DiaLogue Series,
these heavy-duty, high-efficiency transformers offer better control over
challenging speaker loads, as well as increased detail and musicality. New
front-end circuitry. Optimized to use two 12AU7 tubes per channel. With the
improved transformers, produces lower distortion. Dual feedback topology:
Cross-coupled current feedback for superior impulse behavior and gain stability.
Next a slight amount of negative feedback is used to achieve exact gain setting,
low distortion, and low output impedance. This effectively cancels the negative
byproducts associated with both feedback circuits. The end result utilizes all
the benefits of feed-back, without all the drawbacks.Next, the ProLogue Premium
Series introduces four innovative circuits that protect the amp at every level:
BTI-circuit. BTI stands for "Bad Tube Indicator." On the chassis’ deck in front
of each power tube, is a small LED that lights up if the tube goes bad. This
circuit works hand-in-hand with the new Adaptive Auto-Bias circuit.
PTP-circuit. If the power transformer should overheat, this "Power Transformer
Protection" circuit cuts primary power, allows the amp to cool down, then resets
itself. OTP-circuit. The "Output Transformer Protection" circuit protects
the output transformers in the event of a massive tube failure or user error.
+B relay. Replaces the plate fuse and works in conjunction with the OTP-circuit
to protect the amp against tube failure. This method is less intrusive sonically
and the relay resets itself once the faulty tube is replaced. As with all
PrimaLuna components, the ProLogue Premium Monoblocks are made by hand with the
finest point-to-point wiring and quality equal to—or better than—any product you
can buy at any price. Built using premium parts featuring: ceramic tube sockets;
Solen and Nichicon capacitors; WBT-style solid core speaker terminals; ALPS Blue
Velvet volume control; gold-plated RCA jacks; toroidal power transformer. All
packaged in a high-gloss, hand-rubbed finish.Output Frequency Response THD
S/N Ratio Input Sensitivity Input Impedance Power Consumption Dimensions Weight
Inputs Outputs Tube Complement 70 watts x 2 with EL34 or KT88 power tubes
20Hz-85kHz +/- 0.5dB Less than 1% at full power 101 dB 911mV 100k Ohms 210 Watts
14.5” x 8” x 15.5” – 37 cm x 20 cm x 40 cm (WxHxD) 46.3 lbs – 21 kg 1 single RCA
2, 4 & 8 ohm speaker taps 4- 12AU7 4 – EL34 or KT88
LETTORI CD
.jpg)

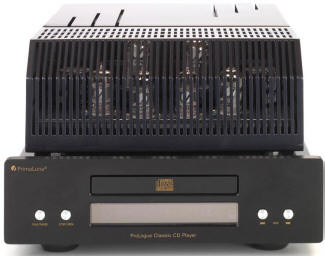

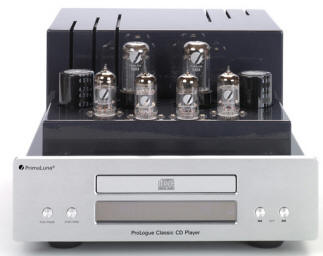

PRIMALUNA PROLOGUE
CLASSIC
CD €.2.950,00
Per
ordine e sconto
TELEFONARE/EMAIL
PROLOGUE CLASSIC CD Lettore di CD a
valvole. Circuitazione dual mono con impiego di 2 valvole per canale (12AX7 e
12AU7). 11 Stadi di alimentazione separati, rettificati a valvole. Convertitori
D/A Burr Brown PCM1792 e sovracampionamento SRC4192, 24bit/192KHz. Circuito STC,
l'oscillatore del clock è una valvola. Uscite analogica RCA e digitali sia
coassiale che ottica. Telecomando in dotazione. Finitura Nera o Silver.
Revolutions are born in bold ideas. In
true PrimaLuna fashion, the stunning ProLogue CD Player will revolutionize the
audio industry by introducing the world's first tube-based data clocking device:
the SuperTubeClock™ By incorporating a low-noise mini-triode vacuum tube into
the digital clock, this boldly conceived design provides vastly superior
resolution, detail retrieval, improved clarity, increased definition and detail
from top to bottom. The ProLogue CD player is a true dual-mono design, right
down to the dual vacuum tube rectification — another first in a CD player. The
power supply is adapted from the award winning ProLogue Three preamp, as are its
high quality resistors, mosfets, and Solen capacitors which yield superior
transient response, detail, and channel separation. The ProLogue CD Player comes
equipped with:TRUE DUAL MONO OUTPUT STAGE Using one 12AX7 and one 12AU7 per
channel. VACUUM TUBE RECTIFIED POWER SUPPLY Adapted from the award-winning
ProLogue Three preamp that incorporates eleven separate power supply regulation
circuits. STATE-OF-THE-ART Utilizing Burr Brown SRC4192 24bit/192kHz upsampling
circuit with accompanying Burr Brown PCM1792 DACs. THE SUPERTUBECLOCK™ An
ultra-low jitter clocking device that replaces the solid-state oscillator with a
vacuum tube. Yields incredible detail retrieval and dynamics throughout the
entire audio spectrum. SUPER I/V BOARD The Super IV board incorporates a new
type of op-amp that to our knowledge has never been used by any audio
manufacturer before. The Super I/V Board also upgrades the bypass caps and power
supply caps, so with the increase of speed, detail, and quietness you get above,
you get a prettier “picture.” PREMIUM PARTS Including polypropylene
coupling caps, triple pi power supply filters, custom designed isolation
transformers separating the analog and digital devices, resulting in decreased
signal degradation and improved sonics from top to bottom. True Dual Mono
output stage using one 12AX7 and one 12AU7 per channel. Beautiful
heavy-gauge anodized brushed aluminum remote control. Controls all important CD
operations and will even control functions on the DiaLogue components. Comes
with rubber rings on both ends to protect furniture. Chassis made of
finely finished heavy gauge steel, and five step automotive quality finish. Each
coat hand rubbed and polished. Removable tube cage included no charge.
Conservative design runs tubes easy for long life. Built to Western
standards with PrimaLuna’s standard-setting ProLogue Classic - CD Player
Frequency Response Distortion and Noise Channel Separation Dynamic Range
Output Voltage Power Consumption Dimensions (WxHxD) Weight Analog Outputs
Digital Outputs Tube Complement 20Hz–20kHz +/- 0.5dB Below -96dB 90dB
Greater than 120dB 2v +/- 0.5dB 50 watts 11” x 7.5” x 15.5” (39.5cm x 28cm x
19cm) 25.4 lbs — 11.5 kg One pair RCA One coaxial/ one optical Two 12AX7, Two
12AU7, Two 5AR4
.jpg)
PRIMALUNA PROLOGUE PREMIUM
CD €.3.600,00
Per
ordine e sconto
TELEFONARE/EMAIL
PROLOGUE PREMIUM CD Lettore di CD a valvole. Circuitazione
dual mono con impiego di 2 valvole per canale (12AU7). 11 Stadi di alimentazione
separati, rettificati a valvole. Circuito PTP, Protezione del Trasformatore di
Potenza. Ingresso USB per utilizzo come convertitore D/A. Convertitori D/A Burr
Brown PCM1792 e sovracampionamento SRC4192, 24bit/192KHz. Circuito STC,
l'oscillatore del clock è una valvola. Uscite analogica RCA e digitali sia
coassiale che ottica. Telecomando in dotazione. Finitura Nera o Silver
In true PrimaLuna fashion, the stunning
ProLogue Eight CD Player revolutionized the audio industry by introducing the
world’s first tube-based data clocking device: the SuperTubeClock™. By replacing
the solid-state oscillator in the digital clocking device with a low-noise
mini-triode vacuum tube, we have significantly lowered the amount of jitter
introduced to the DAC. This in turn yields vastly superior resolution, detail
retrieval, improved clarity, increased detail and dynamics from top to bottom,
while retaining all the glory and musicality you expect from an all-tube CD
Player. The ProLogue Premium CD Player is a true dual-mono design, right down to
the dual 5AR4 tube rectification –another first in a cd player. The power supply
is adapted from the award winning ProLogue Three preamp. High quality resistors,
mosfets and Solen capacitors yield superior transient response, detail, and
channel separation.The next generation ProLogue Premium CD Player is an
engineering marvel –a cd player that sets a new benchmark in high-performance
audio by adding these innovative circuits to the critically-acclaimed original:
New power transformers. Heavy-duty, dual-mono, power transformers increase
control and detail. The CD player weighs in at a substantial 33 pounds.
New front end circuitry. Optimized to use tow 12AU7 tubes per channel. Combines
with the improved power transformers to further lower distortion, dropping by a
factor of 20 at output levels above one volt! This in turn dramatically improves
sound quality. PTP-circuit. If the power transformer should overheat, this
innovative “Protect the Power Transformer” circuit cuts primary power, allows
the preamp to cool down, then resets itself. Dual-mono, zero feedback
output stage using two 12AU7 tubes per channel. Vacuum tube rectified power
supply adapted from the award-winning ProLogue Three preamp that incorporates
eleven separate power supply regulation circuits. State-of-the-art Burr
Brown SRC4192 upsampling circuit and Burr Brown PCM1792 DACs.
SuperTubeClock™ ultra-low jitter clocking device. A PrimaLuna Exclusive.
Custom isolation transformers separate the analog and digital clock devices for
decreased signal degradation and improved sonics. 1 pair RCA analog
outputs. One coaxial and one optical digital output. Beautiful heavy-gauge
anodized brushed aluminum remote. Hand rubbed, high-gloss finish available
with silver or black faceplate. Quick release tube cage included. ProLogue
Premium - CD player Output voltage Frequency Response Distortion and Noise
Channel separationDynamic range Power consumption Dimensions Weight Analog
outputs Digital outputs Tube Complement 2.0V +/- 0.5 dB 20Hz-20kHz +/- 0.5
dB below -96dB 90 dB >120 dB 50 watts 14,5” x 8” x 15.5” – 37 cm x 20 cm x 40 cm
(WxHxD) 33 lbs – 15 kg 1 pair RCA 1 coaxial / 1 optical 4- 12AU7 2- 5AR4
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
 Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Se su un prodotto presente o non presente nel nostro catalogo ci
puoi richiedere il prezzo scontato ti faremo
la migliore offerta . Essendo
rivenditori ufficiali Italia le aziende ci chiedono
di non creare turbative di mercato pubblicando
prezzi scontati non ufficiali .Se hai trovato un prezzo più basso* in rete ,
segnalacelo e noi faremo di tutto per applicare quel prezzo. Altrimenti fai tu
un'offerta e noi la valutateremo. La segnalazione può essere effettuata via
email, all’indirizzo
info@newaudio.it
, oppure telefonando ai numeri 0174 670100 o 0174 481045 .
*Per prezzo più basso si
riferisce ad offerte praticate sul Web da aziende che sono distributori
ufficiali con sede in Italia , con regolare fatturazione e garanzia
italiana fornita dal distributore ufficiale. Qualora il prezzo da confrontare
fosse riferito a venditori esteri o che non offrono le caratteristiche suddette,
queste non verranno prese in considerazione.
Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a :
info@newaudio.it
Il presente listino
sostituisce ed annulla ogni precedente. I prezzi indicati si
riferiscono a singolo diffusore.
Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco
nostro magazzino
Nota bene
Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
|
.jpg)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
