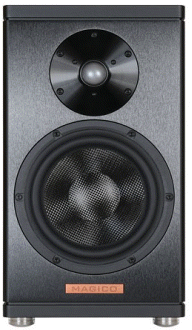

MAGICO
A1
Listino ufficiale
€. 6.450,00
Coppia diffusori dinamici in
alluminio 2 vie da libreria in cassa chiusa, alluminio spazzolato
Versione Silver 6.700,00 euro
.jpg)

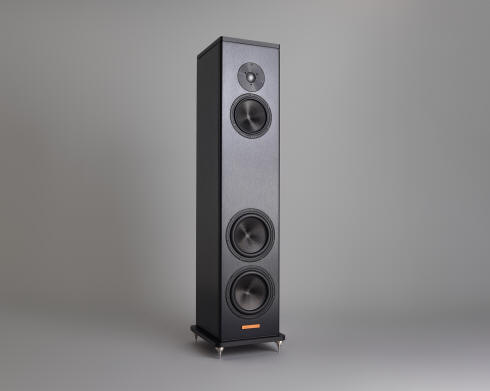

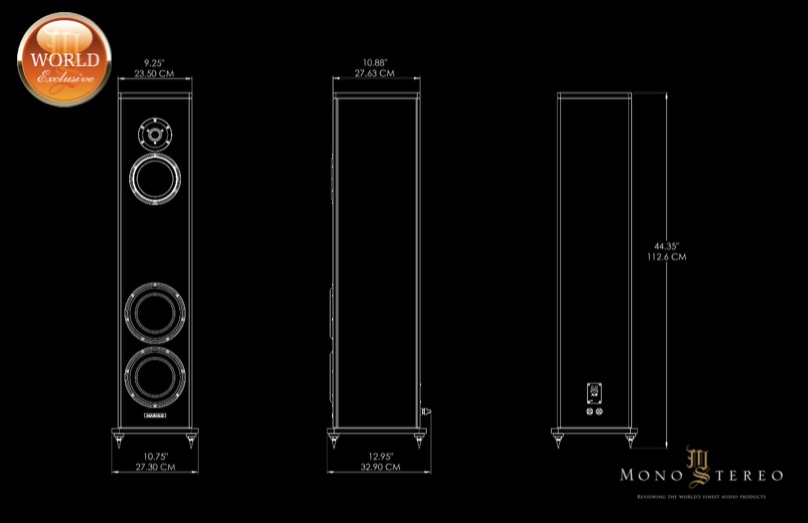

MAGICO
A3
Listino ufficiale
€. 10.550,00

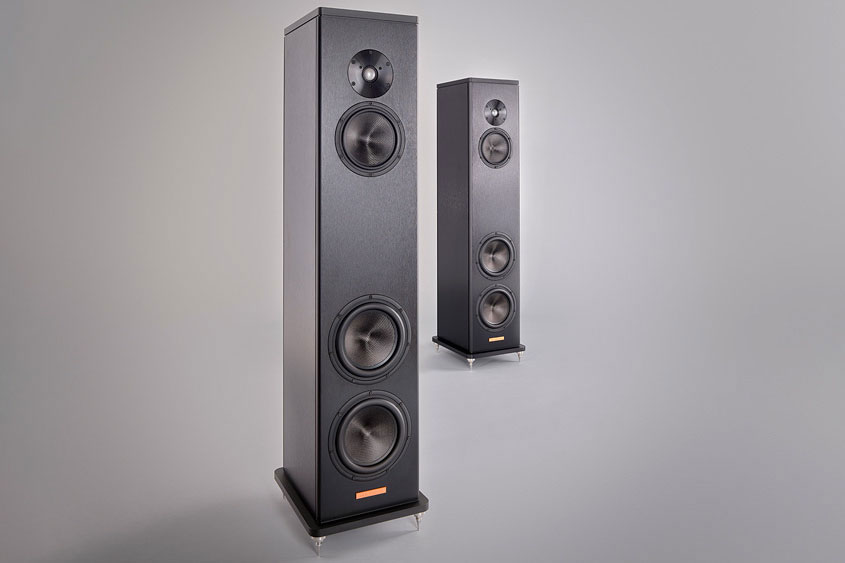

Diffusore dinamico in
alluminio 3 vie da pavimento in cassa chiusa, alluminio spazzolato
OPTIONAL Griglie A3 Set griglie opzionali per Magico A3 € 990,00
Apod8 Set 8 punte smorzanti per Magico A3 € 1.950,00 Versione Silver
11.100,00 euro
Magico is proud to launch the A series. At long
last a Magico loudspeaker obtainable for a wider audience; the A3 brings
together a bevy of technologies unheard-of at its price point. A fully braced
and anodized aluminum enclosure, beryllium tweeter, carbon Nanographene cones,
neodymium based motor systems and our renowned elliptical crossover, the A3 is

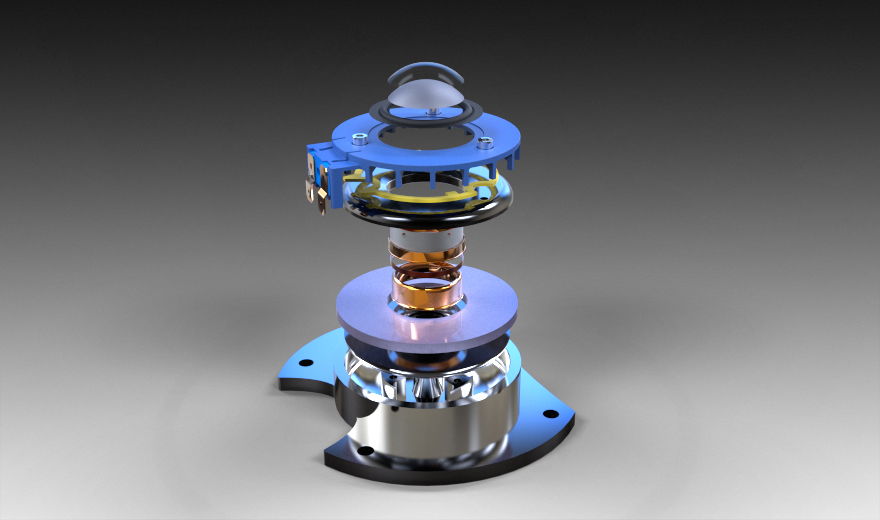

the impossible made possible. High Frequency driver Extended high frequencies
are provided by a newly designed Magico pure beryllium-diaphragm tweeter with an
optimized 28-mm dome surface based on the fundamental design platform and
geometry of the M-Project tweeter. The customized neodymium motor system is
encased in an improved back chamber with our latest generation damping materials
that facilitate ultra-low distortion, higher power handling, massive dynamic
capabilities and extended linear voice coil movement. Midrange Frequency driver
The newly developed 6-inch midrange employs a Multi-Wall carbon fiber cone with
a layer of XG Nanographene, providing optimal stiffness to weight ratios and an
ideal damping factor. Overhung neodymium based motor systems incorporate
extra-large magnets to ensure a stabilized magnetic field in the 75-mm pure
titanium voice coils of both the midrange and bass drivers. Low Frequency driver
Dual 7-inch woofers incorporate a version of the new Gen 8 Magico Nano-Tec cone.
The same properties and materials that allow for the proper combination of
stiffness, mass and damping are carried through to the lowest frequencies. The
chassis has also been simulated and tested for the optimal combination of
stiffness and damping. Minimum acoustical impact is achieved through reducing
vibration modes while maximizing air flow. A new overhung neodymium (N48) based
motor system anchors the low frequency reproducers to accomplish a super
stabilized magnetic field. A pure Titanium, 75mm voice coils are consistent with
the technology utilized through the midrange. The A3 Midrange and Low
frequency drivers were optimized for minimal music related distortions in its
band pass, in both the frequency and time domains using latest state of the art
FEA simulation of acoustical, mechanical, electromagnetic and thermal behavior.
All of this is now being done on a single platform, allowing Magico to take the

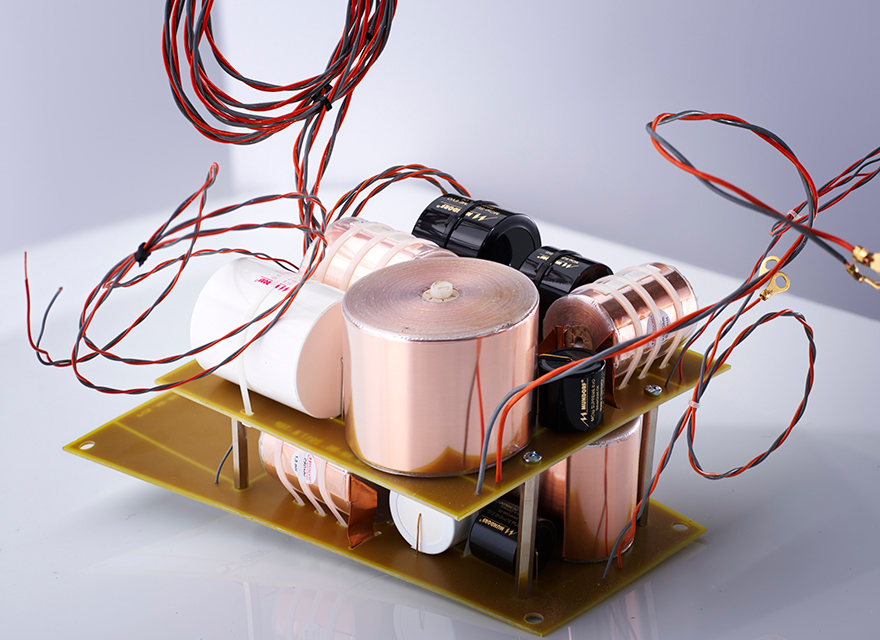

next step in performance optimization. Crossover All four drivers in the A3 are
acoustically integrated using Magico’s proprietary Elliptical Symmetry Crossover
topology that utilizes state-of-the-art components from Mundorf of Germany. The
3-way network features a 24db per octave Linkwitz-Riley filter that maximizes
frequency bandwidth while preserving phase linearity and minimizing
intermodulation distortion.Enclosure The A3’s massive sealed-enclosure is, like all Magicos, a
tour-de-force of engineering. The enclosure is made entirely from 6061 T6
aircraft grade aluminum, identical materially to the enclosure developed for the
Q Series. This braced, complex internal structure is finished externally with an
elegant brushed anodized “skin”. The A3 enclosure is best considered as a
simplified Q Series design, with the same materials, the same craftsmanship, and
the same attention to design and build detail. Driver Complement 1" MB7
Beryllium Dome (X1) 6” Midrange Graphene Nano Tec (X1) 7” Bass Graphene Nano Tec
(X2) SpecificationsSensitivity: 88dBImpedance: 4 Ohms Frequency Response: 22 Hz
– 50 KHz Minimum Recommended Power: 50 Watts RMS Maximum Recommended Power: 300
Watts RMS Dimensions: 44”H x 11”D x 9.25”W (112cm x 27cm x 23cm) Weight: 110 lbs.
(50Kg)

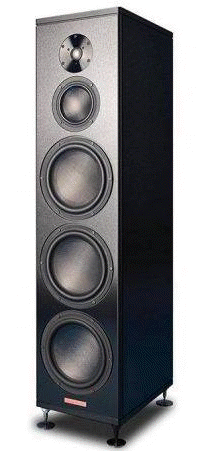

MAGICO
A5
Listino ufficiale
€. 18.250,00
Coppia diffusori dinamici in alluminio 3 vie da
pavimento in cassa chiusa, alluminio spazzolato
Versione Silver 19.200,00 euro
MAGICO
S1.5
Listino ufficiale
€. 7.750,00
Diffusore dinamico in alluminio 2 vie da
pavimento in cassa chiusa, finitura opaca

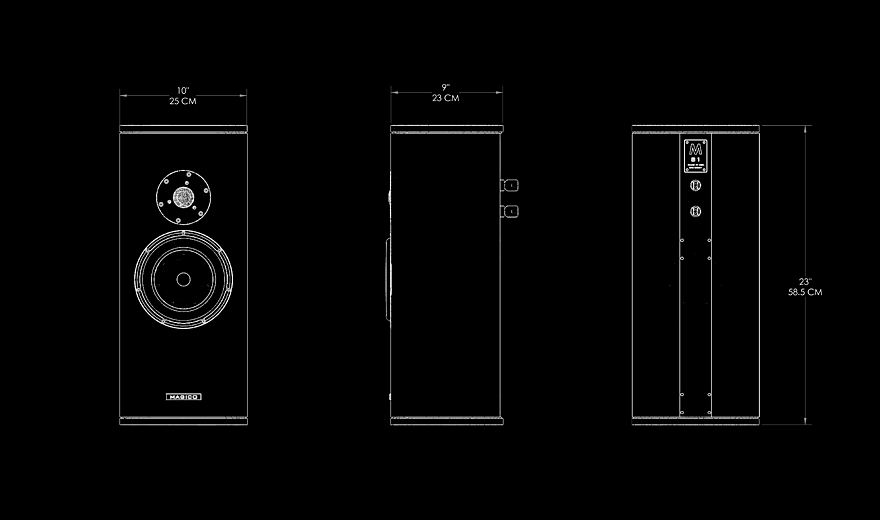

S1.5

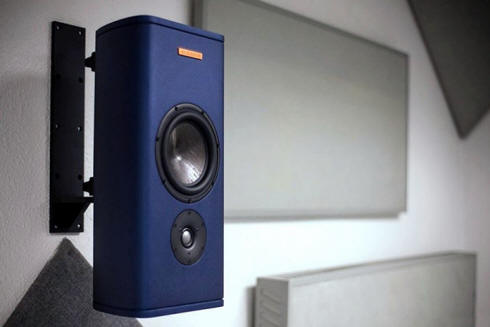

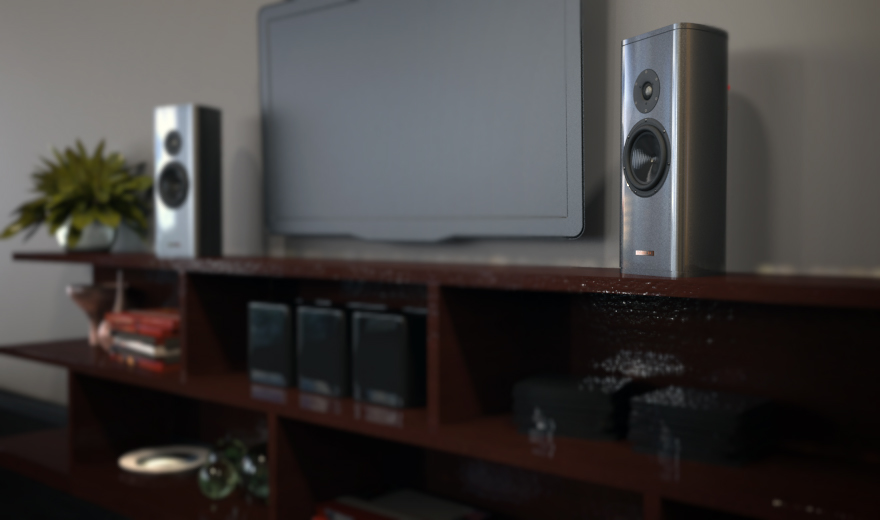

Equally suited to traditional two-channel or complex multi-channel applications,
and with color options making it aesthetically compatible with any décor, the
S1.5 delivers design and performance in an extremely flexible package. The S1.5
employs the same Beryllium tweeter, Nano-Tec mid-range driver technology, as
well as Magico’s acoustic-suspension enclosure platform with the rest of the
Magico line. The S1.5 performs masterfully as a stand-alone solution,
demonstrating tremendous detail and agility throughout its frequency band. When
engaged in a home theater solution the results are without peer, the S1.5
performs in perfect harmony alongside its S-Series siblings. SPECIFICATIONS
Driver Complement: 1 x 1" Tweeter1 x 7" Mid-woofer Sensitivity: 86dB Impedance:
4 Ohms Frequency Response: 38 Hz - 50 kHz Recommended Power: 50 watts Dimensions:
23"H x 9"D x 10"W (58.5cm x 23cm x 25cm) Weight: 55 lbs. (24.95 Kg)
.jpg)
MAGICO
S1
MKII
Listino ufficiale
€. 13.700,00
Diffusore dinamico in alluminio 2 vie da
surround incassa chiusa, finitura opaca

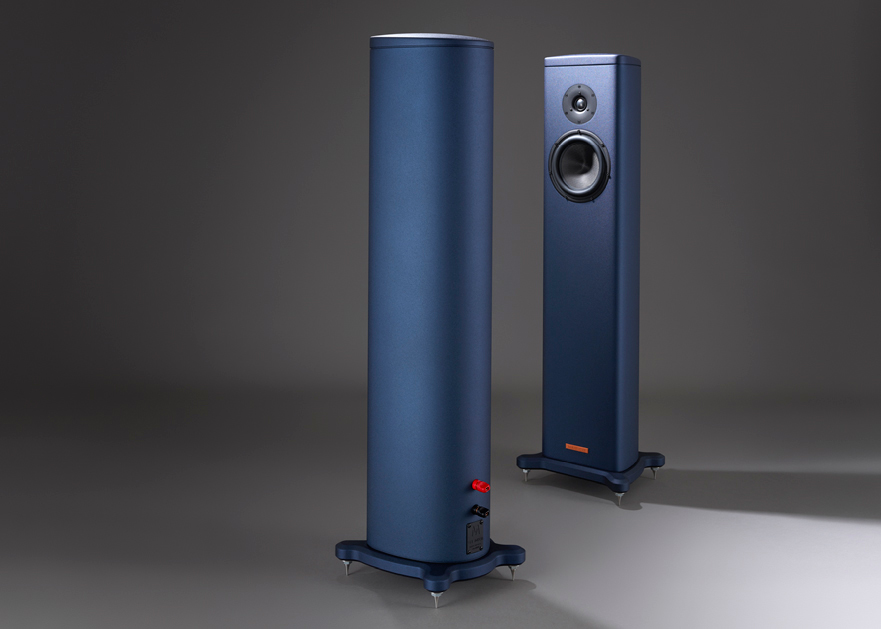

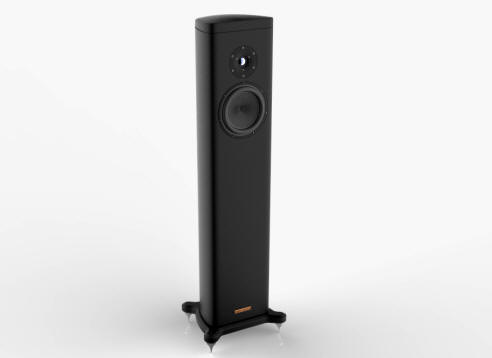

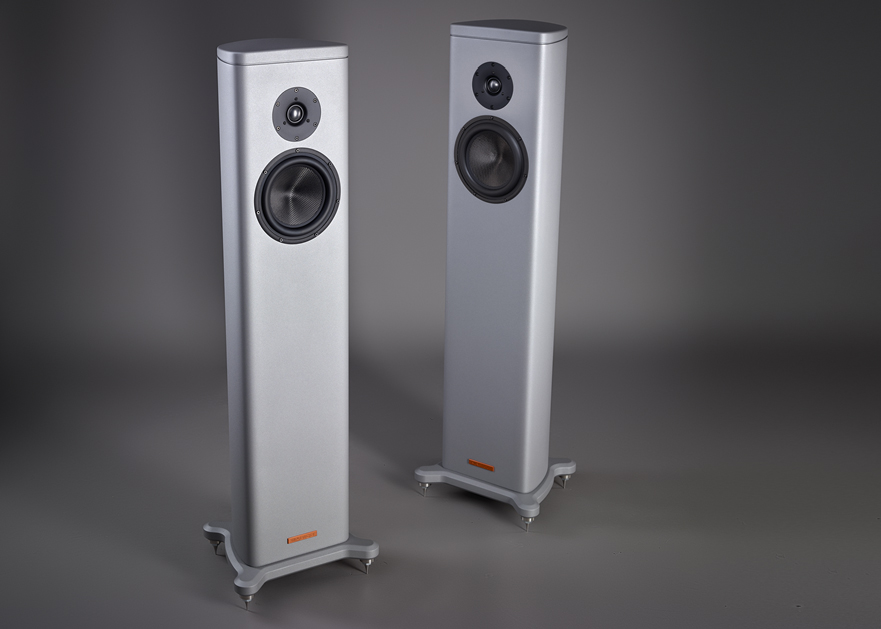

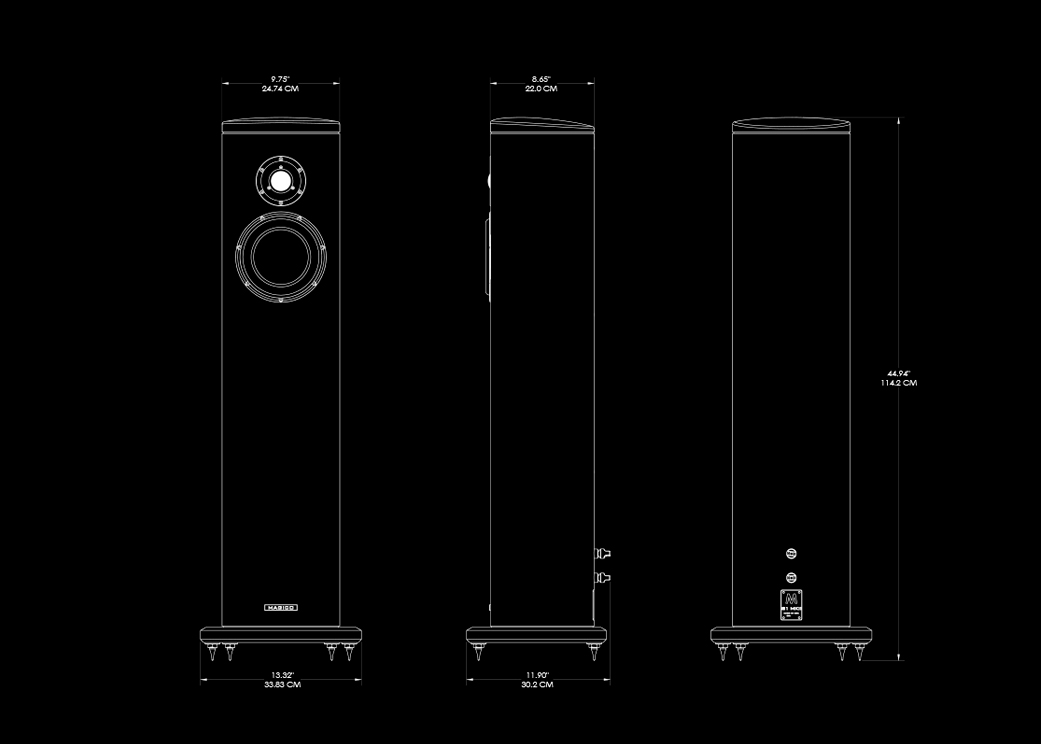

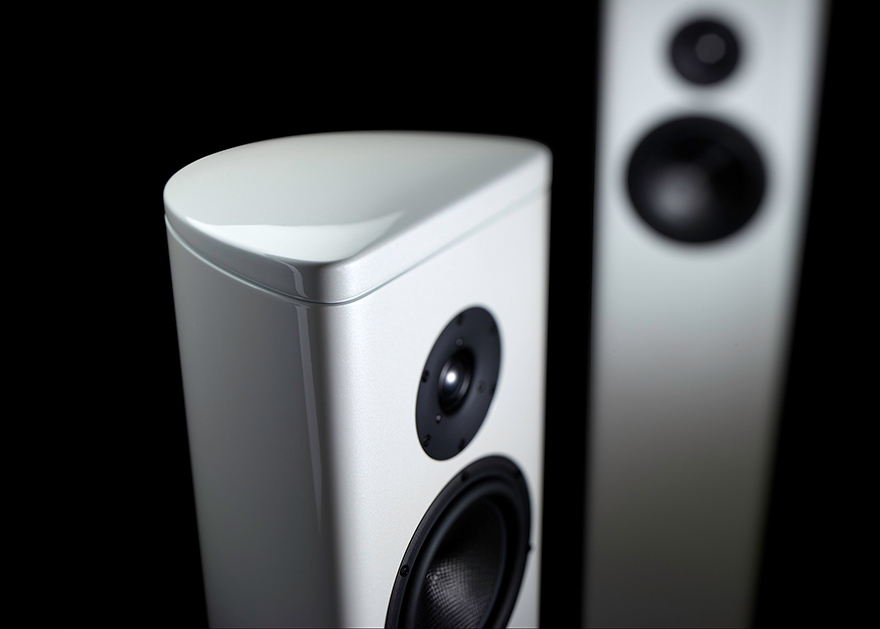

At first glance the S1 Mk II may appear similar
to its predecessor. However, it is entirely redesigned, and incorporates
distilled elements of our most recent and ground breaking engineering
accomplishments. The design platform of the S1 Mk II features core technologies
that are unique to Magico –an all aluminum enclosure, and proprietary driver
design that outperforms any other driver available today.The monocoque enclosure
of the S1 Mk II is formed from a single piece of extruded aluminum that is 3/8"
thick and 12" in diameter. The slender enclosure is supported internally by a
new innovative bracing technique along with advanced damping materials and glues
that minimize resonance and maximize structural rigidity and stability. A
massive new top plate is machined into an elegant 3D convex shape to minimize
enclosure diffraction and break-up vertical standing waves.Detailed and extended
high frequencies are provided by the newly designed 1-inch Diamond coated
Beryllium diaphragm tweeter - first introduced in the S7 - that offers matching
sensitivity, wide dispersion and high power handling. A robust motor system and
long throw voice coil enables lower distortion and cutoff frequencies never
achieved before.Captivating mid-bass performance is provided by a newly designed
7-inch mid bass driver that incorporates Mutli-Wall carbon nanotube and
Nanographene which combined is 20% lighter and 300% stiffer than the previous
cone material used in the original S1. A new underhung neodymium base motor
system substantially increases the S1 Mk2 power handling.A massive new top plate
is machined into an elegant 3D convex shape to minimize enclosure diffraction
and break-up vertical standing waves. Newly designed 4-point outrigger assembly
supports the S1 Mk II enclosure and optimizes overall performance. The S1 Mk II
is available a new M-Cast finish and the luxurious M-Coat painted finish.SPECIFICATIONS
Driver Complement:1 x 1" (2.54cm) Diamond Coated Beryllium Dome 1 x 7" (17.78cm)
Graphene Nano-Tec Cone Sensitivity: 86dB Impedance: 4 Ohms Frequency Response:
32 Hz - 50 kHz Recommended Power: 50 watts Dimensions: 43"H x 8.5"D x 9.75"W
(109cm x 23cm x 25cm) Weight: 120 lbs. (54.5 kg)
/MAGICO%20S3%20MKII%20(6).jpg)
MAGICO
S3
new
Listino ufficiale
€. 34.000,00
Diffusore dinamico in alluminio 2 vie da
surround incassa chiusa, finitura opaca

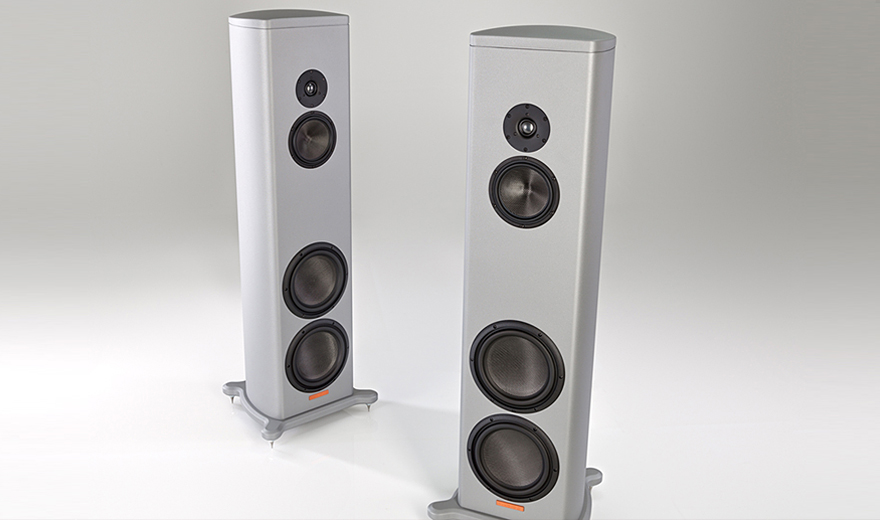

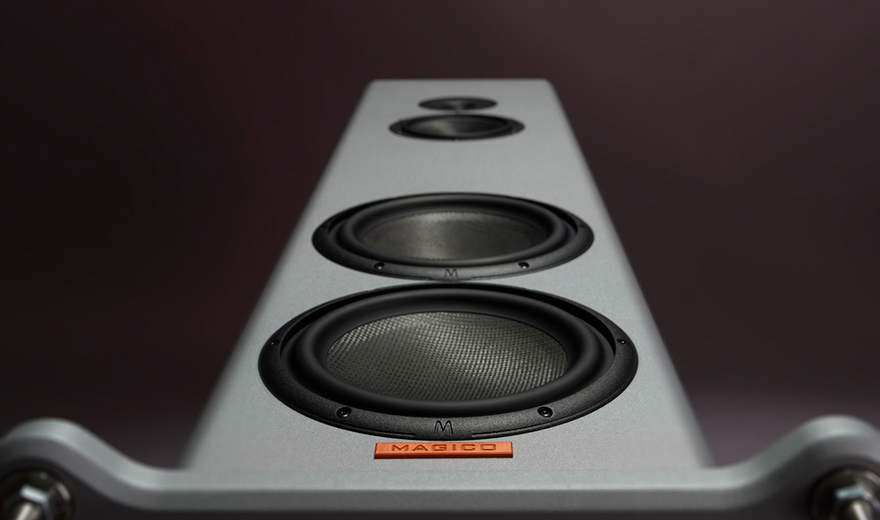

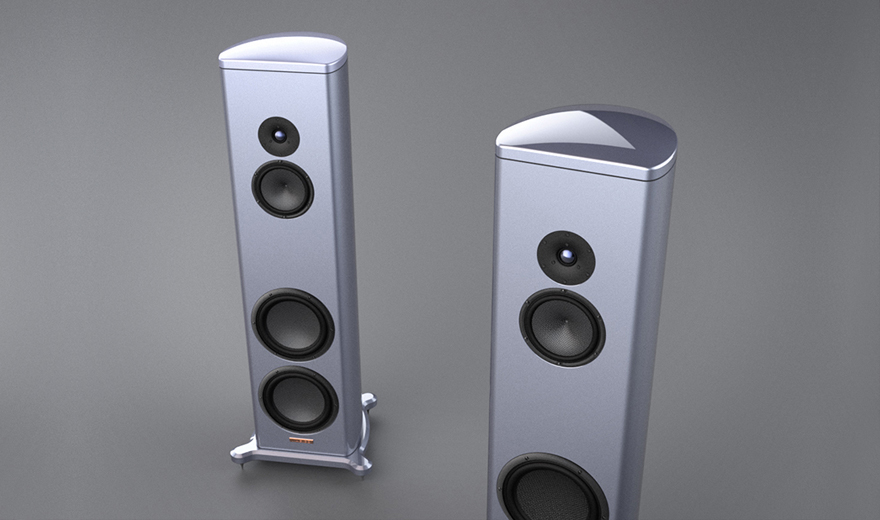

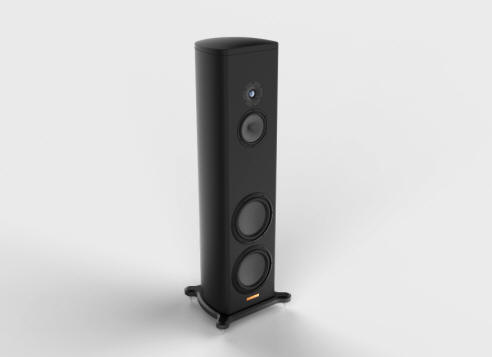

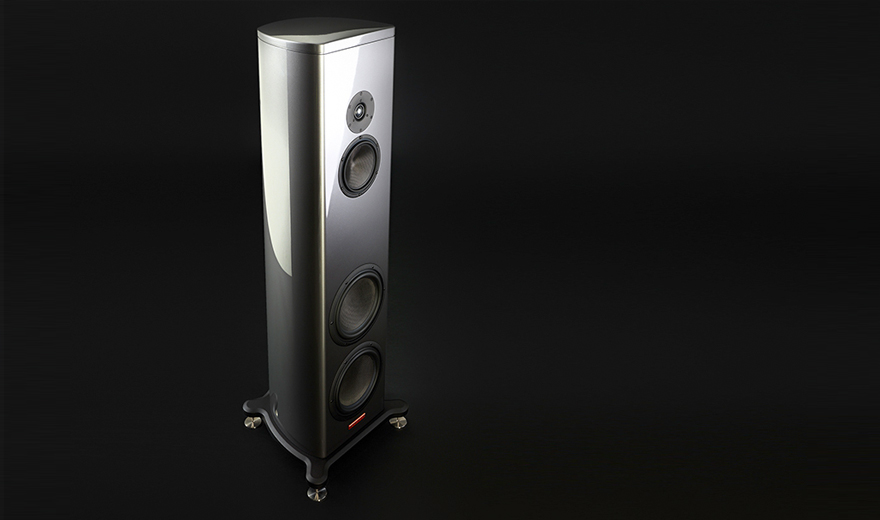

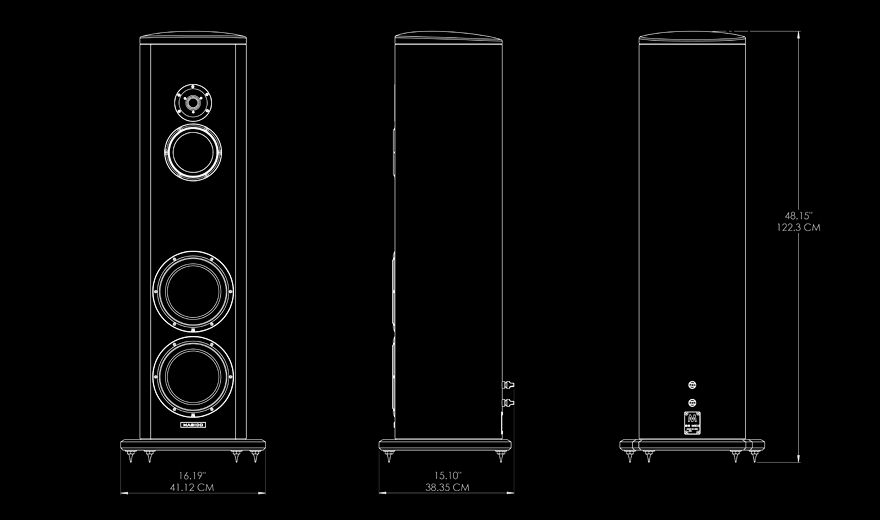

The S3 Mk II nestles in between the S1 Mk II and S5 Mk II and
features all of the advanced design elements of the S-Series Mk II models,
including a new 9-inch bass driver with the lowest measured distortion born from
the design and engineering theories applied to the limited-edition, 10th

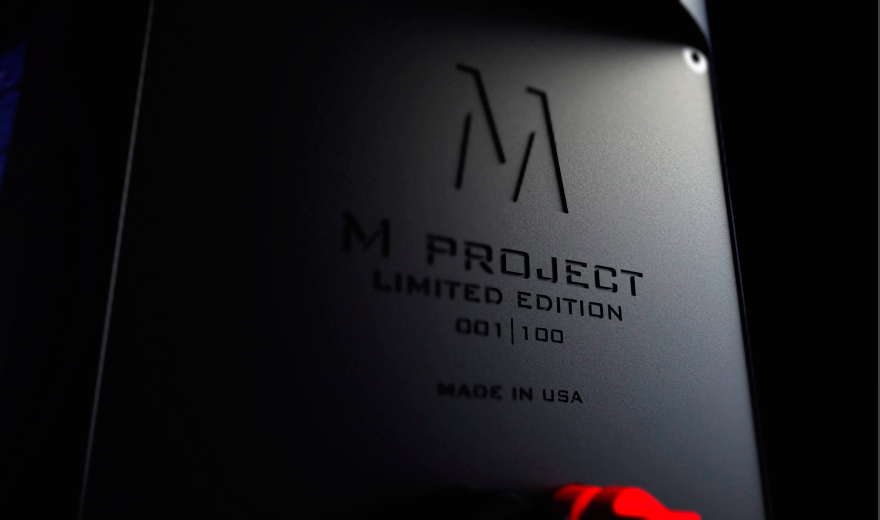

Anniversary M-Project.Superlative high frequencies are provided by a 1-inch
Magico diamond-coated beryllium-diaphragm tweeter that offers matching
sensitivity, wide dispersion, and increased power handling over its predecessor.
A new aluminum housing for the magnet structure minimizes overall resonance and
improves the isolation parameters for the tweeter dome element. The long-throw
voice coil enables lower distortion and optimal cutoff frequencies that enhance
driver integration with the midrange driver.Extraordinary midrange reproduction
is attained from a proprietary 6-inch driver that is formulated using Multi-Wall
carbon fiber and a layer of XG Nanographene, which when combined is 20% lighter
and 300% stiffer than the previous S-series cone designs. The purpose-built
sub-enclosure is made of a proprietary polymer material which provides an
optimized environment for the midrange driver to operate within.Deep, powerful,
and accurate bass frequencies result from two newly designed 9-inch Magico bass
drivers that are produced with advanced manufacturing techniques using a new
Multi-Wall carbon, Nanographene cone. The powerful magnet structure controls a
5-inch pure Titanium voice coil that has a 1/2-inch of linear excursion and
produces clean, undistorted sound pressure levels up to 112dB @ 50Hz/1-meter.The
monocoque enclosure of the S3 Mk II is formed from a single piece of extruded
aluminum that is 3/8-inch thick and 12-inches in diameter. The new aluminum top
plate is machined into an elegant 3D convex shape to minimize enclosure
diffraction and break-up vertical standing waves. A massive 4-point outrigger
base lowers the speaker’s center of gravity and increases stability and dynamic
range.All four drivers in the S3 Mk II are acoustically integrated using
Magico’s exclusive Elliptical Symmetry Crossover topology that utilizes
state-of-the-art components from Mundorf of Germany. The dividing network
maximizes frequency bandwidth while preserving phase linearity and minimizing
intermodulation distortion. Individual driver performance and the loudspeaker in
its final form are tested and optimized for acoustical, mechanical,
electromagnetic, and thermal behaviors using the latest state-of-the-art Finite
Element Analysis simulation testing equipment.SPECIFICATIONS
Driver Complement: 1" MBD7 Diamond Coated Beryllium Dome (x1) 6" M390G XG
Nanographene Cone (x1) 9" M905G XG Nanographene Cone (x2) Sensitivity: 88dB
Impedance: 4 Ohms Frequency Response: 24 Hz - 50 kHz Recommended Power: 50 watts
Dimensions: 48.2"H x 12"D x 12W (122cm x 30.5cm x 30cm) Weight: 170 lbs. (77 kg)
/magico%20s5%20mkii%20(6).jpg)

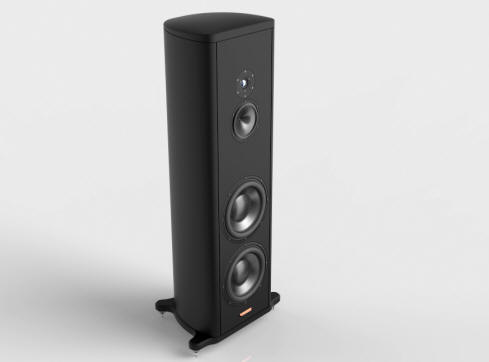

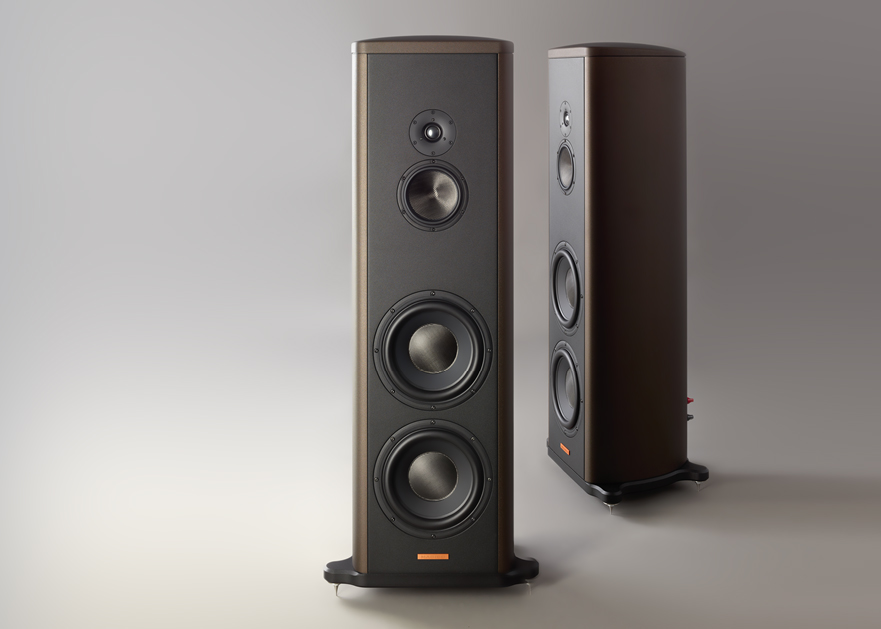

MAGICO
S5
MKII
Listino ufficiale
€. 34.450,00
Diffusore dinamico in alluminio 3 vie da pavimento in cassa chiusa, finitura opaca

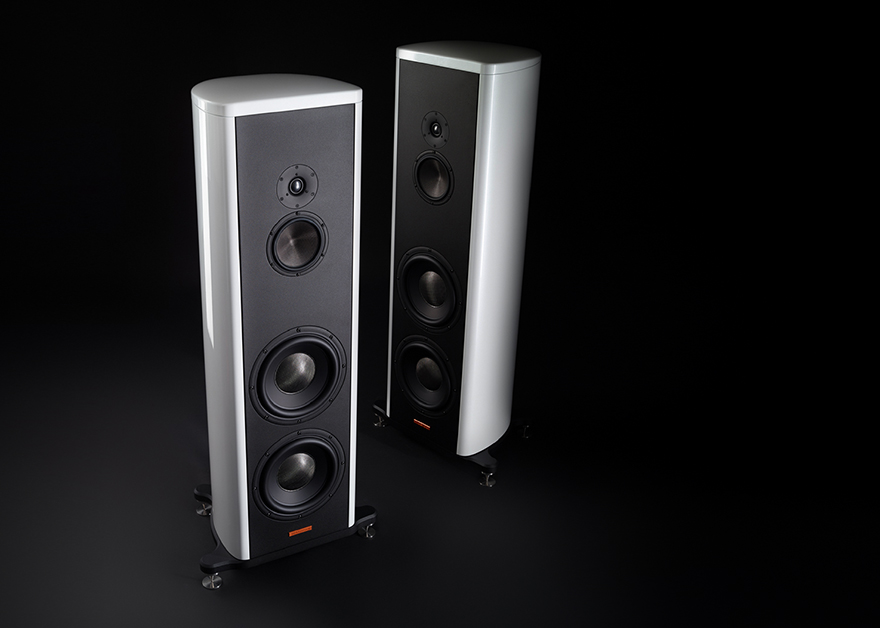

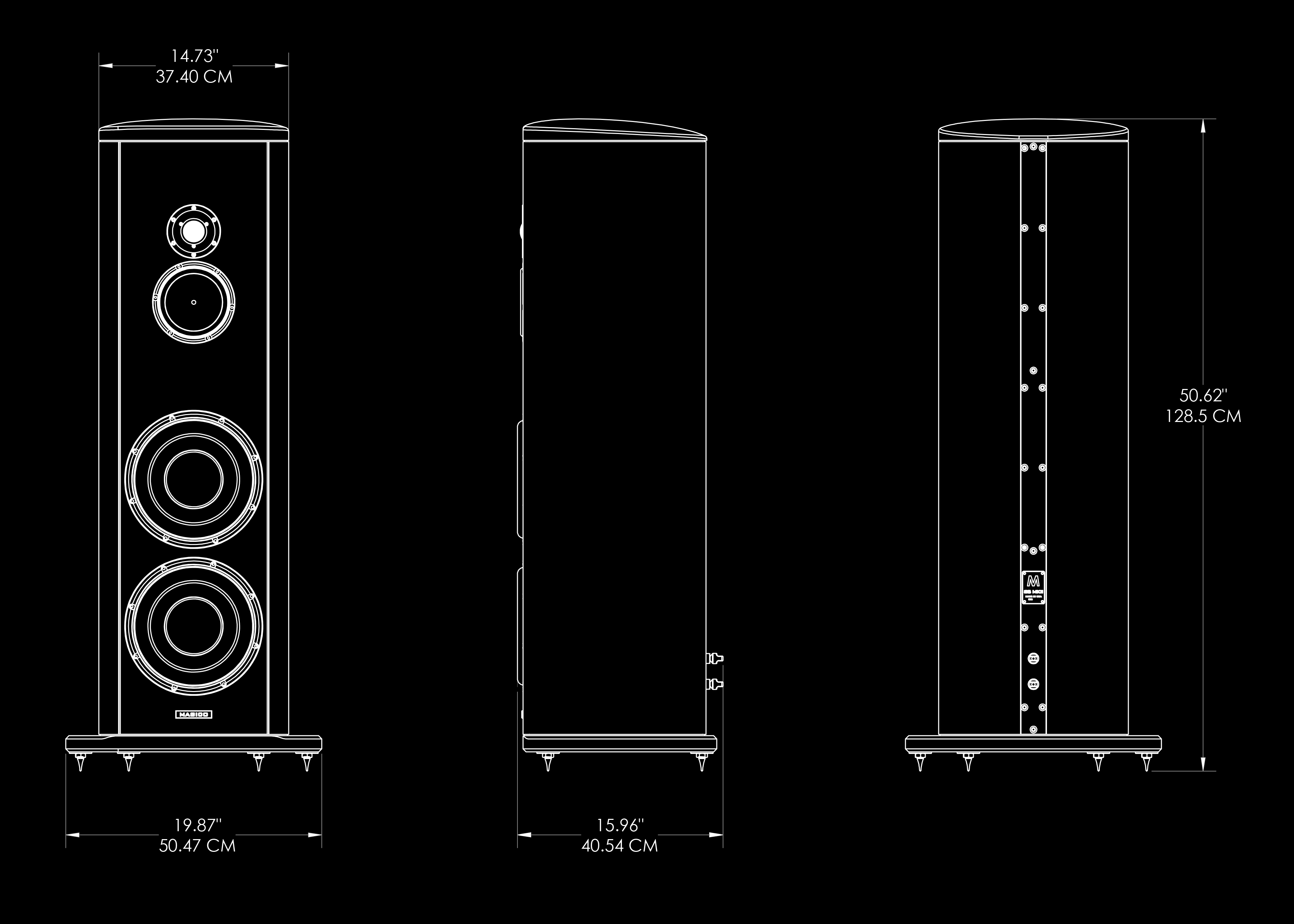

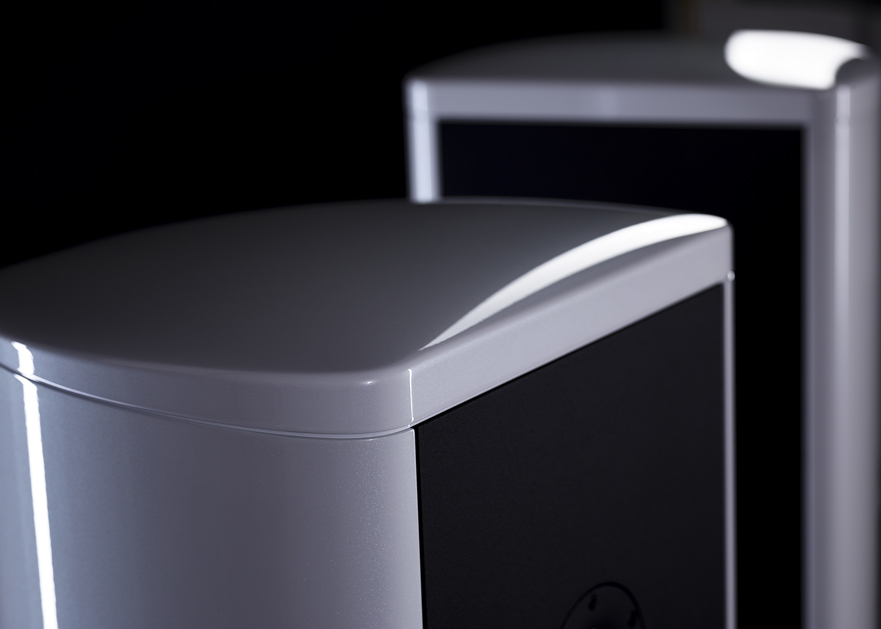

The
new S5 Mk II silhouettes its predecessor however that is where any similarity
ends. Significant performance enhancements are realized with the implementation
of new and advanced transducer and enclosure designs which have been distilled
from the extensive engineering research devoted to the S7.A newly designed
1-inch Magico Diamond coated Beryllium diaphragm tweeter provides smooth and
extended high frequencies along with matching sensitivity, wide dispersion and
increased power handling. A robust motor system and long-throw voice coil design
enables lower distortion and cutoff frequencies that enhance driver integration
with the midrange driver. A higher benchmark of measured midrange performance is
achieved with a newly designed 6-inch Magico driver that is formed of Mutli-Wall
carbon and Nanographene. The combined result of these two cutting-edge materials
creates a new cone that is 20% lighter and 300% stiffer than the cone used in

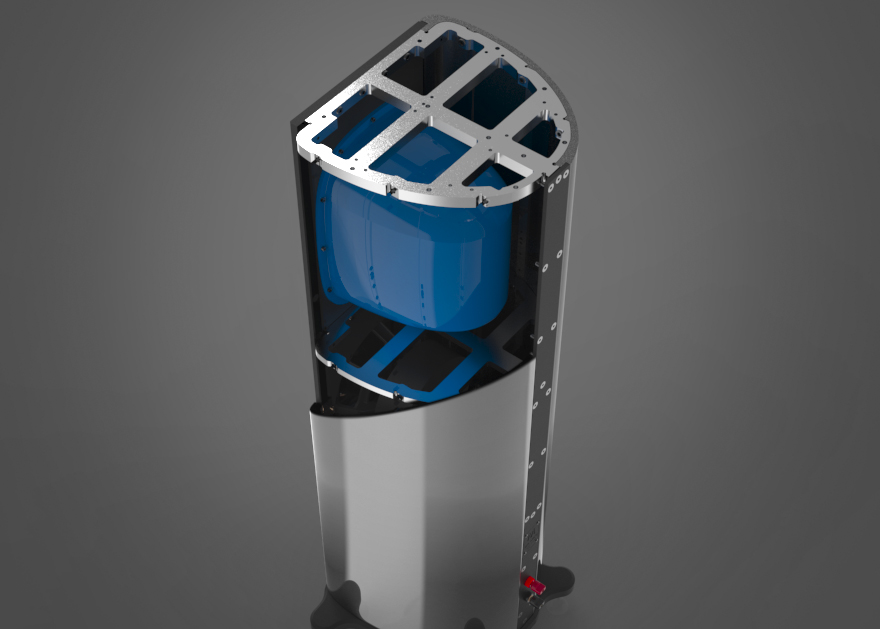

the S5. A purpose built sub-enclosure made of a proprietary polymer material
provides an acoustically optimized rear chamber for the midrange to operate
within. The sub-enclosure concept was first introduced in the S3 and provides
noticeable enhancements in midrange control and articulation.Newly designed
10-inch Magico bass drivers offer a new motor system with extremely powerful
magnets and ultra-stiff aluminum cones that are specially coated and finished
with graphene dust caps. The new bass driver is capable of producing incredibly
deep, powerful and complex bass frequencies with the utmost speed and
accuracy.The impressive enclosure of the S5 Mk II is assembled from extruded
aluminum, 1/2-inch thick and 16-inches in diameter. A massive new top plate is
machined into an elegant 3D convex shape to minimize enclosure diffraction and
break-up vertical standing waves. The thicker base plate incorporates a newly
designed 4-point outrigger support that lowers the center of gravity and
increases overall stability resulting in lower noise floor and increased
dynamics.SPECIFICATIONS Driver Complement:1" (2.54cm)
Diamond Coated Beryllium Dome 6" (15.24cm) Graphene Nano-Tec Cone 10" (25.4cm)
Aluminum Cone Sensitivity: 88dB Impedance: 4 Ohms Frequency Response: 20 Hz - 50
kHz Recommended Power: 50 watts - 1000 Watts Dimensions: 48"H x 14"D x 15"W
(122cm x 36cm x 38cm) Weight: 220 lbs. (100 kg)
.jpg)
MAGICO
M3
a RICHIESTA
M3

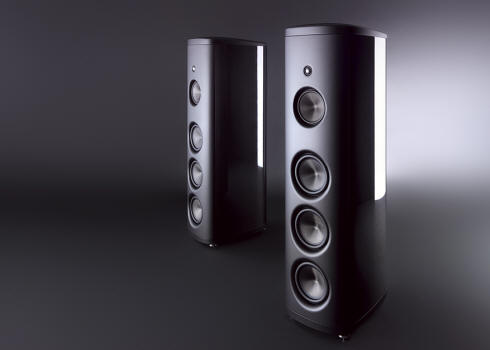

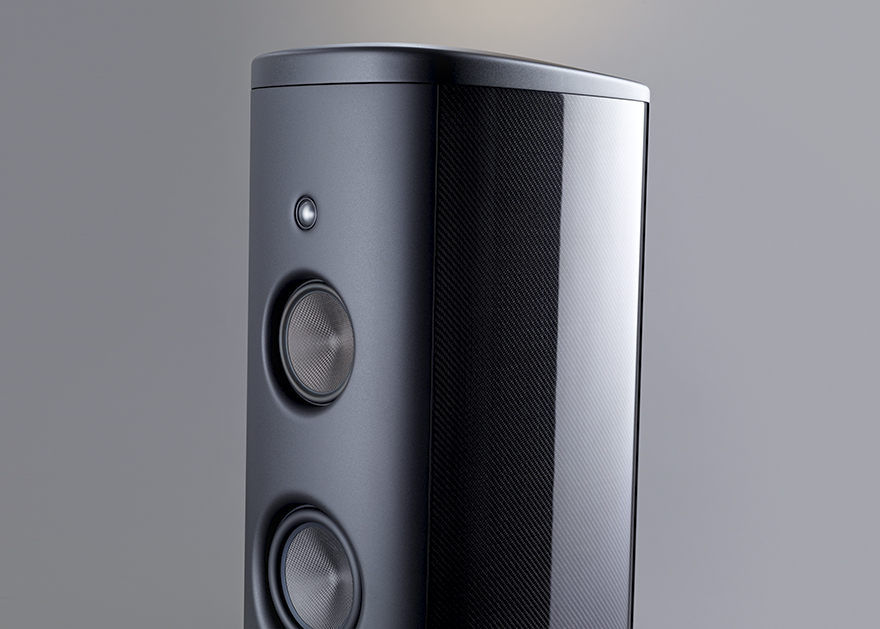

In 2014 the introduction of the limited edition M-Project provided a glimpse of
the cutting edge designs and advanced technologies that were being developed at
Magico. Over the past two years intense research has been dedicated to exploring
new methodologies and materials which are now incorporated in the Magico M3.A
new carbon fiber side panel design, an all-graphene midrange and bass driver
design, and the phenomenal 28mm diamond coated beryllium tweeter, previously
found only in the M-Project, all come together in what is the most sophisticated

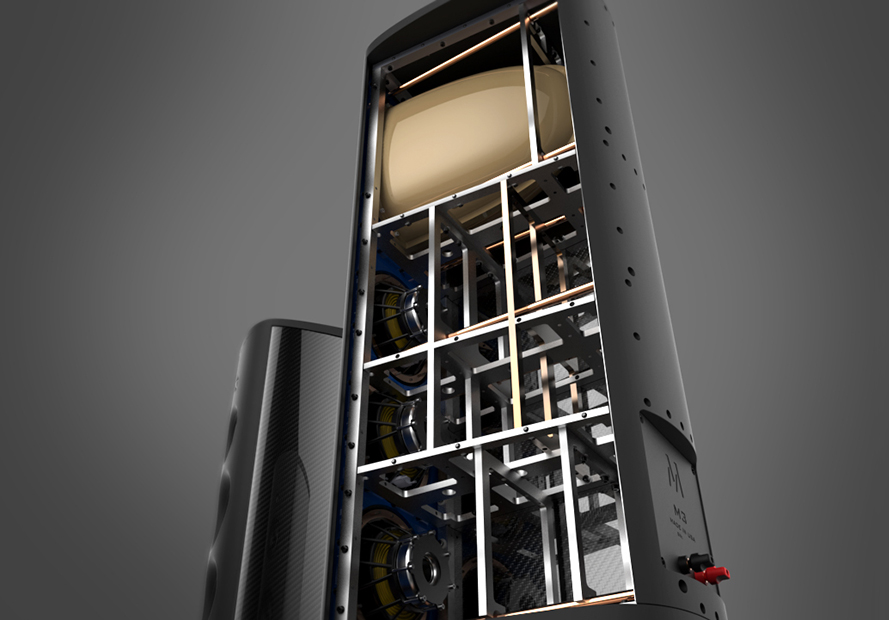

loudspeaker we have ever created.An internal three-axis matrix framework in the
M3 contributes to an extremely rigid enclosure and eliminates unwanted
resonances and colorations, allowing all drivers to perform with stunning
resolution and dynamics.The M3 midrange driver operates in a purpose built
sub-enclosure made of a proprietary polymer that enhances midrange control and
articulation. This sub-enclosure concept was first used in the S3 and is now
applied to our more recent 3-way speaker designs.The M3 incorporates the Diamond
coated Beryllium diaphragm tweeter (28-mm) used in the MPro. The optimized
geometry and the Diamond coating on the Beryllium aligns the acoustical
properties closer to perfection without adding extra weight of a full Diamond
dome, this revolutionary tweeter design offers a near perfect weight to
stiffness ratio that is unmatched in the industry. The new tweeter provides
extra-long excursion movement and uses a neodymium based motor system that is
customized to match the sensitivity and power handling capabilities of the M3
while maintaining ultra-wide dispersion characteristics and ultra-low distortion
measurements.Magico is the world’s first manufacturer to utilize graphene in the
development of a radically new and advanced loudspeaker cone design. Graphene
has many extraordinary properties and is approximately 100 times stronger than
the strongest steel. The newly designed Magico six-inch midrange and seven-inch
bass driver cones found in the M3 are both manufactured using Multi-Wall carbon
XG Nanographene and an ultra-stiff proprietary new carbon weave which is 20%
lighter and 300% stiffer than previous cone material we used in Magico
loudspeaker offerings. Three seven-inch M3 bass drivers are vertically aligned
to achieve ideal room integration and reproduce the lowest registers of bass
frequency with speed and accuracy. The M3 bass drivers are optimized for minimal
music related distortions in the frequency and time domain using the latest
state-of-the-art FEA simulation.A contributing element to the stunning overall
sound performance of the M3 is the application of the MPOD. The MPOD is based on
the scientific principles of Constrained Layer Damping (CLD) which are well
documented and in our opinion, the most effective way to channel unwanted
vibrations away from a component and its platform.Operating under massive weight
the MPOD is a noise channeling system that effectively dissipates resonance
while maintaining ultimate coupling properties to the floor resulting in

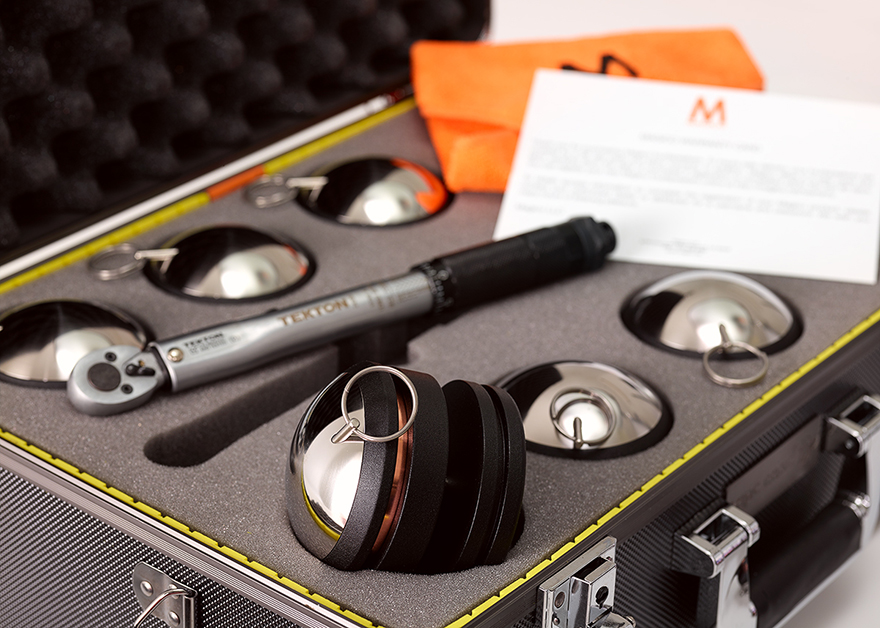

remarkable sonic results. M3’s ordered with the MPOD 3-Pt Stand come with a
beautifully appointed case that includes six MPOD’s and a professional grade
torque wrench that allows for periodic maintenance of the internal tension rods.SPECIFICATIONS
Driver Complement: 1 X 1” (2.8cm) Diamond Coated Beryllium Dome Tweeter 1 X 6”
(12.24cm) Graphene Nano-Tec Midrange 3 X 7” (17.78cm) Graphene Nano-Tec Bas
Sensitivity: 91dB Impedance: 4 Ohms Frequency Response: 24 Hz - 50 kHz

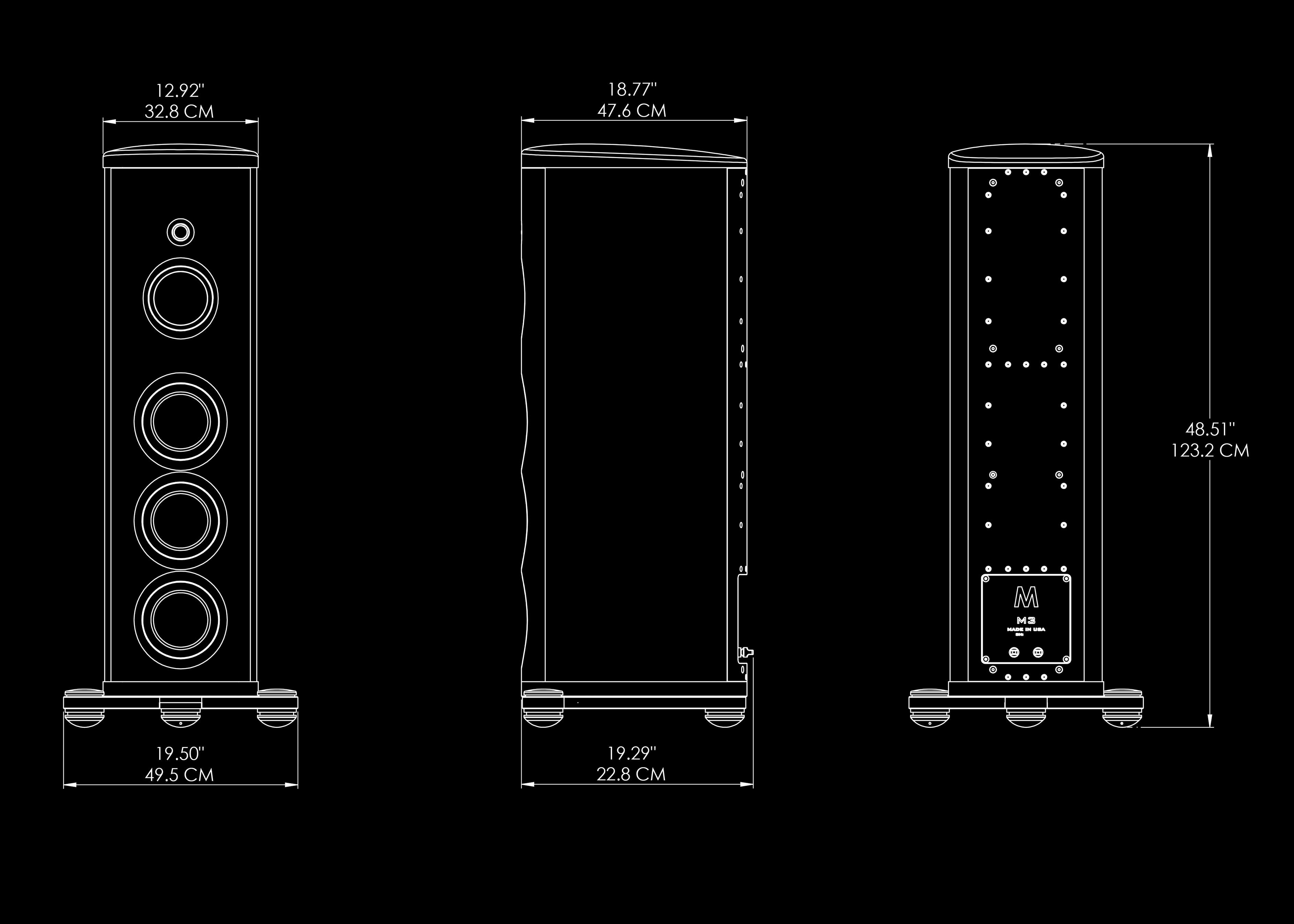

Recommended Power: 20 - 500 watts Dimensions: 48"H x 19"D x 13W (120cm x 49cm x
34cm) Weight: 320 lbs. (145 kg)
.jpg)
MAGICO
M6
a
RICHIESTA
Coppia diffusori in
alluminio e carbonio 3 vie da pavimento in cassa chiusa
The

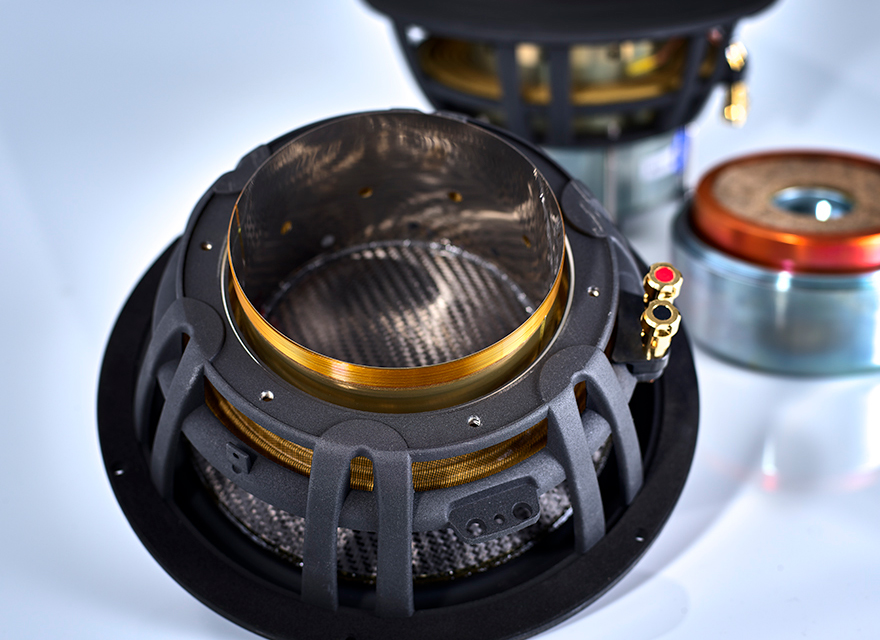

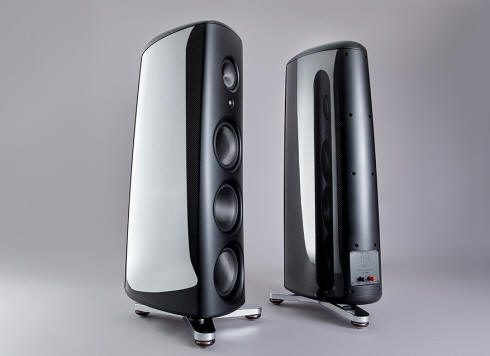

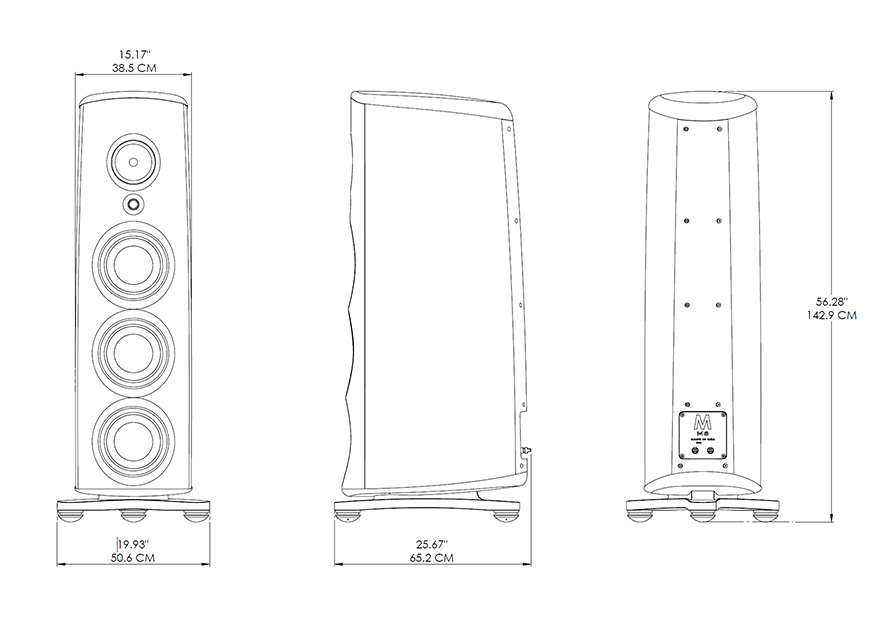

M6 is a floor standing, three-way, five-driver loudspeaker design that
establishes a new pinnacle of engineering and design vision at Magico.Since the
release of the M-Project in 2014, Alon Wolf and his engineering team have worked
to expand upon the ground breaking designs that were first introduced in the
critically acclaimed product which included the application of carbon side
panels. The new M6 represents the culmination of such efforts and a major

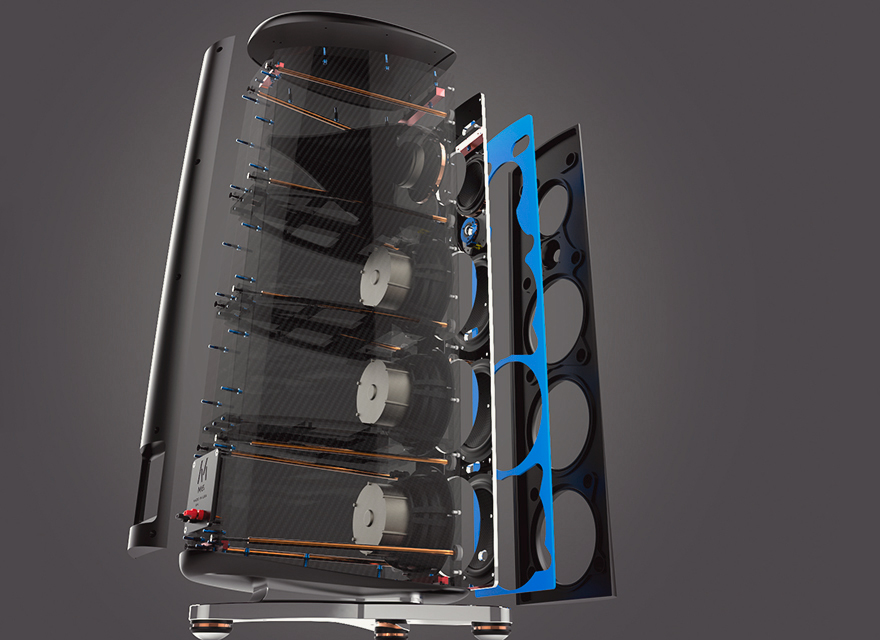

advance in loudspeaker design. The most compelling aspect is the six-sided,
monocoque enclosure sculpted of ½” carbon fiber, leveraging the latest Aerospace
materials and technologies. Similar to the external shell of an F-35 fighter
jet, this method of construction increases the structural strength-to-weight
ratio by a factor of 60, while reducing overall weight by 50% and yielding outer
dimensions that are 30% smaller without compromising internal volume. The curved
interior and exterior walls minimize internal standing waves and eliminate
external diffractions.
.jpg)
MAGICO
MPROJET
a RICHIESTA
M-Project diffusore dinamico in
alluminio 3 vie da pavimento in cassa chiusa

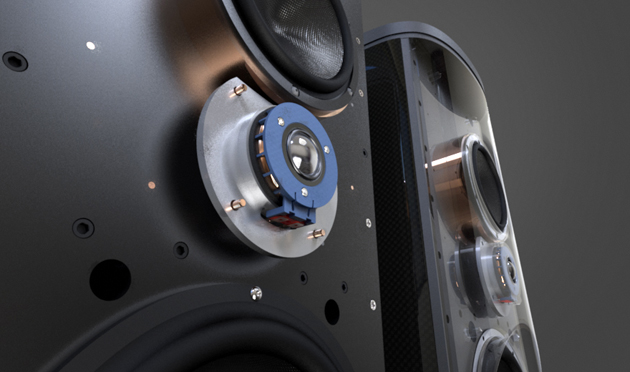

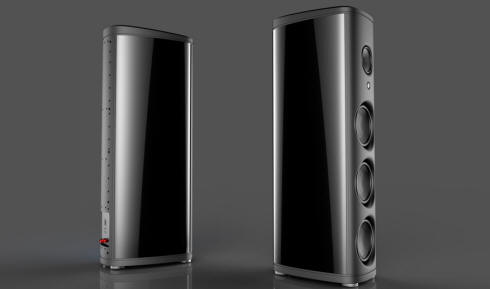

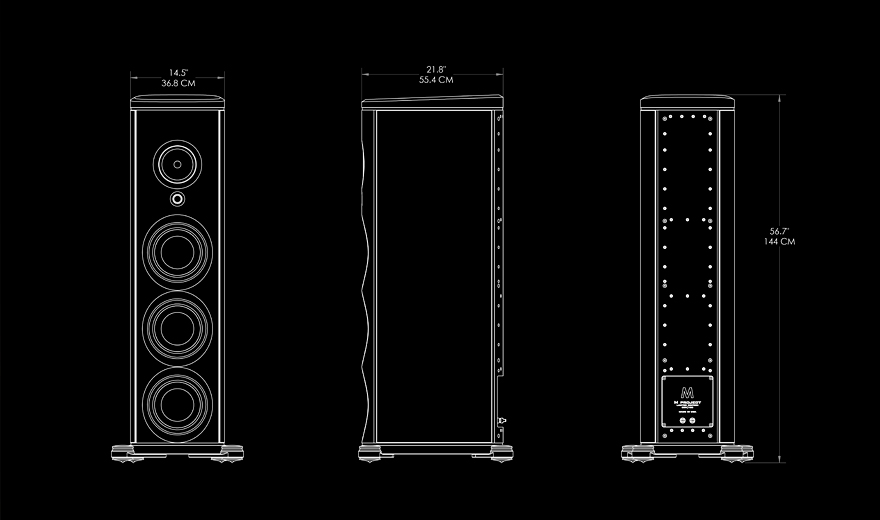

M Project Paying homage to everything Magico has
built over the last ten years, we are proud to announce the release of the M
Project, a limited-edition loudspeaker that encapsulates our spirit, our
accomplishments, and our latest state-of-the-art technology that will – once
again – set a new industry standard. With production limited to 50 pairs, The M
Project will be uniquely positioned as a cornerstone for the most resolving and
discerning music systems extant. A three-way, five-driver floorstanding
loudspeaker – borrowing familiar motifs from the Q series, the original Mini,
and the new S series – the M Project sports a newly designed curved shape, which
minimizes internal resonances and enables an industry-leading minimal amount of
damping. We further optimized our signature front baffle contour to incorporate
edge-free top and bottom plates, integrating a new enclosure comprising aluminum
skeleton topology, our signature acoustically optimized front plate, and
carbon-fiber sides. SPECIFICATIONS MDriver Complement: 1 x 1" (2.54cm)
Tweeter 1 x 6" (15.24cm) Graphene Midrange 3 x 10" (25.4cm) Nanotech Bass
Sensitivity: 91dB Impedance: 4 Ohms Frequency Response: 20 Hz - 50 kH
Recommended Power: 50-1000 Watts Dimensions: 56"H x 23"D x 15"W
(145cm x 57cm x 37cm) Weight: 400 lbs. (180 kg
/MAGICO%20CC%20(2).jpg)
MAGICO
SCC
Listino ufficiale
€. 24.500,00
I film richiedono molto ad un diffusore, dalle
invasioni aliene alla caduta di uno spillo, da una colonna sonora roboante ad un
bacio delicato. Na la funzione più importante è la resa accurata della voce
umana molta della quale ancorata al centro dello schermo. La SCC prende spunto
dai progetti della S5 e della entry level S1 e come tutti i prodotti Magico, è
stata progettata utilizzando la tecnologia cad/cam attraverso il software
customizzato. Questo per ridurre al minimo gli effetti delle diffrazioni e delle
risonanze interne mantenendo il necessario smorzamento. Realizzato a partire da
un estruso di alluminio di 16 pollici di diametro e mezzo pollice di spessore
simile a quello della S5, l’involucro curvilineo della SCC fornisce la rigidità
e la massa necessaria per garantire prestazioni ottimali ai suoi quattro driver
in sospensione pneumatica pilotati dal crossover tre vie. Il comparto driver
consiste di due woofer di nuova concezione a 7 pollici, un midrange con
tecnologia Nano-Tec ed un tweeter al berillio. E’ presenta anche un supporto
integrato e rimovibile. Come per tutti i diffusori della serie S, l’SCC è
disponibile in varie finiture sia opache che high gloss per rendere questo
diffusore facilmente inservibile in ogni ambiente. Canale centrale dinamico
in alluminio, cassa chiusa, finitura opaca
Altoparlanti: 2 x
7” Mediobassi Nano-Tec® 1 x 6” Midrange Nano-Tec® 1 x 1” Tweeter MB-30
Sensibilità: 89dB Impedenza: 4 Ohms Risposta in frequenza: 22 HZ – 50 kHz
Potenza raccomandata: 50 – 1200 Watts Dimensioni (incluso lo stand integrato):
50,6cm H x 65cm L x 30cm P Peso: 72 Kg
Scc

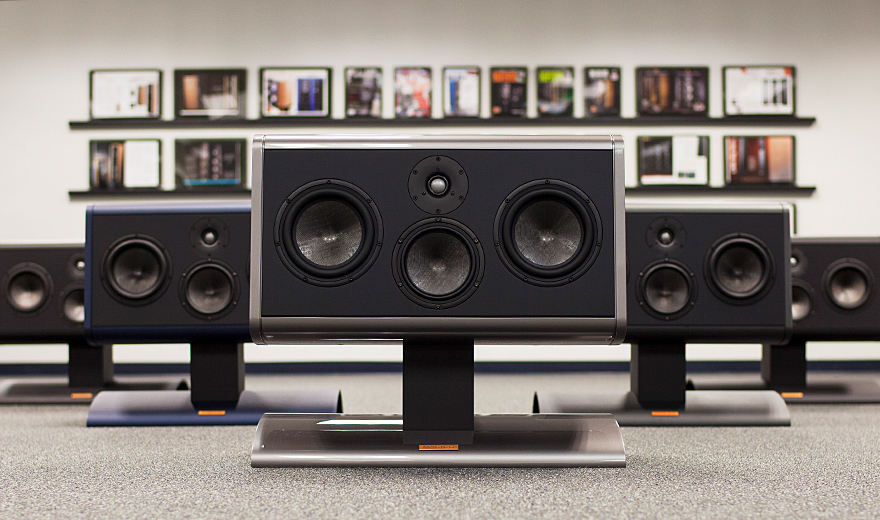

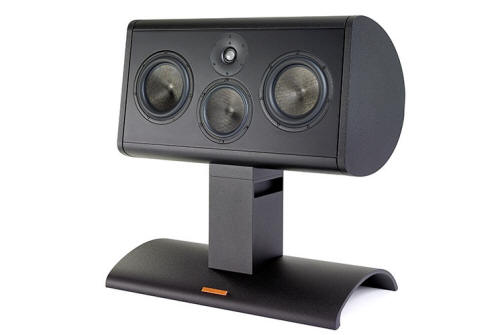

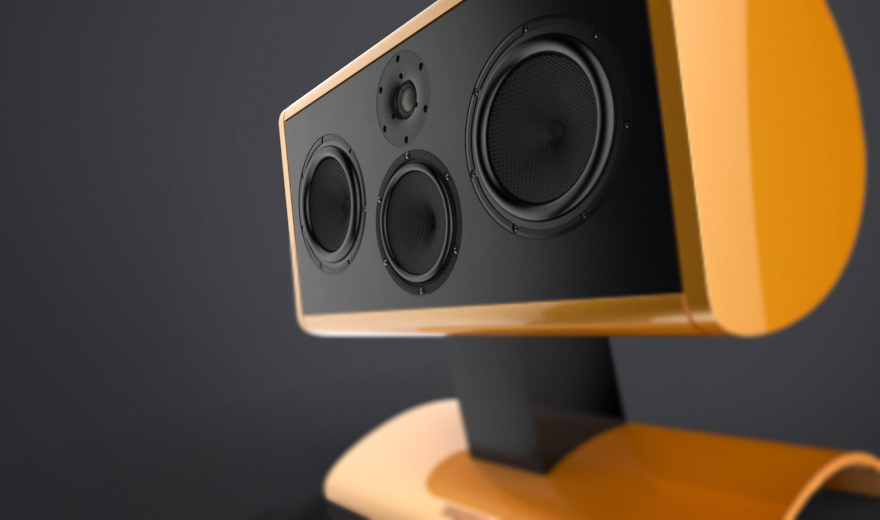

Movies place huge demands upon a loudspeaker, from alien invasions to a pin
dropping, from a thunderous soundtrack to a gentle kiss - but the most important
function is the accurate rendition of that most recognizable of sounds, the
human voice, most of which is anchored in the middle of the screen Reflecting
the versatility and exhilarating performance of its new S-Series of loudspeakers,
Magico’s SCC is designed to bring to the center channel of the home theater
experience the same level of resolution, clarity, and emotional engagement that
Magico loudspeakers have been bringing to music lovers for the past 15
years.This elegant loudspeaker builds on the foundation laid by the S5 and
entry-level S1. In common with all Magico creations, the SCC has been designed
using advanced computer-aided technology along with our own customized software
to minimize diffraction effects and internal resonance, while determining the
ideal damping requirements. eticulously crafted from 16-inch diameter extruded
aluminum with half-inch thick walls similar to the S5, the curvilinear enclosure
of the SCC provides the rigidity and mass necessary to ensure optimum
performance from its four-driver, three-way acoustic suspension enclosure
The driver complement consists of two
newly-designed seven-inch woofers, Magico's famous proprietary five-inch
Nano-Tec®midrange, and a Beryllium diaphragm tweeter. SPECIFICATIONS Driver
Complement: 1 x 1" Tweeter 1 x 6" Midrange 2 x 7" Bass woofer Sensitivity: 89dB
Impedance: 4 Ohms Frequency Response: 22 Hz - 50 kHz Recommended Power: 50 watts

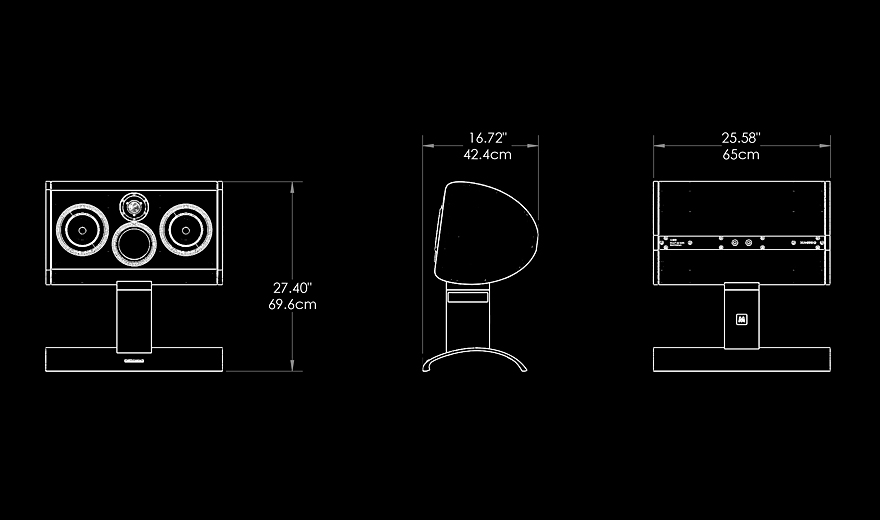

Dimensions (w/ Stand): 19.9"H x 14.2"D x 25.5"W (50.54cm x 58.42cm x 64.77cm)
Weight: 160 lbs. (72.57 kg)
.gif)
MAGICO
ASUB
Listino ufficiale
€. 10.690,00

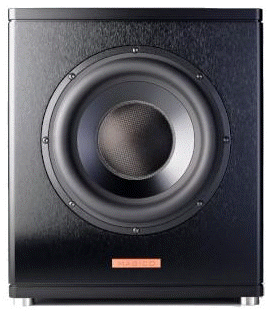

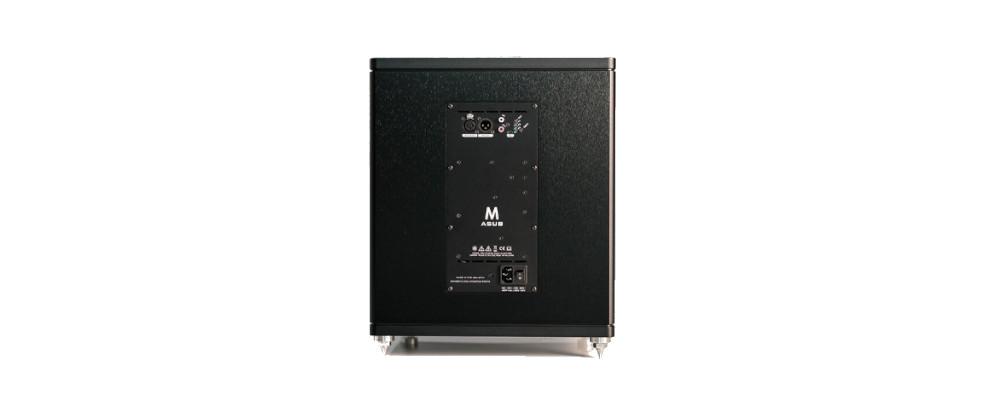

Magico è orgoglioso di presentare il nuovo ASUB che espande le capacità della
dimensione sonora dell'A3, dell'A1 o di qualsiasi altro altoparlante con un
tonante rinforzo delle frequenze dei bassi. L'ASUB è dotato di un involucro in
alluminio completamente rinforzato, cono in alluminio ultra rigido,
amplificazione di potenza interna, crossover elettronico e centro di controllo
DSP. Un vero design di altoparlanti Magico che offre prestazioni superbe con un
controllo esteso e un'ingegneria senza compromessi che merita l'incisione Magico
M. CUSTODIA La custodia ASUB condivide i principi dell'architettura QSUB con
alluminio 6061 T6 spesso 3/8", rinforzi interni innovativi e materiali di
smorzamento avanzati che vengono sviluppati e valutati sia in simulazione
utilizzando il software FEA che test fisici per soddisfare gli standard senza
compromessi di Magico come si riferisce a rigidità, stabilità e contributo
acustico minimo. L'ASUB è disponibile in un'elegante finitura in alluminio
spazzolato nero anodizzato.BASS DRIVER L'ASUB utilizza un driver in alluminio
Magico da 10 pollici di nuova concezione che ha un cono in alluminio ultra
rigido con un rapporto rigidità/peso ottimale. Il driver è calibrato per ridurre
al minimo le distorsioni legate alla musica nella gamma delle basse frequenze
utilizzando l'ultima simulazione FEA all'avanguardia di acustica, meccanica,
comportamento elettromagnetico e termico che ora sono completati su un'unica
piattaforma che migliora il livello di precisione. Il driver frontale ha un
gruppo magnetico estremamente potente che è in grado di generare frequenze basse
profonde, potenti e controllate con velocità e precisione. Il sistema motore a
bobina mobile in puro titanio da 55 mm fornisce un campo magnetico super
stabilizzato con una lunga velocità di escursione ed è in grado di riprodurre 50
Hz a 110 dB con una distorsione minima. AMPLIFICATORE / CROSSOVER
L'amplificatore digitale interno dell'A-SUB eroga 500 Watt di potenza
appositamente progettata. La perfetta integrazione con gli altoparlanti
principali in un sistema stereo o home theater è facilmente ottenibile con il
crossover attivo a controllo digitale integrato e il controllo DSP. Il software
DSP consente una perfetta integrazione del subwoofer e degli altoparlanti
principali che operano insieme nella stanza di ascolto. Altre caratteristiche
chiave includono 3 preset di memoria per memorizzare impostazioni individuali,
rilevamento automatico, spegnimento automatico, anticlip e protezione termica.
L'ingombro relativamente ridotto dell'ASUB è in grado di generare enormi
variazioni di pressione dell'aria nella stanza di ascolto e fornirà bassi
incredibilmente profondi e potenti con la velocità e l'integrità degli
altoparlanti principali. Il design front-fire dell'ASUB è facile da posizionare
nella sala d'ascolto e darà un entusiasmante contributo sonoro alle prestazioni
sonore complessive di qualsiasi sistema.
Magico
is proud to introduce the new ASUB which expands the sound dimension
capabilities of the A3, the A1 or any other speaker with thundering low-bass
frequency reinforcement. The ASUB features a fully braced aluminum enclosure,
ultra-stiff aluminum cone, internal power amplification, electronic crossover
and DSP control center. A true Magico loudspeaker design offering superb
performance with extensive control and uncompromised engineering deserving of
the Magico M engraving. ENCLOSURE The ASUB enclosure shares principles of the
QSUB architecture with 3/8”-thick 6061 T6 aluminum, innovative internal bracing
and advanced damping materials which are developed and evaluated both in
simulation using FEA software and physical testing to meet the uncompromising
standards of Magico as it relates to rigidity, stability and minimum acoustical
contribution. The ASUB is available in an elegant anodized black brushed
aluminum finish.BASS DRIVER The ASUB utilizes a newly developed Magico 10-inch
aluminum driver that has an ultra-stiff aluminum cone with an optimal stiffness
to weight ratio. The driver is calibrated to minimize music related distortions
in the low frequency range using latest state of the art FEA simulation of
acoustics, mechanics, electromagnetic and thermal behavior which are now
completed on a single platform which enhances the level of accuracy. The front
firing driver has an extremely powerful magnet assembly which is capable of
generating deep, powerful, controlled bass frequencies with speed and accuracy.
The pure Titanium 55mm voice coil motor system provides a super stabilized
magnetic field with a long excursion rate and is capable of reproducing 50Hz at
110dB with minimal distortion. AMPLIFIER / CROSSOVER The internal digital
amplifier of the A-SUB delivers 500 Watts of purpose-built power. Seamless
integration with the main loudspeakers in a stereo or home theater system is
easily achieved with the onboard digitally-controlled active crossover and DSP
control. The DSP software allows for perfect integration of the subwoofer and
main loudspeakers operating together in the listening room. Other key features
include 3-memory presets to store individual settings, auto-detect,
auto-shutdown, anticlip and thermal protection. The relatively small footprint
of the ASUB is capable of generating huge air pressure changes in the listening
room and will provide incredibly deep, powerful bass with the speed and
integrity of the main loudspeakers. The front firing design of the ASUB is easy
to position in the listening room and will make an exciting sonic contribution
to the overall sound performance of any system.
M-Pod Isolatore per
diffusori/elettroniche. Specifico per Q7, Q7 MKII, M-Project e S7 cadauno €
1.550,00
M-Pod 3 Platform per M3 Base smorzante di riferimento con tecnologia CLD di
cancellazione delle risonanze cadauno a richiesta
M-Rack Mobile porta elettroniche in alluminio, rame e materiale smorzante, 250
KG a richiesta
QPOD Isolatore per diffusori/elettroniche cadauno € 650,00
SPOD8 Set 8 isolatori per diffusori S1MKII, S3MKII, S6MKII, V2, V3, Q1, Q3, Q5 €
4.390,00
SPOD8 plus Come sopra ma per diffusori S1 & S3 € 4.690,00
SPOD6 Set 6 isolatori per diffusori S5 € 3.290,00
Legenda istruzioni
 Clicca
per qui per vedere : FOTO PRODOTTO
 Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Nota
bene *
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a
info@newaudio.it
*I prezzi indicati
sono di listino ufficiale delle case produttrici ,nel
caso di diffusori si riferisce al prezzo del
singolo diffusore per offerte ed eventuali
promozioni telefonare o inviare e-mail.
*Il
presente listino sostituisce ed annulla ogni precedente. Le caratteristiche e i
prezzi indicati possono variare senza preavviso telefonare o inviare un
e-mail per ulteriori domande e conferme sui prezzi sopra riportati.
*Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
*Prezzi
franco
nostro magazzino
|
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
/FOTO/MAGICO%20S3%20MKII%20(1).jpg){kind=small}
/FOTO/MAGICO%20S3%20MKII%20(2).jpg){kind=small}
/FOTO/MAGICO%20S3%20MKII%20(3).jpg){kind=small}
/FOTO/MAGICO%20S3%20MKII%20(4).jpg){kind=small}
/FOTO/MAGICO%20S3%20MKII%20(5).jpg){kind=small}
/magico%20s5%20mkii%20(1)/magico%20s5%20mkii%20(1).jpg){kind=small}
/magico%20s5%20mkii%20(1)/magico%20s5%20mkii%20(2).jpg){kind=small}
/magico%20s5%20mkii%20(1)/magico%20s5%20mkii%20(3).jpg){kind=small}
/magico%20s5%20mkii%20(1)/magico%20s5%20mkii%20(4).jpg){kind=small}
/magico%20s5%20mkii%20(1)/magico%20s5%20mkii%20(5).jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
/FOTO/MAGICO%20CC%20(1).jpg){kind=small}
/FOTO/MAGICO%20CC%20(3).jpg){kind=small}
/FOTO/MAGICO%20CC%20(4).jpg){kind=small}
.jpg){kind=small}
