DAC ESTERNO che riceve segnali da sorgenti
digitali quali CD player,TV/Satelite tuner, iPod o computer PC / MAC. Il suono
ne viene migliorato. Il PD-1 č facile da installare e con il telecomando potrete
selezionare le sorgenti digitali e regolare il volume. Perfetto per essere
abbinato a diffusori attivi oltre che ovviamente all'ingresso linea di integrati
i preamplificatori. Per uno streaming wireless dall'uscita USB del computer, č
possibile utilizzare aggiungere a questa uscita il trasmettitore in radio
frequenza opzionale EMS-1 evitando la necessitŕ di avere un cavo tra computer e
DAC.
PD-1
Balanced Digital Analog Converter The new Prelude PD 1 DAC from Electrocompaniet
is our answer to the growing need for a user friendly DAC with USB interface.
With our new DAC you can listen to the music from your CD-player, TV/Satelite
tuner, iPod or PC / MAC the way it was meant to be. The sound from all your
digital sources is improved and the listening experience is enhanced. The
Prelude PD-1 is easy to install and with the remote control you can change
between the sources and adjust the volume - perfect if you connect the DAC to
active speakers or directly to a power amplifier. For wireless streaming from
your PC/MAC you can choose to add our USB Music Streamer. This way you do not
need any cables between your computer and the DAC. Technical specifications: •
No. of channels: 2 • Output impedance: 100 ohm • Output level: 3.4 Vrms • Noise
floor (20 - 20 kHz) : < - 140 dB • Frequency response: 1 – 48 kHz • THD +
N: < 0.003% • Upsampling rate: 192 kHz, 24bit • Digital/Analog conversion:
192 kHz, 24bit • Input sampling rate supported: SPDIF 192 kHz, 24 bit USB 48
kHz, 16 bit RF Link 48 kHz, 16 bit •Audio Outputs: Stereo balanced line
out (XLR) Stereo single-ended line out (RCA) •Digital Inputs: 2 x SPDIF Coaxial,
1 x SPDIF TOSLink, 1 x USB Type B, 1 x RF Link • Weight 4,3 Kg All
measurements are made at 120V/240V//50Hz/60 Hz
Trasmettitore opzionale. Da inserire
all'uscita USB del computer per inviare il segnale digitale al DAC PD-1 in
radio frequenza, evitando l'uso di cavi e la presenza di una rete
Amplificatore integrato , 50 W canale 8 ohms, 100 W canale 2 ohms, stabile sino
a 0,5 ohms, > 50 A picco COLORI NERO O SILVER
The
Electrocompaniet PI-1 and PI-2 are our new fully balanced entry-level stereo
integrated amplifiers. In the development of these amplifiers the focus has been
to maintain the operating principles and sound quality of the classic line
amplifiers, and at the same time reduce manufacturing costs. To achieve this we
have utilized modern surface mount technology (SMT) and optimized the amplifiers
for our modern SMT production line. The result is modern looking high
performance amplifiers with superb control and dynamics.The newly developed
protection circuitry protects the PI-1 and PI-2 against high temperature, DC
offset and short circuit at the output. This protection has no negative
influence on the sound quality what so ever. We have even removed the relay at
the output to reduce the number of contact points between the amplifier and the
loudspeakers.Both the PI-1 and PI-2 features the same digital volume control as
used in the EC4.8/EC4.9 preamplifiers. The bright and clear VFD-display is
readable from the listing position and shows the input source and volume setting.
Both amplifiers have two fully balanced (XLR) inputs and two single ended (RCA)
inputs. Volume and input sources can easily be navigated via the four navigator
buttons on the front panel, or from the remote control.The PI-1 is equipped with
a big linear power supply with a 300VA toroidal transformer and a capacitor
storage bank of 40.000 uF.Technical Data Conditions PI-1 Input impedance
Balanced input 47Kohm Output impedance 0.03 ohm Noise floor 20 - 20 kHz <
- 100 dB Frequency response - 3 dB 1 - 200 kHz Channel separation > 120 dB THD +
N 20 - 20 kHz < 0.006% Maximum peak current > 50A Damping factor 8 ohm load >250
Rated output power THD = 0.2% into 8 ohm 2 x 50 W into 4 ohm 2 x 75 W into 2 ohm
2 x 100 W Toroid transformer 300VA Capacitor storage bank 40.000uF Dimensions W
x D x H 420 x 340 x 77 mm Weight 6 kg Power consumption No load or signal 100 W
Inputs 2 x 2 Channel Balanced (XLR) 2 x 2 Channel Single Ended Control ports
None Outputs Loudspeakers
ELETROCOMPANIENT
PRELUDE PI2 €.2.674,00Per prezzo
scontato
TELEFONA / UN E-MAIL Amplificatore integrato , 100 W canale 8 ohms, 220 W canale
2 ohms, stabile sino a 0,5 ohms, >50 A picco COLORI NERO O SILVER

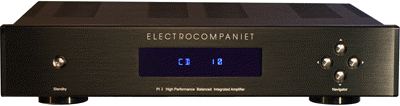

Prelude
integrated ampsPI-22x100 Watt The Electrocompaniet PI-1 and PI-2 are our new
fully balanced entry-level stereo integrated amplifiers. In the development of
these amplifiers the focus has been to maintain the operating principles and
sound quality of the classic line amplifiers, and at the same time reduce
manufacturing costs. To achieve this we have utilized modern surface mount
technology (SMT) and optimized the amplifiers for our modern SMT production line.
The result is modern looking high performance amplifiers with superb control and
dynamics.The newly developed protection circuitry protects the PI-1 and PI-2
against high temperature, DC offset and short circuit at the output. This
protection has no negative influence on the sound quality what so ever. We have
even removed the relay at the output to reduce the number of contact points
between the amplifier and the loudspeakers.Both the PI-1 and PI-2 features the
same digital volume control as used in the EC4.8/EC4.9 preamplifiers. The bright
and clear VFD-display is readable from the listing position and shows the input
source and volume setting. Both amplifiers have two fully balanced (XLR) inputs
and two single ended (RCA) inputs. Volume and input sources can easily be
navigated via the four navigator buttons on the front panel, or from the remote
control. The PI-2 is equipped with a oversized linear power supply with a 400VA
toroidal transformer and a capacitor storage bank of 80.000 uF.Technical Data
Conditions PI-2 Input impedance Balanced input 47Kohm Output impedance 0.03 ohm
Noise floor 20 - 20 kHz < - 100 dB Frequency response - 3 dB 1 - 200 kHz Channel
separation > 120 dB THD + N 20 - 20 kHz < 0.006% Maximum peak current > 50A
Damping factor 8 ohm load >250 Rated output power THD = 0.2% into 8 ohm 2 x 100
W into 4 ohm 2 x 150 W into 2 ohm 2 x 220 W Toroid transformer 400VA Capacitor
storage bank 80.000uF Dimensions W x D x H 420 x 340 x 77 mm Weight 10 kg Power
consumption No load or signal 100 W Inputs 2 x 2 Channel Balanced (XLR) 2 x 2
Channel Single Ended Control ports None Outputs Loudspeakers
Integrato linea, fully
balanced. 70/120/160 W RMS a 8/4/2 ohm a 240 V. 60 A. Alimentazione FTT.
Banco da 40.000 uF. Stabile sino a 0,5 ohm. The

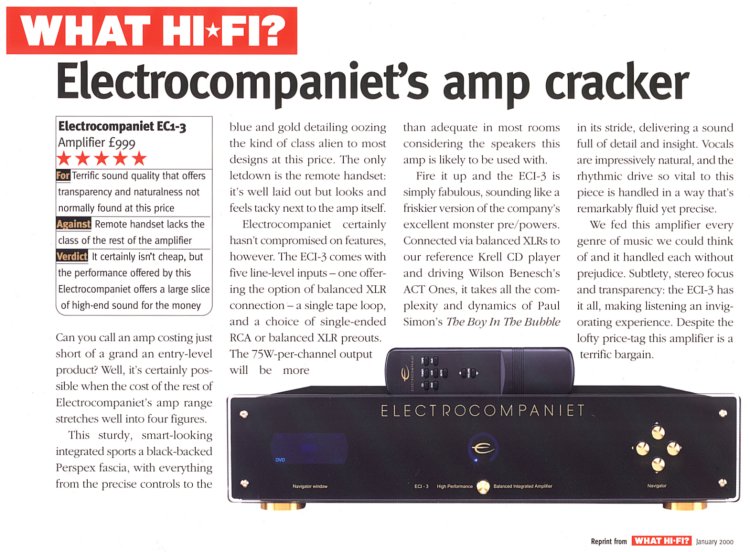

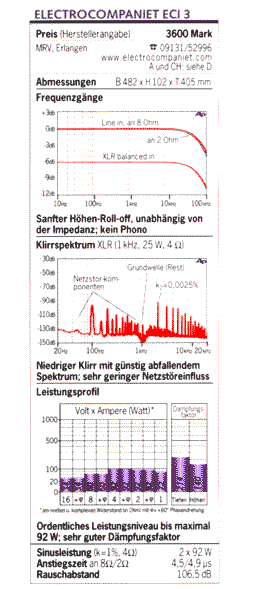

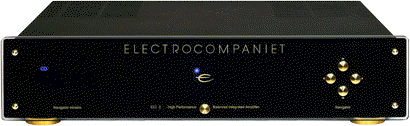

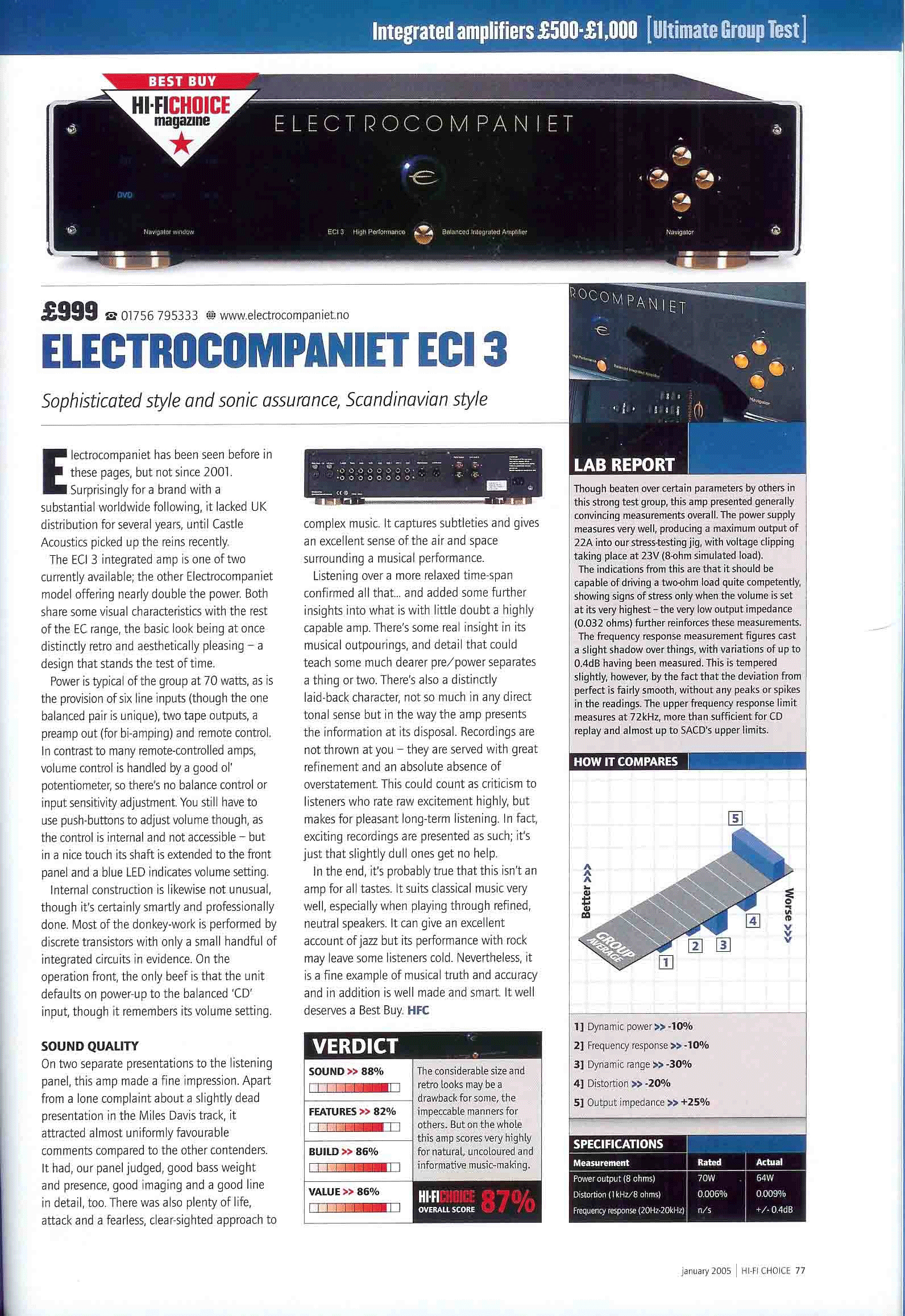

Electrocompaniet ECI 3 is a DC coupled, high performance, fully balanced, remote
controlled integrated stereo amplifier. It features one balanced XLR input, six
single-ended RCA inputs, a balanced output, and a single-ended tape output.The
ECI 3 is equipped with a balanced, motorised volume control without sonic
degradation, and all input switching is done by relays.Volume up/down and input
selection can be controlled using the four Navigator touch buttons on the front
panel, or from the remote control. The selected input source is shown in the

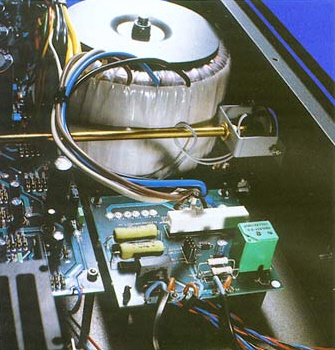

Navigator Window.The ECI 3 features Electrocompaniet’s unique Floating
Transformer Technology (FTT) power supply which is capable of delivering twice
as much current as conventional designs. The ECI 3 is built with the same
quality components as our most prestigious models. A 550 VA transformer, in FTT
configuration, and a current reservoir of 40.000uF delivers 2 x 70 W of clean
and powerful dynamics into an 8Ω load. Like all our amplifiers, the ECI 3 is
stable in all loads down to 0.5 Ω. The balanced output of the ECI 3 can feed an
additional power amplifier in a bi-amped set-up.Technical specifications All
measurements are made at 120V / 240V //50Hz / 60Hz Preamplifier section Nominal
Input impedance 330 kohm Max. input level > 10 Volt RMS Equivalent input noise <
4 µV Input sensitivity for rated output (single) 0.6 V Input sensitivity for
rated output (balanced) 0.3 V Amplifier section Output Impedance(20 Hz - 20 kHz)
< 0,01 ohms Max. peak current > 60 A THD(measured at 1 kHz half power,8W) <
0,005 % THD(measured at 1 kHz -1 dB 8 W) < 0,006 % Rated output power 8 ohms 2 x
70 W 4 ohms 2 x 120 W 2 ohms 2 x 160 W Power consumption(no load or signal) 70 W
Dimensions Width 483 mm / 19 inches Depth 410 mm / 16.1 inches Height 115 mm /
4.5 inches Weight 12Kg / 26.4 lbs.
Integrato
linea, 120 watts ch. telecomando, misurati a 240 V
The

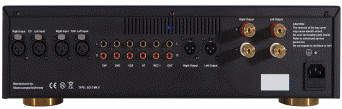

Electrocompaniet ECI 5 is a DC coupled high performing, fully balanced, remote
controlled integrated stereo amplifier with all latest upgrades included. Six
inputs: two balanced three single and one direct. Outputs: Balanced, single and
REC. Balanced motorized volume control that does not degrade the sonic qualities
of the unit.Relay input switching. Volume and input sources can easily be
navigated via four Navigator touch buttons on the front panel or from the remote
control. The select source is shown in the Navigator window.The ECI 5 Features
Electrocompaniet's unique FTT (Floating Transformer Technology) power supply
designs. The ECI 5 contains the same components used in our most prestigious
models. A current reservoir of 70.000uF delivers 2 x 120W of clean and powerful
dynamics into an 8 ohms load. Like the rest of our amplifiers, ECI 5 is stable
down to 0.5 ohms. The balanced output of the ECI 5 can feed an additional power
amplifier in a bi-amped set-up.Technical specifications All measurements are
made at 120V / 240V //50Hz / 60Hz Preamplifier section Nominal Input impedance
330Kohm Max. input level > 10 Volt RMS Equivalent input noise < 4 µV Pre-out
gain balanced output (XLR) 1,37x Pre-out gain single output (RCA) 1,25x
Amplifier section Output Impedance (20 Hz -20 kHz) < 0,01 Ohm Max. peak current
> 80 A THD(measured at 1 kHz half power, 8 W) < 0,007 % THD(measured at 1 kHz -1
dB 8 W) < 0,008 % Input sensitivity for rated output single ended 1,4V Input
sensitivity for rated output balanced 0,7V Input sensitivity for rated output HT
6,5V Rated output power 8 ohms 2 x 120 W 4 ohms 2 x 200 W 2 ohms 2 x 350 W Power
consumption (no load or signal) 160 W Dimensions Width 483 mm / 19 inches Depth
405 mm / 16 inches Height 135 mm / 5,3 inches Weight 16Kg / 35 lbs.
For
more than 30 years, the name "Electrocompaniet" has been synonymous with the
manufacture of great sounding power amplifiers. The numerous prestigious
international awards, as well as top ranking reviews, attest to the success
and appreciation of the amplifiers.Since 1999, we have had the same level of

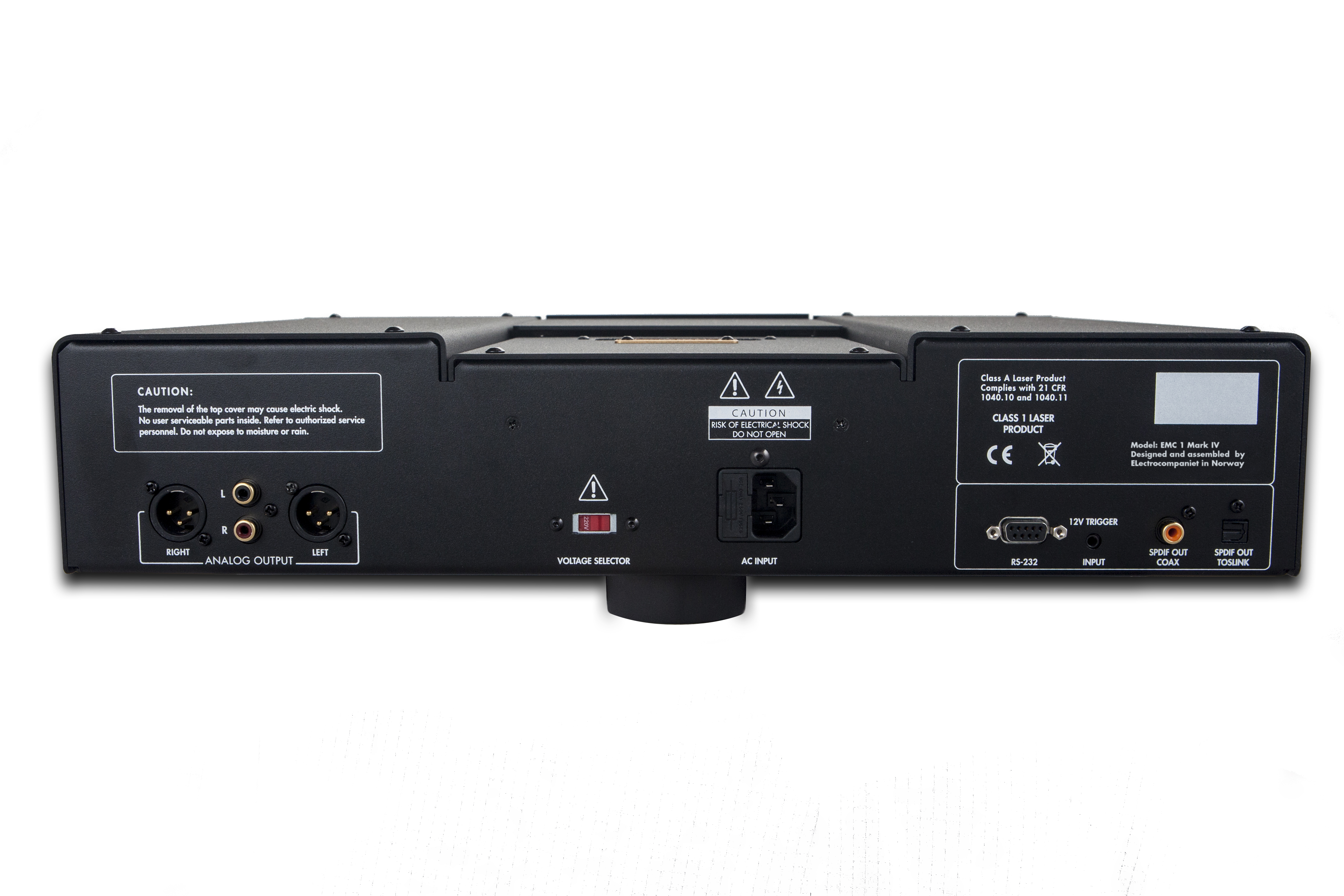

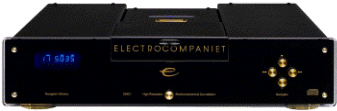

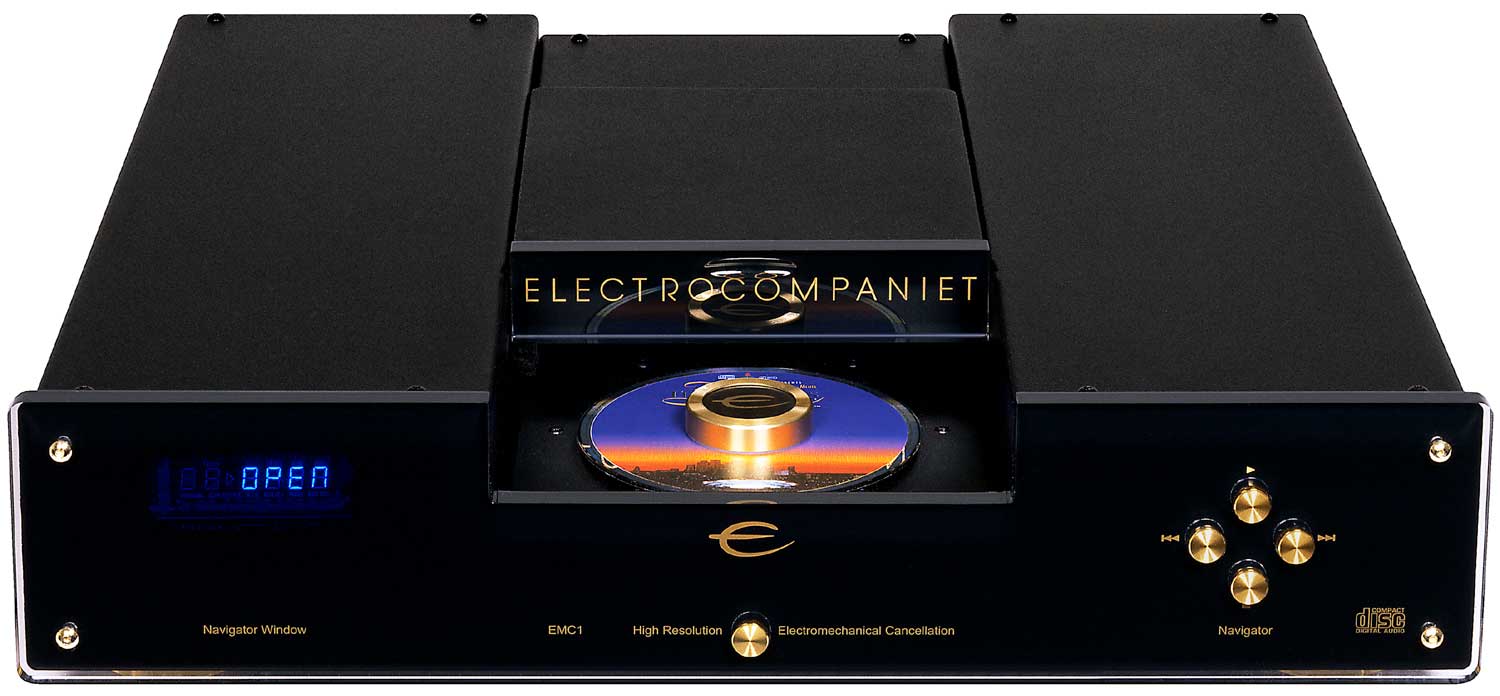

world-wide recognition with our reference CD player, the Electrocompaniet
EMC 1. The obvious missing link has been a preamplifier matching the quality
of the award-winning power amplifiers and reference CD player.With the new

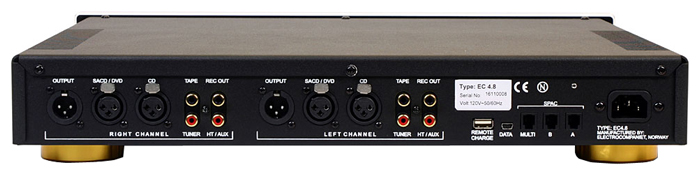

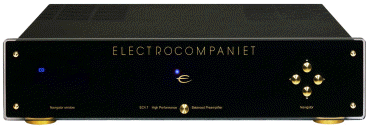

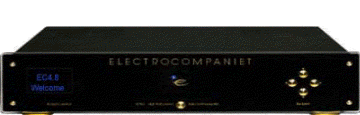

Electrocompaniet two-channel EC 4.8 preamplifier, the missing link is now
removed.With its outstanding performance, excellent resolution, superb
control and precise musical rendering, we have succeeded making a
preamplifier that is true to our slogan,“Closing the gap to the
master”. Our new two-channel EC 4.8 preamplifier is sure to make all good
power amplifiers sound even better !The EC4.8 preamplifier is designed to
fill our need for a advanced preamplifier in a higher price range. The
preamplifier is designed as a slimline version, with a fully balanced
electronic solution from input to output. It is designed as two separate
mono preamplifiers, each with it’s own power supply. This preamplifier can
be used with the included IR remote controller or as an option, together
with the RF based remote controller ECT 2. The EC4.8 has the new SPAC
network for safety control of the connected power amplifiers.Technical
specifications All measurements are made at 120V / 240V //50Hz / 60Hz Input
impedance balanced (fixed) 47 Kohm Output impedance 100 ohm Input
level (Single ended) >15 Vp-p Input level (balanced) >30 Vp-p Max output
level (Single ended) >15 Vp-p Max output level (Balanced) 30 Vp-p Gain -
111dB to +6dB Noice Floor <-130dB (@ 0dB gain) Frequency responce 0.5
- 200.000 Hz Channel Seperation > 120dB THD + N <0.002% MD TBD Power
consumption (no load or signal) 30 W Dimensions and Waight Width 483
mm / 19 inch Depth 386 mm / 16.1 inch Height 76 mm / 4.5 inch
Weight 9 kg Inputs
Balanced 2 x2 channel Single ended 3 x 2 channel Control Ports
Nettwork 3 x SPAC
Programming 1 x USB Outputs Balanced 1 x 2 channel Single ended
Record Out
Preamplificatore 6 ingressi (di cui 1 XLR), telecomandatoThe Electrocompaniet EC
4.7 is a high resolution, high performance, DC coupled and fully balanced,
remote controlled preamplifier.
EC
4.7 has six single ended inputs, where one is fully balanced.One balanced and
one single ended line output, and one fixed single ended output to be used as
record.The remote controlled motorized volume is developed to not influence or
degrade the sonic performance of the EC 4.7.Volume control and input sources can
easily be navigated from the remote controller or via the navigators on the
front panel.The navigator's window displays the selected source, and the volume
position in analogy shown by a blue lit.The EC 4.7 features Electrocompaniets
unique FTT technology, which is capable of deliver twice the current as
conventional power supply designs.This combination with a Toroid transformer and
a reservoir of capacitance far beyond necessary will give you more than adequate
control of your system.Contains only high quality discrete components.It is a
perfect combination with our own products or other manufacturers High-end
equipment.Technical specifications All measurements are made at 120V / 240V
//50Hz / 60Hz Clipping point of the preamplifier is set to a level where total
harmonic distortion (THD) is 0.2% Preamplifier section Single ended operation (gain)
0 dB Balanced operation (gain) 6 dB Input impedance single (fixed) 330 kohm
Input impedance balanced (fixed) 165 kohm THD single ended (1 V in, 1 V out, 1
kHz) < 0.001 % Equivalent input noise < 3 µV THD balanced (1 V in, 1 V out, 1
kHz) < 0.0005 % Max. input single > 10 V RMS Max. input balanced > 20 V RMS
Channel separation (1 V output, 1 kHz) > 90 dB Attenuation (minimum volume) - 75
dB Output impedance single 100 W (fixed) Output impedance balanced 50 W (fixed)
Max. output Single ended 8 V RMS Max output Balanced 16 V RMS Output noise (400
Hz - 30 kHz) Single ended : 5 µV Balanced : 10 µV Signal to noise (400 Hz - 30
kHz) > 100 dB Frequency response (DC - 65 kHz) - 0.4 dB The EC 4.7 is DC coupled
from input to output. Power consumption (no load or signal) 15 W Dimensions
Width 483 mm / 19 inches Depth 410 mm / 16.1 inches Height 115 mm / 4.5 inches
Weight 8 kg. / 17.6 lbs.
The
Electrocompaniet ECP 1 RIAA/ Phono Preamplifier brings out the best from
your vinyl record collection.This self-contained phono stage can easily be
switched between moving coil and moving magnet operation. The ECP1 is a big
performer at an affordable price. You and your favourite LP’s deserve the
Electrocompaniet ECP1.Technical specifications Phono section Gain
source imp.=10 W) 73 dB (4500x) Gain 1 kHz mov. magnet 38.4 dB (55x) Input
impedance moving magnet 47 kW / 22 pF THD 1 kHz (2 V output) 0.007 %
Overload 1 kHz moving coil (THD = 0.2 %) > 20 mV Overload 1 kHz moving
magnet (THD = 0.2 %) > 165 mV Channel separation (1V output at 1 kHz) > 80
dB Noise (ref. 0,5 mV) moving coil -88 dB Noise (ref. 5 mV) moving magnet
-88 dB Equivalent input noise (400 Hz - 30 kHz) 0.2 µV RIAA accuracy (20 Hz
- 20 kHz) ± 0,1 dB Output impedance 100 W Power consumption (no load or
signal) 8 W Dimensions Width 241 mm / 9.5 inches Depth 170 mm / 6.7 inches
Height 70 mm / 2.8 inches Weight 1 kg. / 2.2 lbs.
Preamplificatore multicanale
Audio/Video, Reference stereo/HT . Necessita di telecomando ETC2The best of two
world
Is
it possible to have the best two-channel system, and at the same time have the

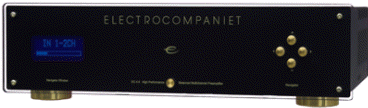

best multi-channel system?With the EC 4.9, the answer is yes. Combined with our
new EMP 1 Multiplayer and our new generation of poweramplifiers, the
Electrocompaniet EC 4.9 gives you the best sound from bothworlds. The EC 4.9 can
work with the AW 3x120-M power amplifier to automatically switch between
multi-channel amplification and bridged stereophonic mode, giving you the ideal
system no matter what music you are playing, all controlled by a two-way radio
remote control from the comfort of your armchair. With each of the six channels
having the same outstanding sound quality as the EC 4.8 preamplifier,
Electrocompaniet now has one of the best performing and most advanced 6 channel
preamplifiers on the market. The EC4.9 preamplifier is the first product in the
new range of multi-channel equipment from Electrocompaniet. The EC4.9 uses the
new EC serial standard SPAC, (Serial Power Amp Control) for controlling the
Power amplifier. In combination with one AW3×120, and one AW2x120, the new multi
channel power amplifiers, it's possible to switch from a 120W multi channel
system to 2×400W two-channel system. All fully controlled from the new Remote
Controller ECT2 Technical specifications All measurements are made at 120V /
240V //50Hz / 60Hz Input impedance balanced (fixed) 47 Kohm Output impedance 100
ohm Max input level 30 Vp-p (bal) Max output level 30 Vp-p (bal) Gain - 111dB to
+6dB Noice Floor <-130dB (@ 0dB gain) Frequency responce 0.5 - 200.000 Hz
Channel Seperation > 120dB THD + N <0.002% IMD TBD Power consumption (no load or
signal) 50 W Dimensions and Waight Width 483 mm / 19 inch Depth 385 mm / 15.2
inch Height 135 mm / 5.3 inch Weight 10 kg Inputs Balanced 2 x6 XLR Balanced 1 x
2 XLR Single ended 3 x 2 Phono Control Ports Nettwork 3 x SPAC Programming 1 x
USB Outputs Balanced 1 x 6 channel Single ended 1 x 2 ch. (Record Out)

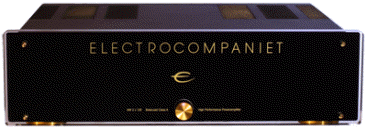

Finale stereo Dual Mono,
Audio/Video, 2x120 W opp. 1 x 400 W ad 8 ohms. 100 A picco. Potenza misurata a
240 V

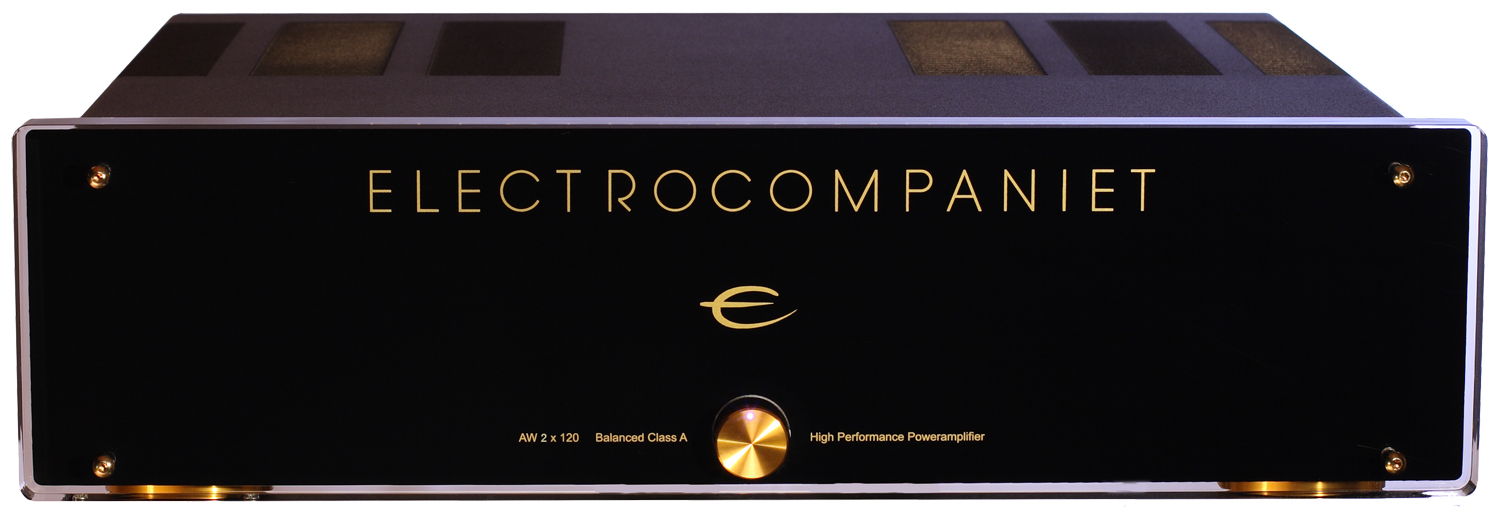

Flexible
and expandableThe new Electrocompaniet AW 2x120-M is a flexible two-channel
power amplifier. It can be used as part of our new multi-channel systems, or as
a stand-alone two-channel power amplifier. When used in multi-channel
configuration, this amplifiers are an ideal choice for a home theatre. With a
touch of the remote control, they switch over to bridged 400W mono mode for
High-End stereophonic playback. The AW 2x120-M is designed and built in the
classic Electrocompaniet tradition,giving you a guarantee of lifelike sound
reproduction and lasting build quality. Technical specifications All
measurements are made at 120V / 240V //50Hz / 60Hz Amplifier section Output
Impedance (20 Hz - 20 kHz) < 0,01 ohm RCA (single) input impedance 220 kohm XLR
(balanced) input impedance 110 kohm Input sensivity for rated output 1 V Max.
peak current > 100 A THD (measured at 1 kHz -1 dB, 8 W) < 0,002 % Noise
(measured with both inputs shorted) 400 Hz - 30 kHz : 90 µV10 Hz - 30 kHz : 100
µV Rated output power 8 ohms 2 x 120 W 4 ohms 2 x 200 W 2 ohms 2 x 350 W Power
consumption (no load or signal) 161 W Dimensions Width 483 mm / 19 inches
Depth 385 mm / 15 inches Height 135 mm / 5.3 inches Weight 19 kg. / 41.8 lbs.
Finale stereo. 250/380/625/1.100 W RMS per canale a 8/4/2/1 ohms a 240 V.
>100 A picco. Alimentazione FTT. Usabile anche in mono a ponte
AW

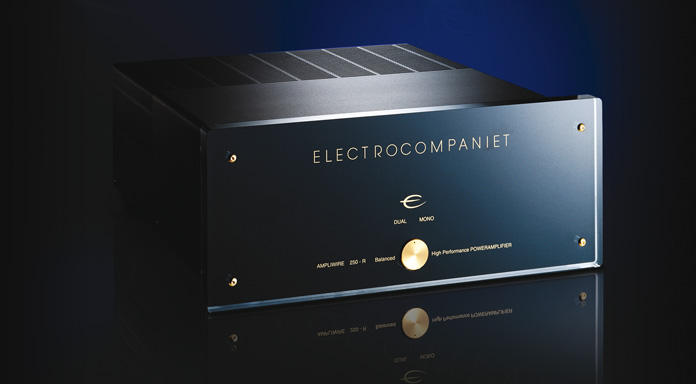

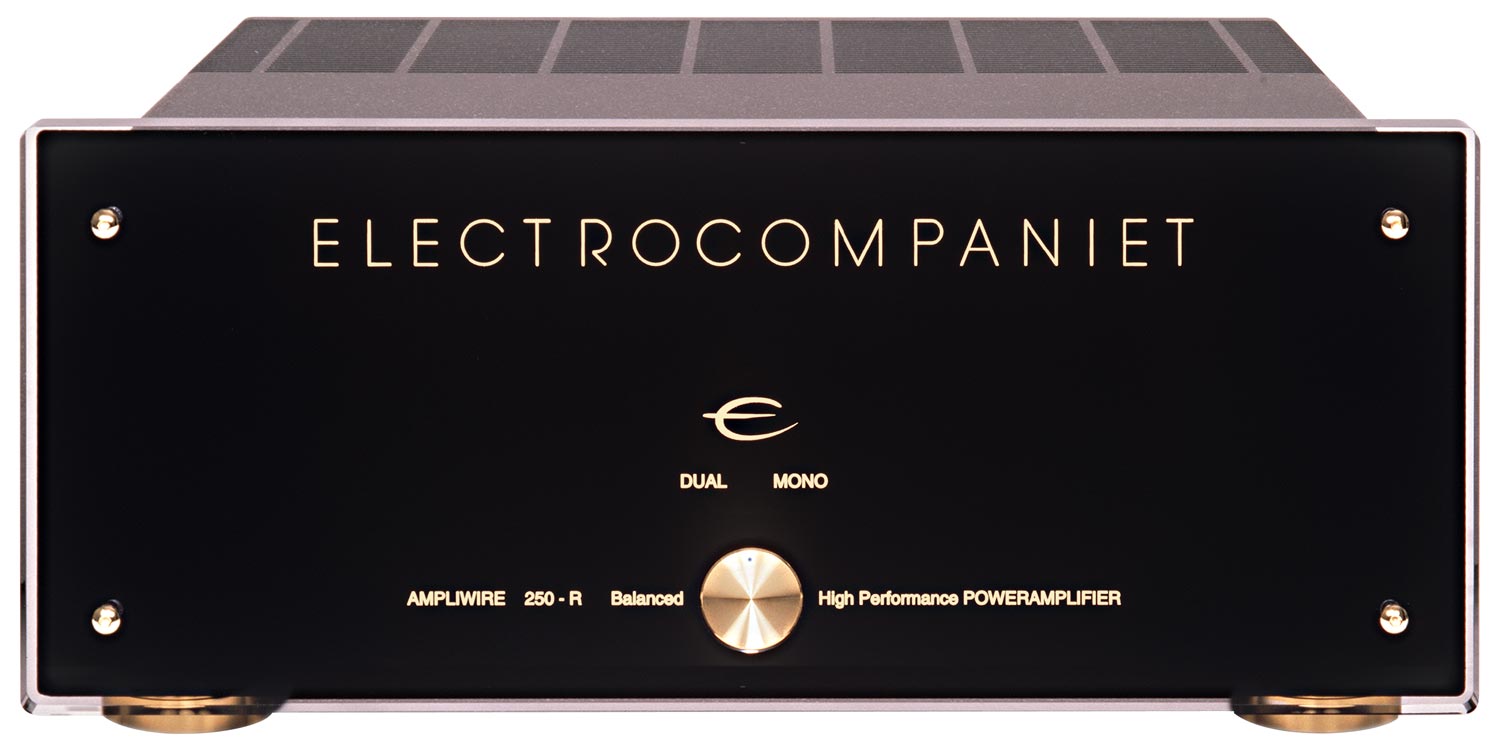

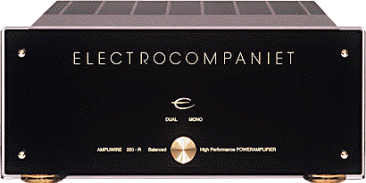

250R The Electrocompaniet AW250R power amplifier is known for its
uncolored and excellent reproduction qualities. From the first note of any
familiar recording, you will be captivated by the AW250R and by the musical
enjoyment it will give you.The AW250R incorporates such refined features as: FTT
(Floating Transformer Technology) power supply, capable of delivering twice the
current of conventional power supply designs, as well as first class overall
circuit design and state-of-the-art components. The AW250R features a balanced
link to additional power amplifier(s). Compared to more expensive High-End power
amplifiers, with lesser performance, you will truly cherish the AW250R. The
Electrocompaniet AW250R features a balanced link to additional amplifier(s) for
bi-amping. It can easily be used in bridged mode, delivering up to four times
the power.Technical specifications All measurements are made at 120V / 240V
//50Hz / 60Hz Amplifier section Output Impedance (20 Hz - 20 kHz) < 0,008
ohm RCA (single) input impedance 220 kohm XLR (balanced) input
impedance 110 kohm Input sensitivity for rated output 1 V Max. peak
current > 100 A THD (measured at 1 kHz half power, 8 W) < 0,001 % THD (measured
at 1 kHz -1 dB, 8 W) < 0,001 % Noise (measured with both inputs shorted)
400 Hz - 30 kHz : 90 µV 10 Hz - 30 kHz : 100 µV Rated output power 8 ohms
2 x 250 W 4 ohms 2 x 440 W 2 ohms 2 x 625 W 1 ohms 2 x 1100 W
Power consumption (no load or signal) 230 W Dimensions Width 483 mm
/ 19 inches Depth 450 mm / 17 inches Height 210 mm / 8.2 inches
Weight 39 kg. / 85.8 lbs.
Finale mono,
180w/8 ohm-350w/4 ohm, Mono Balanced, 100 A picco, misurati a 240 V.
Prezzo singolo finale .

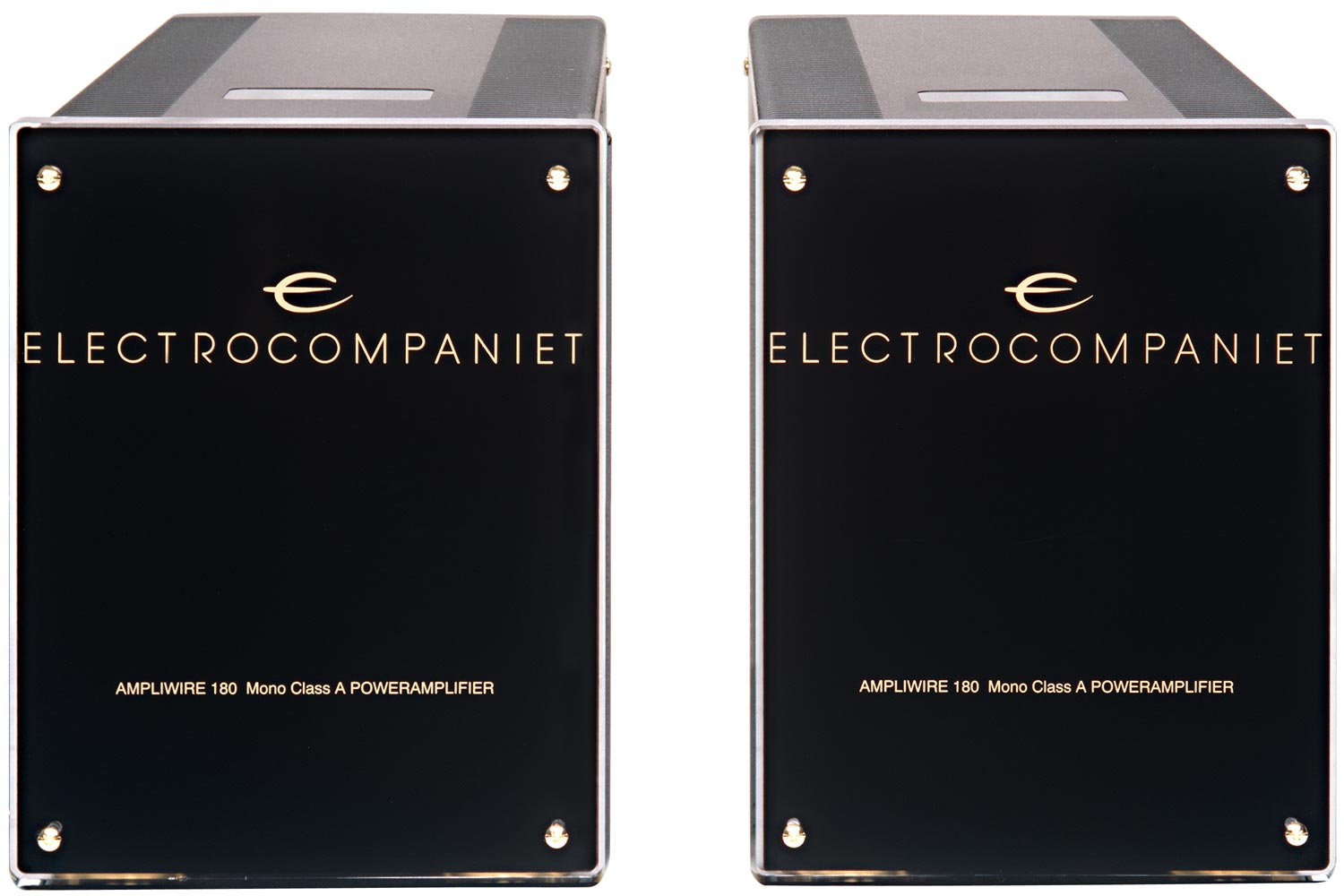

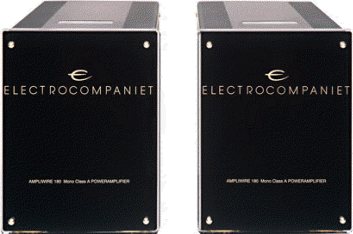

AW 180 monoblock The
Electrocompaniet AW180M monaural power amplifier represents the ultimate
fidelity in sound reproduction.Audiophiles, recording engineers, record
producers and reviewers around the world rely on the AW180M’s faithful
reproduction of the original master recording.The stunning capabilities of the
Electrocompaniet AW180M cannot be explained – they have to be experienced.The
AW180M incorporates such refined features as: FTT (Floating Transformer
Technology) power supply, capable of delivering twice the current of a
conventional power supply, a first class overall circuit design and
state-of-the-art components. The Electrocompaniet AW180M features a balanced
link to additional amplifier(s) for bi-amping. It can easily beused in bridged
mode, delivering up to four times the power.Technical specificationsAll
measurements are made at 120V / 240V //50Hz / 60Hz Amplifier section Output
Impedance (20 Hz - 20 kHz) < 0,008 ohm RCA (single) input impedance 220 kohm XLR
(balanced) input impedance 110 kohm Input sensivity for rated output 1 V Max.
peak current > 100 A THD (measured at 1 kHz half power, 8 W) < 0,001 % THD (measured
at 1 kHz -1 dB, 8 W) < 0,001 % Noise (measured with both inputs shorted) 400 Hz
- 30 kHz : 90 µV10 Hz - 30 kHz : 100 µV Rated output power 8 W 180 W 4 W 350 W 2
W 650 W Power consumption (no load or signal) 115 W Dimensions Width 215 mm /
8.5 inches Depth 470 mm / 18.5 inches Height 288 mm / 11.3 inches Weight 22 kg.
/ 48.4 lbs.
Finale
mono. 400/730/1200 W RMS a 8/4/2 ohm a 240 V. 150 A picco. Alimentazione
FTT. Trafo 650 VA. Banco da 150.000 uF. Stabile sino a 0,5 ohm. Link bilanciato
per addizionale amplificatore( i ) per bi-amping. Prezzo singolo finale .
AW400 Mono block Monaural Class A Reference
Amplifier The Electrocompaniet AW400 is a powerful mono amplifier, with a
characteristic fast and clean sound. The poweramplifier is analytic, and build
for dynamic reproduction for low level as well as high level playback.The
Electrocompaniet AW400 power amplifier is based on the design philosophy of the
highly acclaimed AW180 M monaural power amplifier. The AW400 incorporates such
refined features as: FTT (Floating Transformer Technology) power supply, capable
of delivering twice the current of a conventional power supply. First class
overall circuit design and state-of-the-art components. Uncompromising sonic and
mechanical quality. a 650 VA FTT transformer and a current reservoir of
150.000uF delivers 1 x 400 W of clean and powerful dynamics into an 8 Ohms
load. Just like the rest of our power amplifiers, the AW 400 is stable down to
0,5 Ohms. The Electrocompaniet AW 400 features a balanced link to additional
amplifier(s) for bi-amping. It can easily be used in bridged mode, delivering up
to four times the power.All measurements are made at 120V / 240V //50Hz / 60Hz
Amplifier section Clipping point of the preamplifier is set to a level
where total harmonic distortion (THD) is 0.2% Input Impedance (Fixed) 330 kohm
Output Impedance (20 Hz-20kHz) < 0,01 Ohm Frequency response (DC - 65 kHz) - 3
dB Input level for rated output 1 V RMS Max. peak current > 150 A THD(measured
at 1 kHzhalf power,8W) < 0,006 % THD (measured at 1 kHz -1 dB, 8 W) < 0,007 %
Noise (measured with both inputs shorted) 400 Hz - 30 kHz : 130 µV DC - 30
kHz : 200 µV Rated output power 8 ohms 400 4 ohms 765 2 ohms Power
consumption (no load or signal) 230 W Dimensions Width 358 mm / 14.1
inches Depth 470 mm / 18.5 inches Height 261 mm / 10.2 inches Weight 25 kg. / 55
lbs.
Finale
mono REFERENCE. 600/1200/2400 W RMS 8/4/2 ohm 240 V >150 A picco. NEMO
State-of-the-Art. Alimentazione FTT. Accoppiato in C.C. dall'ingresso
all'uscita. Peso 41 kg cadauno. Viene detto essere stato progettato per pilotare
le casse B&W modello Nautilus.Prezzo singolo finale .NEMO (AW600) Mono
Block A new standard for power amplification
The
Electrocompaniet AW600 monaural power amplifier represents the ultimate fidelity
in sound reproduction. Audiophiles, recording engineers, record producers and
reviewers around the world rely on the AW180M’s faithful reproduction of the
original master recording. The stunning capabilities of the Electrocompaniet
AW600 cannot be explained – they have to be experienced. The AW600 incorporates
such refined features as: FTT (Floating Transformer Technology) power supply,
capable of delivering twice the current of a conventional power supply, a first
class overall circuit design and state-of-the-art components Power and control,
but with a liquid, spacius and effortless aproach that removes any hint of
electronic interference, leaving only sheer, clear music in their wake. Extreme
sonic value for money, they set a new standard for power amplification.

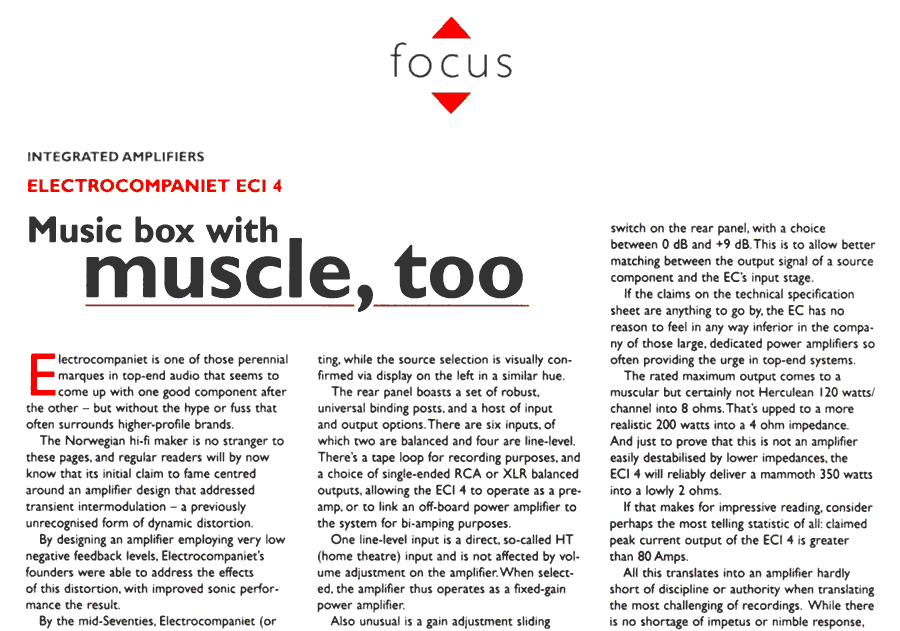

Audio&Video South Africa "Absolut Spitzenklasse, Überagend-58 punkte." (59

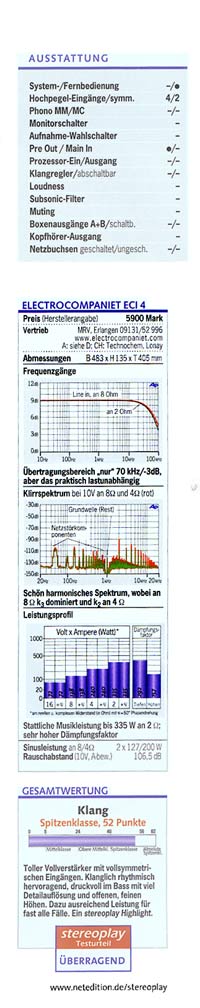

points is the highest score on a poweramplifier tested in Stereoplay, and it
cost 2-3 times more) Stereoplay Germany "A Manly Man Of An Amplifier" - Up with
the best valvejobs I've ever heard, and grainless liquidity that no other
solid-state amplifier I've heard can match. A cross between a singel ended
triode and Arnold Schwarzenegger. Unlimited power and bottom slam, handles
complexity without a hint of confusion. Enormously wide and deep soundstage. I
would pick them over every other solid-state amplifier I've heard.
Ultimate Audio, Winter 2000 All measurements are made at 120V / 240V //50Hz /
60Hz Amplifier section Clipping point of the preamplifier is set to a
level where total harmonic distortion (THD) is 0.2% Input Impedance (Fixed) 330
kohm Output Impedance (20 Hz-20kHz) < 0,009 Ohm Frequency response (DC - 65 kHz)
- 0.4 dB Input level for rated output 1 V RMS Max. peak current > 150 A THD(measured
at 1 kHzhalf power,8W) < 0,001 % THD (measured at 1 kHz -1 dB, 8 W) < 0,0015 %
Noise (measured with bothinputsshorted) 400 Hz - 30 kHz : 150 µV DC - 30
kHz : 200 µV Damping factor (20 Hz - 20 kHz) > 850 Rated output power 8 ohms 600
W 4 ohms 1200 W Power consumption (no load or signal) 230 W The NEMO is DC
coupled from input to output Dimensions Width 465 mm / 18.3 inches Depth
514 mm / 20.2 inches Height 288 mm / 11.3 inches Weight 41 kg. / 90.2 lbs
Finale Triplo
Mono , Audio/Video, 3 x120 W opp. 1 x 400 W ad 8 ohms. 100 A picco. Potenza
misurata a 240 V
The

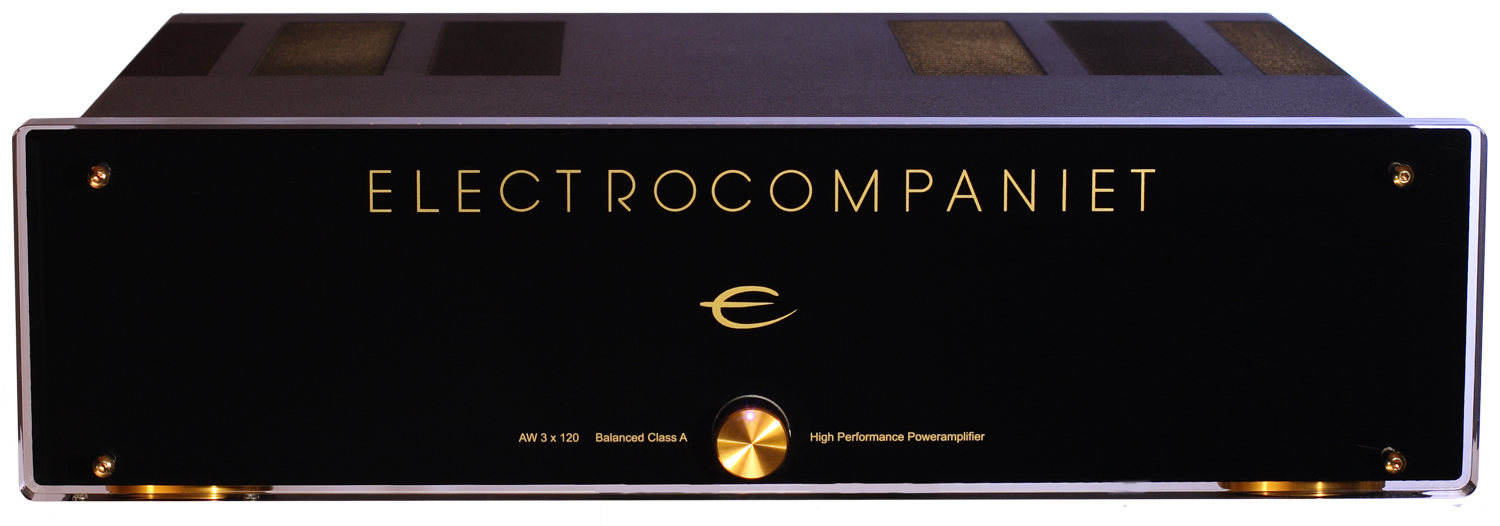

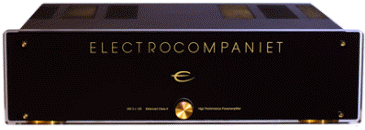

smart challenger The new Electrocompaniet AW 3x120-M is a true powerhouse in a
compact design, and can even challenge its famous "big brothers", the
traditional Electrocompaniet power amplifiers. What is so special about the AW
3x120-M amplifier? When used in multi-channel configuration, a pair of these
three channel power amplifiers is an ideal choice for a home theatre. With a
touch of the remote control, they switch over to bridged 400W, mono mode for
High-End stereophonic playback. Other smart features of the Electrocompaniet AW
3x120-M include live feedback of the amplifier's "vital statistics" on the
graphical remote control - ideal for those who like to push their music to its
limits. The Electrocompaniet AW 3x120-M is smart, compact, flexible and packed
with features. Quite simply, it is state of the art.Technical specifications All
measurements are made at 120V / 240V //50Hz / 60Hz Amplifier section Output
Impedance (20 Hz - 20 kHz) < 0,01 ohm RCA (single) input impedance 220 kohm XLR
(balanced) input impedance 110 kohm Input sensivity for rated output 1 V Max.
peak current > 100 A THD (measured at 1 kHz -1 dB, 8 W) < 0,002 % Noise
(measured with both inputs shorted) 400 Hz - 30 kHz : 90 µV10 Hz - 30 kHz : 100
µV Rated output power 8 ohms 2 x 120 W 4 ohms 2 x 200 W 2 ohms 2 x 350 W Power
consumption (no load or signal) 161 W Dimensions Width 483 mm / 19 inches Depth
385 mm / 15 inches Height 135 mm / 5.3 inches Weight 19 kg. / 41.8 lbs.
High End

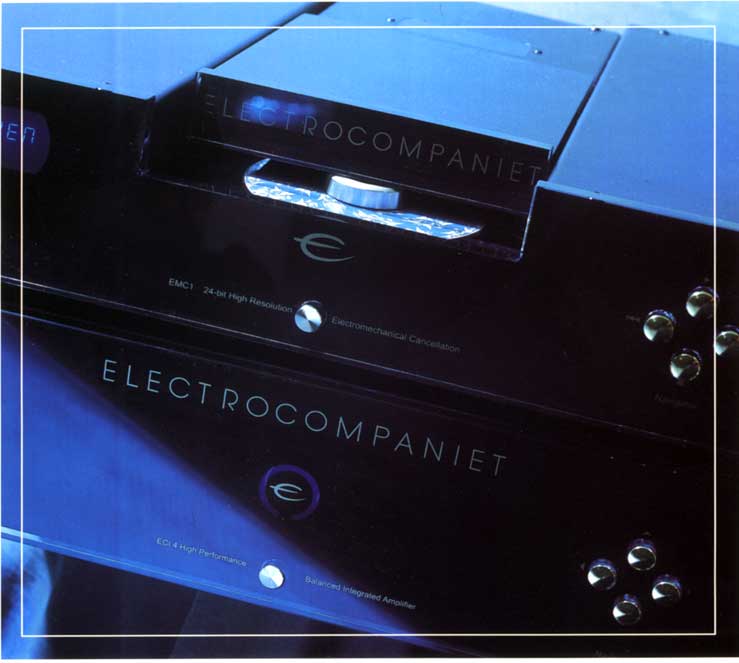

CD player, con DAC 24 Bit, upsampler 192 KHz, balanced, cancellazione vibrazioni
EMC Great
CD Player...Gets Even Better.24 Bit upsampler 192KHz DAC The EMC 1UP features a
unique cancellation system which cancels acoustic / mechanical vibrations,
preventing the laser pick-up from receiving unwanted and sonically degrading
signals.The EMC 1UP features our latest, fully balanced symmetrical
state-of-the-art circuit design powered by a FTT (Floating Transformer
Technology) power supply.Design concept and construction:The basic design
philosophy of the EMC 1UP CD transport is inspired by crucial knowledge ported
from the analog turntable. Principally, there is no difference between a record
player and a CD player. Both playback systems consist of: a motor, a pick-up and
a tone arm. Phenomena such as tone arm resonance found in analog turntables –
are just as problematic in typical CD players.To reduce or remove these
phenomena plus other unwanted resonance, Electrocompaniet has developed a
proprietary mechanical filter. The mechanical filter has been frequency adjusted
by numerous listening tests by our listening panel. The mechanical filter
removes internal and external vibration components from entering the laser
pick-up assembly, resulting in a superior reproduction with tighter bass, bigger
sound stage, precision, high resolution and amazing details.A new concept brings
the CD media to its upmost.24 Bit upsampler 192KHz DAC improves the headroom by
reducing the noise floor approximately 10dB(3x).All analogue circuits are fully
balanced and symmetrical, similar to the design of our amplifiers. Four separate
power supplies using Floating Transformer Technology (FTT) are feeding the
digital unit, the display, the drive mechanism and the analogue unit.Technical
specifications Line section Single ended gain 1.6X (4dB) Balanced gain 3.2X
(10dB) THD (1V out, 1KHz) < 0,002% Maximum output (Balanced) > 14V RMS Channel
separation (1V out, 1KHz) > 90 dB Equivalent input noise 4µV Digital section
Latest version of Phillips CD PRO Top loading drive unit 24 Bit upsampler 192KHz
DAC Digital out RCA/XLR Other True balanced system Mechanical filter which
cancels acoustic/mechanical vibrations preventing the laser pick-up from
receiving unwanted signals FTT Power supply Fully remote (no volume control)
Power consumption (no load or signal) 23 W Dimensions Width 483 mm / 19
inches Depth 440 mm / 17.3 inches Height 115mm / 4.5 inches Weight 20Kg /
44 lbs.

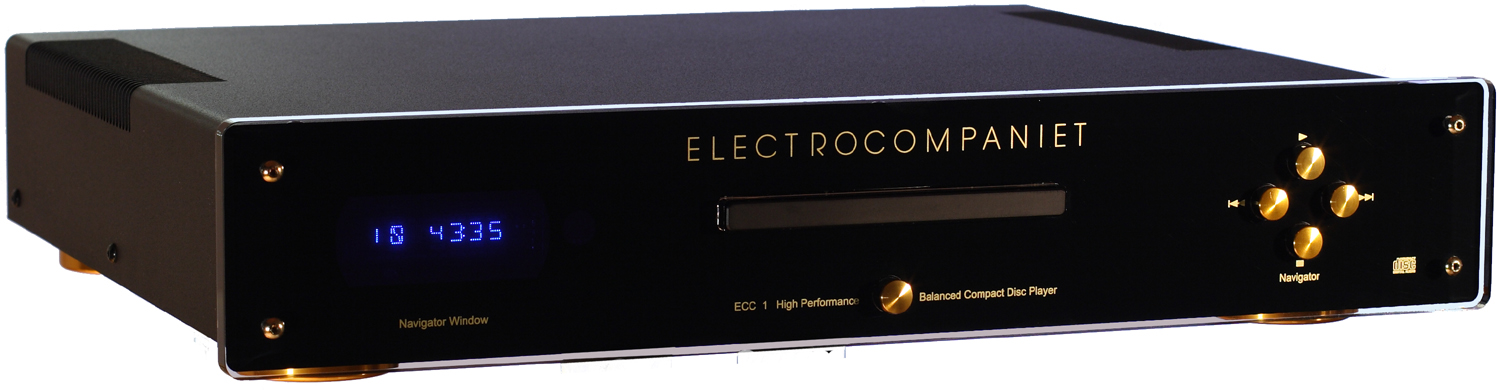

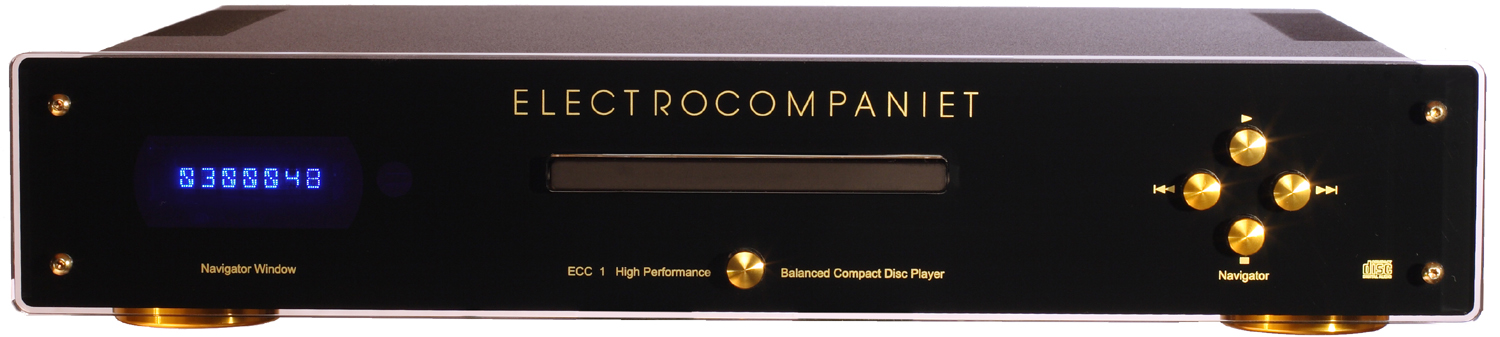

Budget high-end, con DAC 24
bit/192 kHz Cirrus Logic, piattaforma antivibrazioni per pick-up laser
Modern
production technology has been utilized to keep the manufacturing cost at a
minimum and give a performance that will rival the best. The latest 24bit/192kHz
DAC from Cirrus Logic, together with a precision fully balanced analogue output
stage operating in class A, sets the basis for a detailed, delicate and dynamic
sound. A damping platform based on the EMC1 UP anti-vibration system has been
developed to create the best possible working conditions for the laser pick-up.
The ECC 1 features both balanced and single-ended outputs, and a coaxial digital
output. The analogue output filter is optimized to reduce the phase shift at
higher frequencies, thereby leaving the high frequency music information
intact.Technical Data Conditions No. of channels 2 Video No Output
impedance 100 ohm Output level Unbalanced 2.3Vrms Output level Balanced 4.6Vrms
Noise floor 20 - 20 kHz < - 130 dB Frequency deviation 20 - 20 kHz < 0.05 dB
Channel separation > 110 dB THD + N 20 - 20 kHz < 0.002% IMD TBD Digital/Analog
Conversion 24 bit, 192 kHz Dynamic Range 120 dB Compatible formats CD-R, CD-RW,
MP3-CD, CD, MP3-DVD, WMA-CD Dimensions W x D x H 483 x 385 x 75 mm Weight 9 kg
Power consumption No load or signal 55 W Audio Outputs 1 x 2 ch balanced line
out (XLR)1 x 2 ch unbalanced phono Digital Outputs 75 ohm S/PDIF RCA

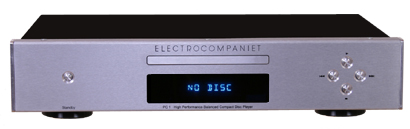

PC-1
The Prelude Cd-player The PC-1 is Electrocompaniets new entry-level CD-player.
Modern production technology has been utilized to keep the manufacturing cost at
a minimum and give a performance that will rival the best. The latest
24bit/192kHz DAC from Cirrus Logic, together with a precision fully balanced
analogue output stage operating in class A, sets the basis for a detailed,
delicate and dynamic sound.The modern optical module, mounted on a new
mechanical anti vibration system, results in a superb disc readability and quiet
operation, as well as excellent resistance to external vibrations that can
negatively affect the sound quality. The clear and bright VFD-display makes it
easy to control the PC-1 in the listening position using the remote control. The
PC-1 has both balanced (XLR) and single ended (RCA) outputs. Products highlights
Exceptional Playability High Disc Acceptance Slim Line disc loader
Advanced DAC Anti Vibration System Exelent Sound Quality Audio Playback Disc
playback media : CD-R, CD-RW, MP3-CD, CD, MP3-DVD, WMA-CD Technical Data
Conditions No. of channels 2 Video No Output impedance 100 ohm Output level
Balanced, 0dBFs 4.5Vrms Noise floor 20 - 20 kHz < - 120 dB Frequency deviation
20 - 20 kHz < 0.1 dB Channel separation > 90 dB THD + N 20 - 20 kHz < 0.002% IMD
TBD Digital/Analog Conversion 24 bit, 192 kHz Dynamic Range 96 dB Compatible
formats CD-R, CD-RW, MP3-CD, CD, MP3-DVD, WMA-CD Video scaler & de-interlacer
Dimensions W x D x H 420 x 270 x 77 mm Weight 4 kg Power consumption No load or
signal 22 W Audio Outputs 1 x 2channel balanced line out (XLR) Digital Outputs
75 ohm S/PDIF RCA
Il sistem High-End "Nordic Tone - Model 1"
č stato sviluppato da un team multidisciplinare dove sono presenti vari esperti
in vari settori. Utilizza altoparlanti attentamente selezionati per integrarsi
tra loro in modo perfetto. Sono tutti stati forniti per questo specifico modello
dai due costruttori leaders di altoparlanti: SEAS e Scan Speak. Il cabinet
utilizza nella struttura principale alluminio in fusione a sabbia, con superfici
curve rigide. Internamente le pareti sono ricoperte con strati di speciale
materiale riduttore delle vibrazioni. Le sezioni del cabinet sono tra loro
accoppiate con adesivo viscoelastico e quindi pre-pressate a 2500N. Questa
lavorazione offre una cabinet che non contribuisce alla colorazione della
musica, aiutando in tal modo a ricreare una riproduzione olografica ed accurata.
Il tutto anche ad elevati livelli di ascolto. Il crossover č il risultato di un
processo interattivo che consiste in calcoli, misure e test di ascolto. I
componenti usati sono tra i piů sofisticati prodotti da specialisti comeMundorf
GmbH in Germania. I condensatori usati inltre sono fatti in agento ed oro. Le
pure caratteristiche tecniche dicono: sistema a 3 vie infinite-baffle. Risposta
32-35k Hz. Sensbilitŕ 90 dB. Impedenza 6 ohm. Dimensioni 108x52x36 cm (AxPxL).
Peso 75 kg cad. Il sistema č PATENTS PENDING
The Nordic Tone - Model 1 is the first product
based on one of the largest research and development projects within loudspeaker
design that has been carried out. The multi disciplinary team consisting of
industrial designers, specialists in acoustics, engineers and metallurgists have
been working for three years to develop these exclusive high performance
loudspeakers. Our goal has been to attain a natural sound in home environments,
and at the same time focusing on giving our products a stunning, modern design
that will work well - as part of the interior of a private residence for years
to come. Be prepared for sound reproduction and an experience of presence rarely
heard... The Nordic Tone is the name of the loudspeakers produced by
Electrocompaniet in Norway. Our goal is to present fine, high performance
loudspeakers, designed and produced by skilled craftsmen in Norway. There is a
special place in the hearts of music enthusiasts for true high fidelity audio
equipment. The most important value of our products is their ability to
reproduce musical performances so natural and uncolored that the listeners can
close their eyes and enjoy concert experiences at home. We strive to reproduce
the musical and holographic information provided via the loudspeaker cables as
naturally as possible. This gives our listeners the best basis for joyful and
living music experiences at home. Our goal is to design loudspeakers that add
positively to the home environment. The cabinet technology developed breaks with
the traditional and cost-efficient loudspeaker enclosures of thick, heavy wood
based enclosure walls. We believe a cabinet should be made of a thin, light,
stiff material, shaped with spherical surfaces. Spherical surfaces are very
important as it increases the stiffness hundreds of times compared to the flat
and tenfold compared to extruded aluminium profiles. The reason for our search
for thin, light, stiff enclosures is based on the following: Hi frequency
resonances, as those found in light and stiff materials, are much easier to
muffle. We combine the outer 7 mm cast aluminum wall with a heavy dead muffler
sandwich on the inside. Our muffling method is basically the same as the ones
used in aircraft to enable the passengers leave the plane with their ears intact
- which actually is quite remarkable considering that they have been sitting
only a few meters away from one of the strongest sound producers made by man - a
large jet engine. To improve this method even further we pre-tension the
complete enclosure with pushrods loaded with 2500N. The absorbers inside the
enclosure are shaped as wedges, preventing reflections from the sound waves
reaching the rear side of the elements.
Telecomomando opzionale. Opera sia
all'INFRAROSSO che in RADIOFREQUENZA Quando opera in RADIOFREQUENZA in
abbinamento agli apparecchi Electrocompaniet predisposti, essendo bi-direzionale
potrŕ indicare sul display i valori di tempertaura
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Clicca
per qui per vedere : FILMATO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a info@sinergy.us
Il presente listino
sostituisce ed annulla ogni precedente.I prezzi indicati si
riferiscono a singolo diffusore.
Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco
nostro magazzino
Nota bene Tutti i marchi citati nel presente listino sono di proprietŕ e
registrati alle rispettive Case Produttrici
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
€.1.269,00
Prezzo Offerta
TELEFONA
/ UN E-MAIL
.gif)
.jpg)
PD-1
Balanced Digital Analog Converter The new Prelude PD 1 DAC from Electrocompaniet
is our answer to the growing need for a user friendly DAC with USB interface.
With our new DAC you can listen to the music from your CD-player, TV/Satelite
tuner, iPod or PC / MAC the way it was meant to be. The sound from all your
digital sources is improved and the listening experience is enhanced. The
Prelude PD-1 is easy to install and with the remote control you can change
between the sources and adjust the volume - perfect if you connect the DAC to
active speakers or directly to a power amplifier. For wireless streaming from
your PC/MAC you can choose to add our USB Music Streamer. This way you do not
need any cables between your computer and the DAC. Technical specifications: •
No. of channels: 2 • Output impedance: 100 ohm • Output level: 3.4 Vrms • Noise
floor (20 - 20 kHz) : < - 140 dB • Frequency response: 1 – 48 kHz • THD +
N: < 0.003% • Upsampling rate: 192 kHz, 24bit • Digital/Analog conversion:
192 kHz, 24bit • Input sampling rate supported: SPDIF 192 kHz, 24 bit USB 48
kHz, 16 bit RF Link 48 kHz, 16 bit •Audio Outputs: Stereo balanced line
out (XLR) Stereo single-ended line out (RCA) •Digital Inputs: 2 x SPDIF Coaxial,
1 x SPDIF TOSLink, 1 x USB Type B, 1 x RF Link • Weight 4,3 Kg All
measurements are made at 120V/240V//50Hz/60 Hz
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
