Over 20 years on, it’s easy to underestimate the impact
the first audiolab products had on the market, but the original 8000A certainly
shook up a cosy British audio industry: here was an amplifier designed with the
kind of facilities consumers wanted, yet still able to deliver a sound to please
audiophiles.
And it sold for a bargain £250, pitching it against market leaders like the A&R
Cambridge A60, not to mention the Japanese competition.The founders of Audiolab, Philip Swift and Derek Scotland, had been involved in
the audio industry for some time, working on the fondly-remembered Lentek
amplifiers and speakers for the Mission brand, which has recently joined
audiolab as a stablemate. They’d also been working on a personal project: an
amplifier designed to offer ‘oustanding sound quality at a modest cost’, and
perform reliably with a wide range of speakers under real world conditions.8000A LaunchedThe development process involved an attempt to measure performance and correlate
this with perceived sound quality, and the intention was to develop an amplifier
that was foolproof, fully-equipped and yet capable of high standards of
performance.At the same time, amplifiers fell into one of two camps:
‘Fully-loaded’ with facilities and sounding so-so, or simple ‘hairshirt’ designs
that were capable of sounding great, but inconvenient to live with.The 8000A was launched in 1983, and featured high-quality tone controls, a
phono-stage for turntables, and a choice of direct or switched speaker outlets.
The direct connection gave the best sound, the switched one made life simpler
for headphone users.And right from the start, the amplifier was designed to be the start of a
complete Audiolab system: a link could be broken between the preamp and power
amplifier, allowing an upgrade with a power amp. At the time the connections
were on the then-fashionable DIN multi-pin sockets; it wasn’t long before the
conventional phono sockets we all know made their appearance. All Audiolab products embody a no-nonsense, practical
approach to high-quality audio. Each model is engineered to be best in class
without emphasis. The simple philosophy of high specification components,
excellent build and construction, innovative circuit topology and a ruler flat
response are applied throughout our product development.We have extended the
famous 8000 series of electronics with Home Cinema products - an advanced AV
pre-amplifier and 7 channel power amplifier.
SERIE 8200
The Audiolab 8200 series marks a new generation of products for a storied
British brand. The designers have worked diligently to maintain the ethos of the
brand while infusing a level of musicality and modernity into an exciting new
line of products.
The construction of the chassis exhibits an extraordinary attention to detail,
including perfectly fit aluminum panels that not only add to the quality of
build, and design, but also improves the sound quality by reducing magnetic
noise. The same attention was given to the internals of each unit, which uses
only the finest quality audiophile components. Every product has been designed
to the highest standard without compromise.A new range of digital products allow
for extraordinary flexibility for system building, yet maintains Audiolab’s
simplicity in form and function. A wealth of digital inputs including
asynchronous USB will keep Audiolab’s DAC/CD units playing music libraries
regardless of how it may be stored, today and in the future. The 8200 series
introduces a range of products that users will continue to enjoy for years to
come
Convertitore digitale analogico con
controllo di volume, convertitori Sabre a 32 bit, sette filtri
digitali selezionabili, master clock proprietario, stadio di uscita a componenti
discreti bilanciato e in classe A, uscite bilanciate XLR e sbilanciate RCA,
ingressi digitali coassiali, ottici e USB 2.0 asincrona, telecomando, dimensioni
59 x 250 x 252mm, finitura Black o Silver.. Cadauno.

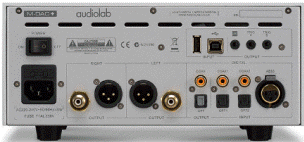

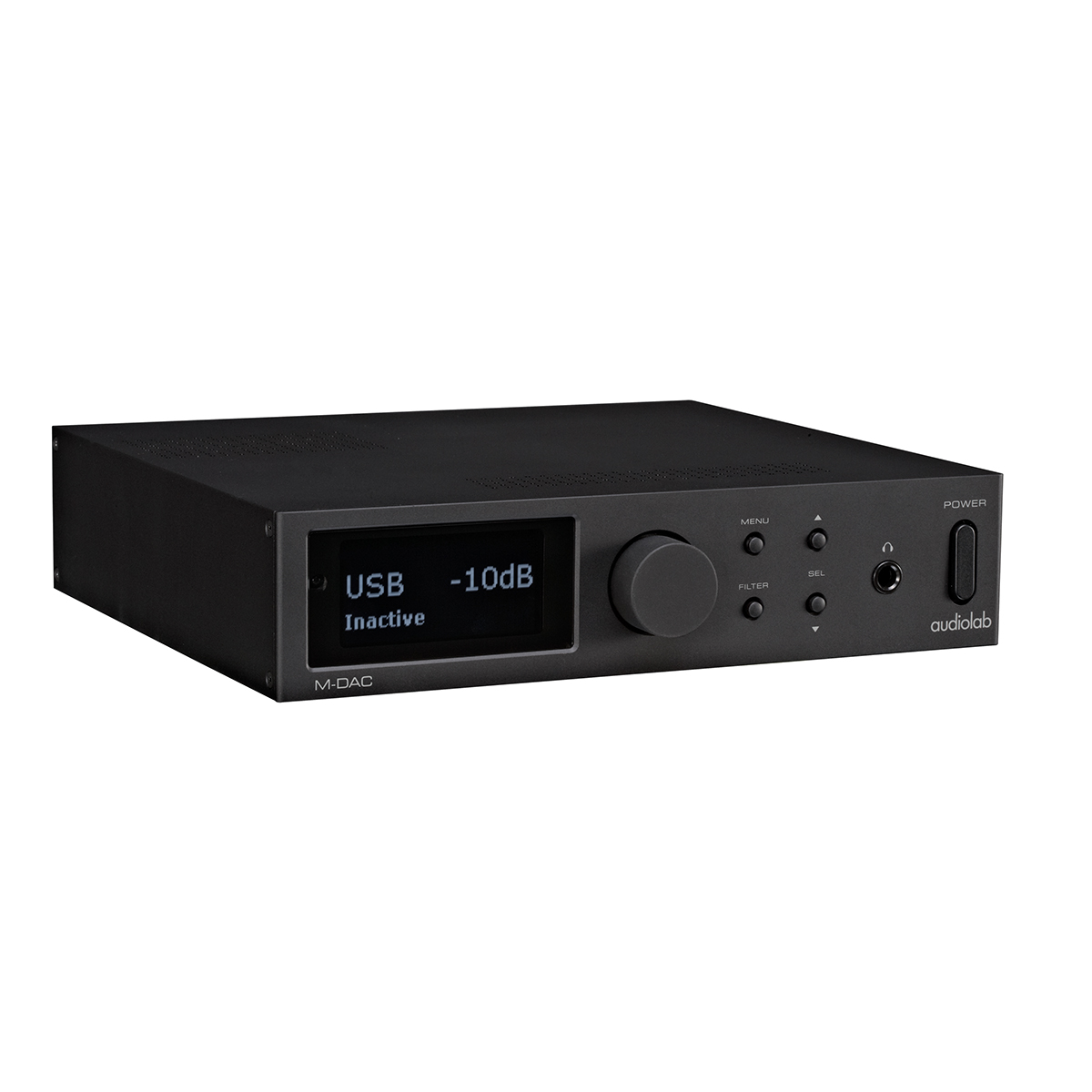

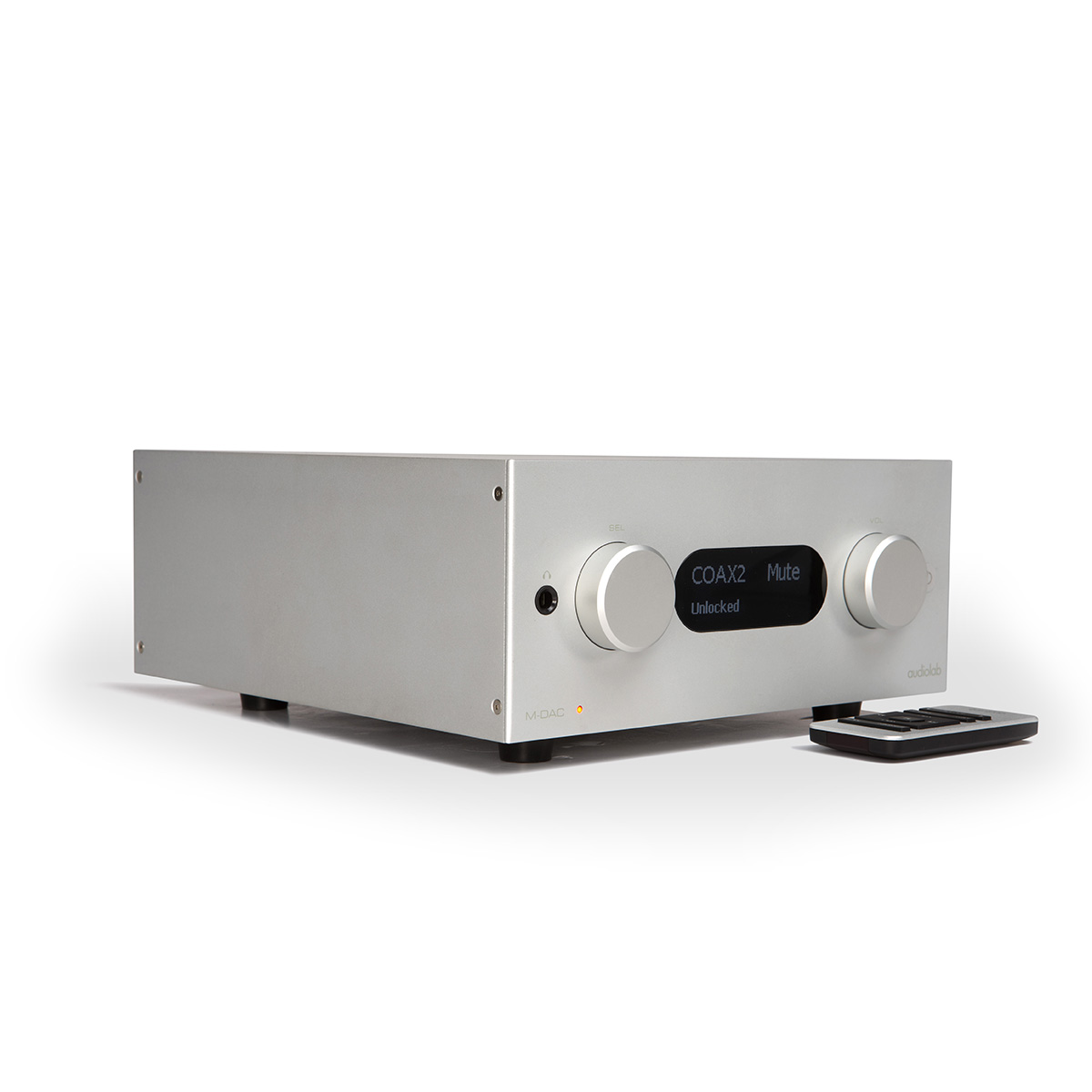

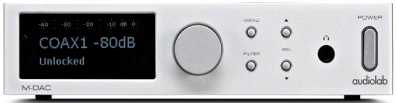

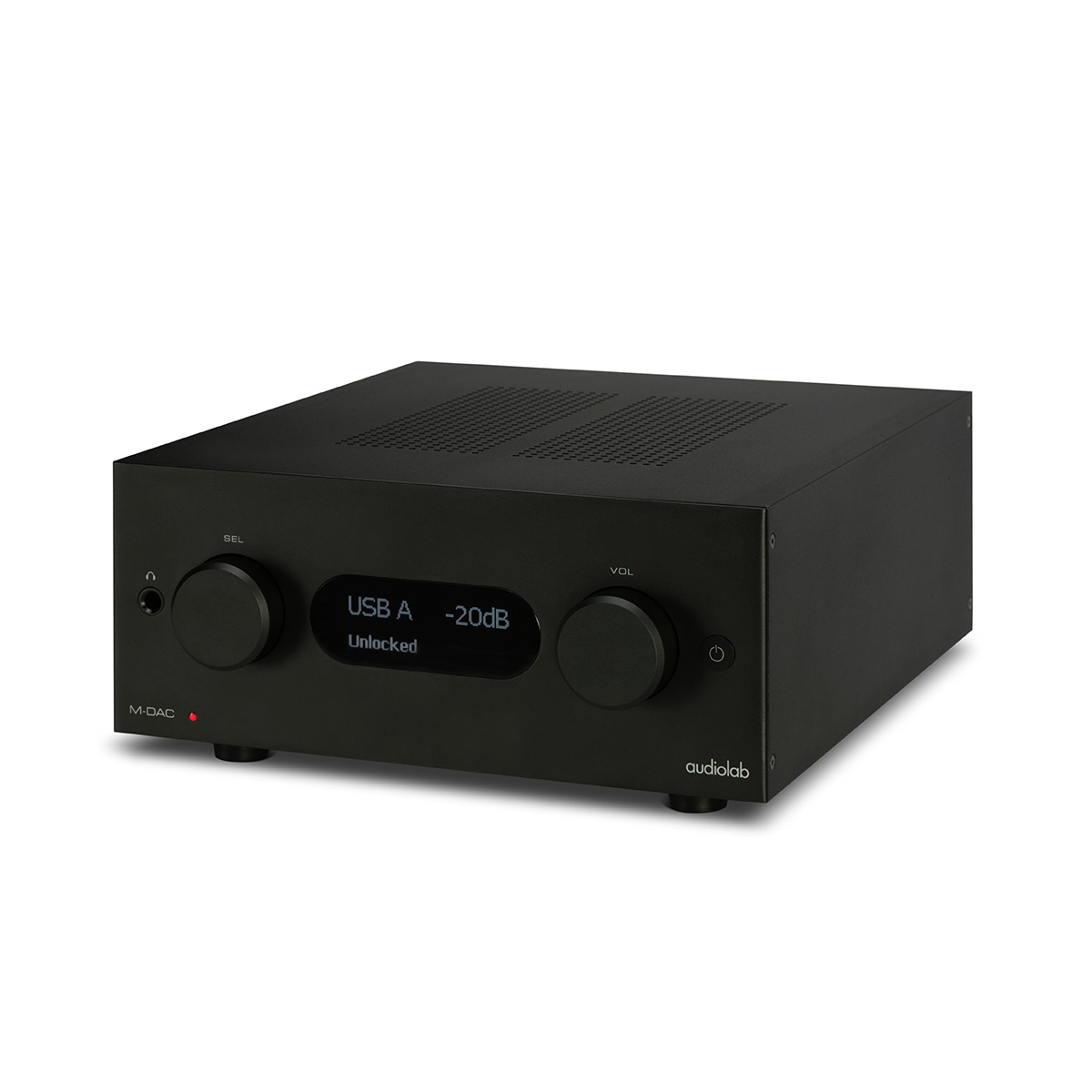

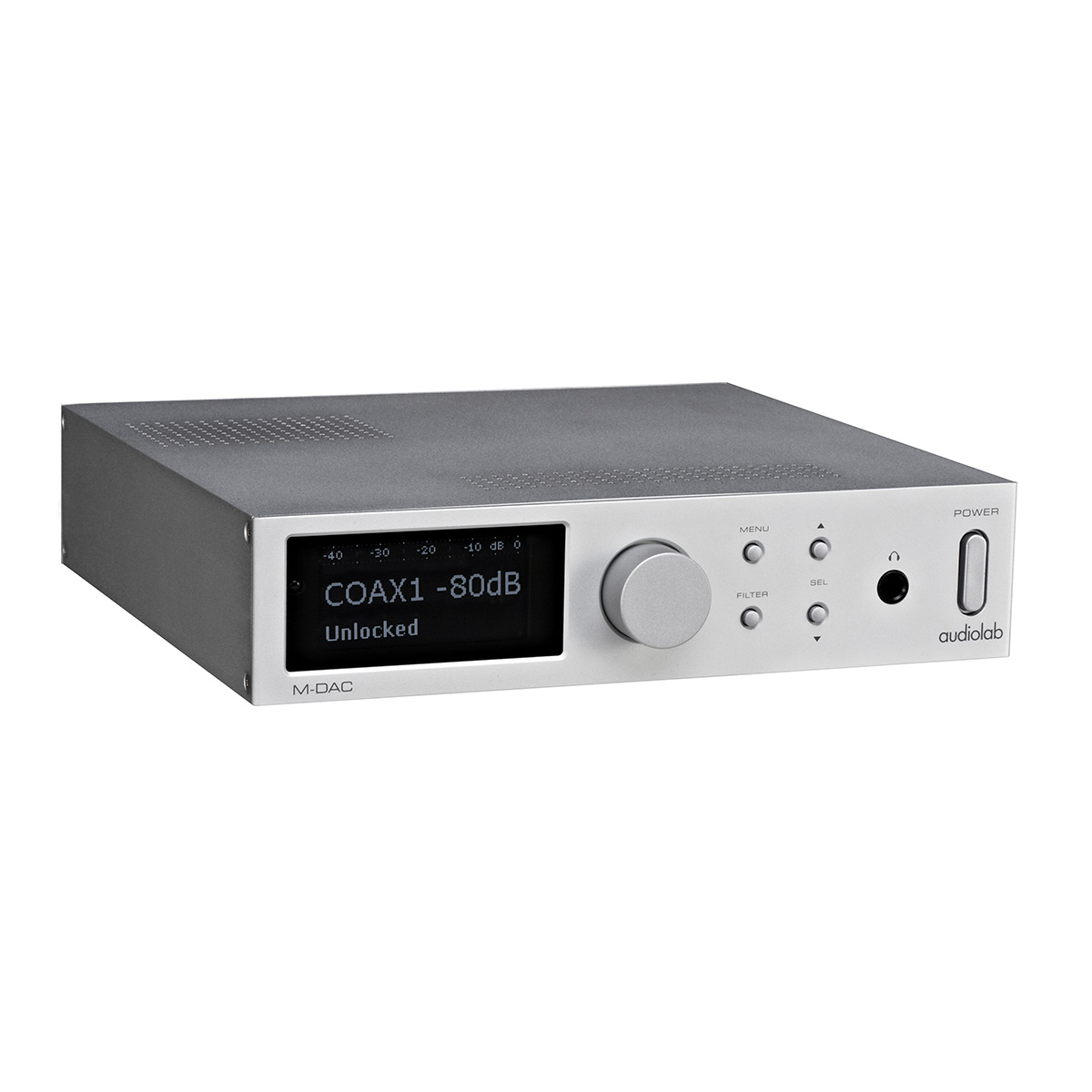

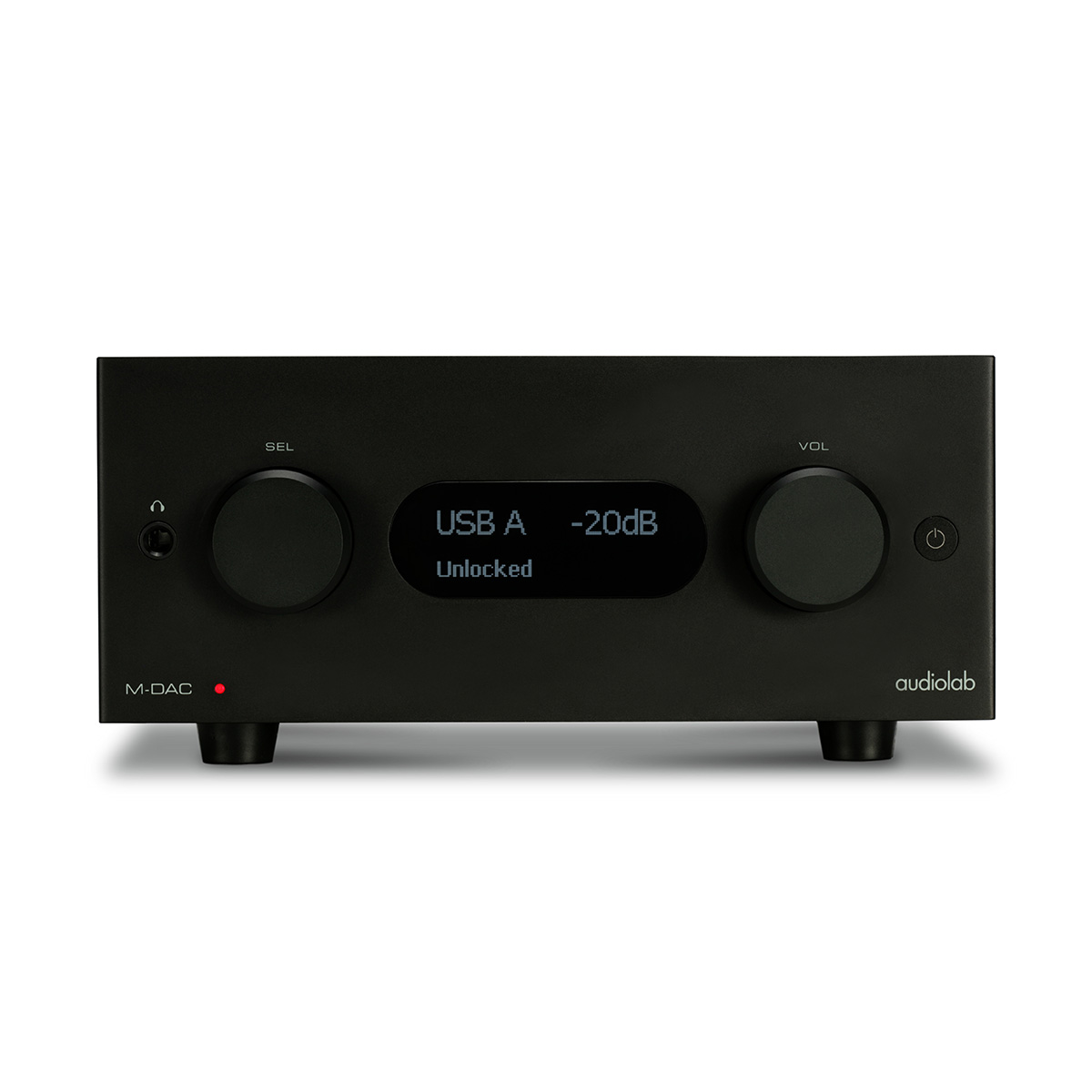

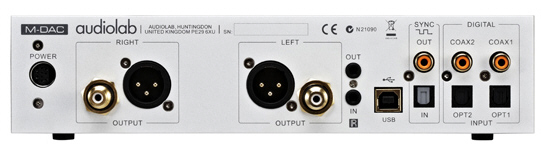

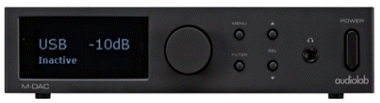

The M-DAC, an eagerly awaited, new standalone D/A converter finally makes its
debut as a replacement for the award-winning 8000DAC introduced in 1992. The
M-DAC is housed in a smart styling aluminium case with solid build and ample
connectivity. Alongside the USB input with Asynchronous data processing, there
are two each of coaxial and optical digital inputs, and one each of coaxial and
optical digital outputs. Audio signal is provided via RCA single-ended and XLR
balanced audio outputs. A wand like remote control handset allows you to switch
inputs, select from preset digital filters and alter the display. The large
clear screen allows you to see what input is being used and the sample rate
being received. High-res 24-bit/192kHz music files can be played on the M-DAC
via the coaxial input, while optical and USB inputs support 24-bit/96kHz data.
Specification Model M-DAC General description Digital-to-analogue converter DAC
ESS Sabre32 9018 chip Resolution 32 bits Maximum Sampling Frequency
84.672MHz Digital input 2 x 24-bit/192kHz coaxial ,2 x 24-bit/96kHz Toslink
optical, 1 x 24-bit/96kHz USB Digital output 1 x coaxial, 1x Toslink
optical Output voltage RCA: 2.25V RMS,XLR: 4.5V RMS Total
Harmonic Distortion RCA: <0.002%; XLR: <0.0008% Frequency response
20Hz - 20kHz (± 0.2dB) Dynamic range RCA: >115dB;XLR: >122dB
Crosstalk RCA: <-120dB; XLR: <-130dB Dimensions (H x W x D) 59
x 250 x252mm Power requirements (depending on region) 220--230V
/100-120V (50 ~ 60Hz) Colour Black, Silver Standard
accessories power cord, remote control handset, batteries, user manual
Convertitore e preamplificatore digitale e
analogico integrati, convertitori Sabre 32 bit, sette filtri digitali
selezionabili, master clock proprietario, stadio di uscita a componenti discreti
bilanciato e in classe A, tre ingressi RCA, uscite bilanciate XLR e sbilanciate
RCA, ingressi digitali coassiali, ottici e USB 2.0 asincrona, schermo oled,
telecomando, dimensioni 445 x 74 x 337mm, peso 8kg, finitura Black o
Silver..

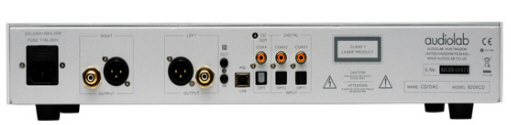

Superlative digital media centre featuring 32-bit digital-to-analogue converter/pre-amplifier
fully balanced discrete Class-A analogue circuits, a dedicated USB input of
asynchronous processing, digital filtering, ample digital and analogue input
connections and Class-A headphone amplifier. Comprised of over 1700 components
using precision SMT manufacturing on a 4-layer PCB, the Audiolab 8200DQ is the
most advanced electronic design in Audiolab’s impressive history. Specification
Description Digital & Analogue Pre-amplifier DAC ESS Sabre32 9018 chip
Resolution 32 bits Output Voltage RCA: 2.05V RMS (±0.1dB) XLR: 4.1V RMS (±0.1dB)
Frequency Response 20Hz - 20kHz (±0.2dB) Total Harmonic Distortion RCA: <
0.0025%, XLR: < 0.0008% Crosstalk RCA: < -120dB, XLR: < -130dB Dynamic Range
RCA: > 98dB, XLR: > 100dB Dimensions (W x H x D) 445 x 74 x 335mm Standard
Accessories Remote control handset, power cord
Amplificatore integrato
stereo Audiophile - Potenza RMS 60 W x 2 su 8 ohm -Risposta in frequenza
1Hz-65kHz (-3dB) - Separazione pre/finale - Volume con potenziometro motorizzato
controllato da telecomando

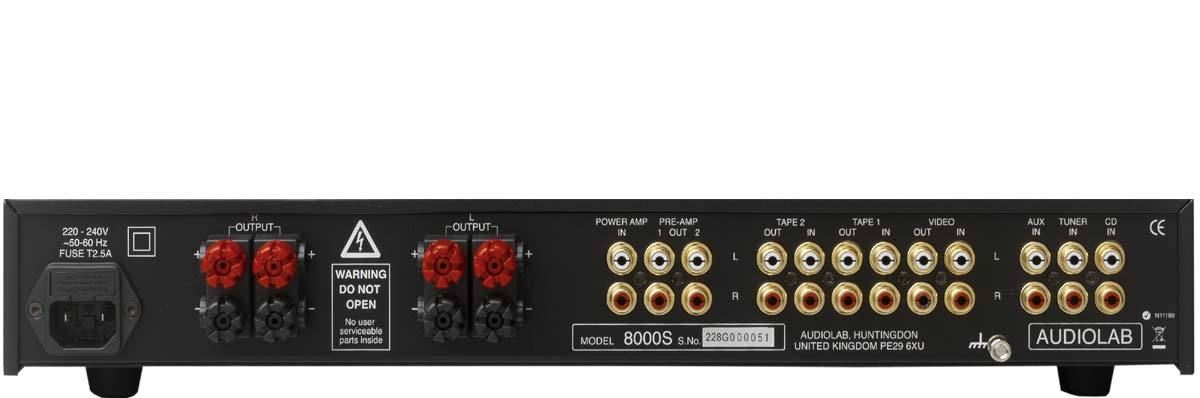

The 8000S integrated amplifier has been crafted with
the famous 8000A as its inspiration. With this fine heritage behind it, the
virtues of the system are many; not least of which is flexibility.
Able to operate in any one of five modes the 8000S is a more than worthy
replacement for - and an essential addition to - any home with a passion for
high quality audio.
The power of the 8000S is self-evident, with 60 Watts per channel output and a
maximum peak output current of over 25 Amps, the system is able to drive most
loudspeaker loads with ease and comfort.
The 8000S also features 6-line level inputs and has 3 tape loops, all selectable
from the supplied system remote control. The 8000S modes Mute with a record
function unaffected Stand alone pre-amplifier Integrated amplifier Pre-power
amplifier with the option to add further amplifiers Pre-power AV, which allows
it to work as both a pre and power amplifier separately should you wish to add
an AV processor to your system. Quotes "The 8000S integrated amplifier has been
created with the famous 8000A as its inspiration"
"Well-built, reliable and good value for money.Rated output power 60 W per channel into rated load
impedance (8?),95 W
Typical output power 72 W per channel into rated load impedance (8?),
Preamplifier input impedance 20 k? nominal
Preamplifier maximum output Greater than 7.76 V rms
Power amplifier input impedance 47 k? nominal
Frequency response (-3 dB) 1 Hz - 65 kHz
Frequency response (±0.5dB) 20 Hz - 20 kHz
Channel separation Greater than 60 dB at 1 kHz
Crosstalk rejection Greater than 80 dB at 1 kHz
Operating temperature range 10 - 35ºC
Power consumption Less than 300 W Idle/Power
Dimensions (WxHxD - mm) 445 x 74 x 335
.
Amplificatore integrato a due canali, 60W per
canale su 8ohm, potenziometro ALPS, sei ingressi sbilanciati RCA, ingresso
main in, uscita pre out, recout e monitor, uscita cuffia, distorsione armonica
minore di 0,07%, risposta in frequenza 20Hz-20kHz (±0.5dB), telecomando,
dimensioni 445 x 74 x 337mm, peso 7.6kg, finitura Black o Silver.. Cadauno

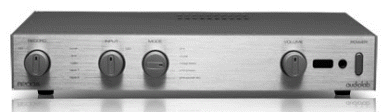

Audiolab’s
latest integrated amp is the result of elegant, unfussy engineering of the
highest quality. Clean lines and firm, responsive controls ensure it is a
pleasure to use, while the amp’s internal design delivers exceptional sound:
fast, clean and detailed, a performance perfectly in balance from deep bass to
soaring treble. The 8200A delivers 60W per channel and supplies six line-level
inputs and three outputs. Twin sets of speaker terminals are provided to
facilitate bi-wiring, along with a high-quality, front-mounted headphone output,
while a top-grade ALPS motorised volume control and motorised input switches
deliver the convenience of remote control without any loss of performance. No
fuss, no frills. Just pure engineering excellence for an impeccable user
experience – that’s the Audiolab 8200A, in a nutshell. Specification Frequency
Response: CD, TUNER, AUX, VIDEO, TAPE1, TAPE2 and POWEP AMP: 20Hz-20kHz±0.5Db;
1Hz-65kHz-3dB Total Harmonic Distortion & Noise: Less than 0.07% Channel
Balance:Within 1dB Channel Separation: Better than 60dB@1 kHz any input
Crosstalk: Better than 80dB@1 kHz Polarity (phase): Non-inverting for all inputs
and outputs Pre-amp Output: PRE OUT 1and PRE OUT 2: Output Impedance l00Ω
Maximum Output>7.3V RMS Headphone Output: Output impedance: 330Ω(Suitable for
headphones 8Ω-2kΩ impedance) Record Output: VIDEO OUT,TAPE 1 OUT, TAPE2 OUT:
Output impedance: 1kΩ Gain from input to record output 0dB(x1) Muting: Muting
controlled manually or automatically Operating Temperature Range: 10-35℃ Power
Requirements (Depending on Region): 50-60Hz 100V, 110-120V and 220-230V models
available Maximum Power Consumption: 440VA Dimensions (WXHXD): 445x74x335 mm -
including feet, terminals and controls 445x64x302 mm - excluding feet, terminals
and controls Weight: Net: 7.4kg; Shipping: 8.8kg
Preamplificatore stereofonico, sei ingressi
sbilanciati RCA, ingresso main in, uscita pre out, recout e monitor, uscita
cuffia, controllo del guadagno per il controllo della sensibilità, distorsione
armonica minore di 0,007%, risposta in frequenza 10Hz-20kHz (±0.2dB),
telecomando, dimensioni 445 x 74 x 337mm, peso 6kg, finitura Black o Silver..

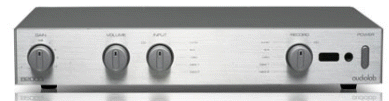

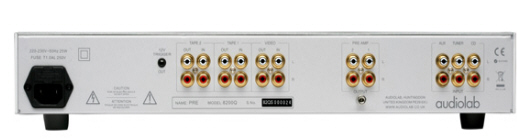

Succeeding the highly acclaimed 8000Q in Audiolab’s range, the 8200Q is, quite
simply, the ideal audiophile preamplifier. A high-performance preamp should
deliver all of the functionality and control required without imposing any
character of its own upon the delicate audio signals. It’s this neutrality that
is so hard to achieve, and it is this neutrality that forms the heart of the
Audiolab experience. The 8200Q supplies six line-level inputs (including three
tape loops) coupled to the convenience of remote control, with component
selection and engineering of the highest standard. All signals are switched with
audiophile-grade signal relays and the volume control is a motorised
potentiometer, for precise tracking and maximum sound quality. A separate gain
control enables sensitivity to be adjusted to suit different power amps and
source components, with sophisticated circuitry maintaining sound quality at
every setting. With the unerring accuracy of a precision instrument, the 8200Q
delivers unsurpassed neutrality, making it the perfect centrepiece for a
high-performance audio system. Specification Frequency Response: 10 Hz-20
kHz±0.2 dB; 1Hz-75 kHz -3dB Total Harmonic Distortion & Noise: Less than 0.007%
ref7.7V rms, 20Hz - 20 kHz Channel Balance: Within 1dB Channel Separation:
Better than100dB@1 kHz any input, any setting Pre-amp Output: Max. Output>7.7V
RMS (20dBm); Output impedance 75Ω Headphone Output: >7.7Vrms; l00Ω: (for
headphones BΩ-2kΩimpedance) Record Output: VIDEO OUT, TAPE l OUT, TAPE 2 OUT:
Gain 0dB (xl); l00Ω Muting: Attenuation >63 dB, controlled automatically
Operating Temperature Range: 10-35℃ Weight: Net: 6kg Shipping:7.3 kg
Amplificatore di potenza
stereo Audiophile - Potenza RMS 100 W x 2 su 8 ohm - Risposta in frequenza
0,1Hz-75kHz (-3dB) - Rapporto S/R migliore di 95 dB
The 8200P is a classic Audiolab two-channel power amplifier, with a sound as
clean and crisp as its minimalist exterior. Its pedigree is impeccable,
descended from a range of amplifiers revered throughout the world for their
unerring ability to perform at the highest level. Delivering more than 100W per
channel with a peak output of over 40 Amps, the 8200P is capable of driving even
the toughest of loudspeakers with sure-footed authority, combining Audiolab’s
class-leading neutrality with an unerring ability to engage the listener
throughout a musical performance. When listening to the 8200P, what you hear is
the music – pure and unadulterated, with detail and dynamic range fully intact.
Exemplary build quality and reliability ensure that this is a power amp for all
seasons, as comfortable in a home cinema environment as it is in a purist
two-channel music system. Thrilling to listen to and utterly dependable, the
8200P is a genuine audio thoroughbred. Specification General Description: Stereo
Power Amplifier Output Power: 2 x 100W RMS 8 ohms 2 x 150W RMS 4 ohms Frequency
Response: 20 Hz-20 kHz ±0.3 dB 0.1Hz-75 kHz -3 dB. Gain: 29.0 dB at1kHz Total
Harmonic Distortion: Less than 0.05% Signal to Noise Ratio: Better than 95 dB
Input Sensitivity (RCA): 1V rms for 100W into 8 Input Impedance (RCA): 50kΩ
Power Consumption: 500 VA Dimensions (W x H x D): 445×74×337mm- including
feet, terminals and controls Weight: Net: 8.7 kg Shipping: 10 kg Finish: Silver/Black

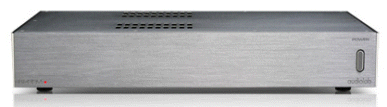

Amplificatore di
potenza monofonico, 125W su 8ohm, 200W su 4ohm, ingressi sbilanciati RCA,
distorsione armonica inferiore a 0,05%, rapporto S/R maggiore di 96dB, risposta
in frequenza 20Hz-20 kHz (±0.3dB), dimensioni 445 x 74 x 337mm, peso 8.2kg,
finitura Black o Silver.. Cadauno
Using two monobloc amplifiers, rather than a two-channel stereo power amplifier,
can significantly improve the performance of any hi-fi system. The 8200M builds
upon the template provided by the 8200P to deliver a single-channel amplifier of
exceptional talent. Each 8200M delivers 125W of crisp, clean current, sufficient
to drive any loudspeaker comfortably, with plenty in reserve for dramatic
dynamic swings. Speed and resolution are exceptional, ensuring every detail is
captured with crystalline clarity, whilst the overall musical message is
conveyed with masterful authority. Flexibility is a key facet of this compact
powerhouse. A single pair of 8200Ms may be used in conjunction with a preamp in
a two-channel stereo system; or several pairs may be daisy-chained to further
improve headroom in bi-amped or even tri-amped systems. They’re ideal for use in
high-performance home cinema systems too, combining dramatic power and subtle
musicality in thoroughly engaging fashion. Like all Audiolab amplifiers, the
8200Ms are gain-matched, ensuring perfect integration with other Audiolab amp
components – so you can start at the level that suits you best, and build up
your system over time. Specification General Description: Mono Power Amplifier
Output Power: 125W RMS 8 ohms 200W RMS 4 ohms Frequency Response: 20 Hz-20 kHz
±0.3 dB 0.1Hz-75 kHz -3 dB. Gain: 29.0 dB at1kHz Total Harmonic Distortion: Less
than 0.05% Signal to Noise Ratio: Better than 96 dB Input Sensitivity: 1.12V rms
for 120W into 8Ω Input Impedance: 50kΩ Power Consumption: 300 VA Dimensions (W x
H x D): 445×74×337mm-including feet, terminals and controls Weight: Net: 8.2 kg
Shipping: 9.6 kg Finish: Silver/Black

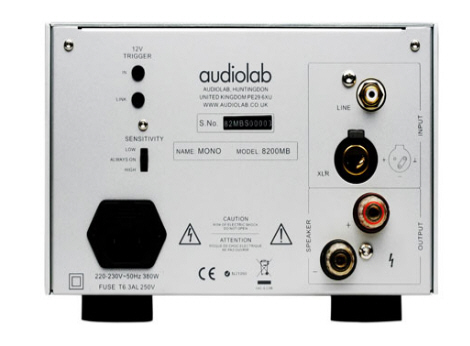

Amplificatore di potenza monofonico, 250W
su 8ohm, ingressi sbilanciati RCA bilanciati XLR, distorsione armonica
inferiore a 0,03%, rapporto S/R maggiore di 96dB, risposta in frequenza 20Hz-20
kHz (±0.1dB), dimensioni 216 x 150 x 379mm, peso 9kg, finitura Black o Silver.

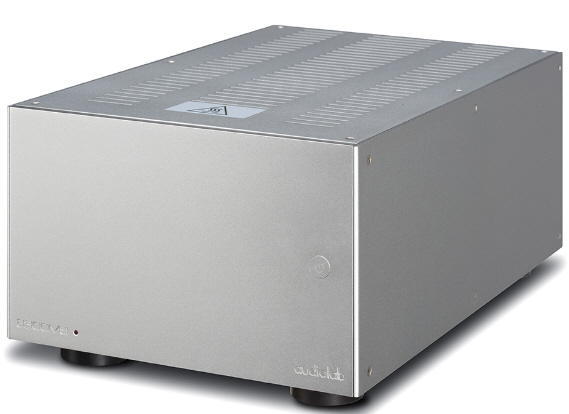

A clean-sheet addition to the Audiolab
range, the 8200MB is an advanced single-channel power amplifier capable of
partnering loudspeakers of the highest calibre. With a rating of 250W, it is
designed to deliver high power with ultra-low distortion. In terms of sound
quality, the 8200MB is an exceptional performer. Its high current ability
enables it to drive the toughest of loads; even the most difficult speakers are
driven cleanly without the loss of dynamics. The supreme neutrality that
characterises Audiolab hi-fi components shines through, coupled to effortless
reserves of current to call upon whenever required, so all you hear is the music
– pure and unrestrained. Supplying a choice of both balanced XLR and
single-ended RCA inputs, the 8200MB is a power amplifier of enormous ability.
Anyone seeking a flexible, compact, high-power monoblock for a stereo or
multichannel system need look no further. Specification Rated Output Power:
250W/Channel into 8Ω, 2OHz-20kHz Input Sensitivity: 1.63Vrms for 250W into 8Ω
Input Impedance: 20kΩ Balanced, 16kΩ unbalanced Gain: 29.0 dB at 1 kHz; Signal
To Noise Ratio (IHF, rel. 0.dBW); 88dB Frequency Response: 20-20KHz±0.1dB,
<0.1-120KHz-3dB Total Harmonic Distortion & Noise: Less than 0.03%, 20Hz-20 kHz
Polarity (Phase): Non-Inverting Muting: Muting controlled automatically
Operating Temperature Range: 10-35℃ Power Requirements (Depending on Region):
50-60Hz 100V, 110-120V, and 220-230V models available Maximum Power Consumption:
380VA Dimensions (WxHxD): 216x150x379mm Weight: Net: 9kg Shipping: 11kg
DAC e meccanica di lettura CD integrati,
convertitori Sabre a 32 bit, sette filtri digitali selezionabili, master
clock proprietario, stadio di uscita a componenti discreti bilanciato e in
classe A, uscite bilanciate XLR e sbilanciate RCA, ingressi digitali coassiali,
ottici e USB 2.0 asincrona, schermo oled, telecomando, dimensioni 445 x 74 x
337mm, peso 8kg, finitura Black o Silver.. Cadauno
While
most CD players are designed purely for CD playback, the award winning 8200CD
has been created with flexibility firmly in mind. Their architecture is perhaps
best described as a ʻDAC + CDʼ, rather than as a CD player in the traditional
sense. The DAC (Digital-to-Analogue Converter) is the cornerstone of their
design, which is why Audiolab has chosen the Sabre 32-bit audio DAC from ESS
Technology to carry out D-to-A conversion. The provision of digital inputs –
optical, coaxial and USB – means the 8200CD can be used to deliver top-quality
sound from all kinds of digital sources, including audio files from computers
and other media devices. Thus, all music benefits from the superb sound quality
produced by the playersʼ DAC and discrete Class A output stages. Comprised of
over 1700 components using precision SMT manufacturing on a 4 layer PCB, the
Audiolab 8200CD is the most advanced electronic design in Audiolab’s impressive
history. Specification Output Level: RCA: 2.05V RMS? XLR: 4.1V RMS Frequency
Response: 20Hz - 20kHz ±0.2dB Total Harmonic Distortion: RCA: ＜0.0025%? XLR:
＜0.008% Crosstalk @1KHz: RCA: ＞120dB XLR: ＞130dB Dynamic Range 'A' wtd: RCA:
＞98dB XLR: ＞110dB
DAC, meccanica di lettura CD e preamplificatore digitale e
analogico integrati, convertitori Sabre a 32 bit, sette filtri digitali
selezionabili, master clock proprietario, stadio di uscita a componenti discreti
bilanciato e in classe A, tre ingressi RCA, uscite bilanciate XLR e sbilanciate
RCA, ingressi digitali coassiali, ottici e USB 2.0 asincrona, telecomando,
dimensioni 445 x 74 x 337mm, peso 8kg, finitura Black o Silver.. Cadauno.
In addition to the 8200CD, the 8200CDQ adds full preamp functionality whilst
maintaining the same chassis size as the 8200CD. The existing digital inputs are
joined by three line-level analogue inputs, providing source selection and
volume control in the analogue domain. The preamplifier section is fully
balanced and all analogue input signals are converted to balanced form, helping
to reduce distortion and noise. Class A gain structures are present throughout,
and users may choose between preamplification in the analogue or digital domain
in respect of the digital inputs. In addition, the 8200CDQ adds a direct-coupled,
discrete, Class A headphone amplifier, accessible via a socket on the front
panel. John Westlake leads the design team responsible for developing the 8200CD
and 8200CDQ. Johnʼs technical skills have delivered award-winning digital audio
products spanning the last two decades and a variety of companies have
benefitted from his expertise. John is convinced that the 8200CD and 8200CDQ are
the finest CD players he has ever designed. Specification Output Level @ 1kHz:
RCA: 2.05V RMS XLR: 4.1V RMS Frequency Response ref. 1kHz: 20Hz - 20kHz ±0.2dB
Total Harmonic Distortion: RCA: ＜0.0025% XLR: ＜0.008% Crosstalk @1KHz: RCA:
＞120dB XLR: ＞130dB Dynamic Range 'A' wtd: RCA: ＞98dB XLR: ＞110dB

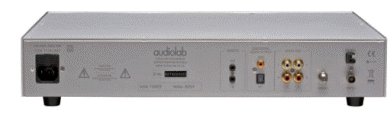

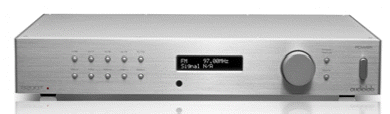

Audiolab’s
first with DAB tuning section designed to bridge the gap between digital and
analogue radio reception, without compromise on either. It offers exceptional
sonic performance and is equipped with one of each coaxial and optical (Toslink)
digital outputs to feed a number of DAC’s in the market. It has an output
sampling frequency of 48kHz and operates seamlessly when connected to Audiolab’s
high quality amplifiers and pre-amplifiers, distinctively complementing its
excellent sound quality. Specification General Description: AM/FM Stereo Tuner
Tuning Parameters (Europe): FM: 87.5-108.0MHz (50kHz steps);AM: 531-1602kHz
(9kHz steps);Stereo FM DE-Emphasis 50μs Tuning Parameters (USA): WFM:
87.5-108.0MHz (1000kHz steps);AM: 531-1602kHz (10kHz steps);Stereo FM
De-Emphasis 75μs Sensitivity (IHF): 5dBμv (typical) Output level: 1VRMS
Signal to Noise Ratio: Typically -73 dB Total Harmonic Distortion: Typically
0.5% Mono and Stereo; Stereo Separation: Typically 36dB Power Consumption: Less
than 25W Dimensions (W×H×D): 445×74×335mm including feet, terminals , and
controls Weight: Net: 5.2kg
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a info@sinergy.us
Il presente listino
sostituisce ed annulla ogni precedente.I prezzi indicati si
riferiscono a singolo diffusore.
Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco
nostro magazzino
Nota bene Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.gif)
The Audiolab 8200 series marks a new generation of products for a storied
British brand. The designers have worked diligently to maintain the ethos of the
brand while infusing a level of musicality and modernity into an exciting new
line of products..gif)
.jpg)
.gif)
.gif)
.gif)
.gif)
.jpg)
.gif)
/8200%20CD%20(2).jpg)
.gif)
.gif)
.gif)
.gif)
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
